Caldwell | SKU:
Caldwell-GC-15

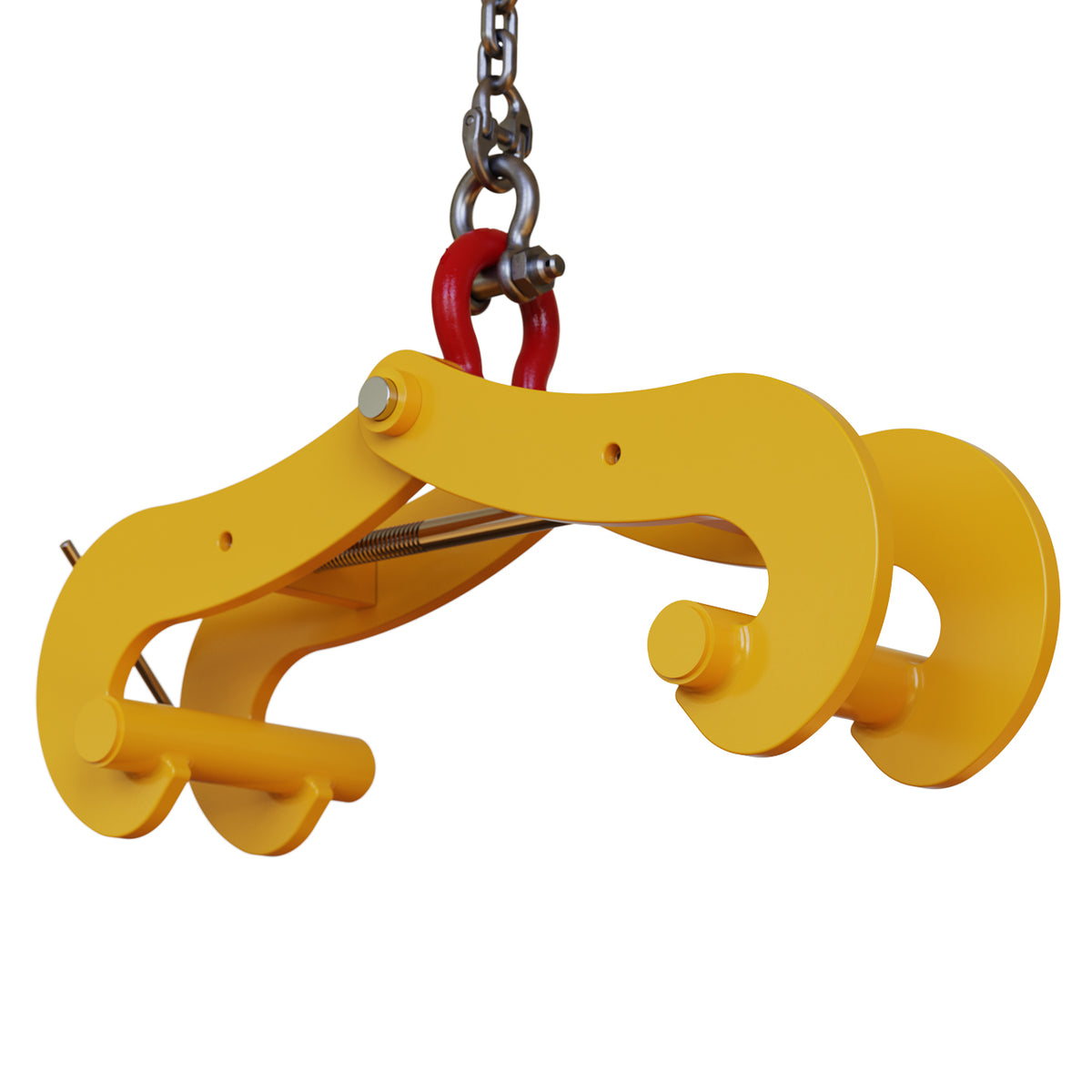

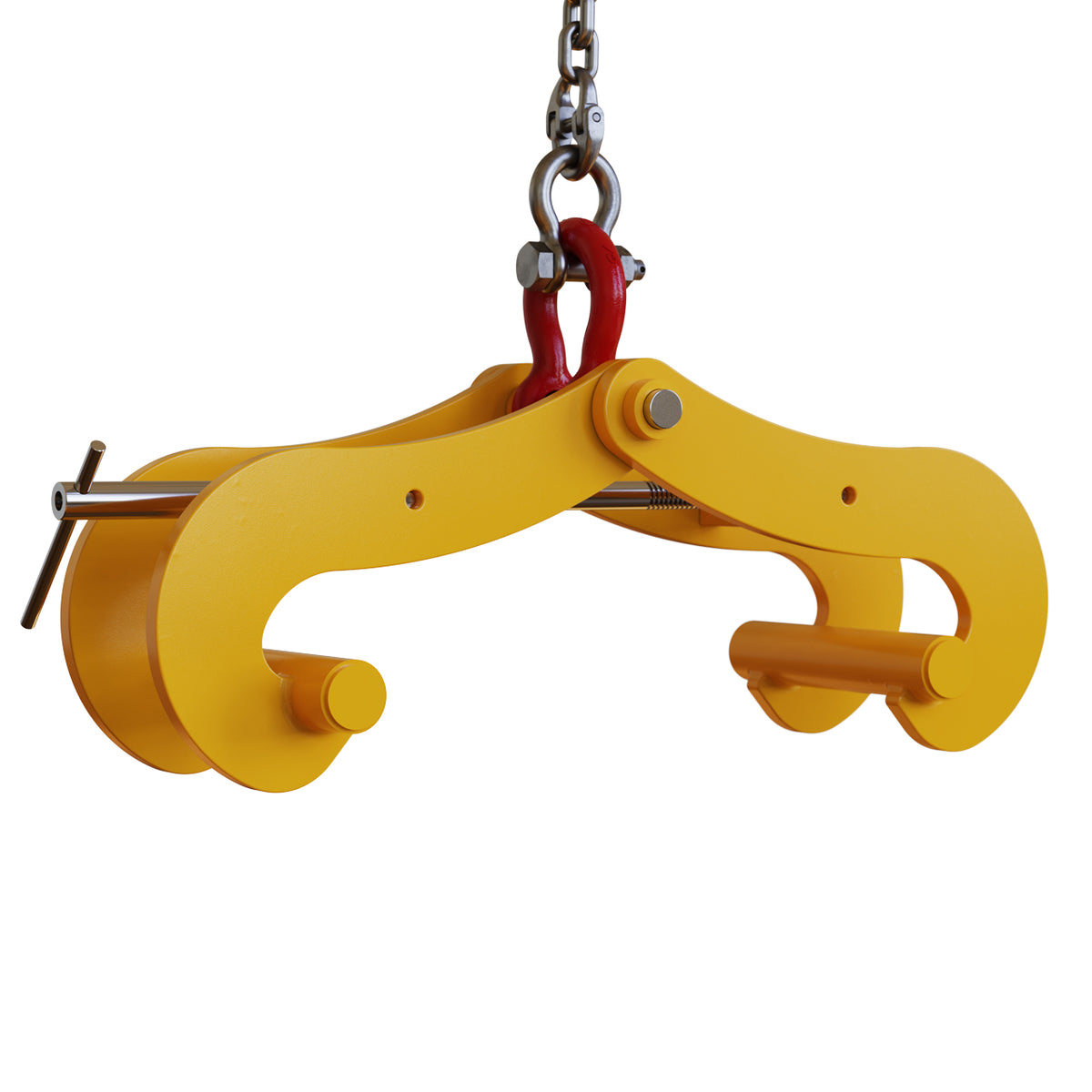

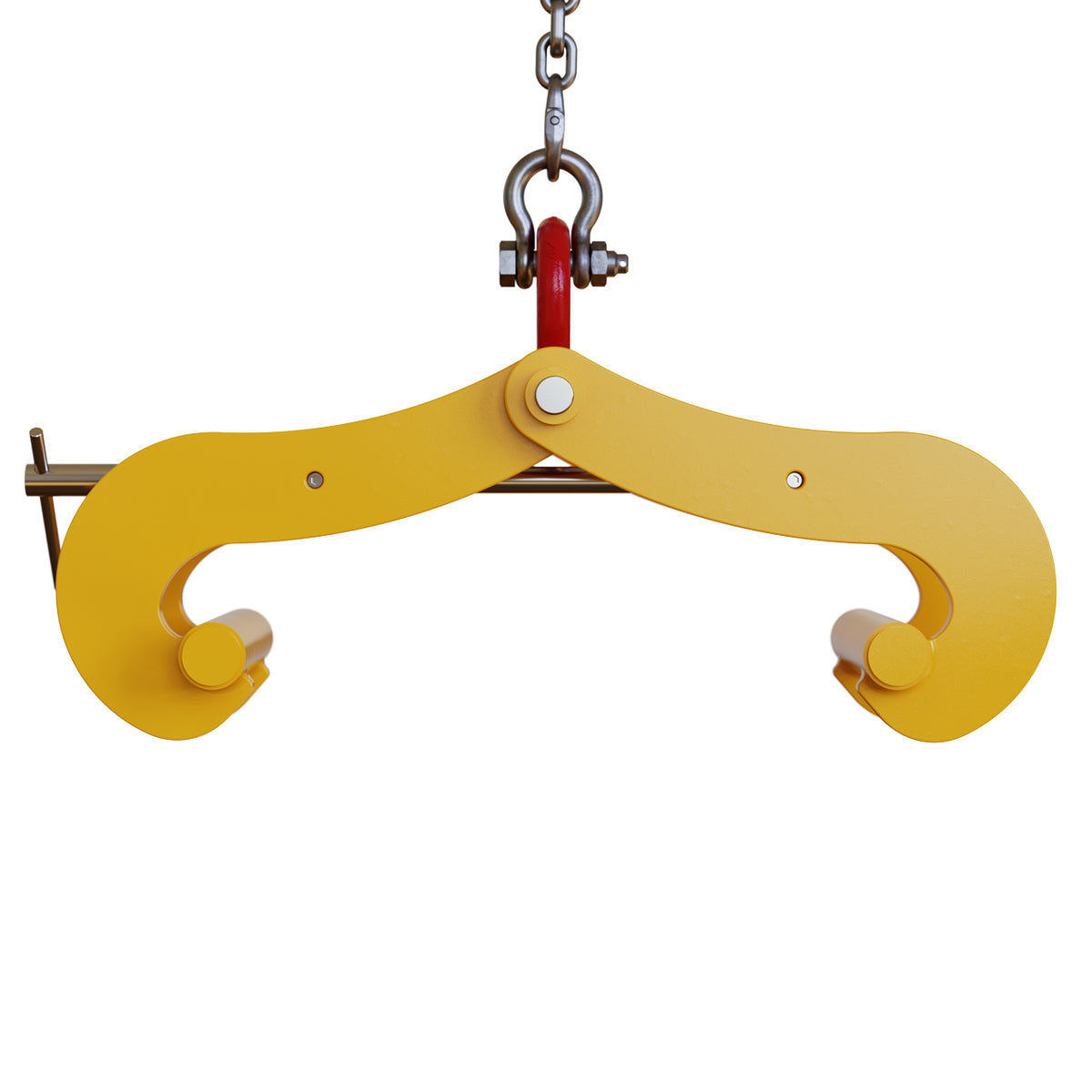

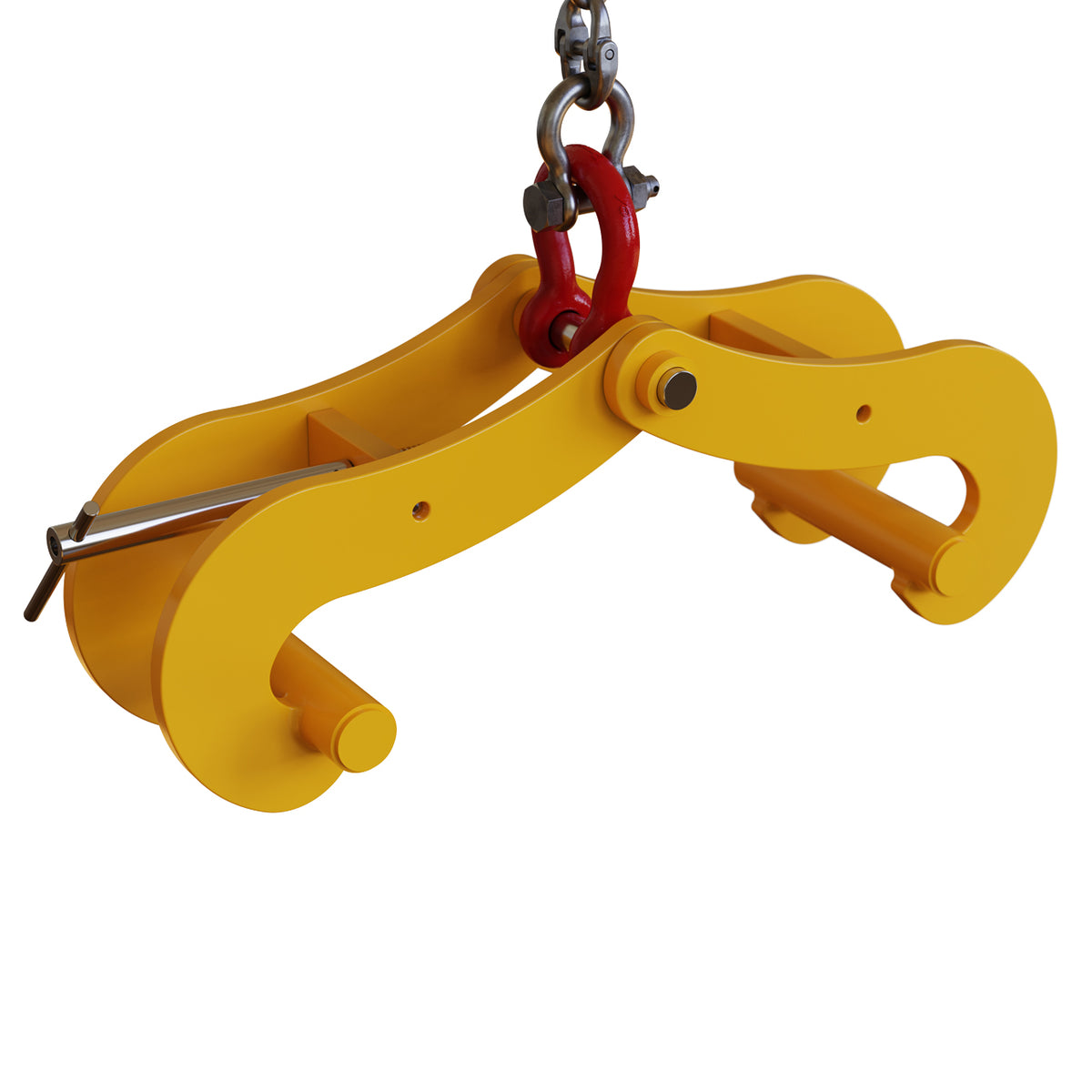

Caldwell Girder Clamp
$4,425.00
Precio unitario
/
Agotado
Caldwell Girder Clamp - 15 está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Girder Clamp
Desde
$4,425.00
Precio unitario
/
Agotado
Choose from three lifting capacities: 15, 20, or 25 tons ... all in stock. For vertical lifting only.
Features

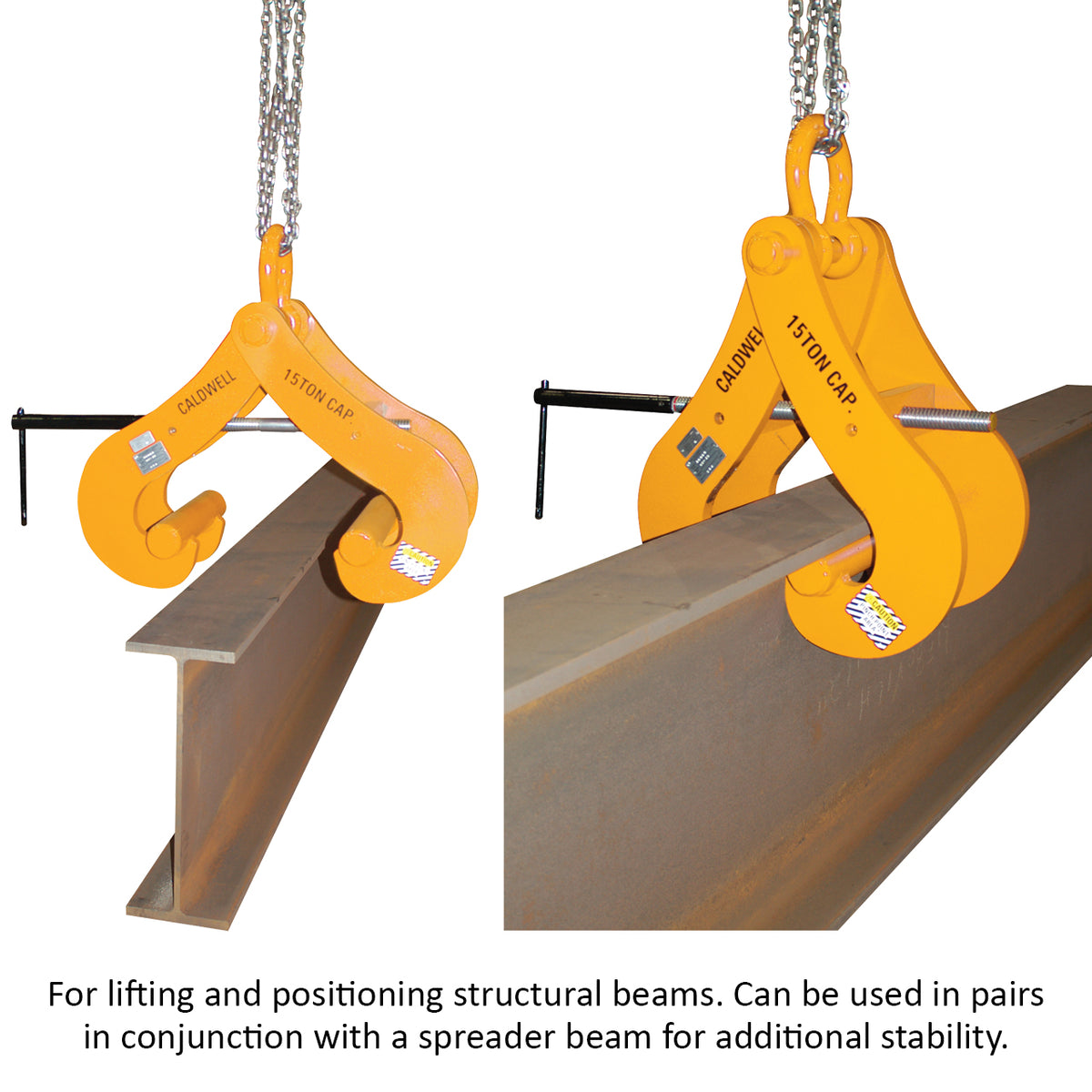

- These clamps provide an efficient method for handling wide flange beam sections and plate girders
- Screw-spindle design ensures positive grip
- Simple design ensures minimum maintenance
- Left-hand thread and right-hand thread screw spindle allows for rapid clamping and unclamping
- Jaw opening adjusts to a wide range of beam types and flange widths
- Use only for vertical lifting
- Complies with ASME standards
Specifications
| Max Flange Width | 24 |
| Max Width Closed | 44 |
| Max Width Open | 23 |
| Min Flange Width | 6 |
| Product Depth | 14.81 |
| Max Flange Thickness | 3 |
Available Models
| Part No. | Capacity (ton) | Capacity | Rated Capacity | Shackle Opening | Shackle Thickness | Max Headroom Closed | Min Headroom Open | Temp Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|
| GC-15 | 15 | 15 | 30000 | 3.9 | 1.6 | 23.4 | 15.7 | 235 | 234 |
| GC-20 | 20 | 20 | 40000 | 5 | 2.1 | 25.9 | 18.3 | 291 | 291 |
| GC-25 | 25 | 25 | 50000 | 5 | 2.1 | 25.9 | 18.3 | 342 | 342 |
