Caldwell  |  SKU: Caldwell-82-5-36

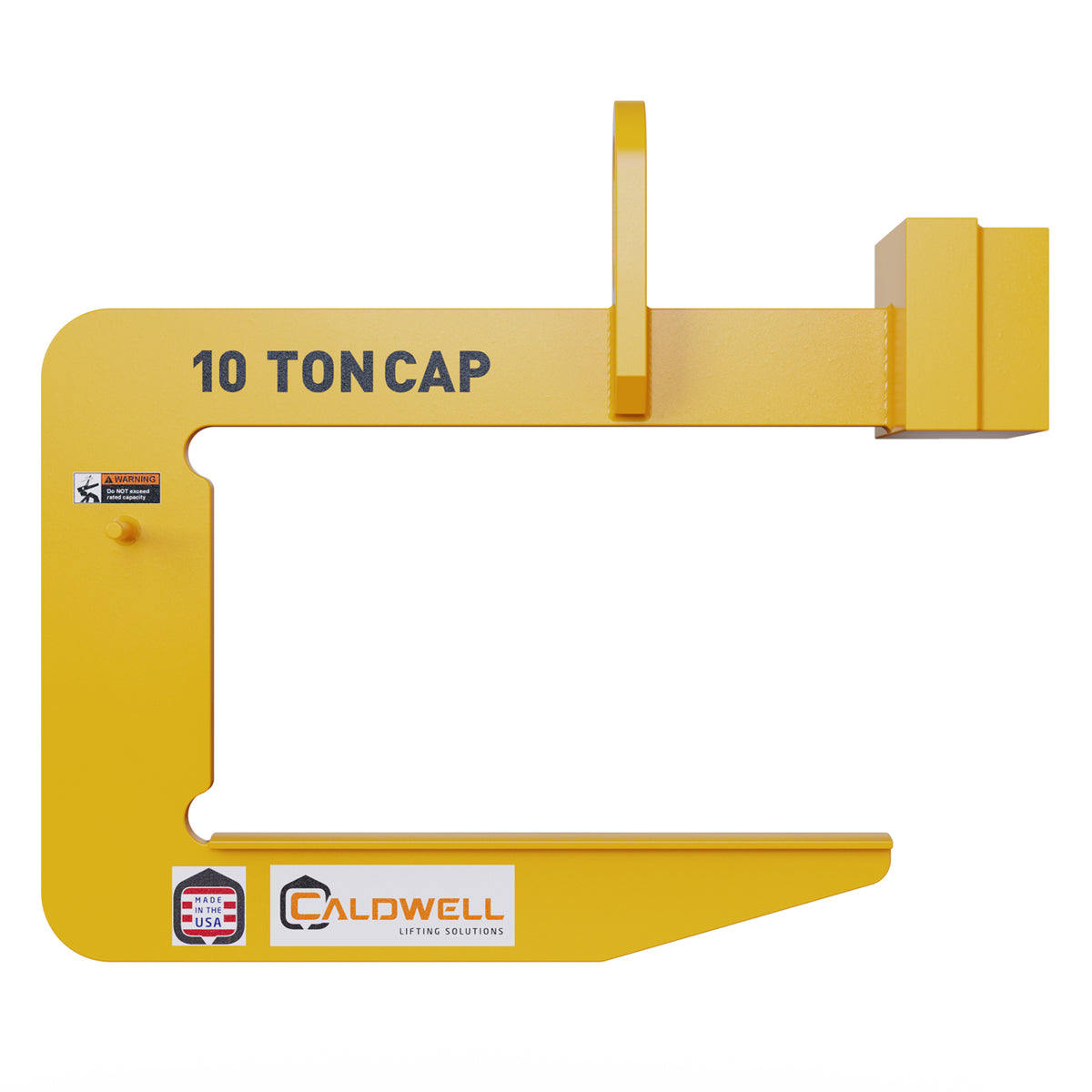

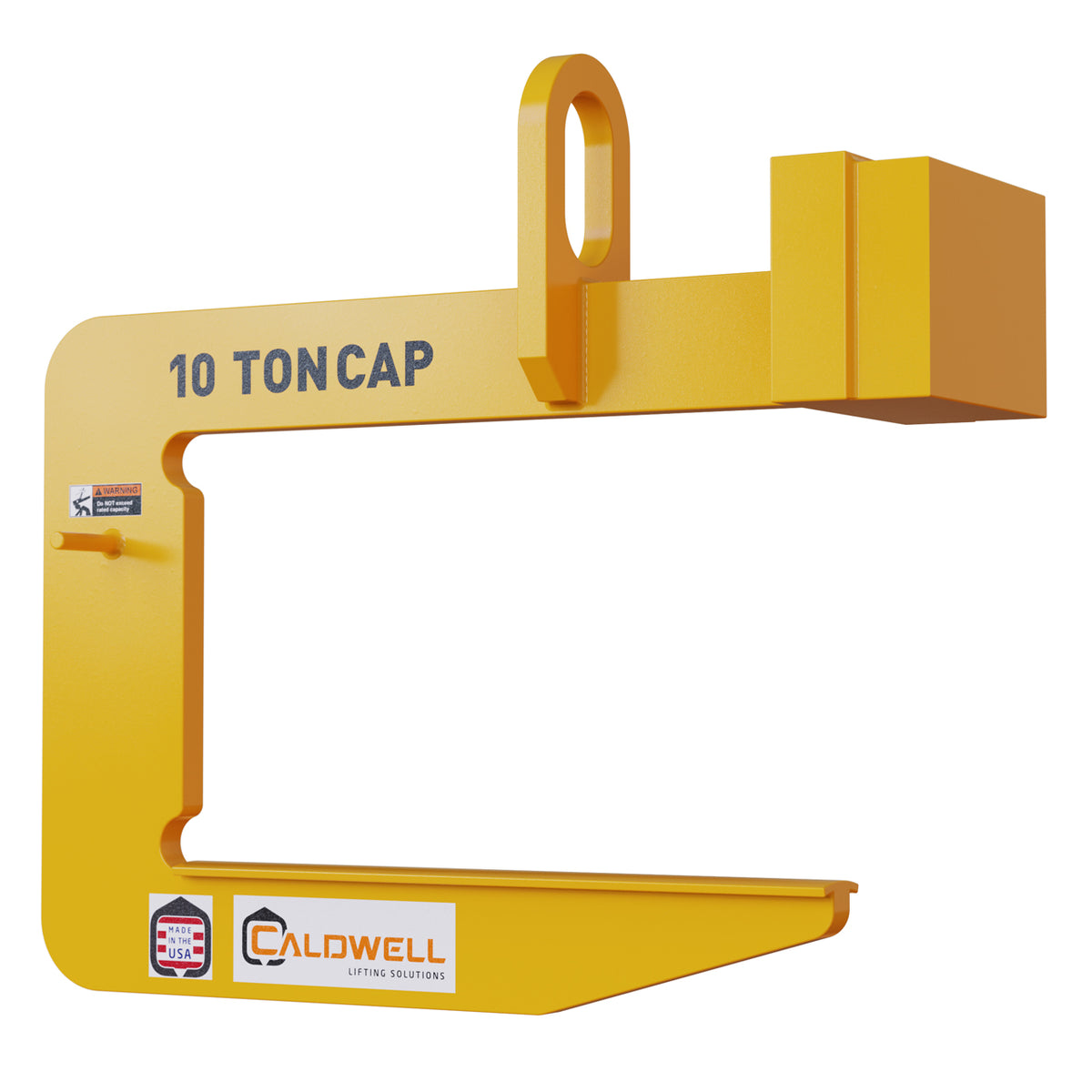

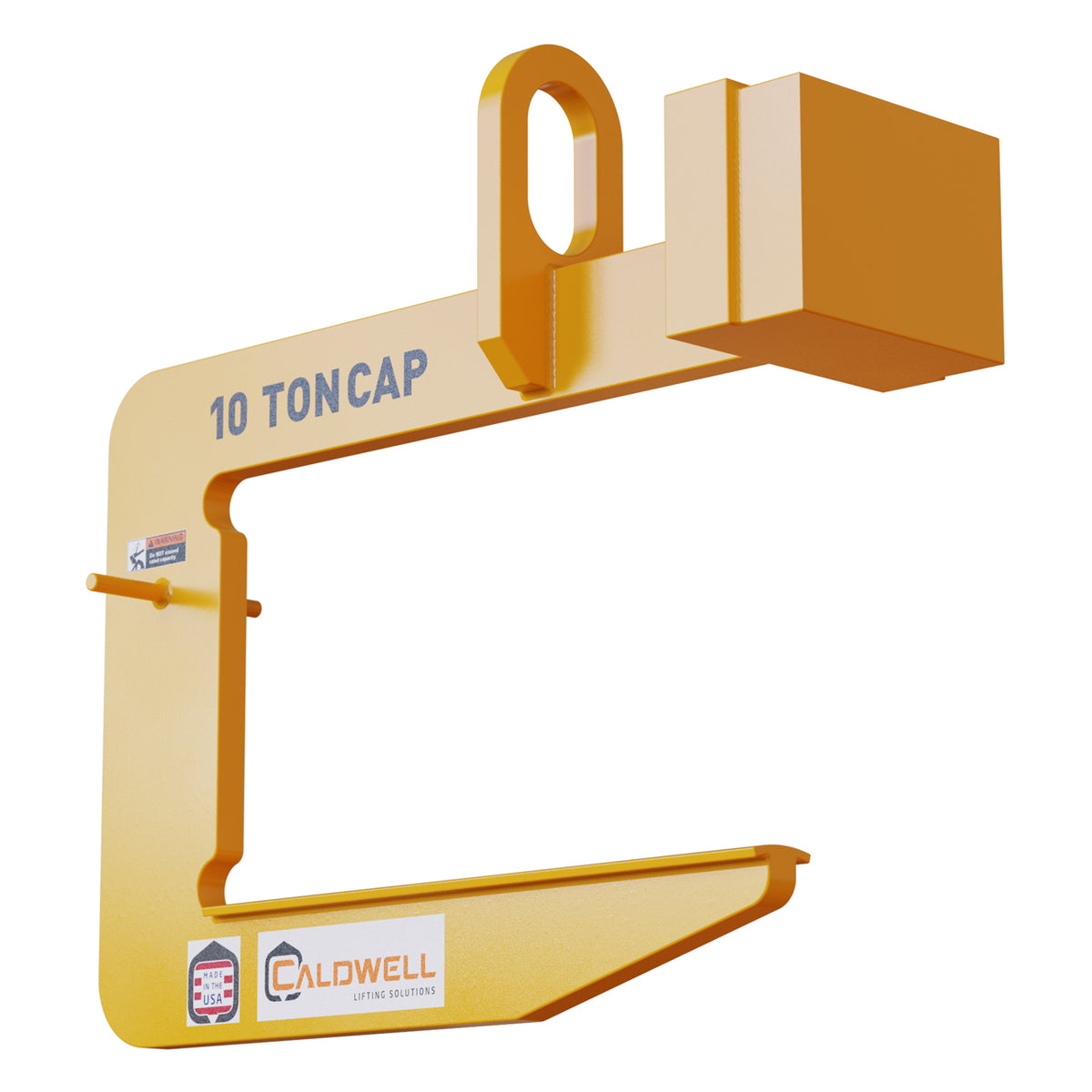

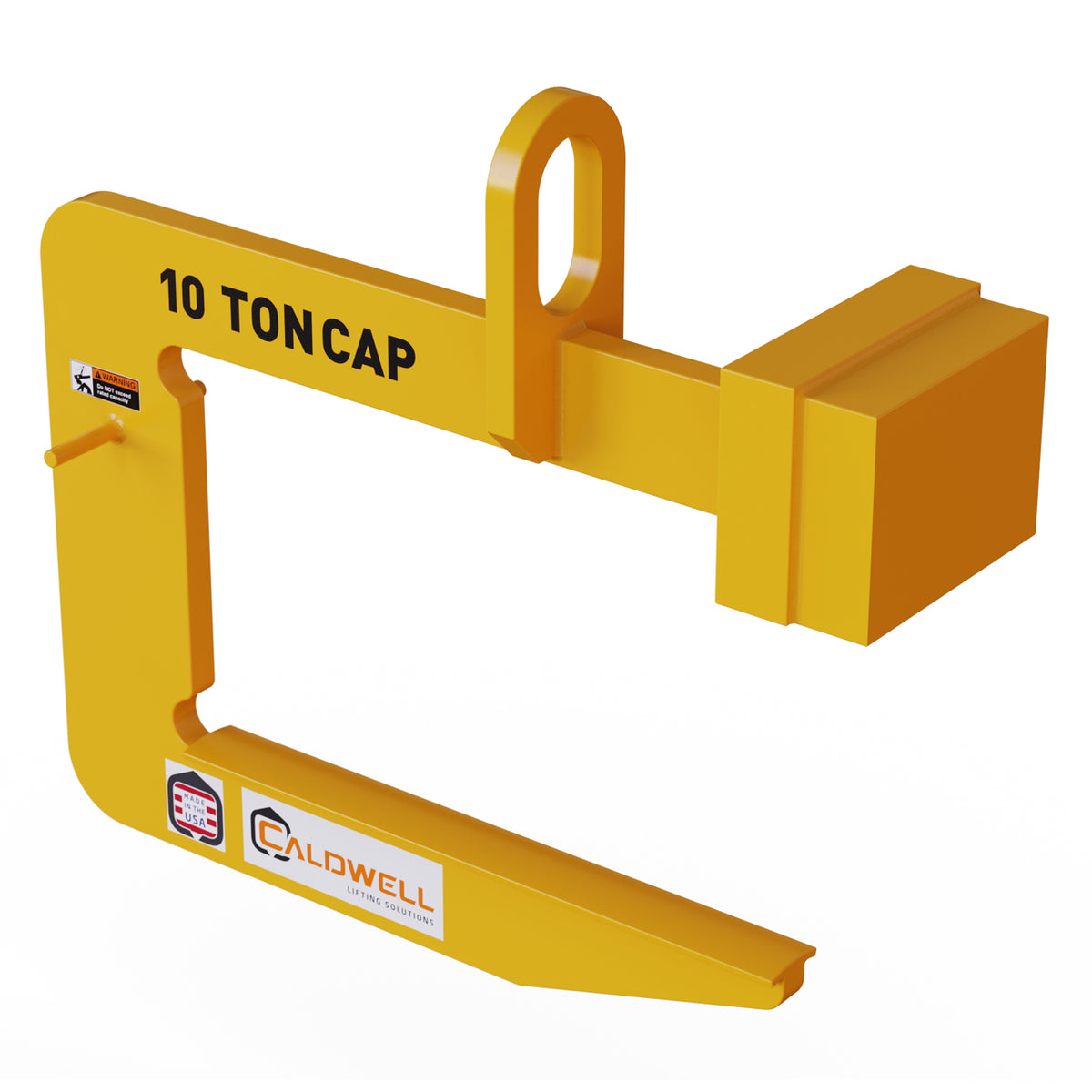

Caldwell Heavy Duty C-Hook

$5,603.00
Request a Quote

With capacities from 5 to 50 tons, this C-hook is built to perform. A mill favorite, the standard design shows up and does the work every day. Need customizations like padding for coil protection, other capacities, or something else? Call 800.628.4263 to talk about your application.

Features

  • Designed for heavy-duty applications
  • High tensile allow steel plate reduces physical size and weight
  • Counter balanced to hang level when empty
  • Inside radius on hooks avoid coil edge contact
  • Curved coil saddle is standard
  • Guide handles for ease of hook positioning
  • Handles a wide range of coil widths
  • Available with optional padding for additional coil protection
  • Complies with ASME standards

Available Models

Part No. Capacity (ton) Maximum Coil Width (in.) Rated Capacity Capacity Lifting Arm Width With Saddle Bail Opening Width Bail Opening Height Lifting Arm Length Max Coil Width Min Coil Width Throat Opening Bail Thickness
82-5-36 5 36 10000 5 4 4 7 30 36 24 24 1.25
82-5-48 5 48 10000 5 4 4 7 39 48 30 24 1.25
82-5-60 5 60 10000 5 4 4 7 48 60 36 24 1.25
82-7.5-36 7.5 36 15000 7.5 4 4 7 30 36 24 24 1.5
82-7.5-48 7.5 48 15000 7.5 4 4 7 39 48 30 24 1.5
82-7.5-60 7.5 60 15000 7.5 4 4 7 48 60 36 24 1.5
82-10-48 10 48 20000 10 4 5 9 39 48 30 24 1.75
82-10-60 10 60 20000 10 4 5 9 48 60 36 24 1.75
82-10-72 10 72 20000 10 4 5 9 57 72 42 24 1.75
82-15-48 15 48 30000 15 4 5 9 39 48 30 30 1.75
82-15-60 15 60 30000 15 4 5 9 48 60 36 30 1.75
82-15-72 15 72 30000 15 4 5 9 57 72 42 30 1.75
82-20-60 20 60 40000 20 4 6 12 48 60 36 30 2
82-20-72 20 72 40000 20 4 6 12 57 72 42 30 2
82-25-60 25 60 50000 25 4 6 14 48 60 36 34 2.25
82-25-72 25 72 50000 25 4 6 14 57 72 42 34 2.25
82-30-60 30 60 60000 30 4 6 14 48 60 36 34 2.5
82-30-72 30 72 60000 30 4 6 14 57 72 42 34 2.5
82-30-84 30 84 60000 — — — — — — — — —
82-40-72 40 72 80000 40 5 7 18 57 72 42 38 3
82-50-84 50 84 100000 50 6 7 18 64.5 84 48 45 3
