Caldwell  |  SKU: Caldwell-88-2-36

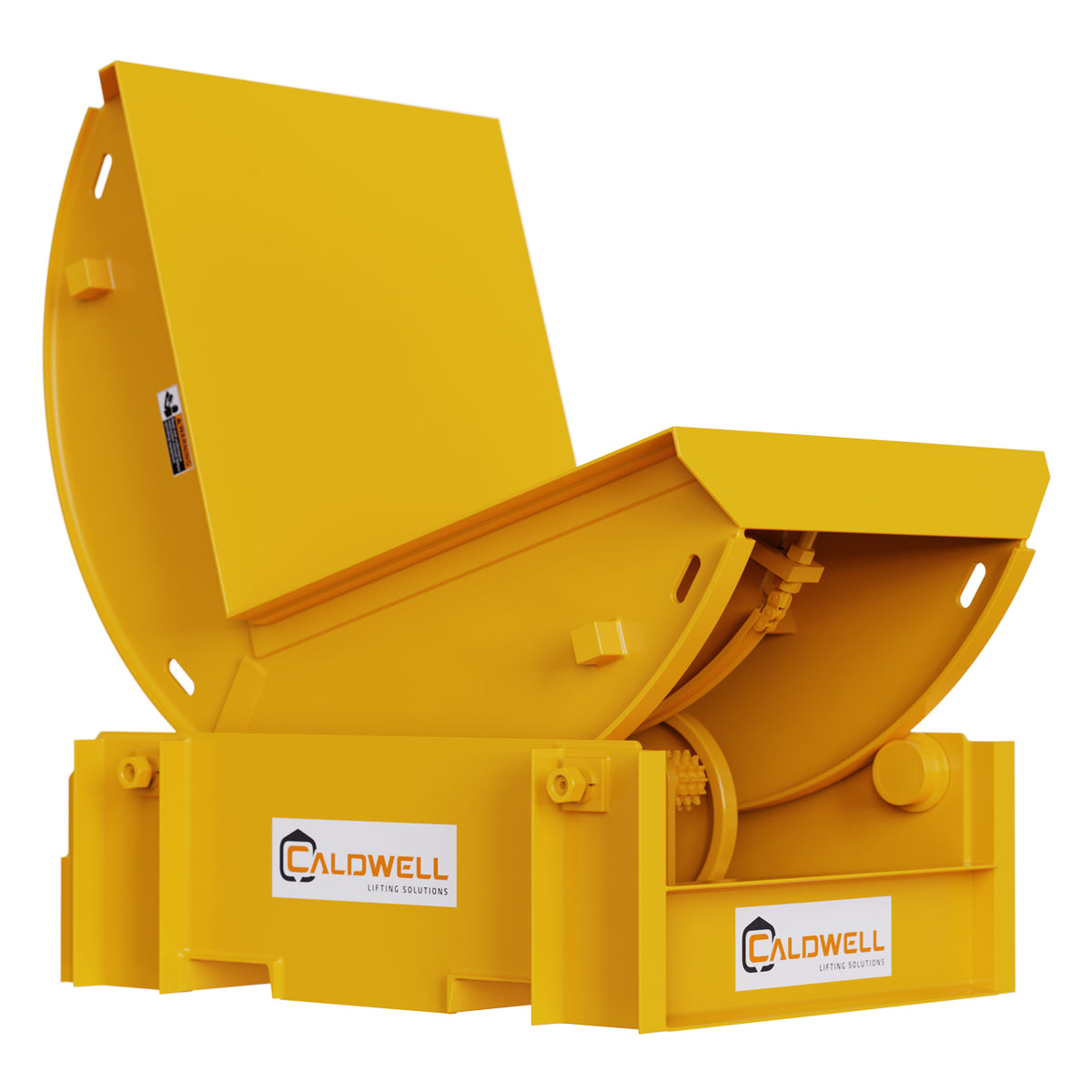

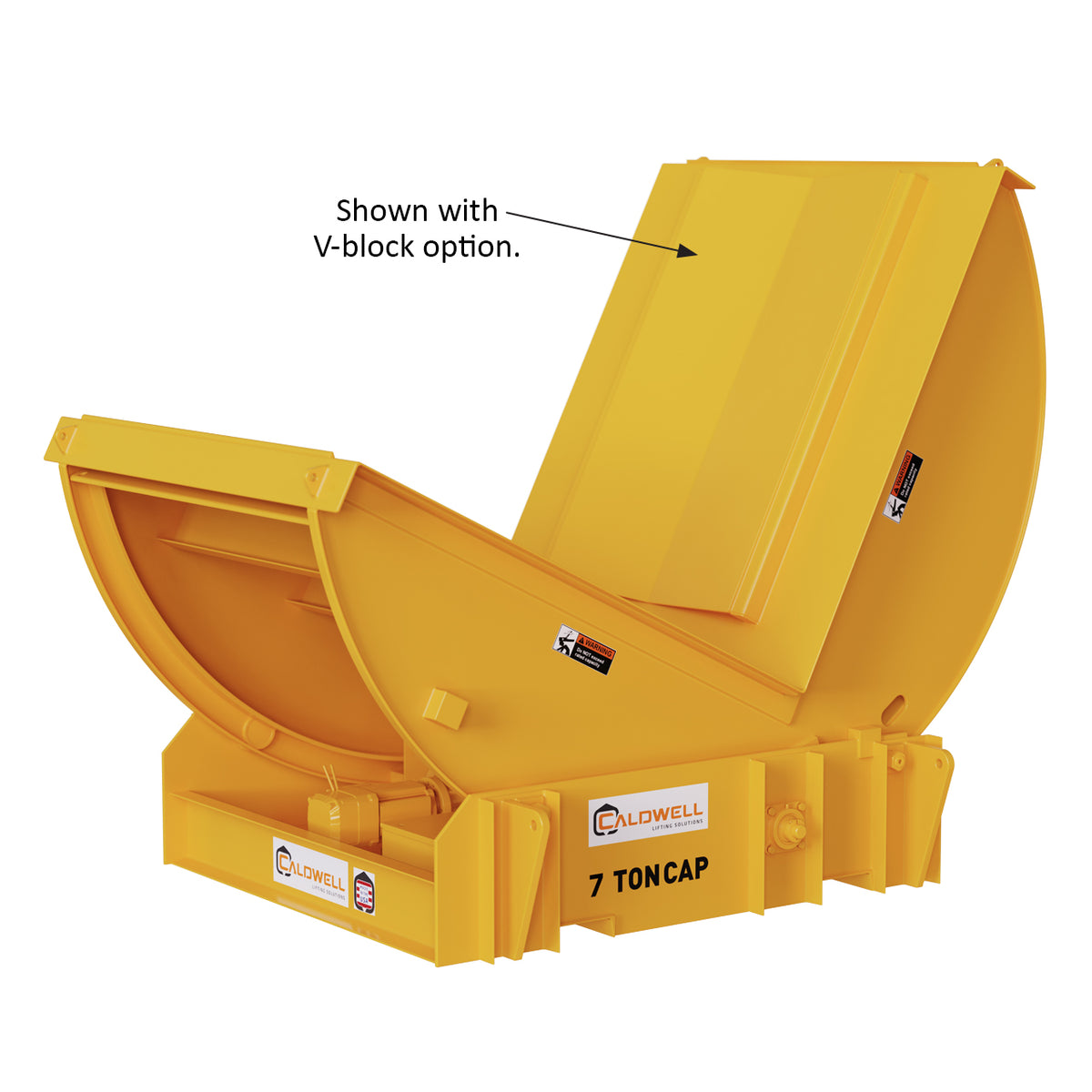

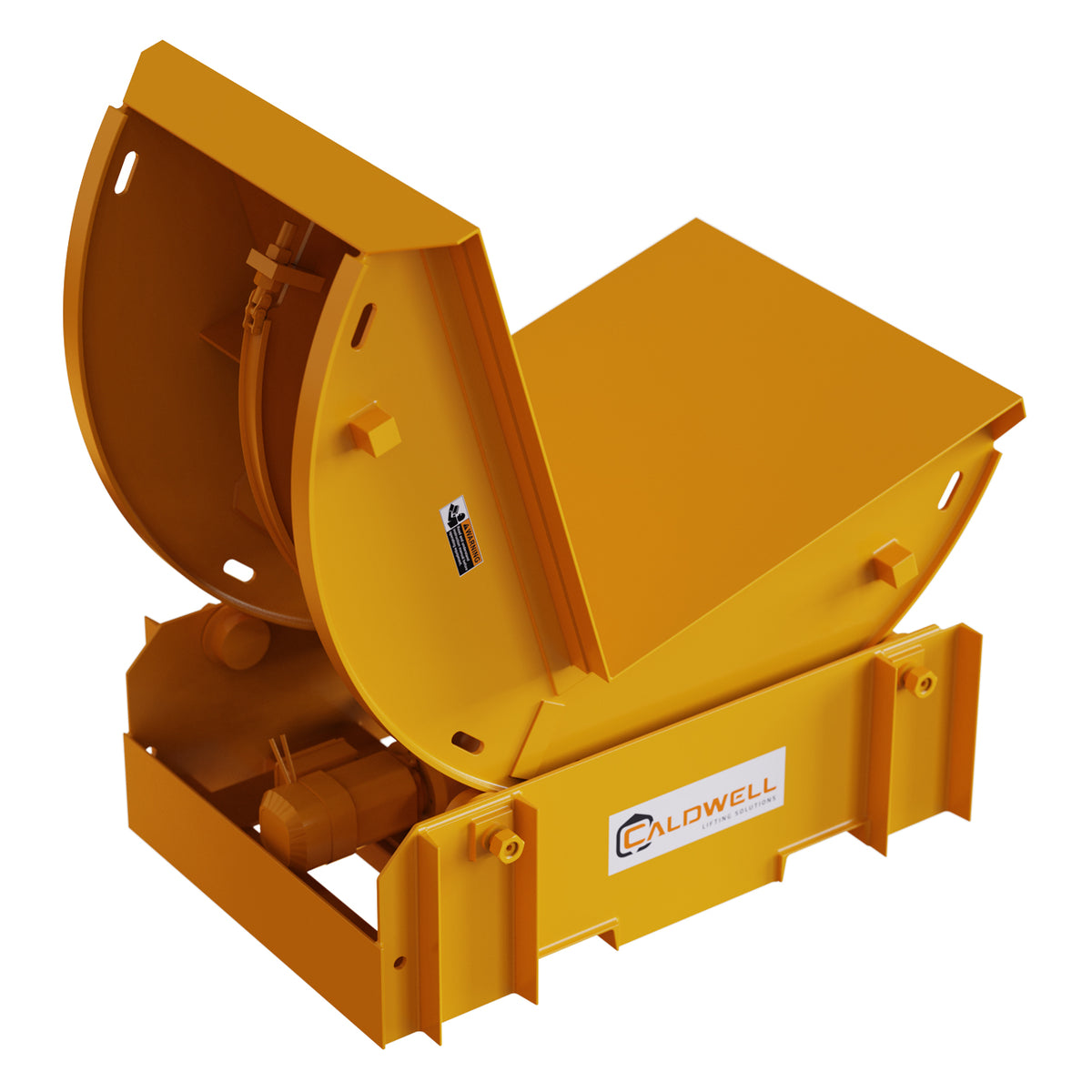

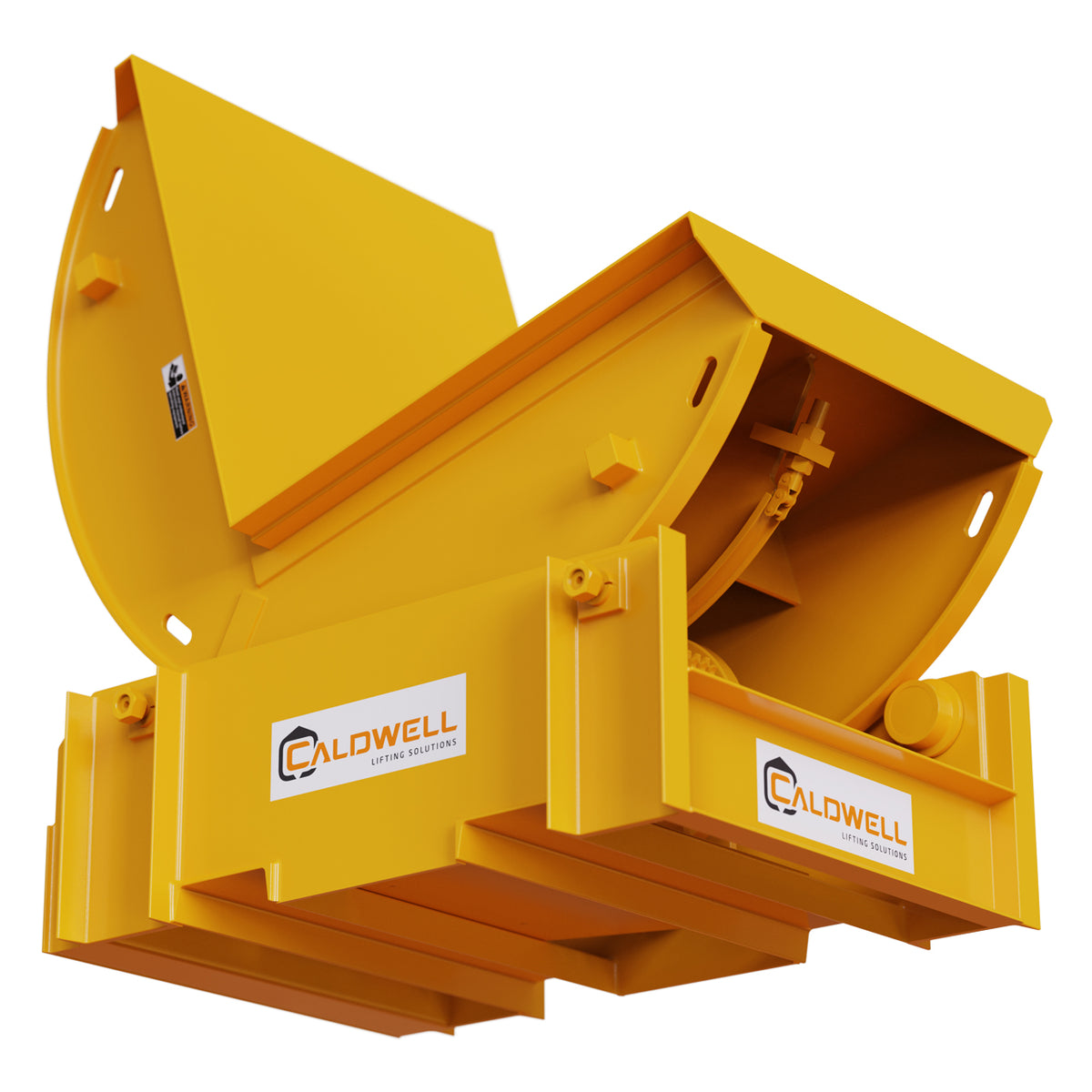

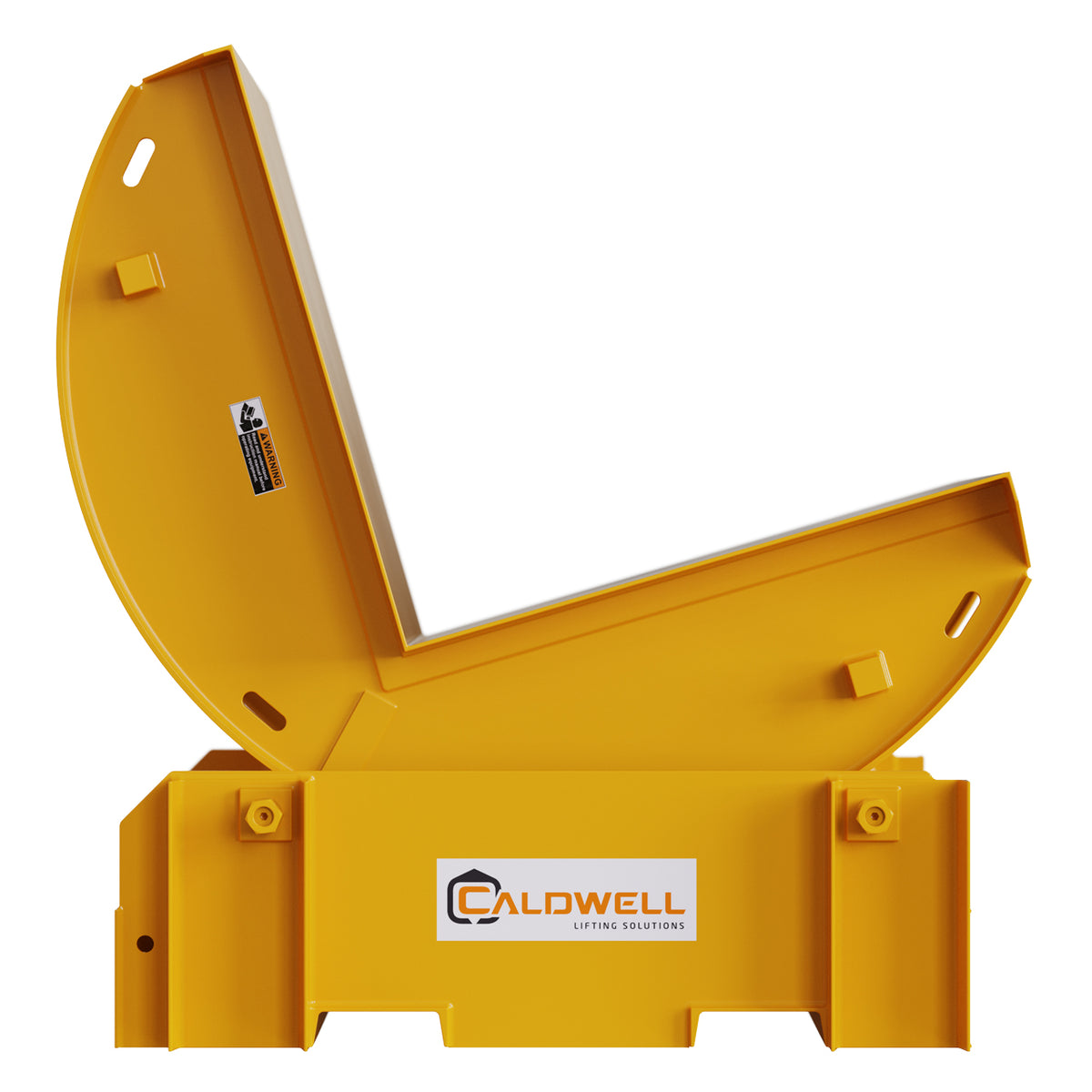

Caldwell Heavy Duty Coil Upender

$49,563.00
Request a Quote

Faster, safer way to upend coils. First specify your operating voltage, then pick a capacity between 1 and 30 tons.



Features

  • Fast and convenient way to upend coils to 90 degrees
  • 240 or 480 operating voltage
  • Heavy duty disc brake will stop load in any position
  • Reversing magnetic starter with pendant control and 10' cord
  • Stop travel/over travel limit swithes
  • Additional product options

Available Models

Part No. Capacity Rated Capacity Platform Height Bail Width Platform Length Platform Width Tub Width Base Length Temp Weight
88-2-36 2 — 24 36 36 36 51 48 1600
88-3-42 3 — 24 42 42 42 60 56 2000
88-4-42 4 8000 24 42 42 42 60 56 2200
88-5-48 5 — 30 48 48 48 66 61 2750
88-7.1/2-48 7.5 15000 30 48 48 48 66 61 2900
88-10-54 10 — 30 55 54 54 74 60 3700
88-12 1/2-54 12.5 — 36 55 54 54 74 69 4000
88-15-60 15 30000 36 60 60 60 80 73 4500
88-20-60 20 — 36 60 60 60 80 73 6200
88-30-72 32 — 48 72 72 72 96 88 12000
88-25-72 25 — 43 72 72 72 96 88 10000
Caldwell Heavy Duty Coil Upender
Caldwell

Caldwell Heavy Duty Coil Upender

Desde $49,563.00

Faster, safer way to upend coils. First specify your operating voltage, then pick a capacity between 1 and 30 tons.



Features

Available Models

Part No. Capacity Rated Capacity Platform Height Bail Width Platform Length Platform Width Tub Width Base Length Temp Weight
88-2-36 2 — 24 36 36 36 51 48 1600
88-3-42 3 — 24 42 42 42 60 56 2000
88-4-42 4 8000 24 42 42 42 60 56 2200
88-5-48 5 — 30 48 48 48 66 61 2750
88-7.1/2-48 7.5 15000 30 48 48 48 66 61 2900
88-10-54 10 — 30 55 54 54 74 60 3700
88-12 1/2-54 12.5 — 36 55 54 54 74 69 4000
88-15-60 15 30000 36 60 60 60 80 73 4500
88-20-60 20 — 36 60 60 60 80 73 6200
88-30-72 32 — 48 72 72 72 96 88 12000
88-25-72 25 — 43 72 72 72 96 88 10000

Capacity

  • 2
  • 3
  • 4
  • 5
  • 7.5
  • 10
  • 12.5
  • 15
  • 20
  • 32
  • 25
