Caldwell | SKU:
Caldwell-97-7 1/2-48

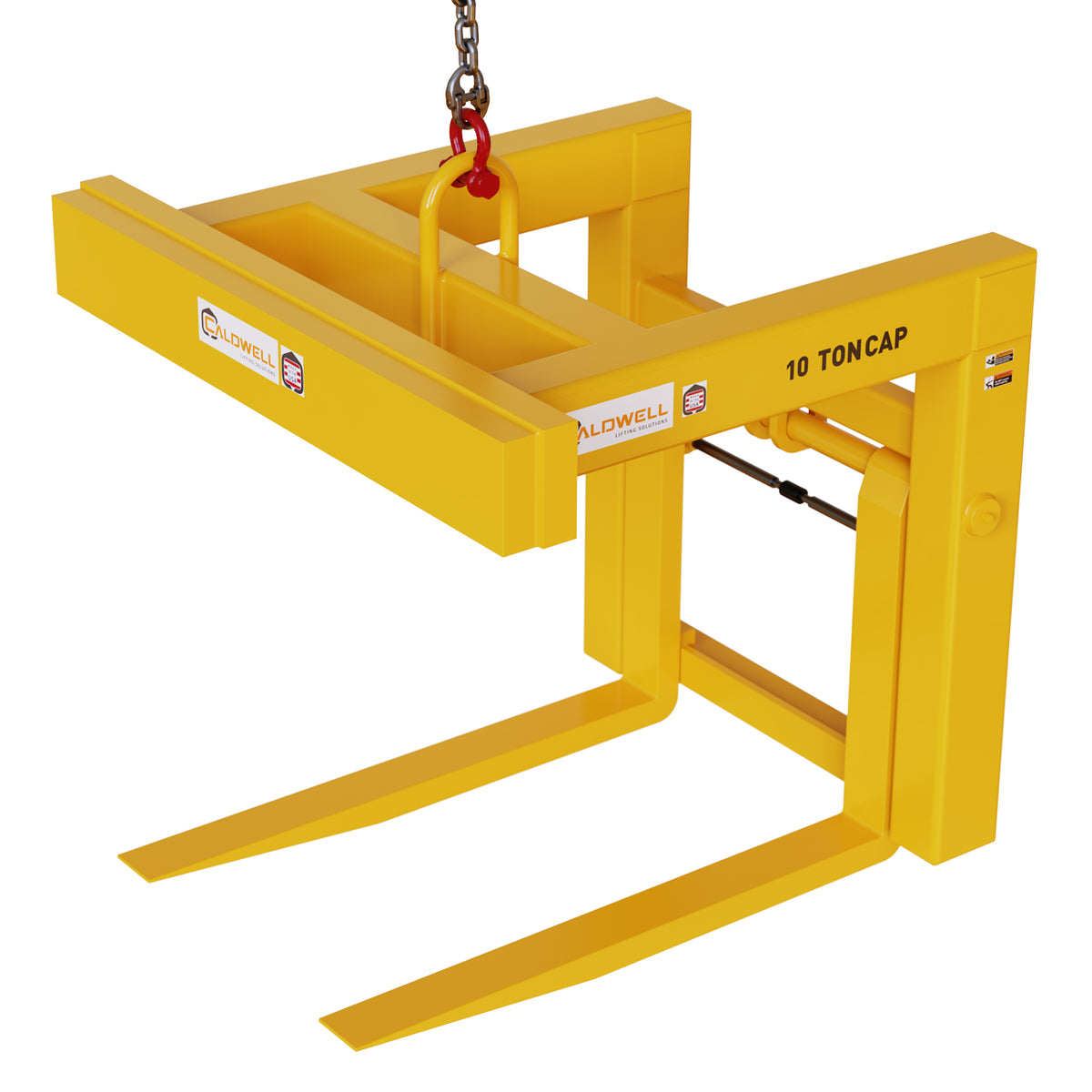

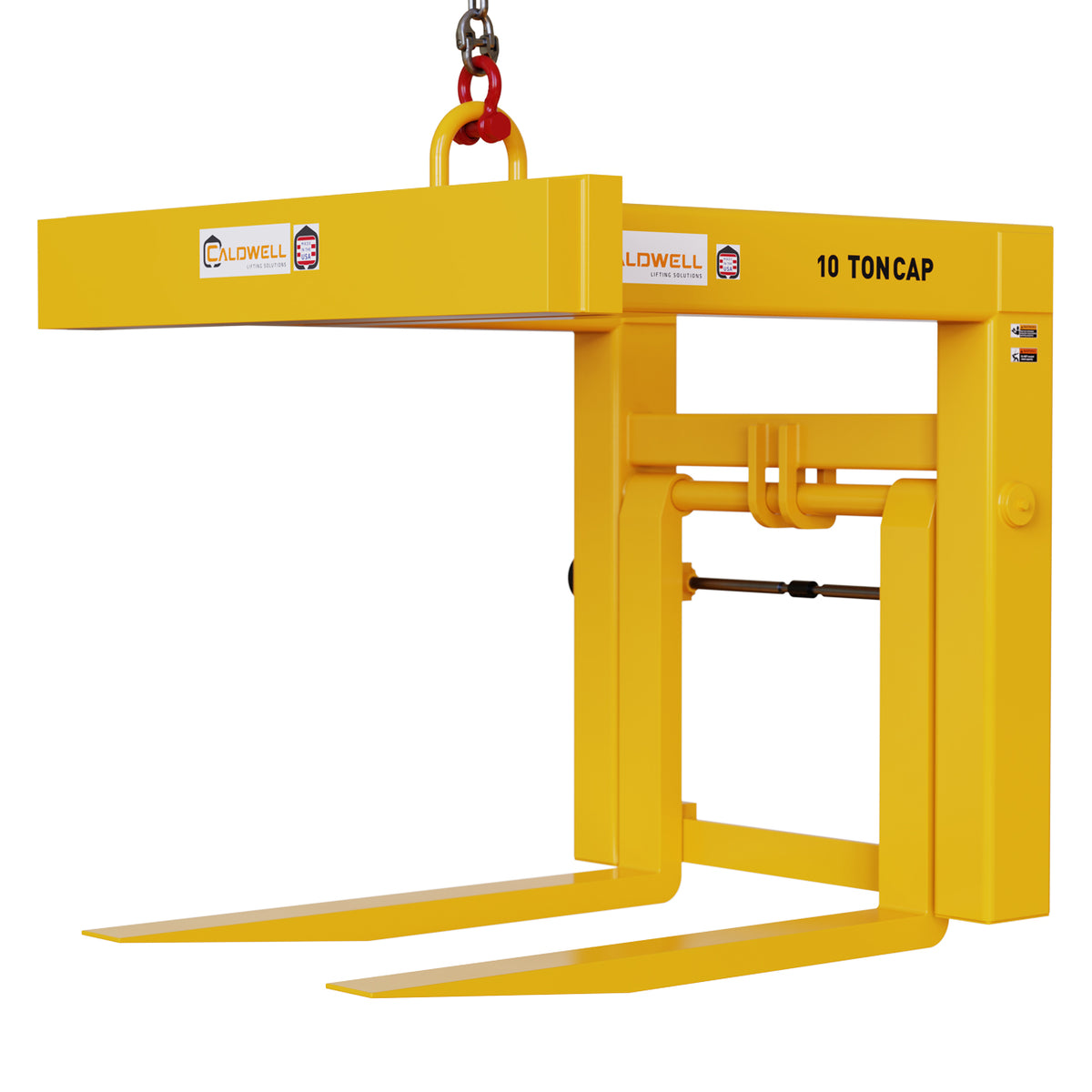

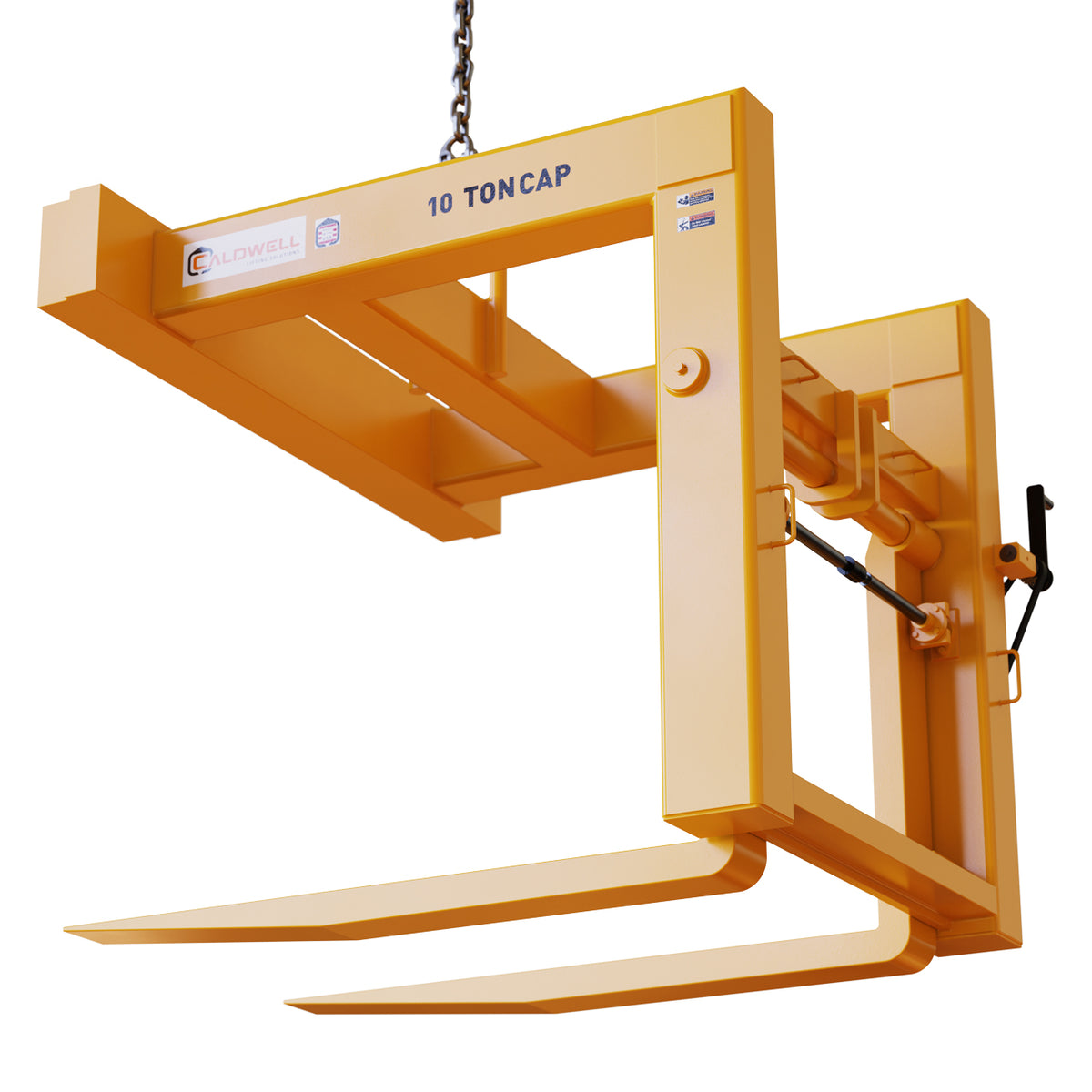

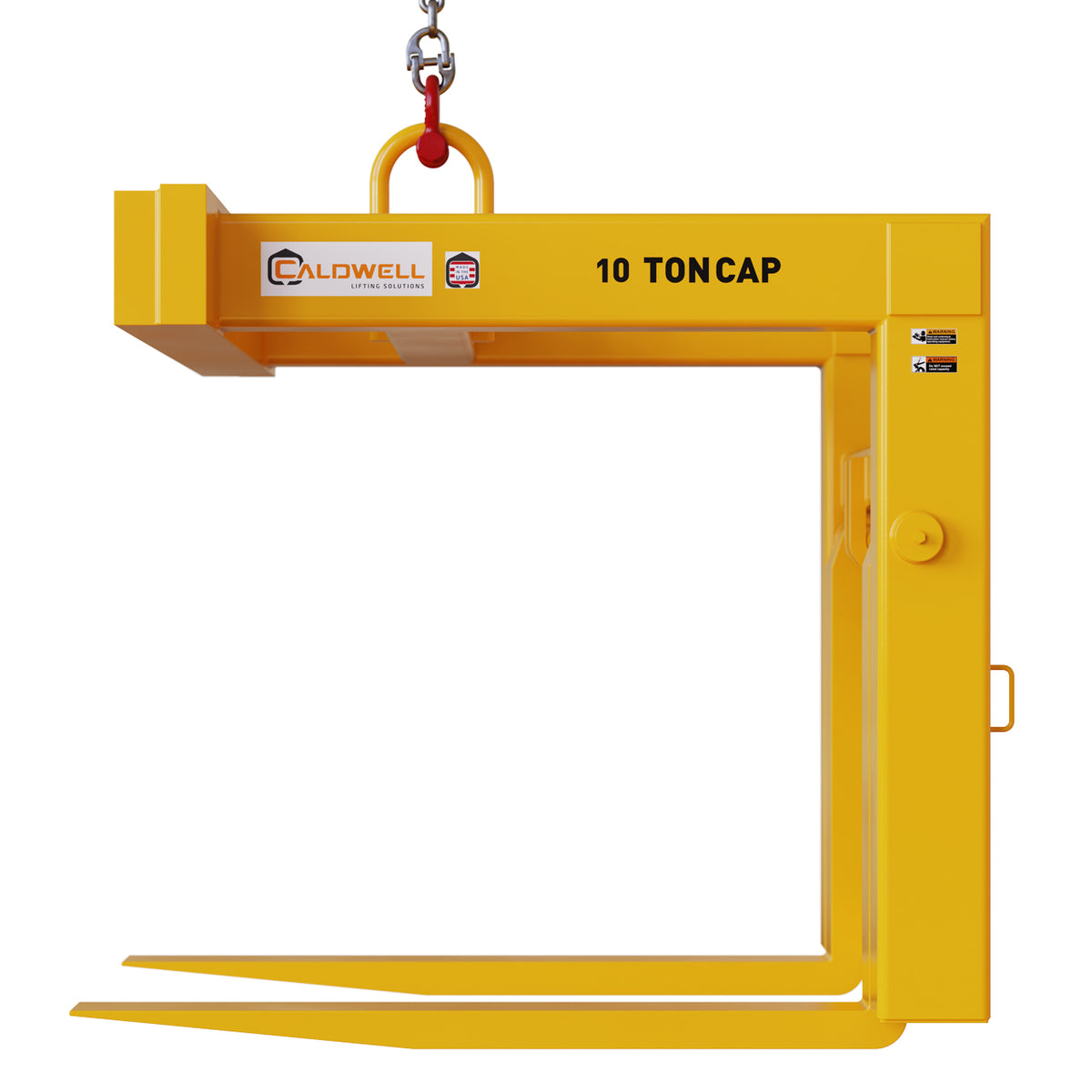

Caldwell Heavy Duty Hand Wheel Adjustable Fork
$36,199.00
Precio unitario
/
Agotado
Caldwell Heavy Duty Hand Wheel Adjustable Fork - 7.5 / 48 está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Heavy Duty Hand Wheel Adjustable Fork
Desde
$36,199.00
Precio unitario
/
Agotado
Heavy-duty, double-frame version of Model 92.
Features
- Hand wheel adjustable forks for ease of adjustment
- Forged forks allow for smaller fork sizes
- Double frame design for heavy capacities
- Complies with ASME standards
Specifications
| Bail Depth | 2 |
| Fork Inside To Inside Min Width | 20 |
| Fork Inside To Inside Max Width | 48 |
Available Models
| Part No. | Capacity (ton) | Fork Length | Capacity | Rated Capacity | Bail Opening Height | Bail Opening Width | Max Load Height | Fork Thickness | Fork Width | Load Center Point | Headroom | Temp Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 97-7 1/2-48 | 7.5 | 48 | 7.5 | 15000 | 9 | 5 | 48 | 2.5 | 6 | 24 | 66 | 2600 |
| 97-7 1/2-60 | 7.5 | 60 | 7.5 | 15000 | 9 | 5 | 60 | 3 | 6 | 30 | 77.5 | 3500 |
| 97-7 1/2-72 | 7.5 | 72 | 7.5 | 15000 | 9 | 5 | 60 | 3 | 6 | 36 | 80 | 3950 |
| 97-10-48 | 10 | 48 | 10 | 20000 | 9 | 5 | 48 | 3 | 6 | 24 | 65.5 | 3150 |
| 97-10-60 | 10 | 60 | 10 | 20000 | 9 | 5 | 60 | 3 | 6 | 30 | 77.5 | 3850 |
| 97-12 1/2-48 | 12.5 | 48 | 12.5 | 25000 | 12 | 6 | 48 | 3 | 6 | 24 | 82 | 4200 |
| 97-12 1/2-60 | 12.5 | 60 | 12.5 | 25000 | 12 | 6 | 60 | 3 | 6 | 30 | 82 | 4950 |
| 97-12 1/2-72 | 12.5 | 72 | 12.5 | 25000 | 12 | 6 | 60 | 3.5 | 7 | 36 | 82 | 5750 |
| 97-15-60 | 15 | 60 | 15 | 30000 | 12 | 6 | 60 | 3.5 | 7 | 30 | 82 | 5300 |
| 97-15-72 | 15 | 72 | 15 | 30000 | 12 | 6 | 60 | 3.5 | 8 | 36 | 82.5 | 6400 |
