Caldwell  |  SKU: Caldwell-60-3-48

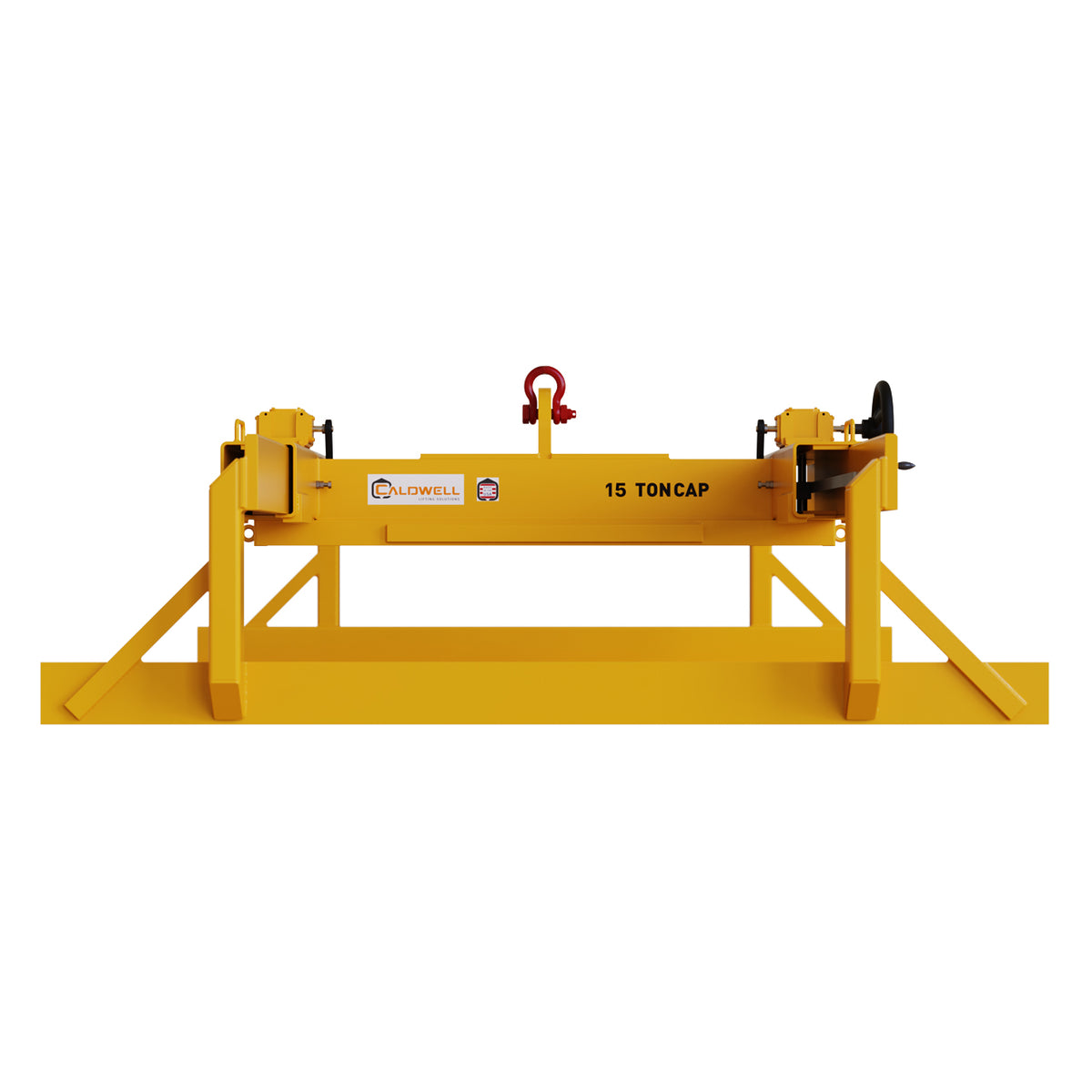

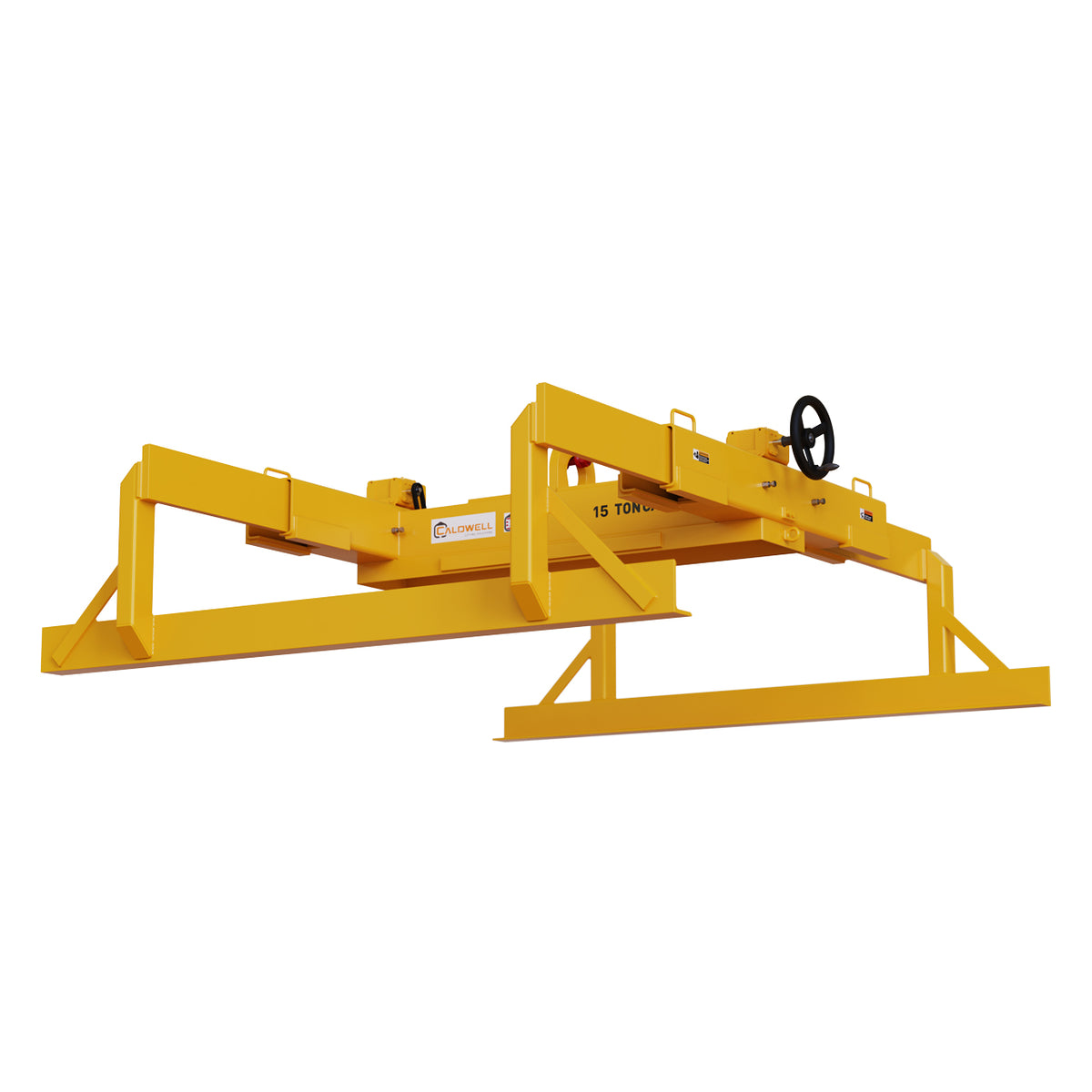

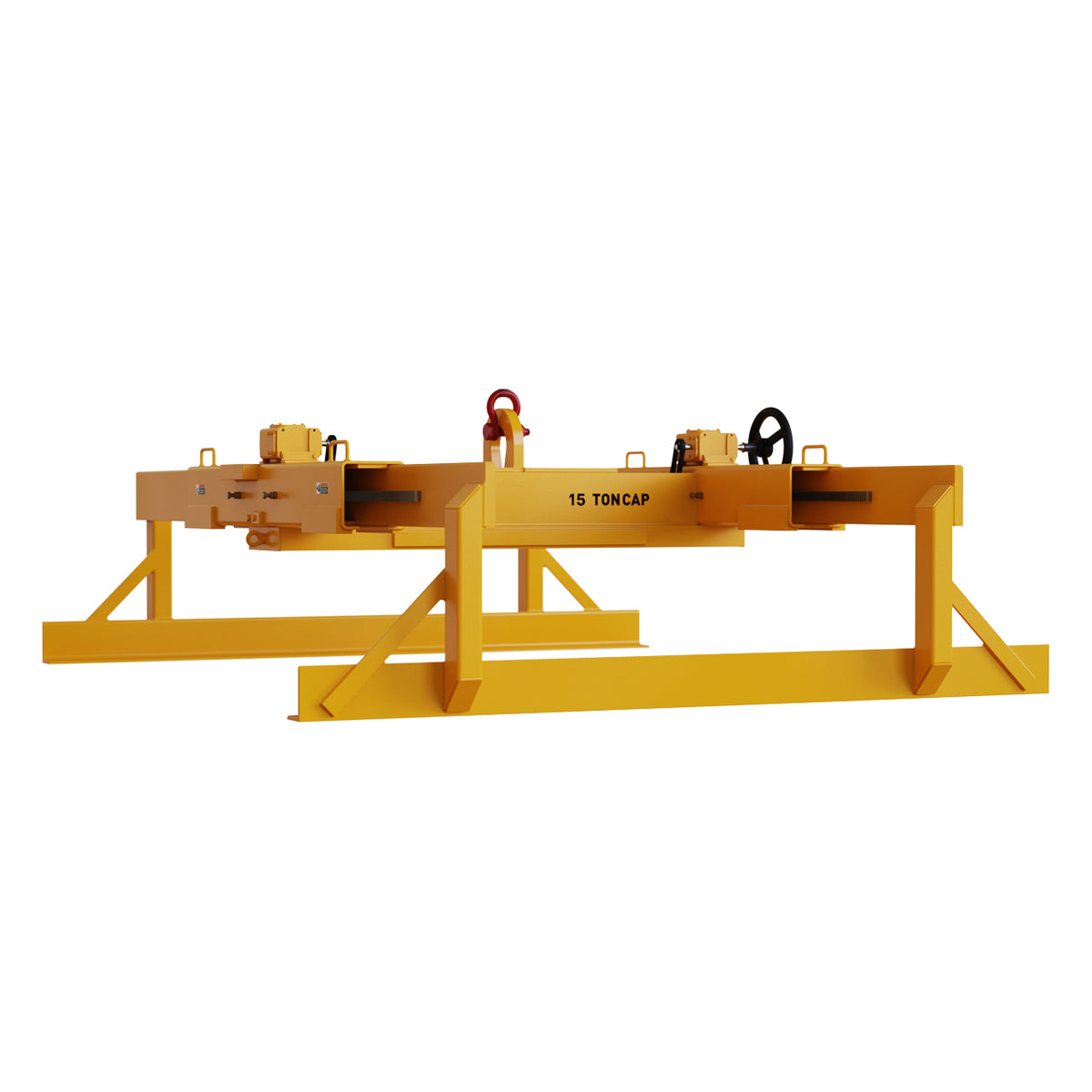

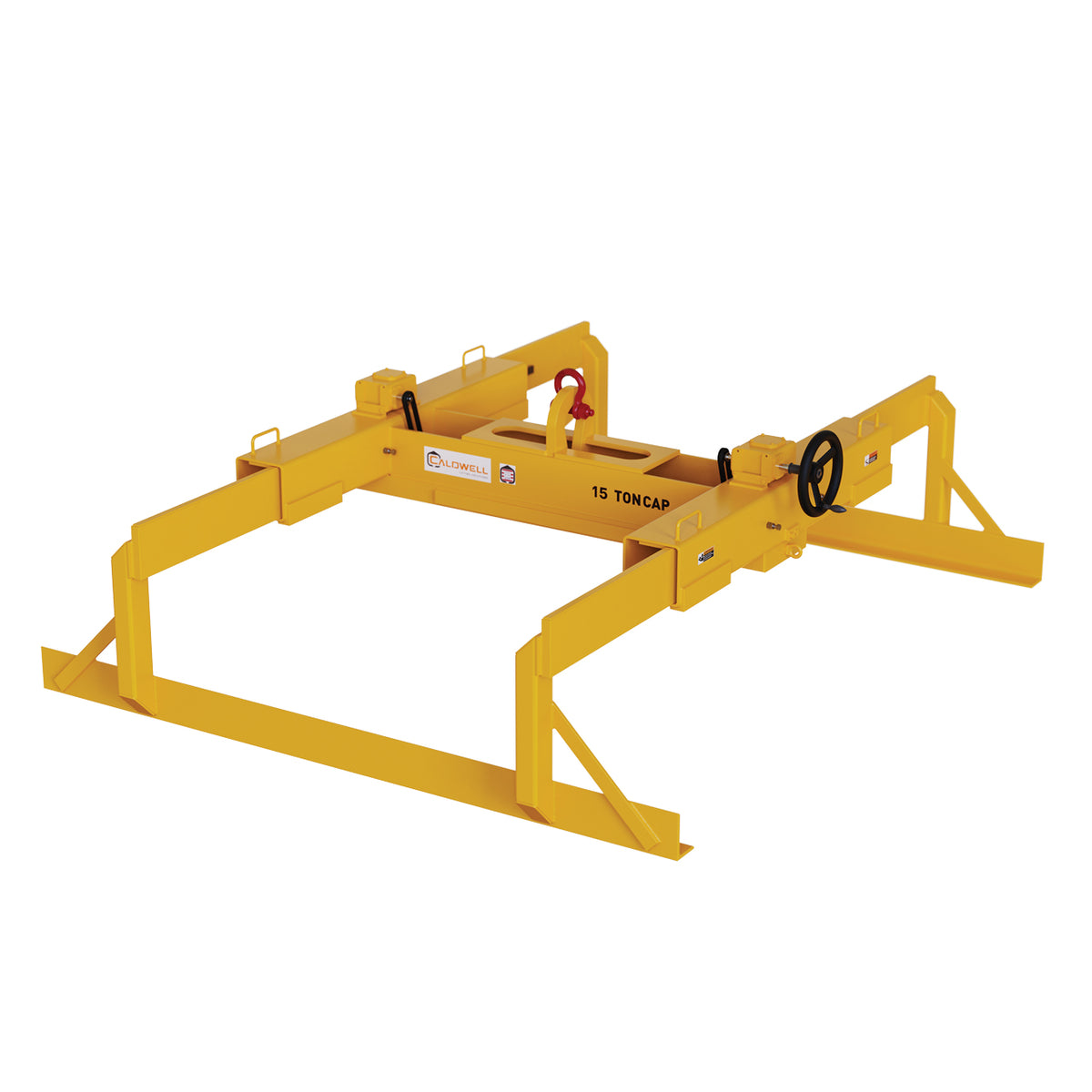

Caldwell Heavy Duty Sheet Lifter

$21,013.00
Request a Quote

When headroom is an issue, Model 60 is ready. Its compact design gives you options when vertical space is not available. Couple that with its ability to handle bundles, sheets, or plates, and you’ve got a solid option for a wide variety of applications.

Features

  • Versatile handling of bundles, sheets, plates, and other materials stacked horizontally
  • Low headroom design for optimum lifting capabilities
  • One person operation minimizes handling cost
  • Self-locking worm gear drive for leg adjustment is standard
  • Easy adjustment for different sheet widths
  • Rack and pinion leg drive
  • Designed for easy maintenance
  • Designed for greater sheet width range
  • Complies with ASME standards

Available Models

Part No. Capacity (ton) Max Bundle Width Capacity Rated Capacity Bail Opening Width Min Bundle Width Shoe Width Bail Opening Height Bail Thickness Bail Depth Min Aisle Required Headroom
60-3-48 3 48 3 10000 4 16 2.63 6 0.75 1.5 9 28
60-3-60 3 60 3 10000 4 16 2.63 6 0.75 1.5 9 28
60-3-72 3 72 3 6000 4 16 2.63 6 0.75 1.5 9 28
60-5-48 5 48 5 10000 4 16 2.63 6 1 2 9 29
60-5-60 5 60 5 10000 4 16 2.63 6 1 2 9 29
60-5-72 5 72 5 10000 4 16 2.63 6 1 2 9 29
60-5-84 5 84 5 10000 4 16 2.63 6 1 2 9 29
60-5-96 5 96 5 10000 4 16 2.63 6 1 2 9 29
60-10-48 10 48 10 20000 4 16 3.5 7 1.5 2 11 30
60-10-60 10 60 10 20000 4 16 3.5 7 1.5 2 11 30
60-10-72 10 72 10 20000 4 16 3.5 7 1.5 2 11 30
60-10-84 10 84 10 20000 4 16 3.5 7 1.5 2 11 30
60-10-96 10 96 10 20000 4 16 3.5 7 1.5 2 11 30
60-15-48 15 48 15 30000 5 16 3.5 9 1.5 2.5 12 32
60-15-60 15 60 15 30000 5 16 3.5 9 1.5 2.5 12 32
60-15-72 15 72 15 30000 5 16 3.5 9 1.5 2.5 12 32
60-15-84 15 84 15 30000 5 38 3.5 9 1.5 2.5 12 32
60-15-96 15 96 15 30000 5 38 3.5 9 1.5 2.5 12 32
