Caldwell | SKU:
Caldwell-BEF-5HC-25

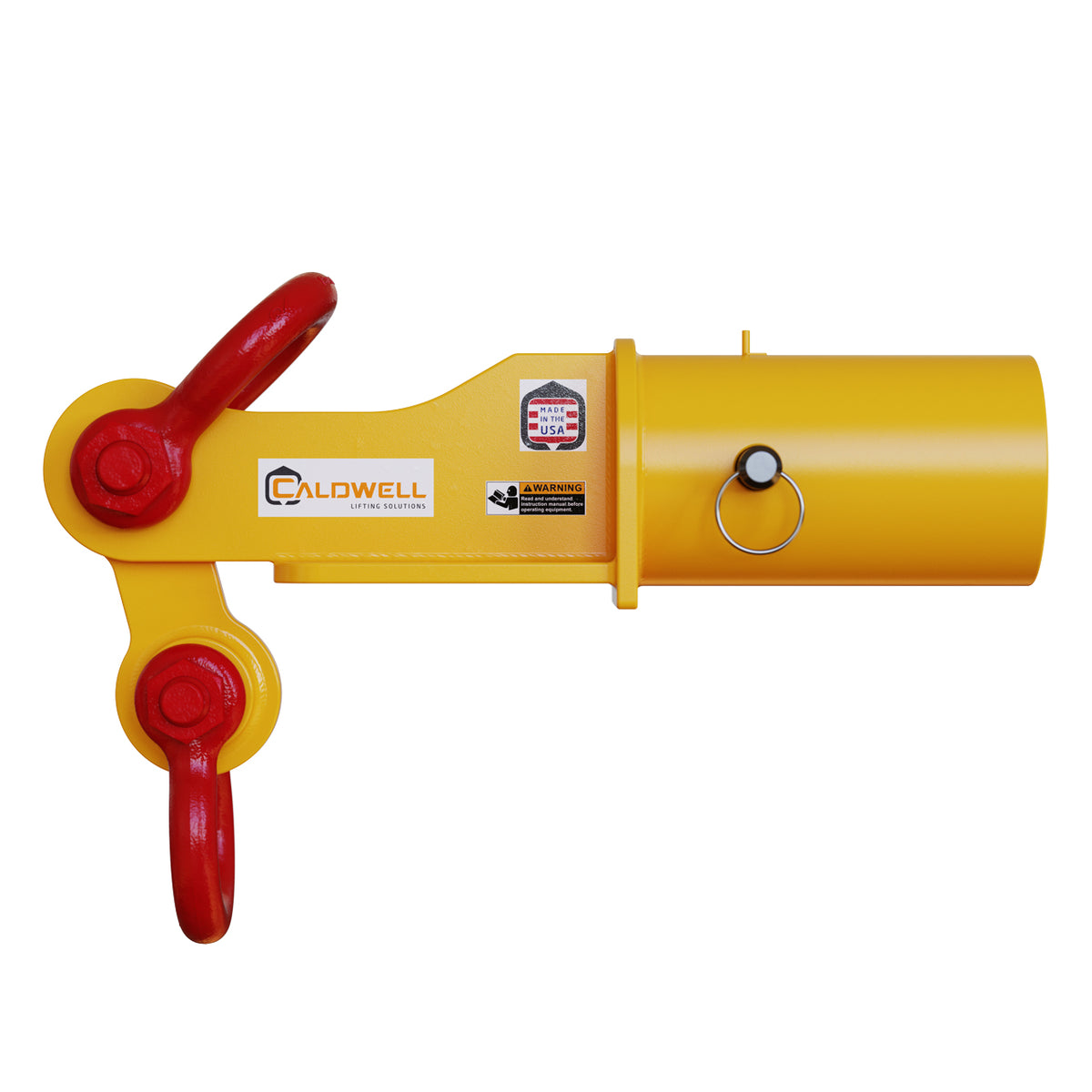

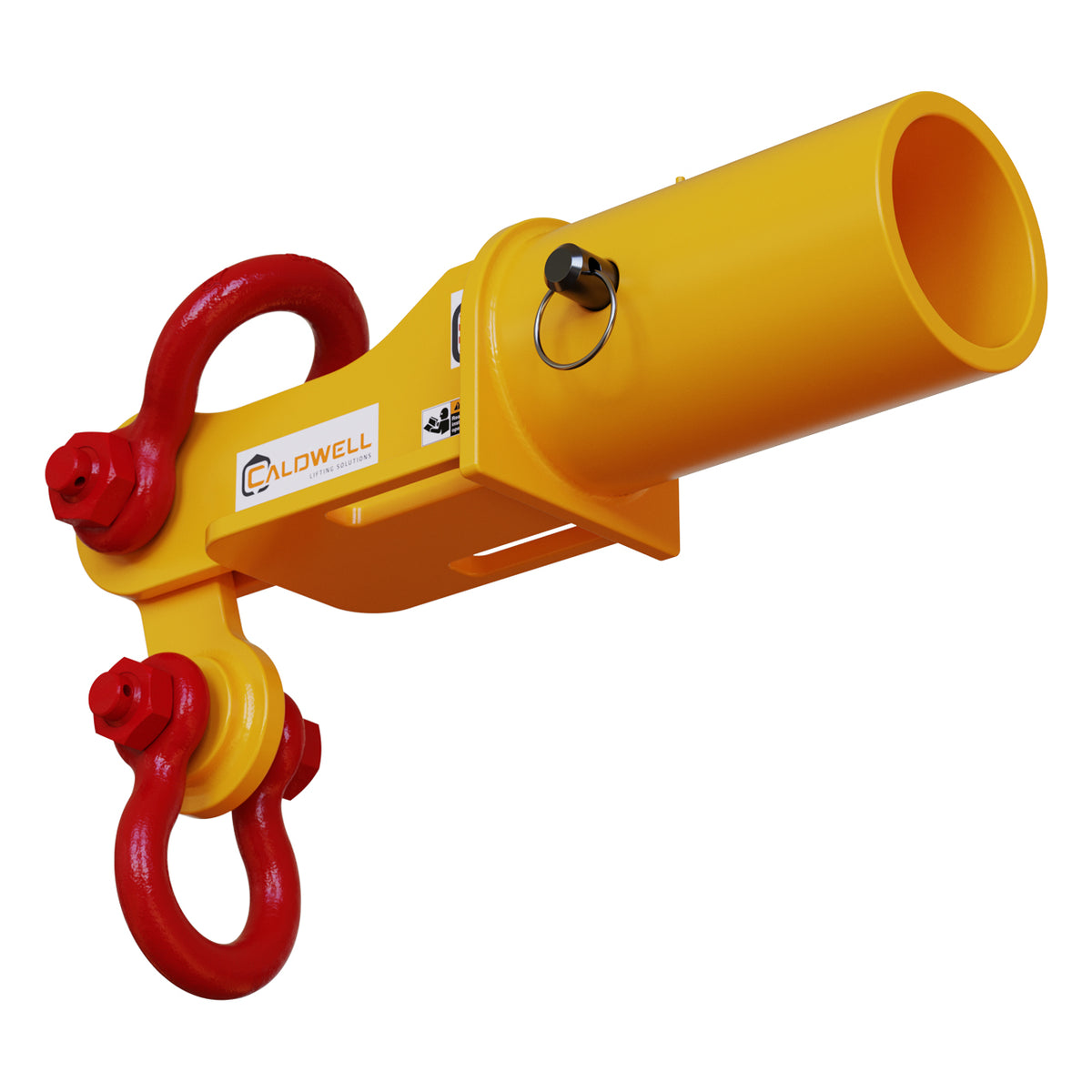

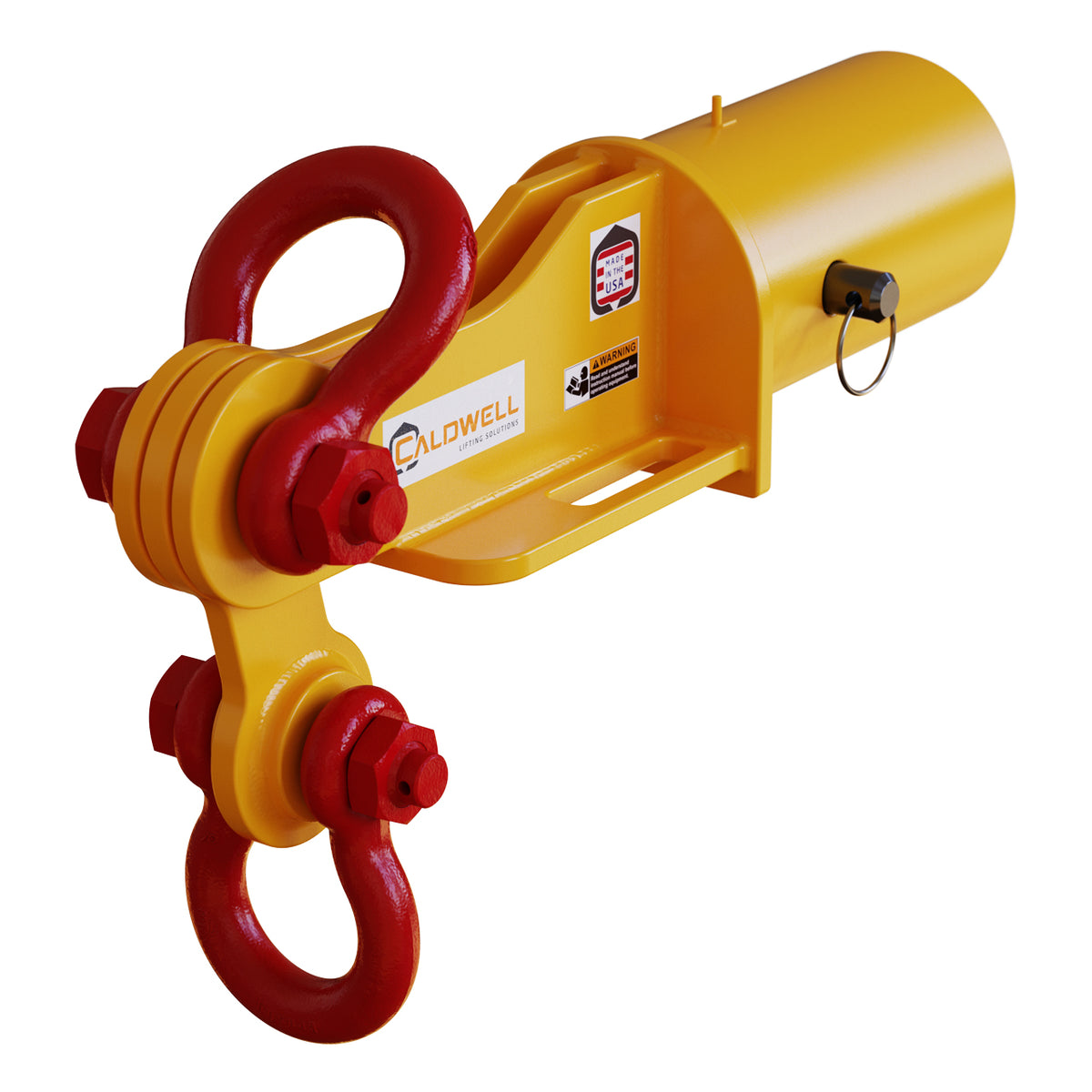

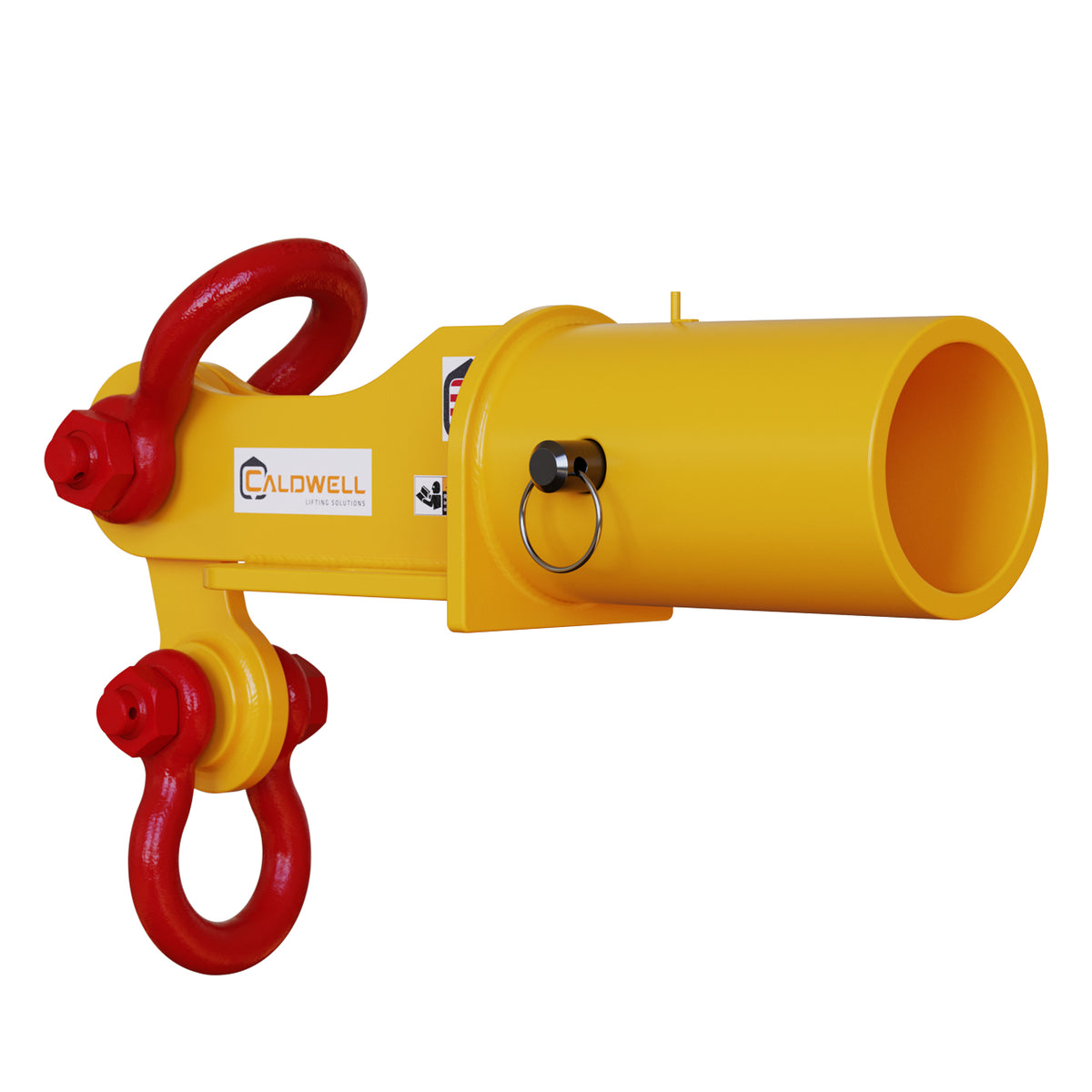

Caldwell High Capacity Beam End Fittings
$4,163.00
Precio unitario
/
Agotado
Caldwell High Capacity Beam End Fittings - 25 / 5 está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell High Capacity Beam End Fittings
Desde
$4,163.00
Precio unitario
/
Agotado
Sometimes, you need to create it yourself. let Caldwell help. Choose from different end fittings and a pipe coupler to get the beam you want.
Features
- Pivoting lower lugs allows for 75-90 degree lower rigging angle
- Sold as eaches, not pairs
- Complies with ASME standards when assembled to specifications using designated pipe and rigging
Available Models
| Part No. | Capacity | Schedule 80 Pipe Size | Weight Per Pair |
|---|---|---|---|
| BEF-5HC-25 | 25 | 5 | 225 |
| BEF-5HC-50 | 50 | 5 | 275 |
| BEF-8HC-50 | 50 | 8 | 370 |
| BEF-8HC-80 | 80 | 8 | 510 |
| BEF-12HC-80 | 80 | 12 | 710 |
| BEF-12HC-110 | 110 | 12 | 895 |
| BEF-12HC-130 | 130 | 12 | 960 |
