Caldwell Horizontal Plate Lifting Clamp

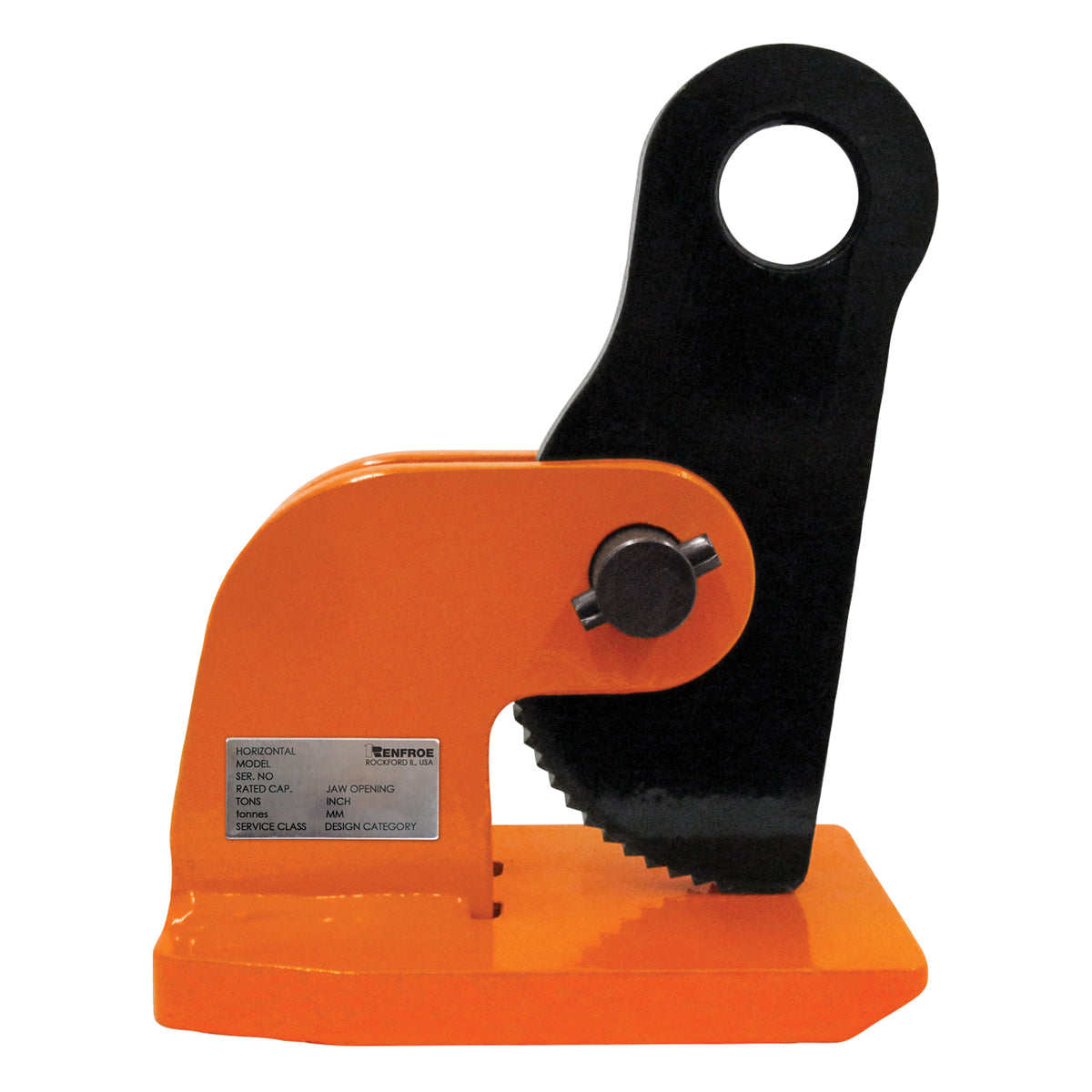

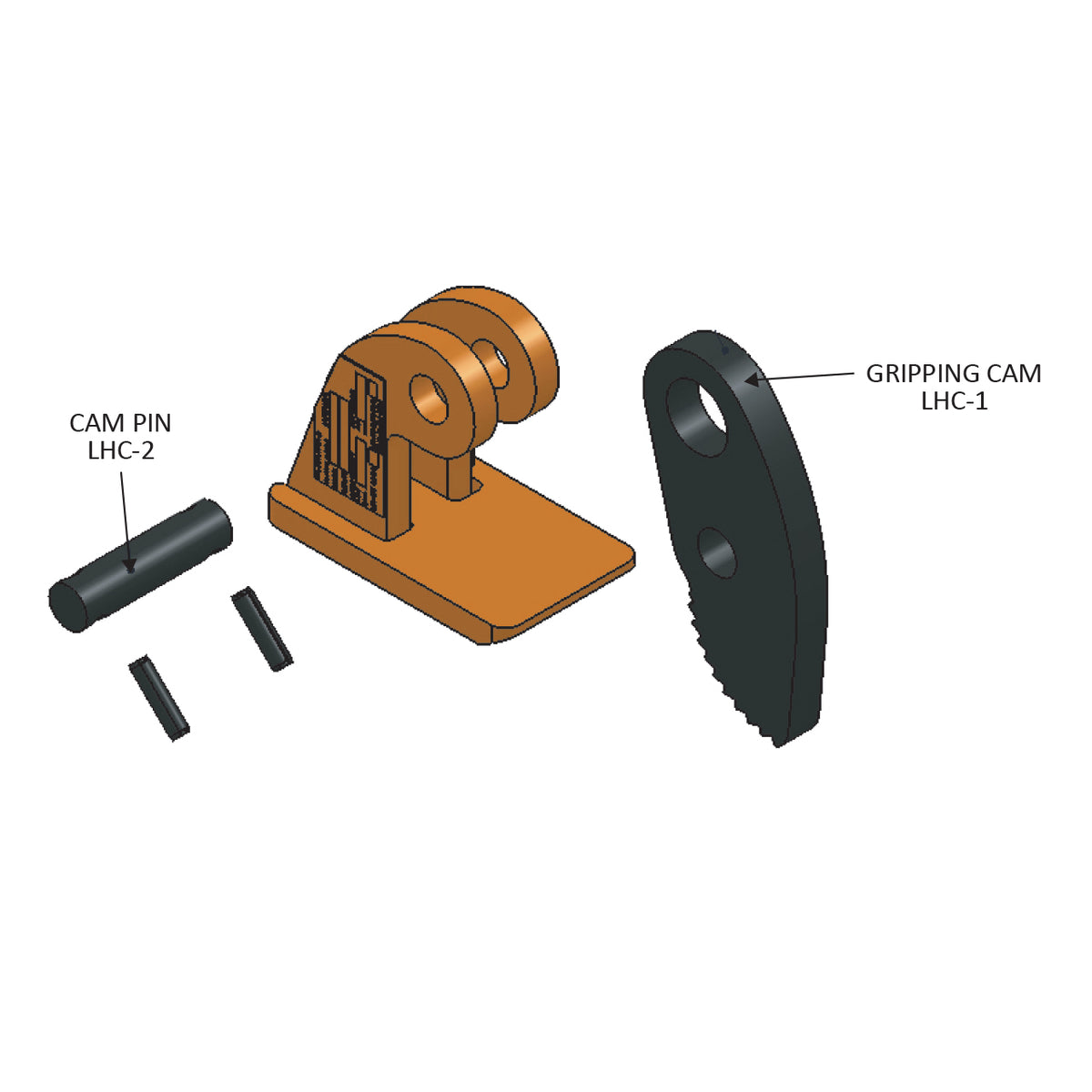

The Model LHC is a horizontal lifting clamp intended to be used in pairs, sets of pairs or in a tripod arrangement for transporting steel plates horizontally. The clamp is designed to lift individual sheets horizontally. Cam operations ensure a tight grip on the load. Serrated gripping cam bites into load for positive grip. Clamps rest in position on edge of plate until tension is applied to the load sling. Clamps must be used in single pairs (2), double pairs (4), or tripod (3) configuration with a lifting sling.
Features
- Low-maintenance, fewer components
- Gripping cam does not activate until you begin the lift
Available Models
| Part No. | Capacity (ton) | Capacity | Rated Capacity | Bail Oblong Diameter | Bail Thickness | Cam Length | Plate Thickness Max | Overall Length | Foot Length | Overall Width | Foot Thickness | Temp Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LHC-00.25-A | 0.25 | 0.25 | 500 | 1 | 0.5 | 5 | 1 | 4 | 2.38 | 2.25 | 0.38 | 3 |
| LHC-00.50-A | 0.5 | 0.5 | 1000 | 1.38 | 0.5 | 9.25 | 2 | 7.76 | 4.38 | 4.88 | 0.63 | 14 |
| LHC-00.75-A | 0.75 | 0.75 | 1500 | 1.41 | 0.75 | 9.25 | 2 | 7.76 | 4.38 | 5.38 | 0.75 | 19 |
| LHC-01.50-A | 1.5 | 1.5 | 3000 | 1.41 | 0.75 | 9.25 | 2 | 7.94 | 4.56 | 6.13 | 1 | 26 |
| LHC-03.00-A | 3 | 3 | 6000 | 1.41 | 0.75 | 9.25 | 2 | 7.94 | 4.5 | 6.13 | 1.63 | 24 |
| LHC-04.00-A | 4 | 4 | 8000 | 1.41 | 1 | 12.31 | 3 | 10.38 | 7 | 6.5 | 2.19 | 48 |
