Caldwell Lightweight Locking Vertical Plate Clamp

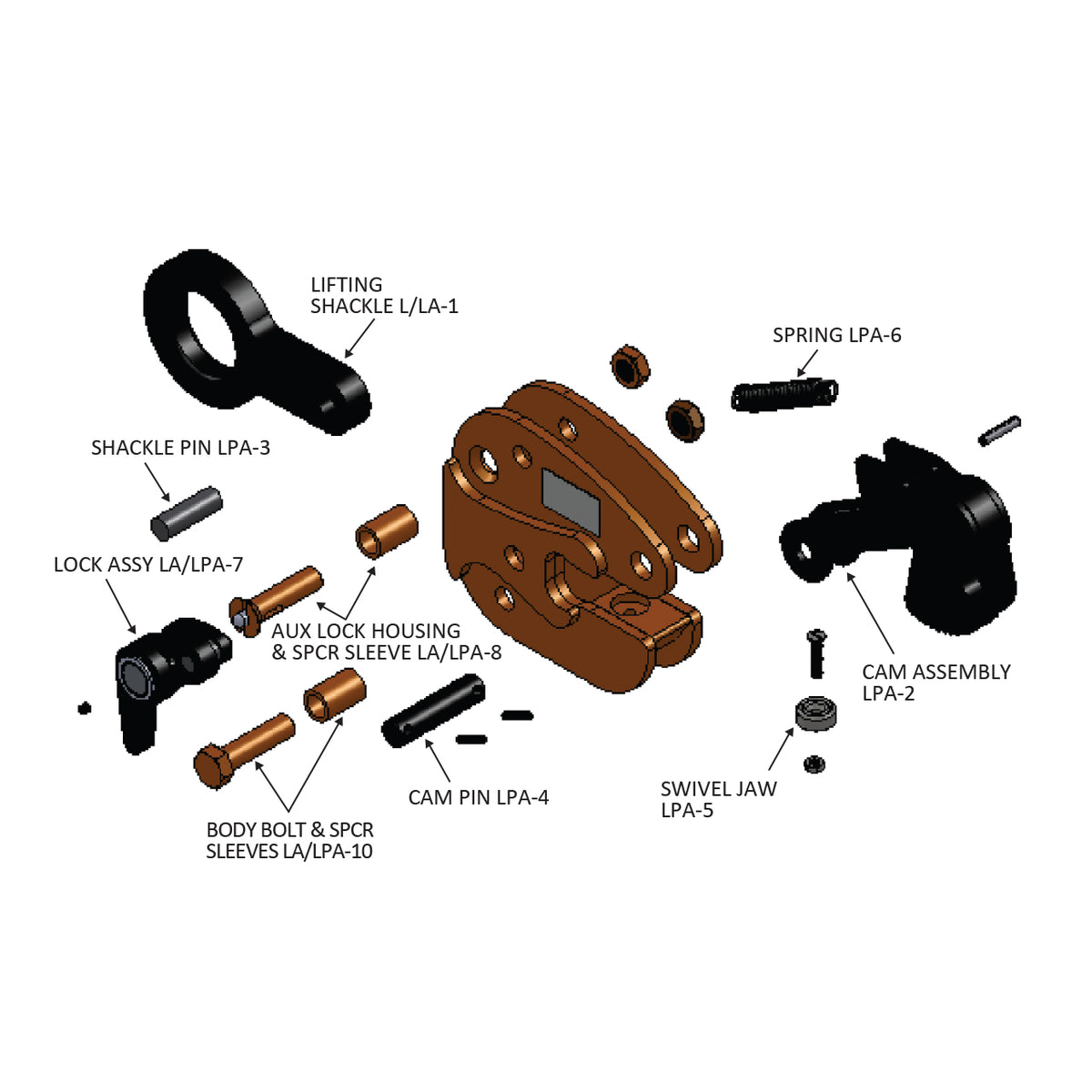

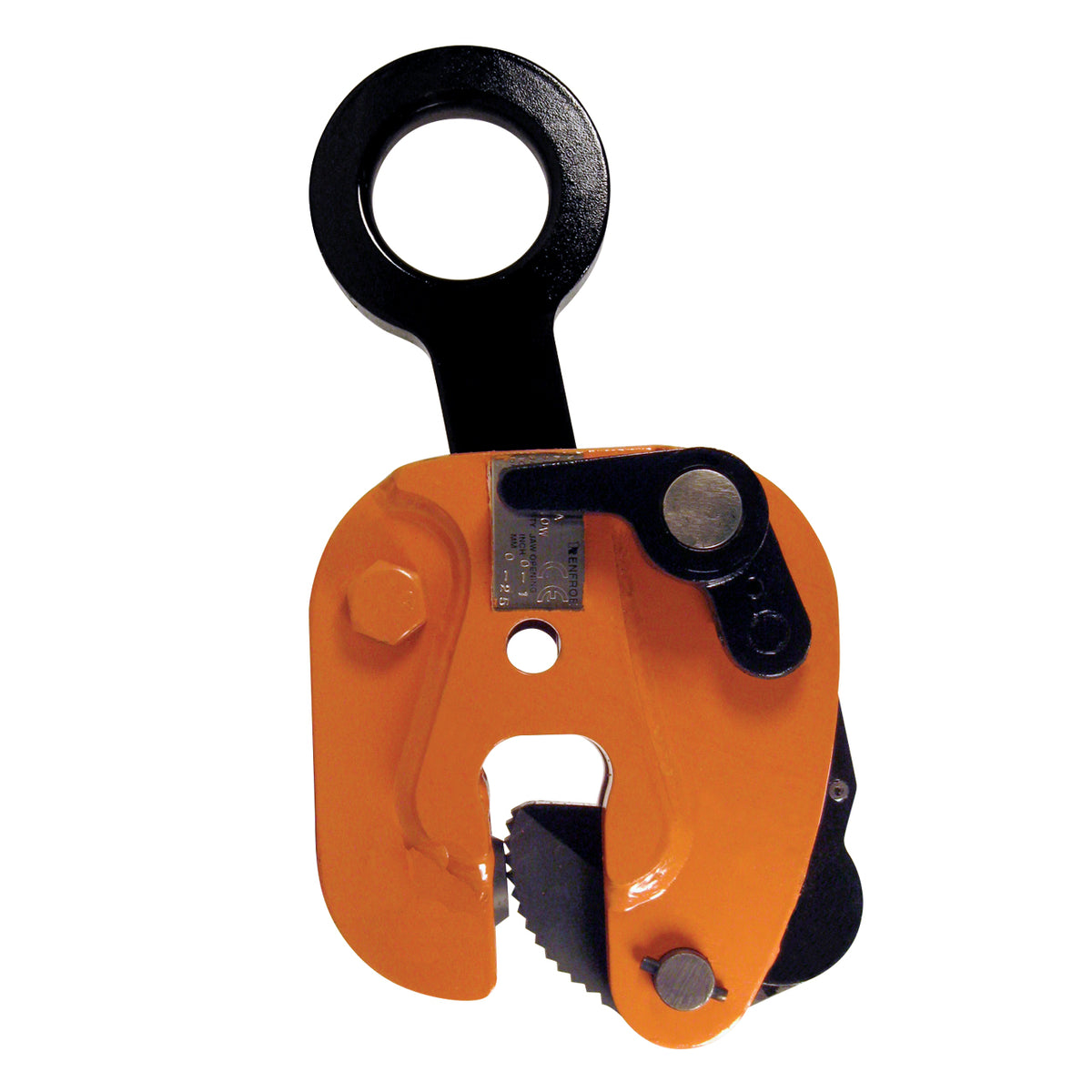

The Model LA is an ergonomic vertical lifting clamp capable of turning a single plate or member from horizontal to vertical to horizontal through a 180° arc. It incorporates an auxiliary lock. The “Lock Open – Lock Closed” feature facilitates attaching and removing the clamp from the plate.

• Ergonomic Lifting Clamp
• Single plate turning from horizontal to vertical to horizontal through a 180° arc
• Incorporates a push button auxiliary lock
• Lock Open - Lock Closed feature allows easy attaching & removing of the clamp
• Lightweight, ergonomic version of the Model JA with round swivel jaw

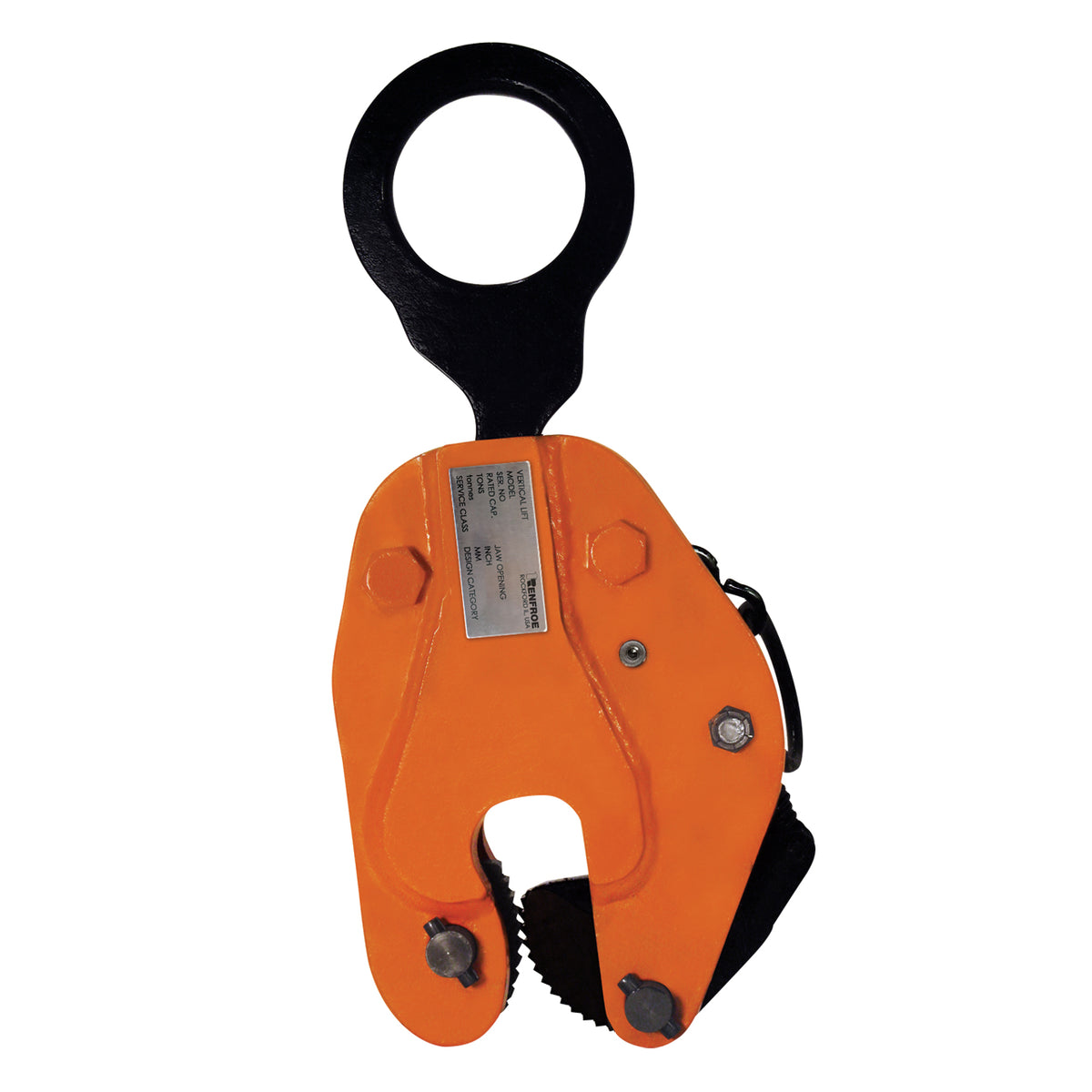

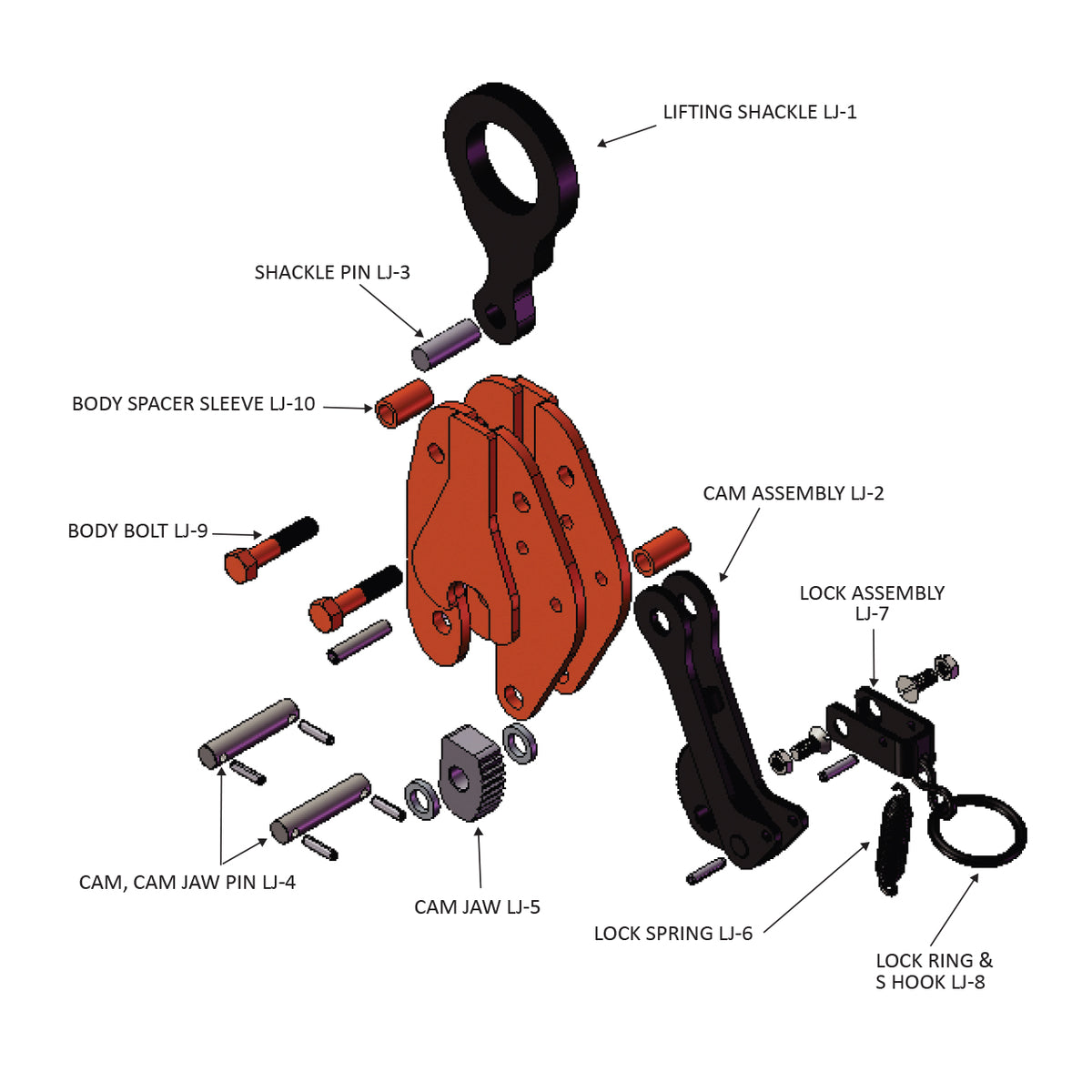

Model LJ is a vertical lifting clamp capable of turning a plate from horizontal to vertical and back through the same 90° arc. It is small and easy to handle in capacities through three tons. The Model LJ incorporates a “Lock Closed” feature, which facilitates attaching the clamp to the plate.

• Single plate turning from horizontal to vertical & back through the same 90 degree arc
• Incorporates the Renfroe Lock Closed Feature
• Allows easy attaching & removing of the clamp
• Similar to the Model FR with serrated cam jaw.

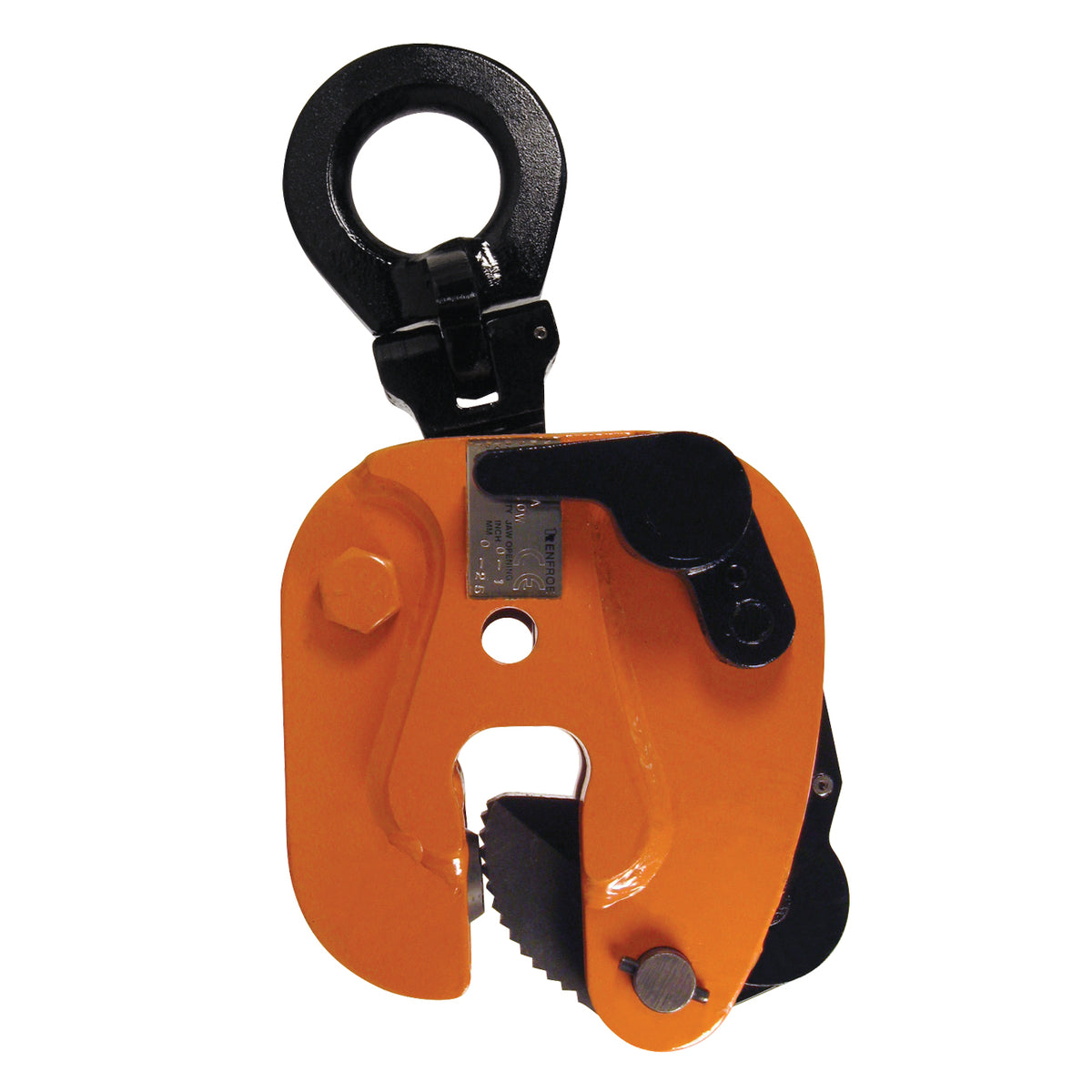

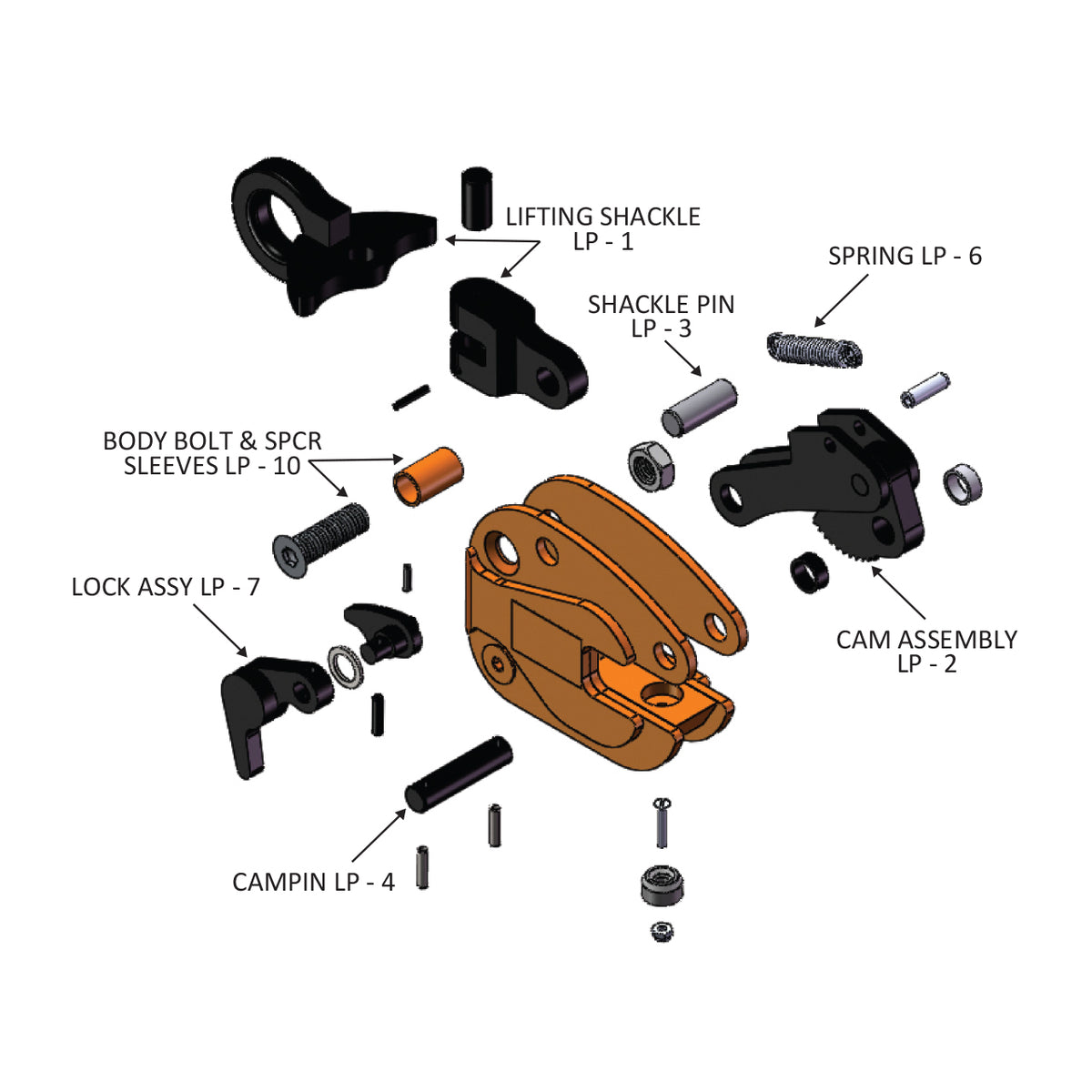

The Model LP is an ergonomic vertical lifting clamp capable of turning a single plate or member from horizontal to vertical to horizontal through a 90° arc. Permits side loading of lifting shackle to 90° by de-rating of clamp’s capacity. Refer to FIGURE 1 for de-rated capacities. The “Lock Open – Lock Closed” feature facilitates attaching and removing the clamp from the plate. Model LP incorporates a pivoting shackle that permits side loading of the lifting shackle at 100% of rated capacity from vertical to 30°, 75% of rated capacity between 30° and 45°, and 50% of rated capacity between 45° and 90°. See Figure 1.

• Ergonomic Lifting Clamp
• Single plate turning from horizontal to vertical & back through the same 90° arc
• Permits side loading of lifting shackle to 90° by de-rating clamps capacity
• Lock Open - Lock Closed Feature
• Allows easy attaching & removing of the clamp
• Lightweight, ergonomic version of the Model JP

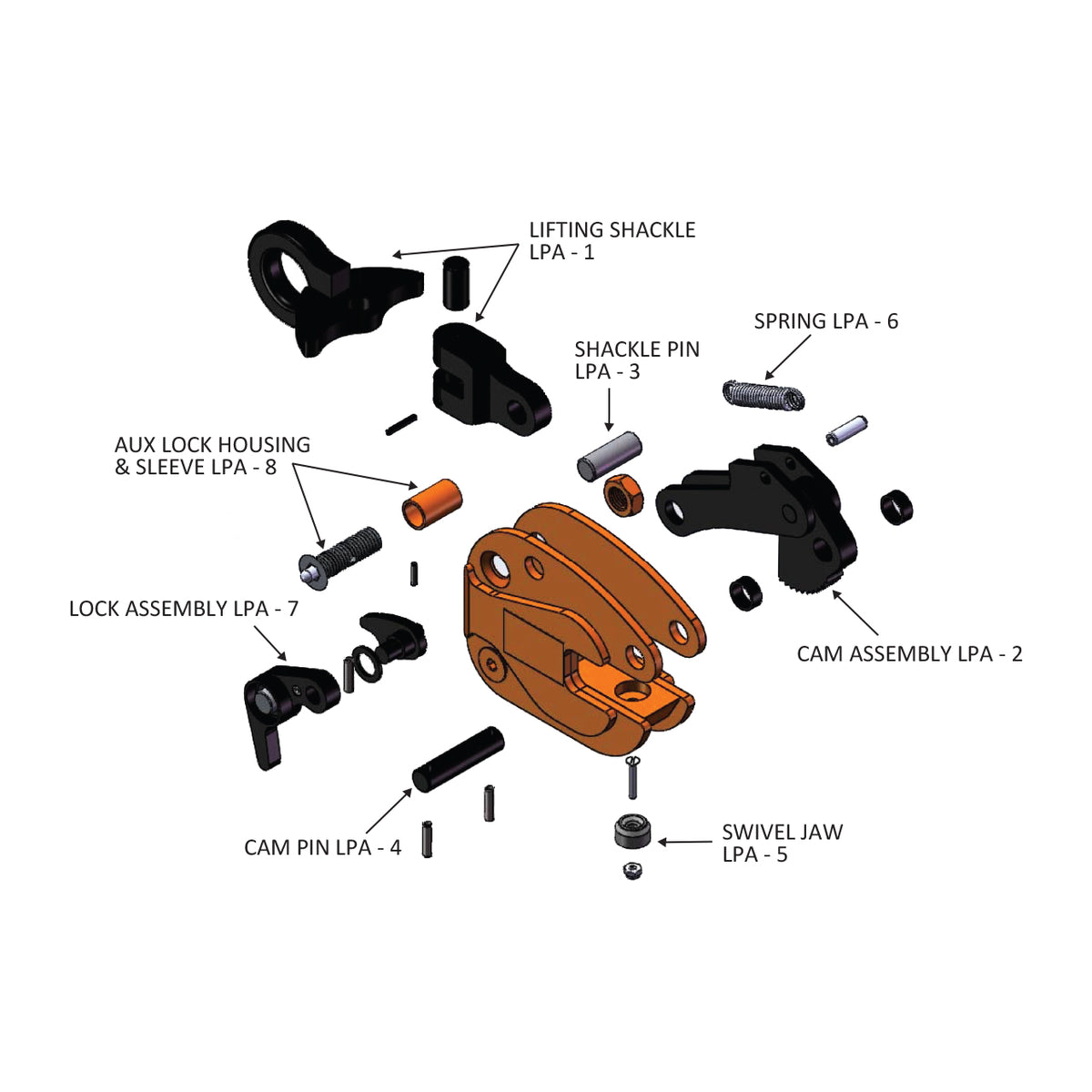

Model LPA is an ergonomic vertical lifting clamp capable of turning a single plate or member from horizontal to vertical to horizontal through a 180° arc. It incorporates an auxiliary push button lock. Permits side loading of lifting shackle to 90° by de-rating of clamp’s capacity. Refer to Figure 1 for de-rated capacities. The “Lock Open – Lock Closed” feature facilitates attaching and removing the clamp from the plate. The Model LPA incorporates a pivoting shackle that permits side loading of the lifting shackle at 100% of rated capacity from vertical to 30°, 75% of rated capacity between 30° and 45°, and 50% of rated capacity between 45° and 90°. See Figure 1.

• Ergonomic Lifting Clamp
• Single plate turning from horizontal to vertical to horizontal through a 180 degree arc
• Incorporates auxiliary push button lock
• Permits side loading of lifting shackle to 90 degrees by de-rating clamps capacity
• Lock Open - Lock Closed Feature
• Allows easy attaching & removing of the clamp
