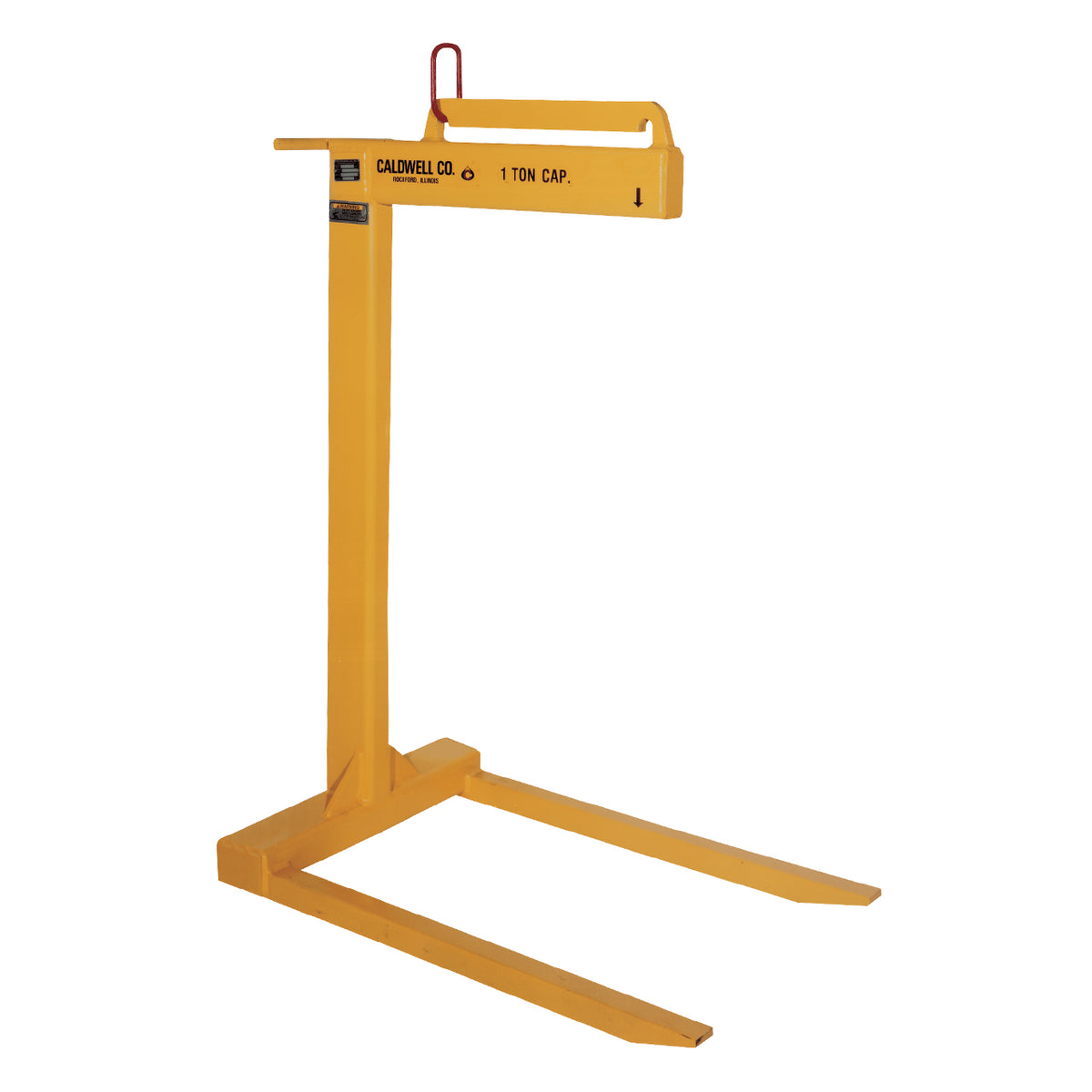

Caldwell Lightweight Pallet Lifter
$5,014.00
Precio unitario
/
Agotado
Caldwell Lightweight Pallet Lifter - 1 está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Lightweight Pallet Lifter
Desde
$5,014.00
Precio unitario
/
Agotado
Lightweight, economical, and reliable - sometimes that's just what you need. Choose from 1-, 2- or 3-ton capacities.
Features
- Dual lift points eliminates need for counterweight
- Extremely lightweight for ease of handling
- Maintenance free (no moving parts)
- Complies with ASME standards
Specifications
| Fork Length | 36 |
| Load Center Point | 24 |
| Max Load Height | 48 |
Available Models
| Part No. | Capacity (ton) | Capacity | Rated Capacity | Fork Spread | Fork Thickness | Bail Opening Height | Bail Opening Width | Fork Width | Bail Depth | Headroom | Temp Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 94-1-48 | 1 | 1 | 2000 | 25 | 2 | 3.75 | 2.5 | 2 | 0.5 | 58 | 245 |
| 94-2-48 | 2 | 2 | 4000 | 25 | 2 | 4.5 | 2.75 | 4 | 0.75 | 62 | 425 |
| 94-3-48 | 3 | 3 | 6000 | 27 | 2.5 | 5 | 3.5 | 4.5 | 1 | 65 | 610 |
