Caldwell  |  SKU: Caldwell-26-2-4

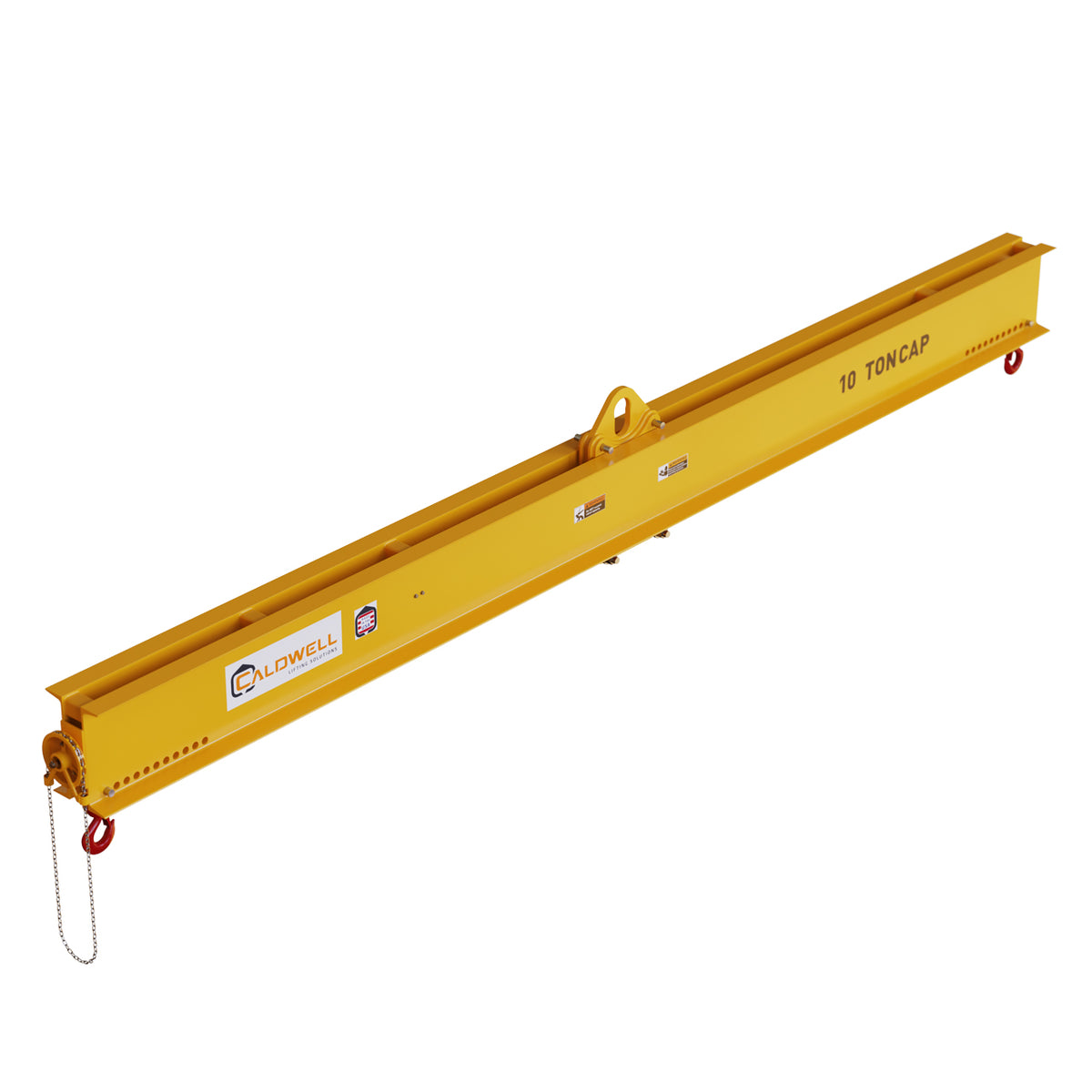

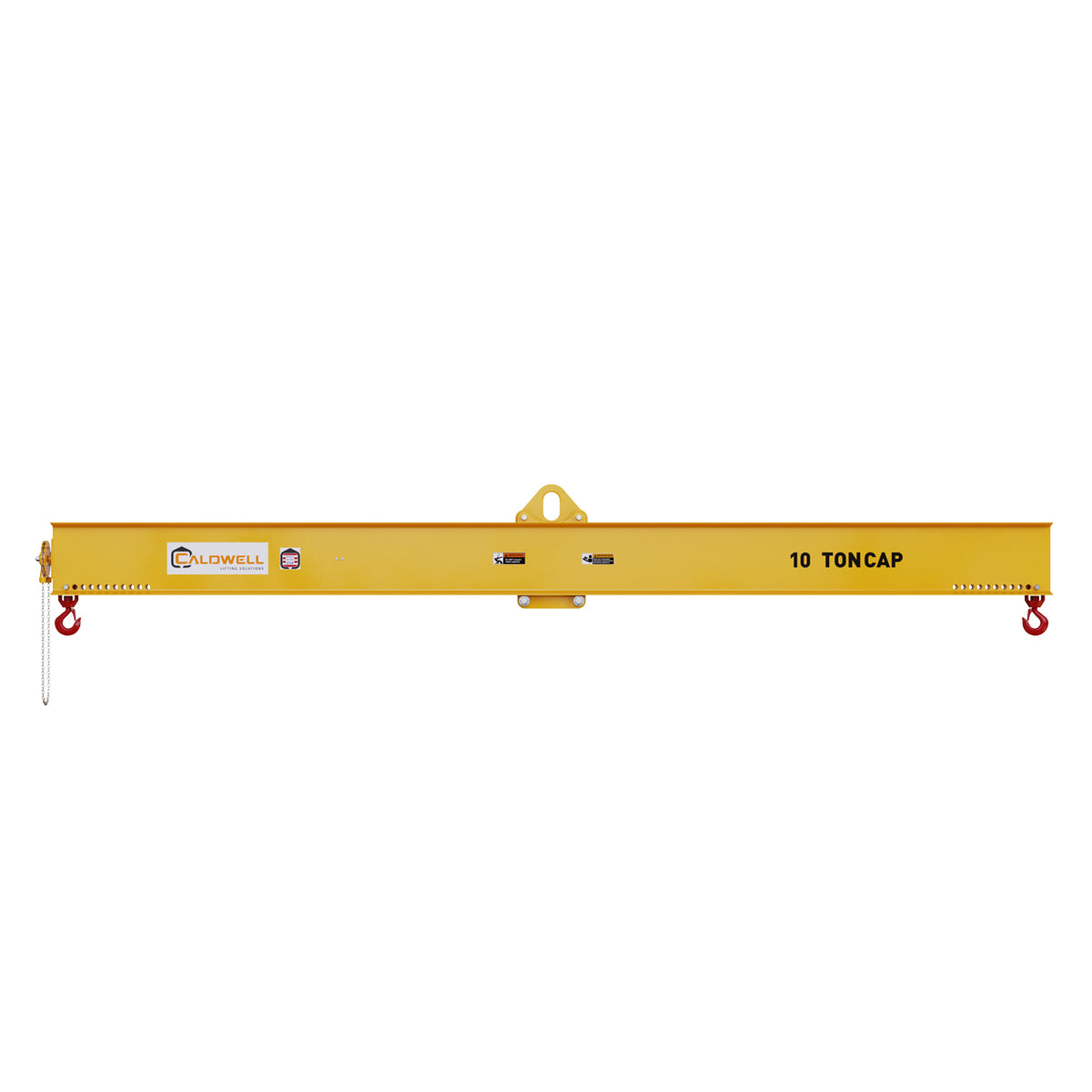

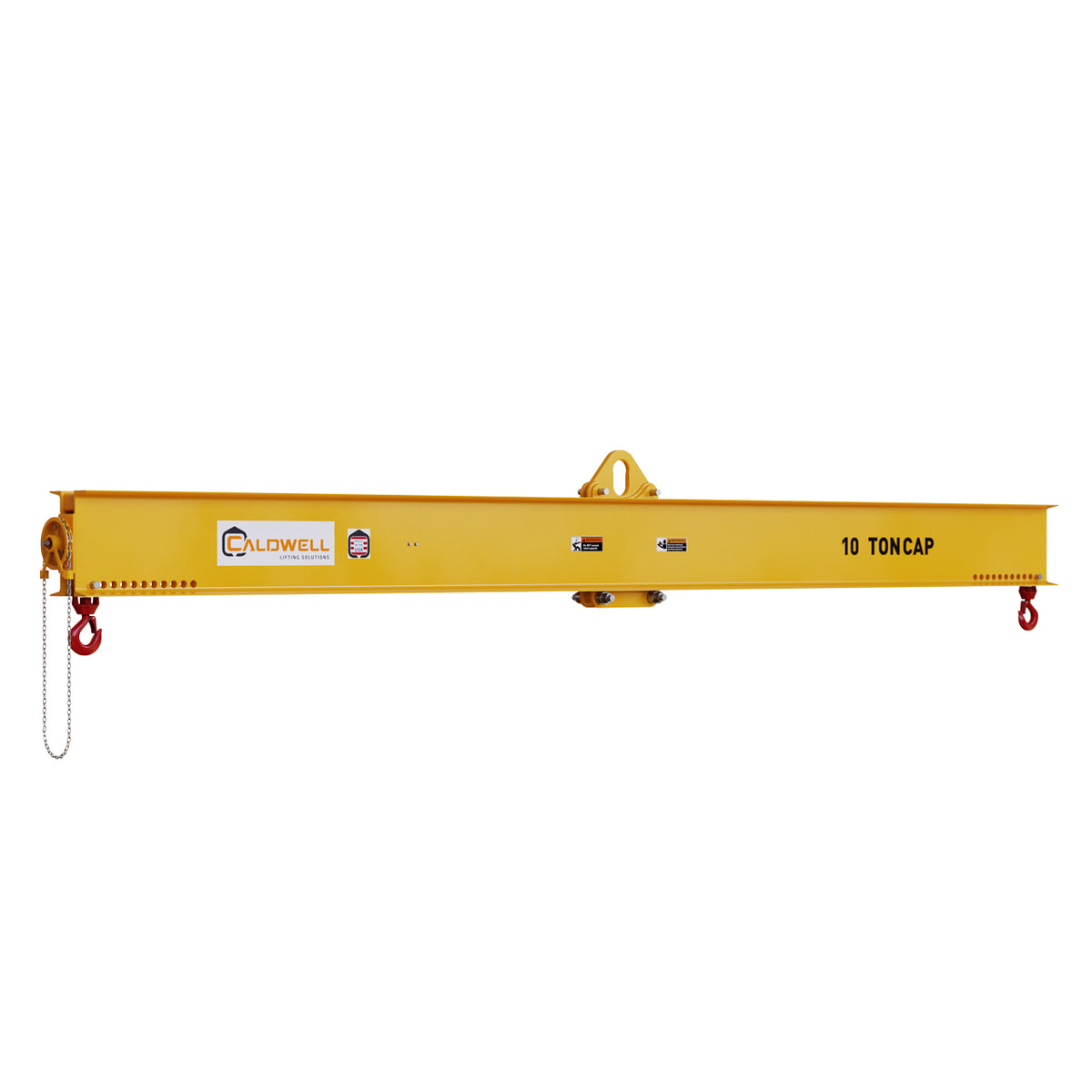

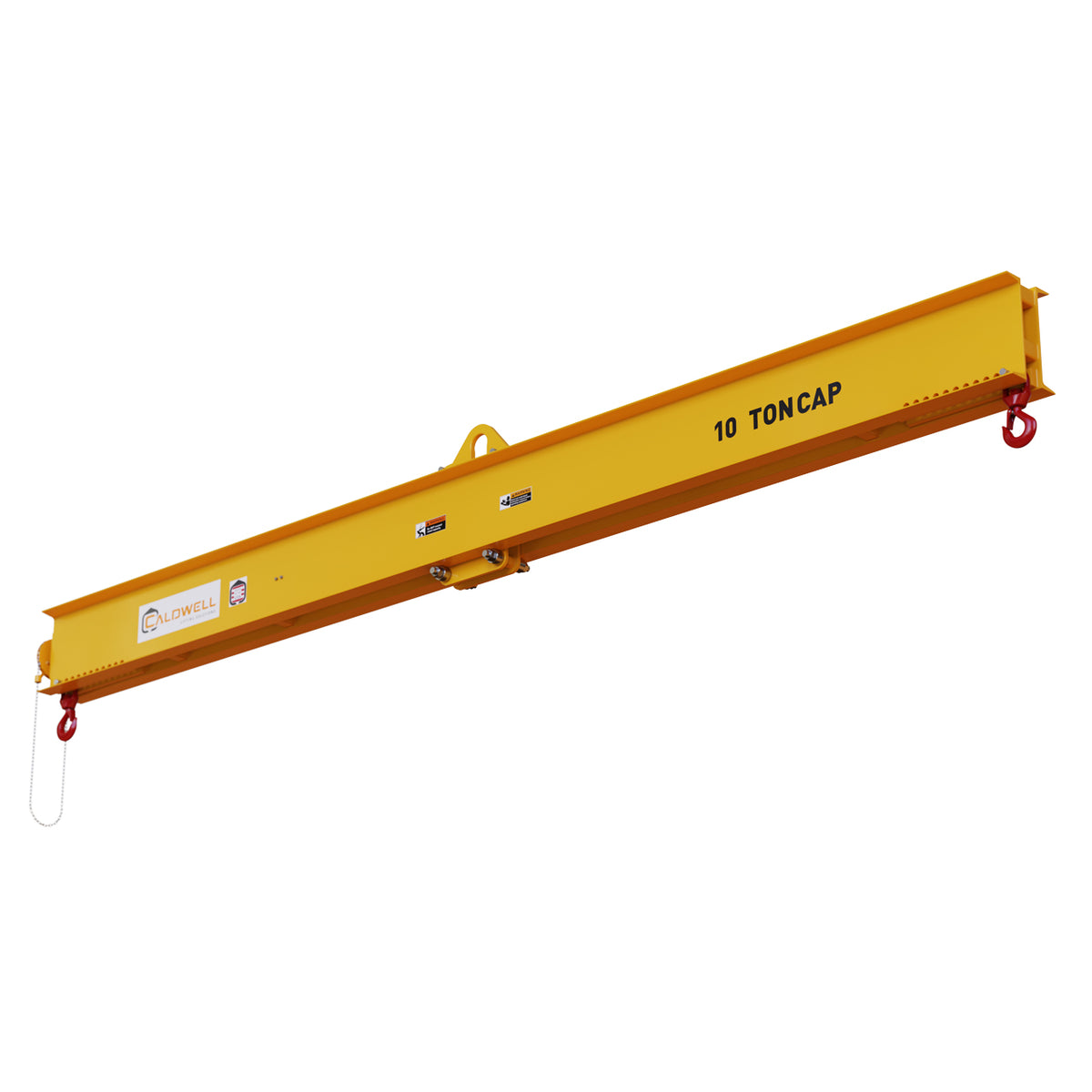

Caldwell Load Leveler Lifting Beam

$15,519.00
Request a Quote

Similar to the Model 24, the Model 26 Load Leveler Lifting Beam allows for the bail to be repositioned to manage off-center loads. However, this model offers even greater flexibility: you can position the bail anywhere along the beam, without being restricted to preset slots. This design grants you complete, customized control over load balancing.

Features

  • Handles off-center loads by adjusting the bail before a lift
  • Infinite adjustment of bail within range
  • Swivel hooks with hook latches standard
  • Wide range of sizes and capacities available
  • Complies with ASME standards

Available Models

Part No. Rated Capacity Max Spread Capacity Bail Opening Height Bail Opening Width Hook Opening With Latch Bail Thickness Bail Depth Bail Adjustment Headroom Temp Weight
26-2-4 4000 48 2 5 3 1 0.63 1.5 8 15.13 135
26-2-6 4000 72 2 5 3 1 0.63 1.5 12 15.13 185
26-2-8 4000 96 2 5 3 1 0.63 1.5 16 16.13 260
26-2-10 4000 120 2 5 3 1 0.63 1.5 20 17.13 330
26-2-12 4000 144 2 5 3 1 0.63 1.5 24 17.13 380
26-2-14 4000 168 2 5 3 1 0.63 1.5 28 18.13 485
26-2-16 4000 192 2 5 3 1 0.63 1.5 32 18.13 540
26-2-18 4000 216 2 5 3 1 0.63 1.5 36 19.13 680
26-2-20 4000 240 2 5 3 1 0.63 1.5 40 19.13 750
26-2-24 4000 288 2 5 3 1 0.63 1.5 48 20.13 1265
26-5-4 10000 48 5 7 4 1 1 2 8 21.5 170
26-5-6 10000 72 5 7 4 1 1 2 12 21.5 270
26-5-8 10000 96 5 7 4 1 1 2 16 23.5 382
26-5-10 10000 120 5 7 4 1 1 2 20 23.5 475
26-5-12 10000 144 5 7 4 1 1 2 24 25.5 681
26-5-14 10000 168 5 7 4 1 1 2 28 25.5 777
26-5-16 10000 192 5 7 4 1 1 2 32 25.5 950
26-5-18 10000 216 5 7 4 1 1 2 36 28.5 1455
26-5-20 10000 240 5 7 4 1 1 2 40 28.5 1603
26-5-24 10000 288 5 7 4 1 1 2 48 28.5 2345
26-10-4 20000 48 10 7 4 1.75 1.25 2 8 25.75 257
26-10-6 20000 72 10 7 4 1.75 1.25 2 12 28.75 440
26-10-8 20000 96 10 7 4 1.75 1.25 2 16 28.75 522
26-10-10 20000 120 10 7 4 1.75 1.25 2 20 31.75 940
26-10-12 20000 144 10 7 4 1.75 1.25 2 24 31.75 1094
26-10-14 20000 168 10 7 4 1.75 1.25 2 28 31.75 1243
26-10-16 20000 192 10 7 4 1.75 1.25 2 32 31.75 1388
26-10-18 20000 216 10 7 4 1.75 1.25 2 36 34.75 1875
26-10-20 20000 240 10 7 4 1.75 1.25 2 40 37.75 2056
26-10-24 20000 288 10 7 4 1.75 1.25 2 48 34.75 2560
26-15-4 30000 48 15 9 5 1.75 1.5 2.5 8 30.5 376
26-15-6 30000 72 15 9 5 1.75 1.5 2.5 12 33.5 565
26-15-8 30000 96 15 9 5 1.75 1.5 2.5 16 33.5 622
26-15-10 30000 120 15 9 5 1.75 1.5 2.5 20 33.5 972
26-15-12 30000 144 15 9 5 1.75 1.5 2.5 24 36.5 1319
26-15-14 30000 168 15 9 5 1.75 1.5 2.5 28 36.5 1418
26-15-16 30000 192 15 9 5 1.75 1.5 2.5 32 36.5 1513
26-20-4 40000 48 20 9 5 2 1.5 2.5 8 34 445
26-20-6 40000 72 20 9 5 2 1.5 2.5 12 37 798
26-20-8 40000 96 20 9 5 2 1.5 2.5 16 37 900
26-20-10 40000 120 20 9 5 2 1.5 2.5 20 37 1050
26-20-12 40000 144 20 9 5 2 1.5 2.5 24 37 2250
