Caldwell | SKU:
Caldwell-NMRSC-00.50-A
Caldwell Locking, Screw Type
$2,940.00
Precio unitario
/
Agotado
Caldwell Locking, Screw Type - 1000 / 10 está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Locking, Screw Type
Desde
$2,599.00
Precio unitario
/
Agotado

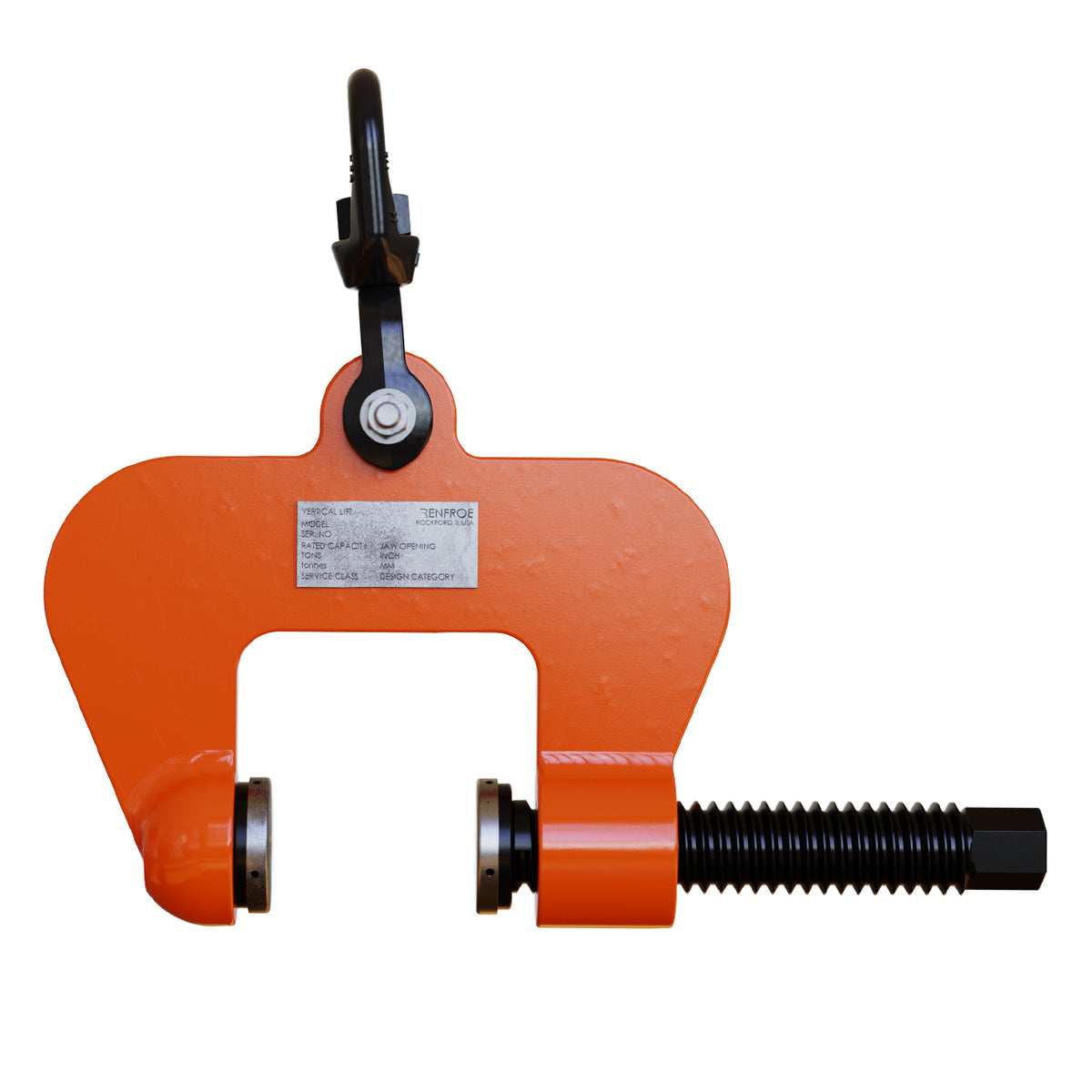

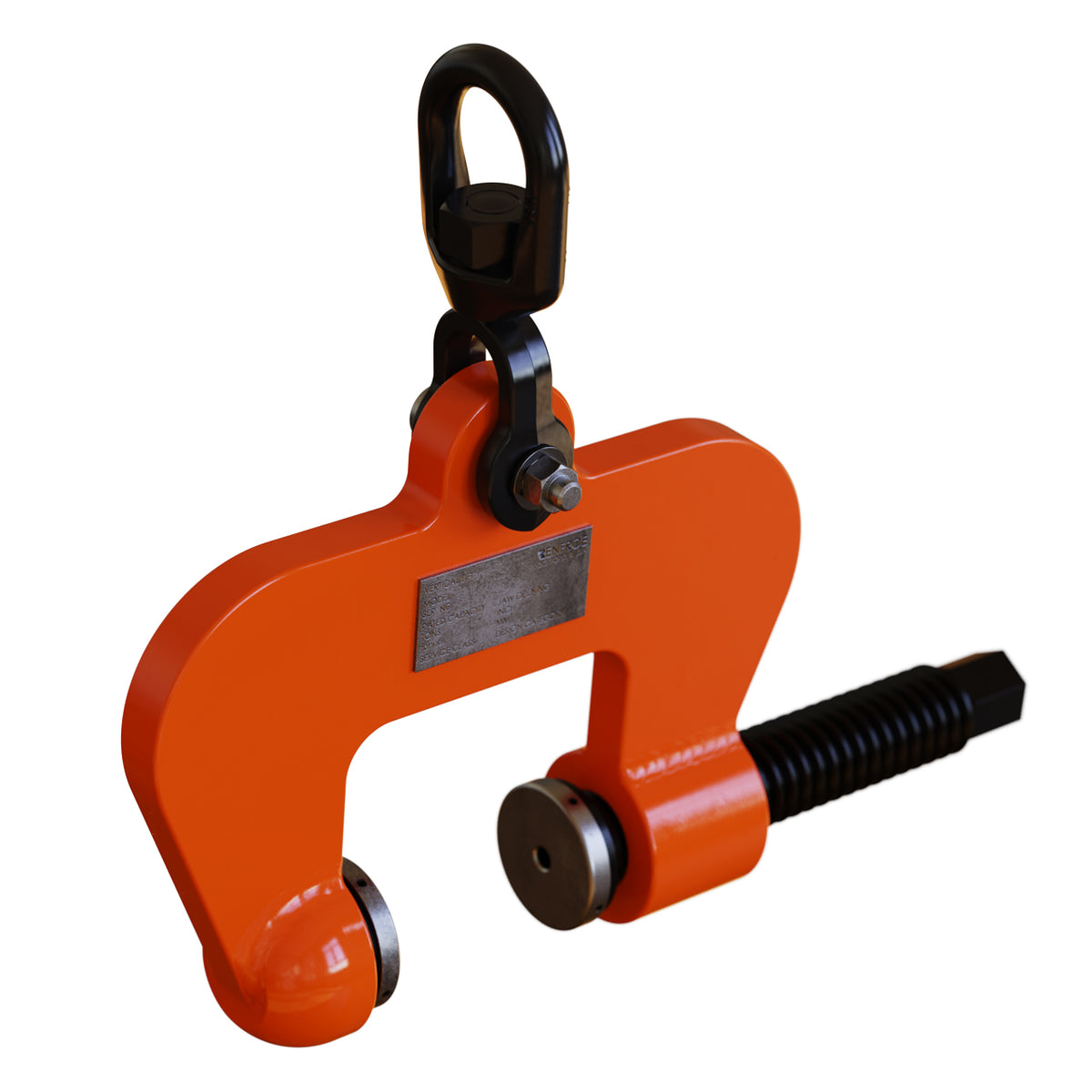

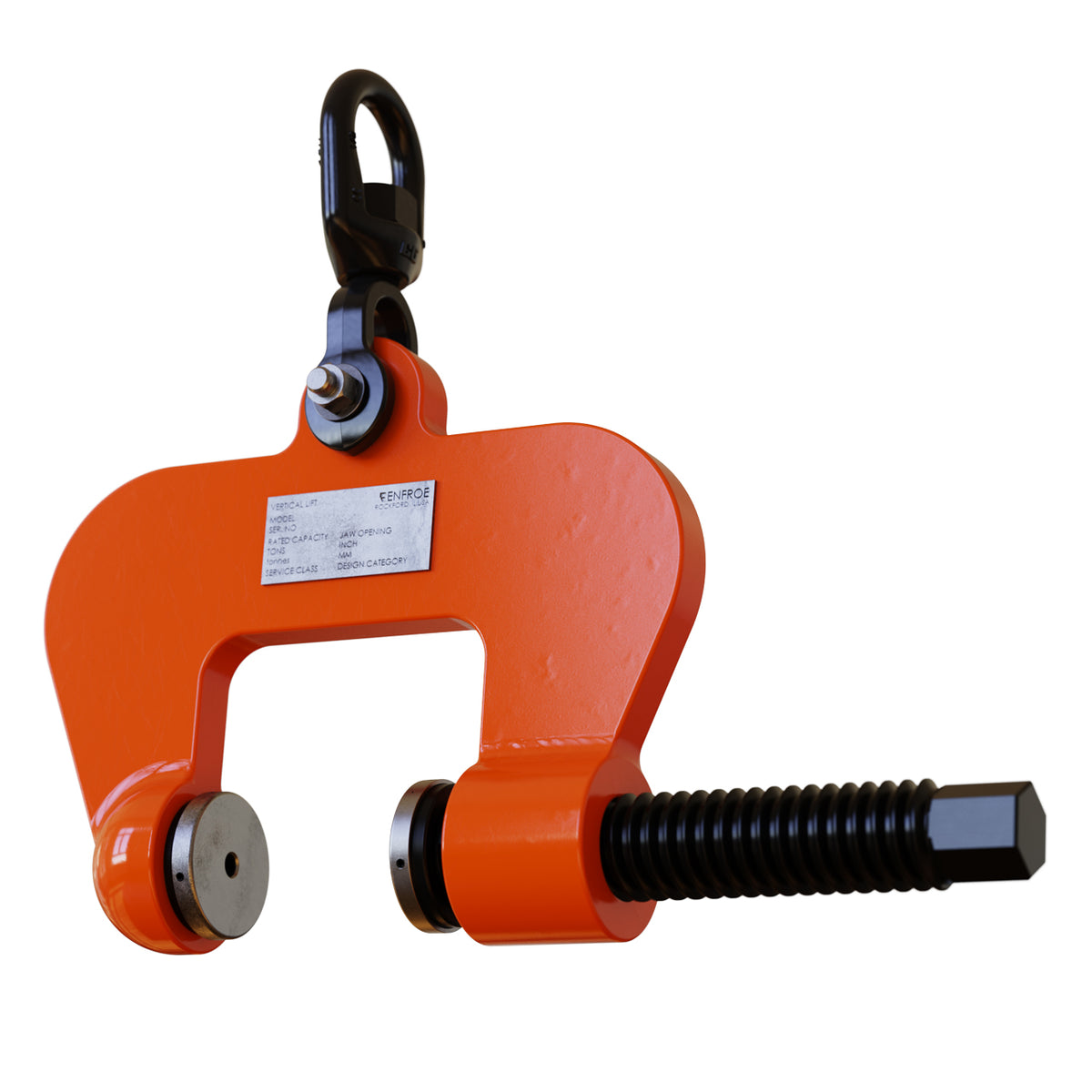

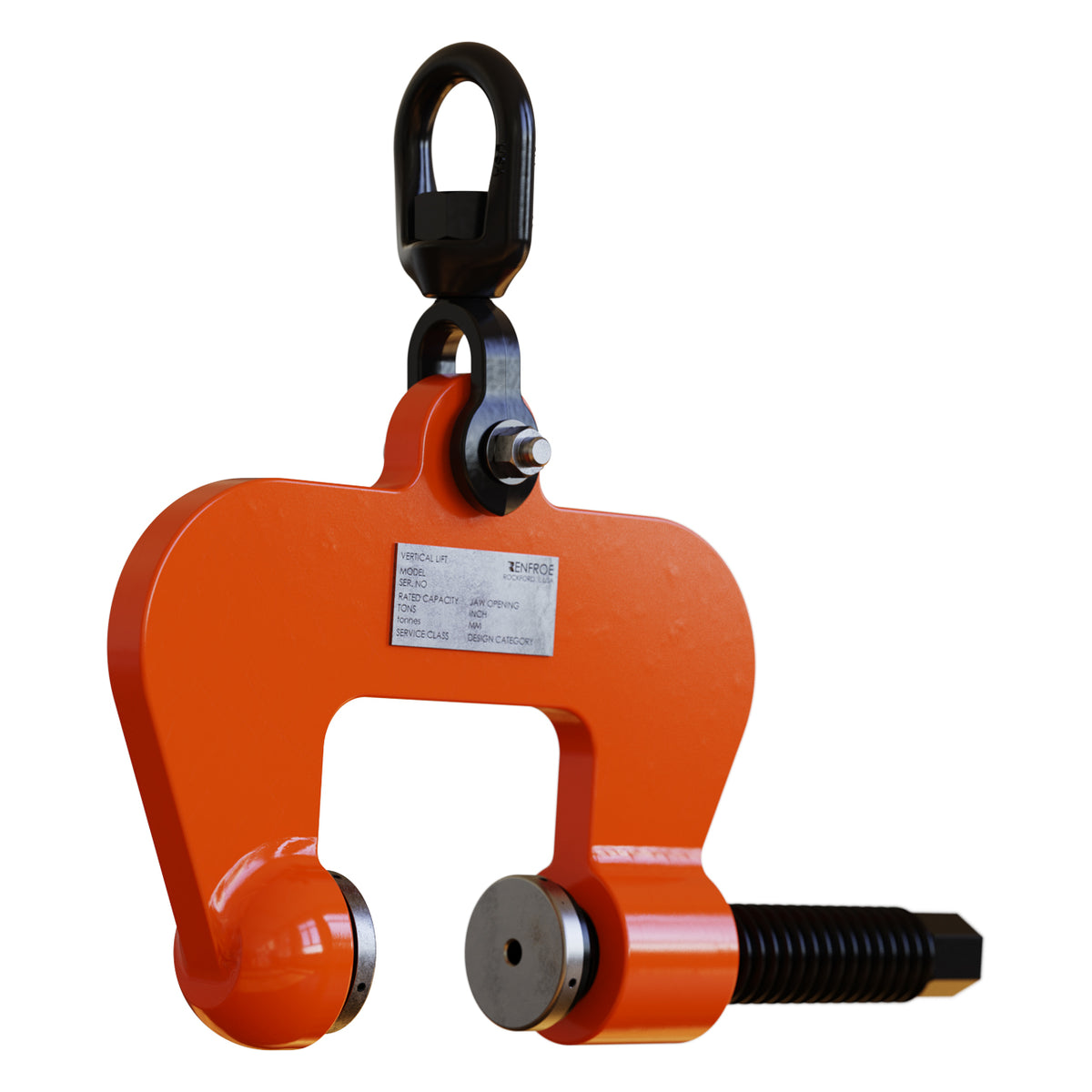

The Model NMRSC is a lightweight screw clamp for bench work on steel plates of large thicknesses, and weighing less than 1000 lbs. Supplied with smooth gripping surfaces to prevent marring when gripping stainless steel, copper, and aluminum and other polished metal plates. Recommended for use in pairs.
Features
- Ergonomic Lightweight Screw Type Clamp
- Used on large thick steel plates less than 1,000 lbs.
- Supplied with smooth gripping surfaces to prevent marring
- Capable of gripping stainless steel, copper, aluminum and other polished metal plates
Available Models
| Part No. | Rated Capacity | Clamp Body Length | Capacity | Bail Opening Height | Bail Opening Width | Overall Width | Jaw Opening Length | Jaw to Clamp Height | Clamp Body Height | Overall Height | Overall Length | Plate Thickness Max |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NMRSC-00.50-A | 1000 | 10 | 0.5 | 1.56 | 1.75 | 2.38 | 4.31 | 3.38 | 8.06 | 13.38 | 14 | 3 |
| NMRSC-00.50-B | 1000 | 11.19 | 0.5 | 1.56 | 1.75 | 2.38 | 4.31 | 3.38 | 8.06 | 13.38 | 15.94 | 4.25 |
| NMRSC-00.50-C | 1000 | 15.19 | 0.5 | 1.38 | 1.5 | 2.38 | 4.31 | 3.31 | 9.13 | 13.25 | 21.56 | 8 |
| NMRSC-00.50-D | 1000 | 19.06 | 0.5 | 1.38 | 1.5 | 2.38 | 4.13 | 3.31 | 7.56 | 12 | 20.63 | 12 |
| NMRSC-300-A | 300 | 6.31 | 0.2 | 1.38 | 1.5 | 2.75 | 2.38 | 2.5 | 5.63 | 10 | 8 | 2.5 |
