Caldwell | SKU:
Caldwell-S-02.00-A

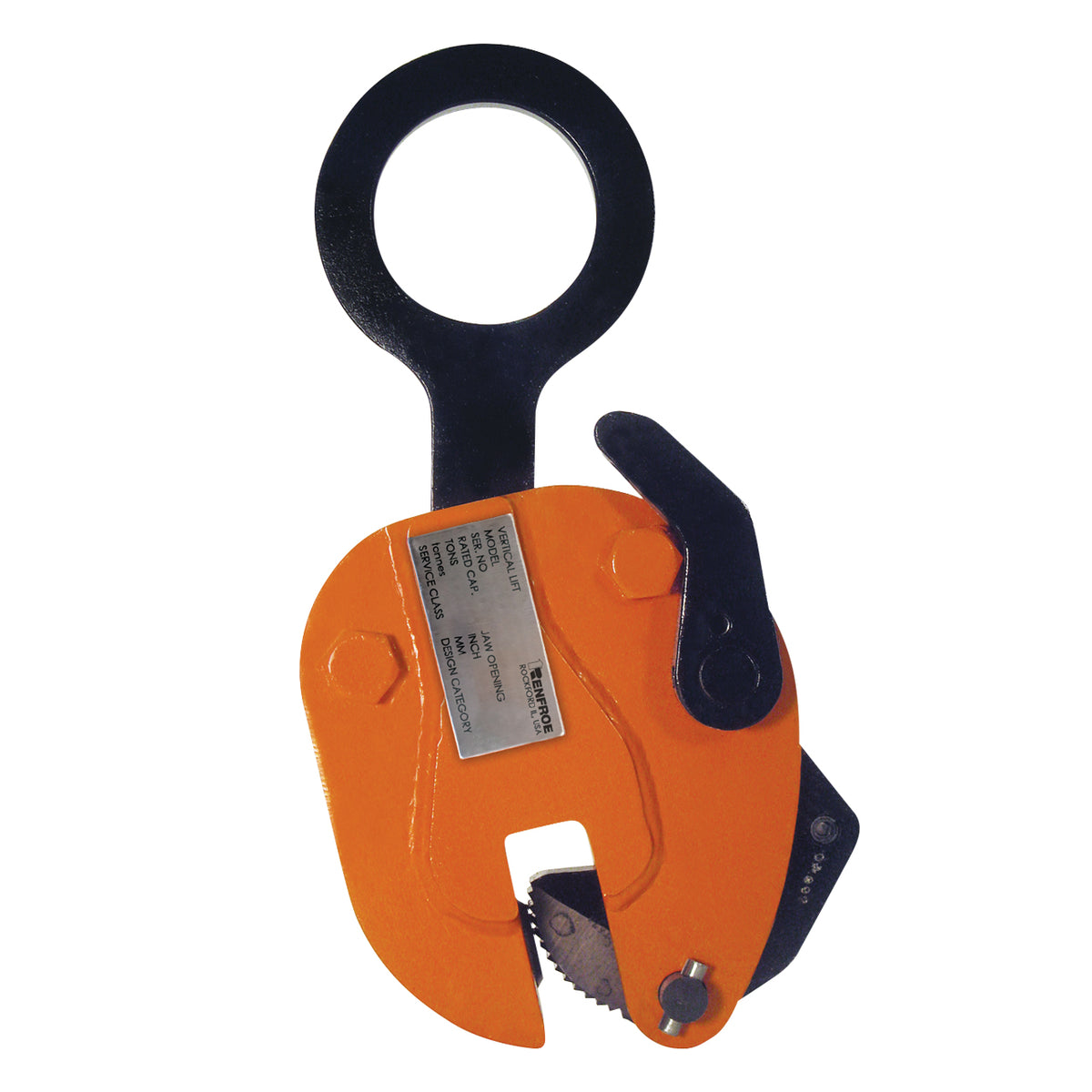

Caldwell Locking Vertical Plate Clamp
$1,422.00
Precio unitario
/
Agotado
Caldwell Locking Vertical Plate Clamp - 2 / 8.5 está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Locking Vertical Plate Clamp
Desde
$1,422.00
Precio unitario
/
Agotado
The Model S is a vertical lifting clamp and is an effective tool for construction and erection. It incorporates a “Lock Open,” “Lock Closed” feature which facilitates attaching and removing the clamp from the plate.
Features
- Vertical lifting clamp effective for steel erection and construction
- Single plate turning from horizontal to vertical & back through the same 90 degree arc
- Incorporates the Lock Open - Lock Closed Feature
- Allows easy attaching & removing of the clamp
Available Models
| Part No. | Capacity | Clamp Height | Rated Capacity | Shackle Hole Diameter | Shackle Thickness | Clamp Length | Clamp Width | Jaw Height | Jaw Length | Overall Length | Plate Thickness Max | Plate Thickness Min |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S-02.00-A | 2 | 8.5 | 4000 | 3.62 | 0.75 | 10 | 3.81 | 2.75 | 3.44 | 17 | 1 | — |
| S-02.00-B | 2 | 9 | 4000 | 3.62 | 0.75 | 10 | 3.81 | 2.75 | 3.44 | 17 | 1.5 | 0.75 |
| S-02.00-C | 2 | 9.5 | 4000 | 3.62 | 0.75 | 10 | 3.81 | 2.75 | 3.44 | 17 | 2 | 1.25 |
| S-02.00-D | 2 | 10 | 4000 | 3.62 | 0.75 | 10 | 3.81 | 2.75 | 3.44 | 17 | 2.5 | 1.75 |
| S-04.00-A | 4 | 10 | 8000 | 3.62 | 0.75 | 11.5 | 4.88 | 3.44 | 4.62 | 19.62 | 1.25 | — |
| S-04.00-B | 4 | 10.75 | 8000 | 3.62 | 0.75 | 11.5 | 4.88 | 3.44 | 4.62 | 19.62 | 2 | 1 |
| S-04.00-C | 4 | 11.5 | 8000 | 3.62 | 0.75 | 11.5 | 4.88 | 3.44 | 4.62 | 19.62 | 2.75 | 1.75 |
| S-04.00-D | 4 | 12.25 | 8000 | 3.62 | 0.75 | 11.5 | 4.88 | 3.44 | 4.62 | 19.62 | 3.5 | 2.5 |
| S-04.00-E | 4 | 13 | — | 3.62 | 0.75 | 11.5 | 4.88 | 3.44 | 4.62 | 19.62 | 4.25 | 3.25 |
| S-08.00-A | 8 | 10.5 | 16000 | 3.75 | 1 | 13.94 | 5.12 | 3.31 | 4.5 | 22.5 | 1.5 | — |
| S-08.00-B | 8 | 11 | 16000 | 3.75 | 1 | 13.94 | 5.12 | 3.31 | 4.5 | 22.5 | 2 | 1 |
| S-08.00-C | 8 | 12 | 16000 | 3.75 | 1 | 13.94 | 5.12 | 3.31 | 4.5 | 22.5 | 3 | 2 |
| S-08.00-D | 8 | 13 | — | 3.75 | 1 | 13.94 | 5.12 | 3.31 | 4.5 | 22.5 | 4 | 2.75 |
| S-12.00-A | 12 | 13.5 | 24000 | 3.88 | 1.75 | 18 | 6.25 | 3.88 | 6.5 | 28 | 2.5 | — |
| S-12.00-B | 12 | 14 | — | 3.88 | 1.75 | 18 | 6.25 | 3.88 | 6.5 | 28 | 3 | 0.5 |
| S-12.00-C | 12 | 15 | 24000 | 3.88 | 1.75 | 18 | 6.25 | 3.88 | 6.5 | 28 | 4 | 2 |
| S-12.00-D | 12 | 17 | — | 3.88 | 1.75 | 18 | 6.25 | 3.88 | 6.5 | 28 | 6 | 4 |
| S-12.00-E | 12 | 18.5 | — | 3.88 | 1.75 | 18 | 6.25 | 3.88 | 6.5 | 28 | 7.5 | 5.5 |
| S-20.00-A | 20 | 17 | 40000 | 4.94 | 2.5 | 22.75 | 7.38 | 5 | 7.5 | 35 | 3 | 0.5 |
| S-20.00-B | 20 | 19 | 40000 | 4.94 | 2.5 | 22.75 | 7.38 | 5 | 7.5 | 35 | 5 | 3 |
| S-20.00-C | 20 | 21 | 40000 | 4.94 | 2.5 | 22.75 | 7.38 | 5 | 7.5 | 35 | 7 | 5 |
| S-20.00-D | 20 | 23 | 40000 | 4.94 | 2.5 | 22.75 | 7.38 | 5 | 7.5 | 35 | 9 | 7 |
