Caldwell  |  SKU: Caldwell-20-1/2-6

Caldwell Low Headroom Lifting Beam

$1,141.00
Request a Quote

Caldwell Low Headroom Lifting Beam is available in several model configurations. Compare the models below to select the appropriate design for the application.

Model Comparison

Model Features and Application

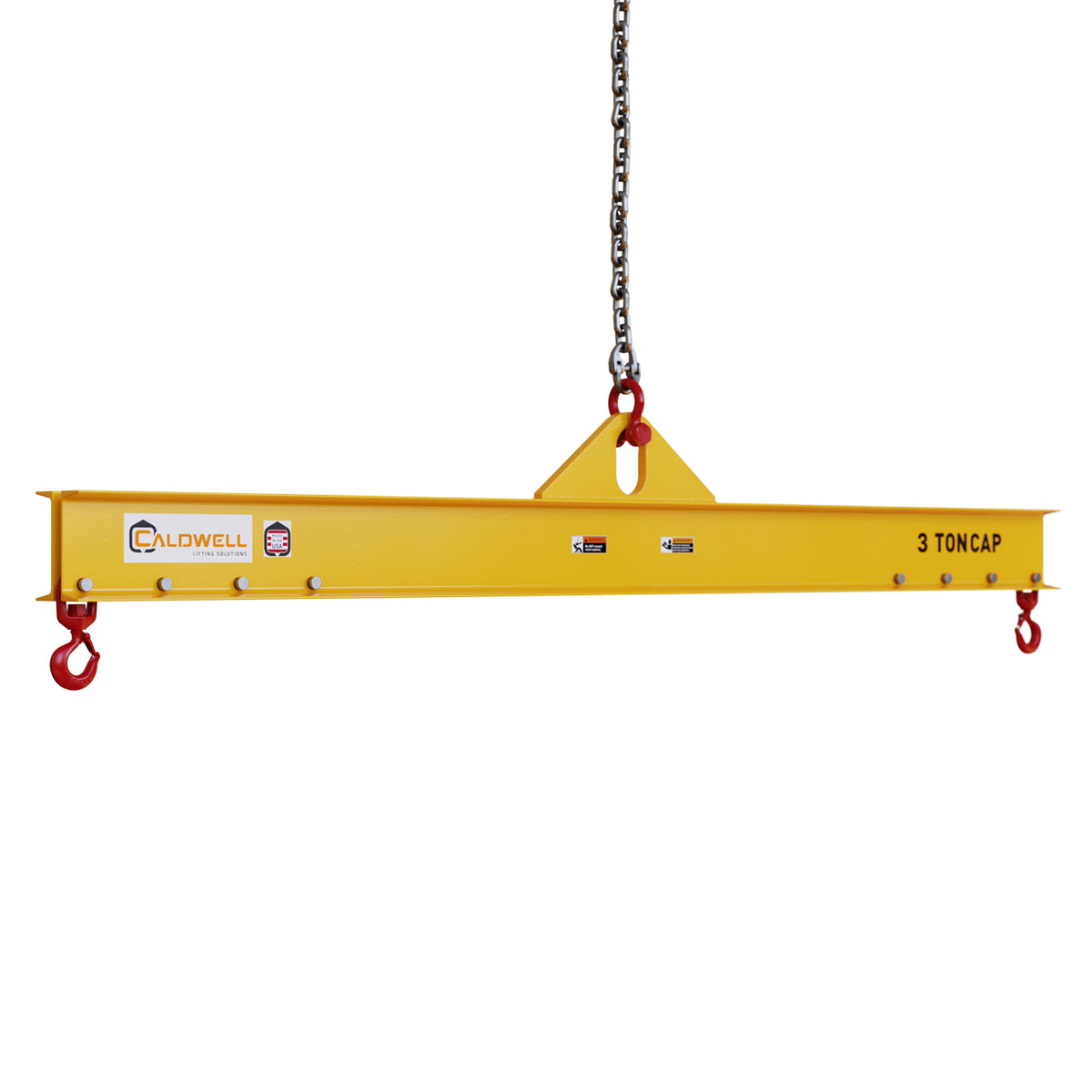

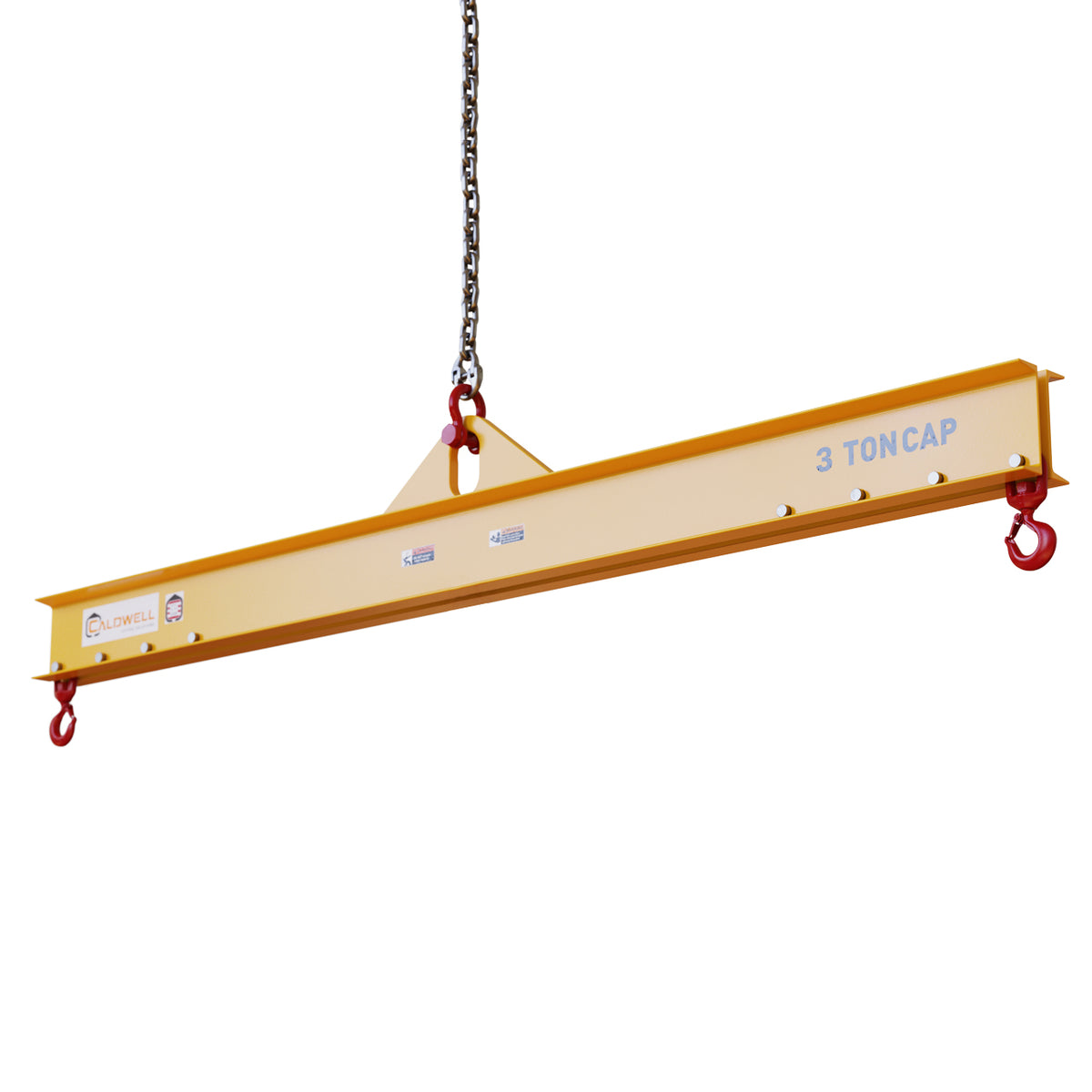

20

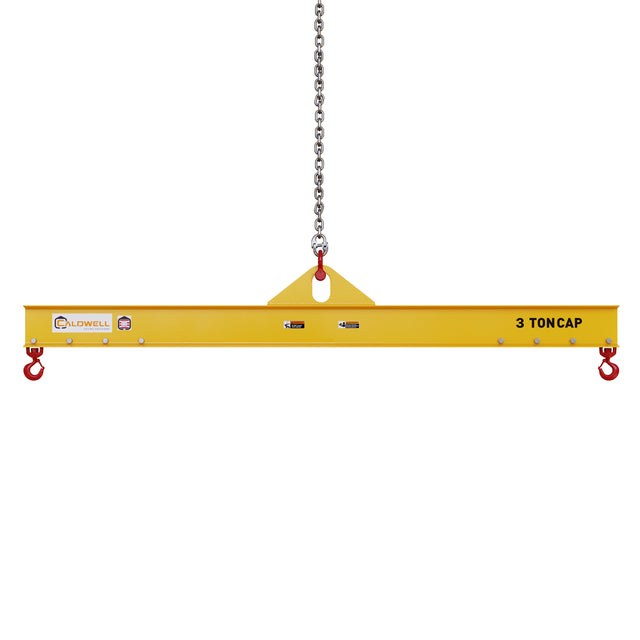

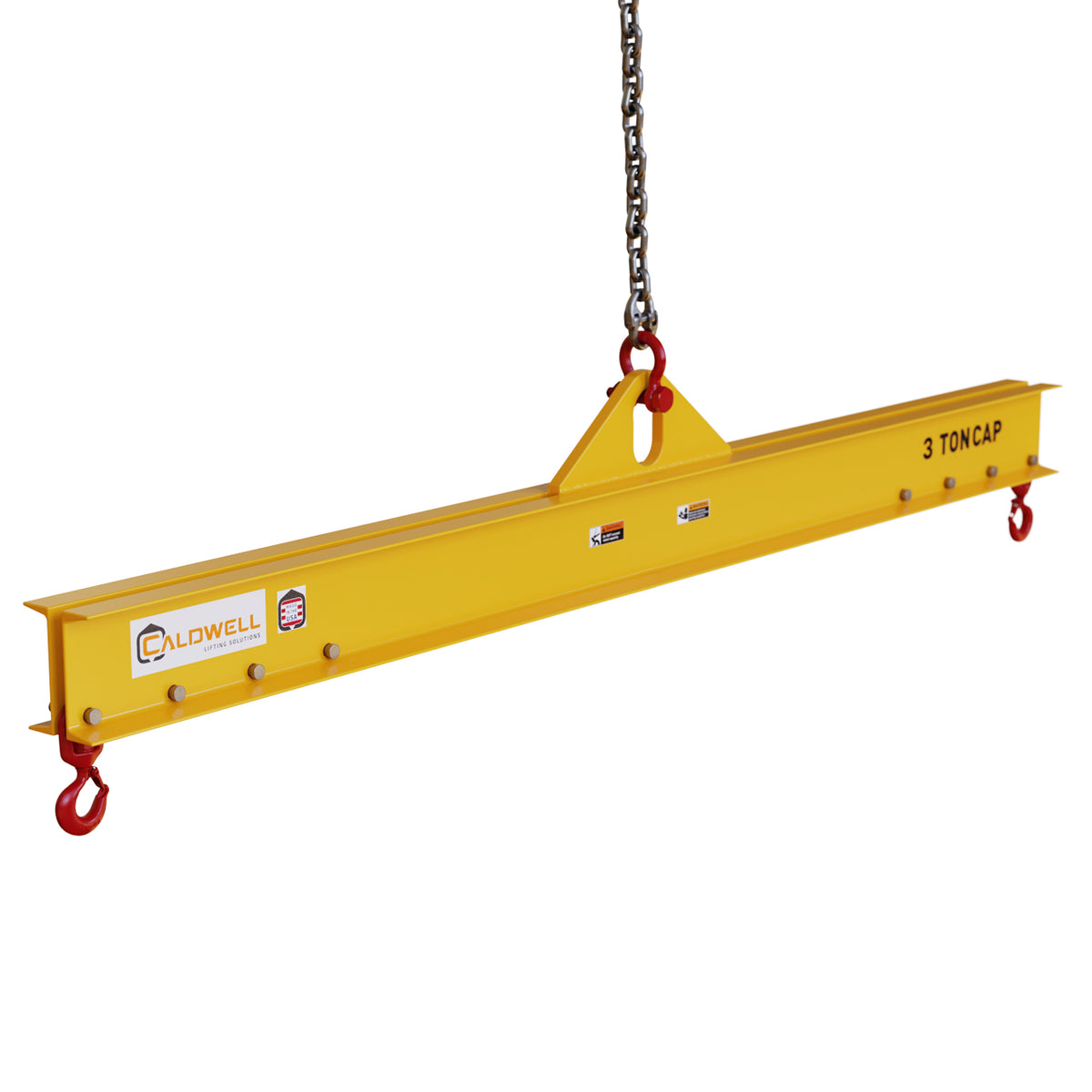

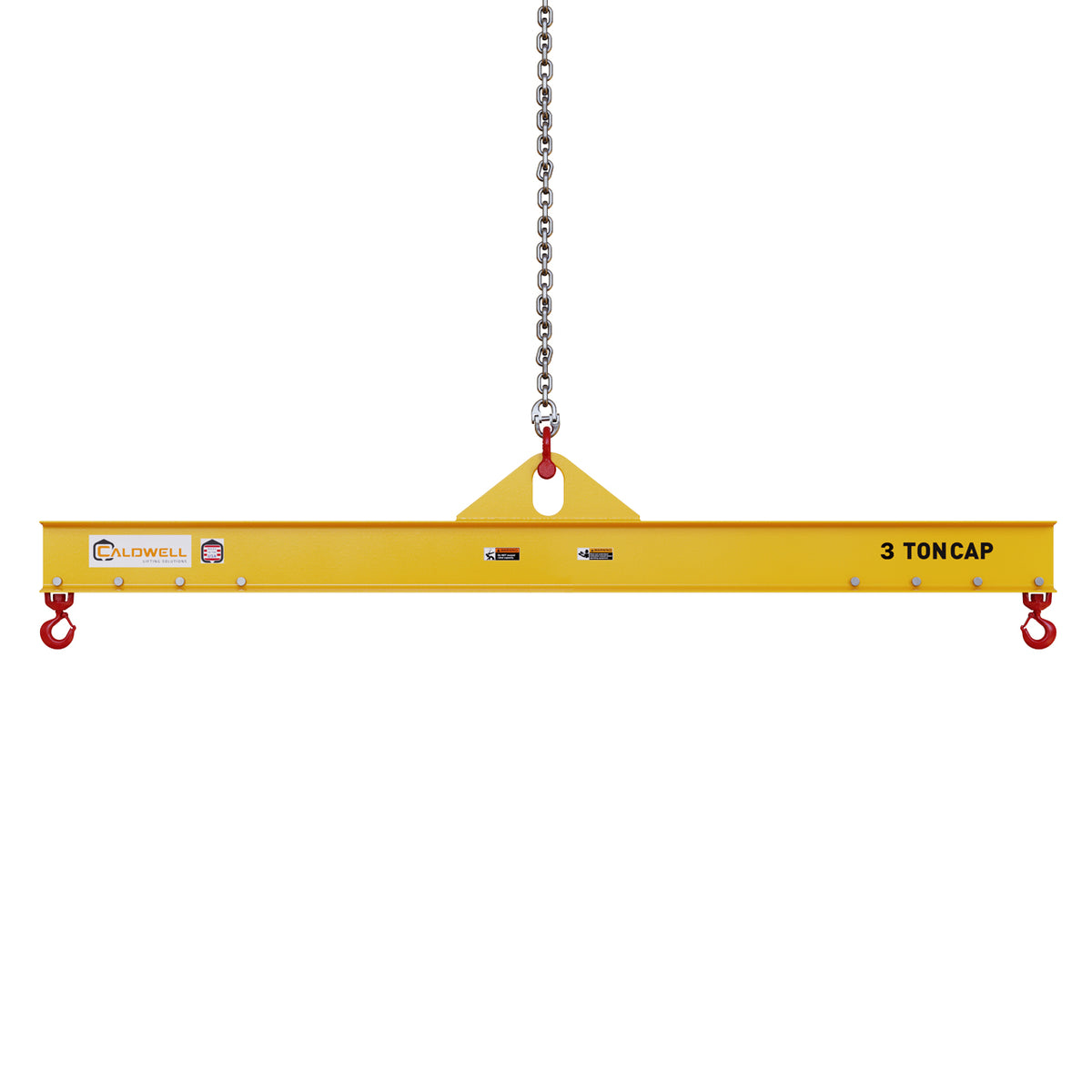

Versatility is the name of the game with the Model 20 Low-Headroom Multiple-Spread Lifting Beam. Used across the country in manufacturing and industrial applications, it's a favorite on construction sites, too.

With a few dozen standard spreads, lengths and capacities, you're likely to find an economical solution that fits your use.

  • Beams over 6' and longer have 3 spreads
  • 3' and 4' beams have 2 spreads
  • Swivel hooks with hook latches standard
  • Wide range of sizes and capacities available
  • Complies with ASME standards.

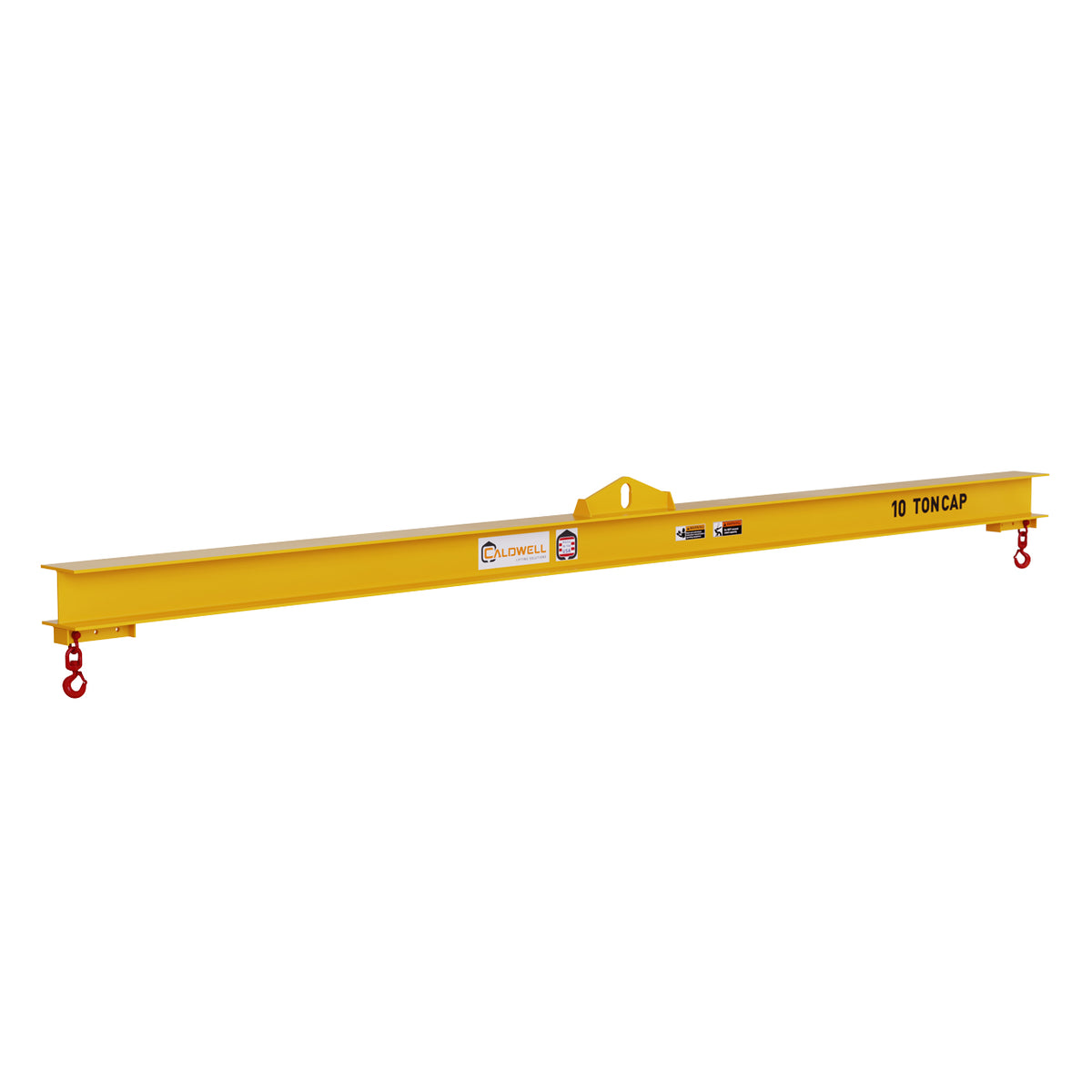

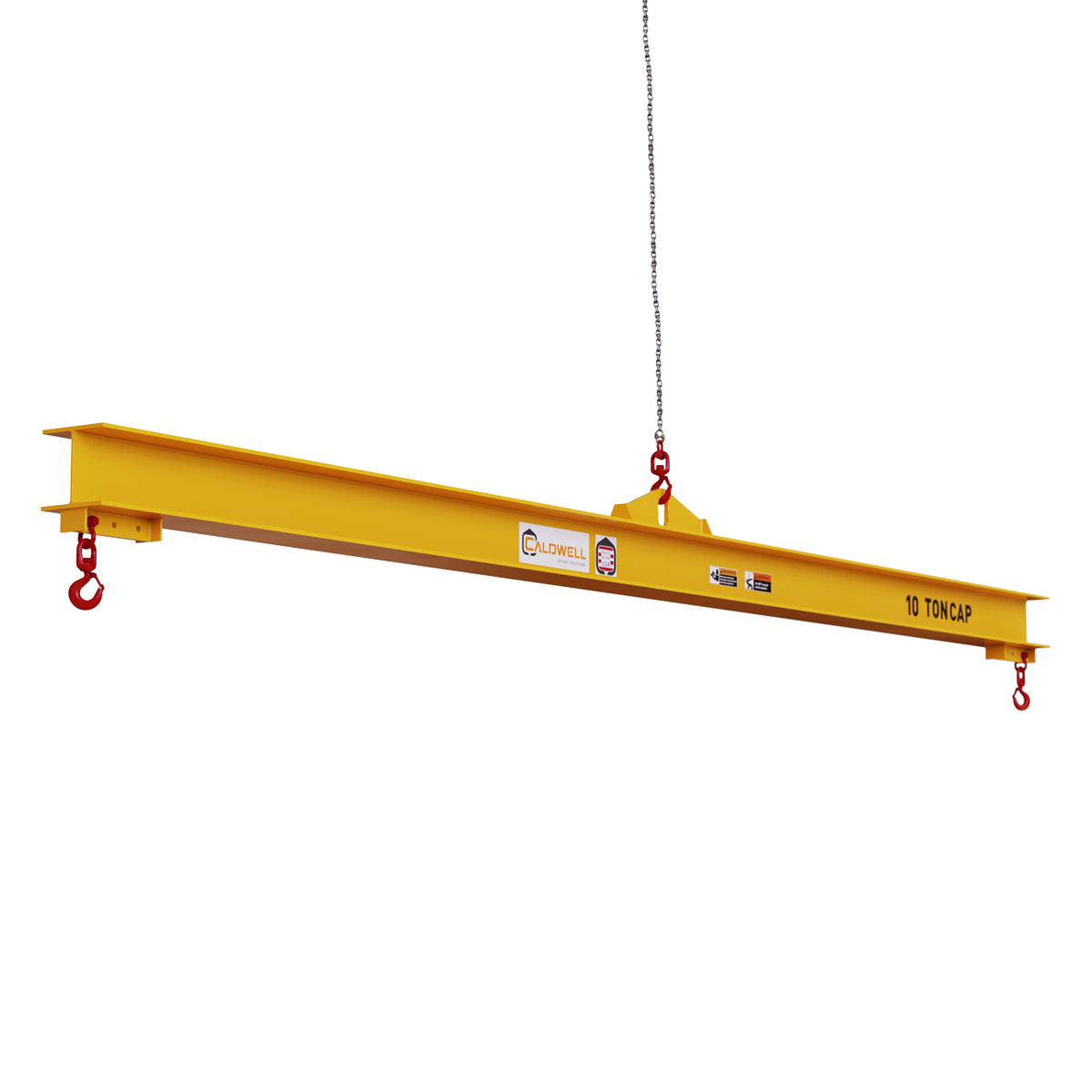

20H

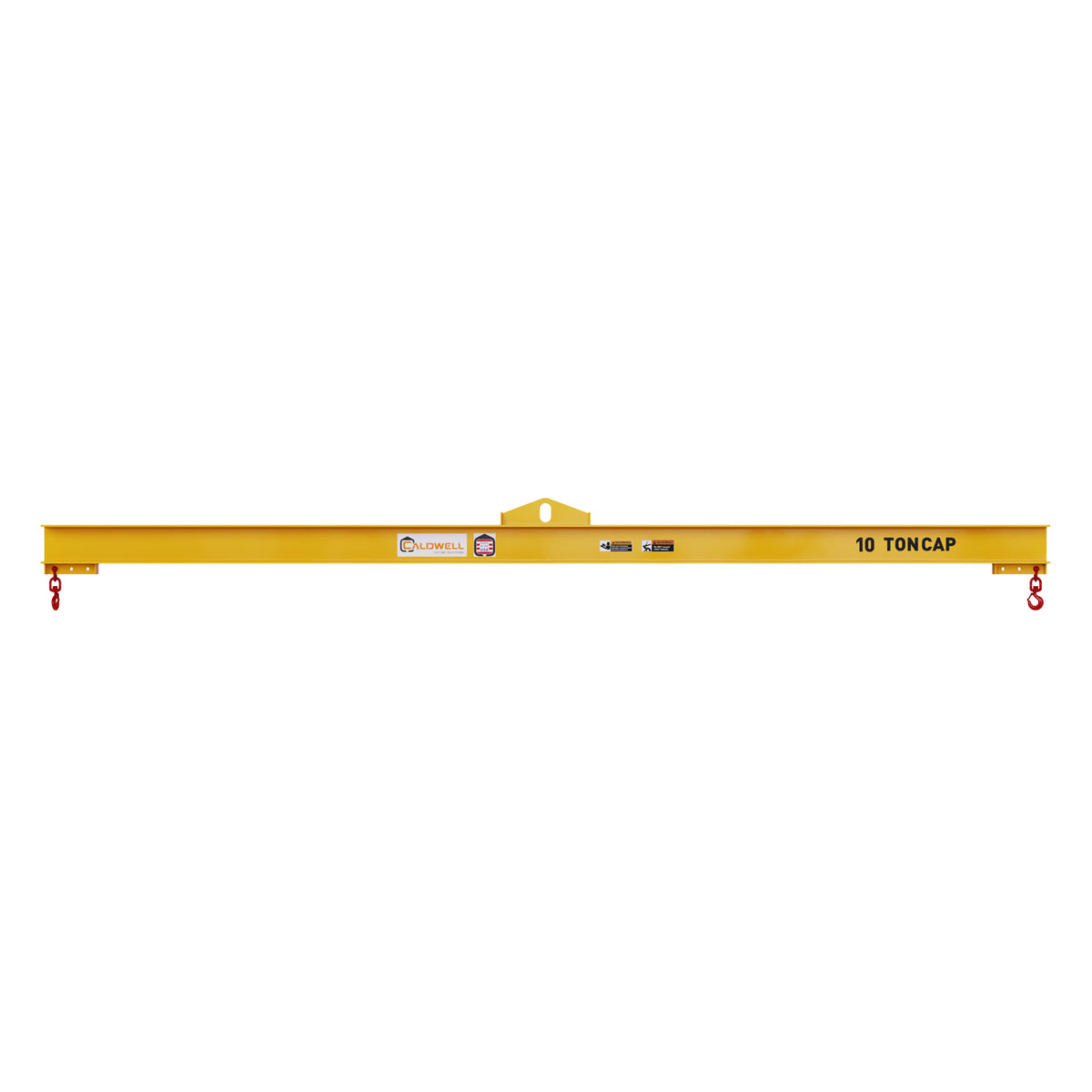

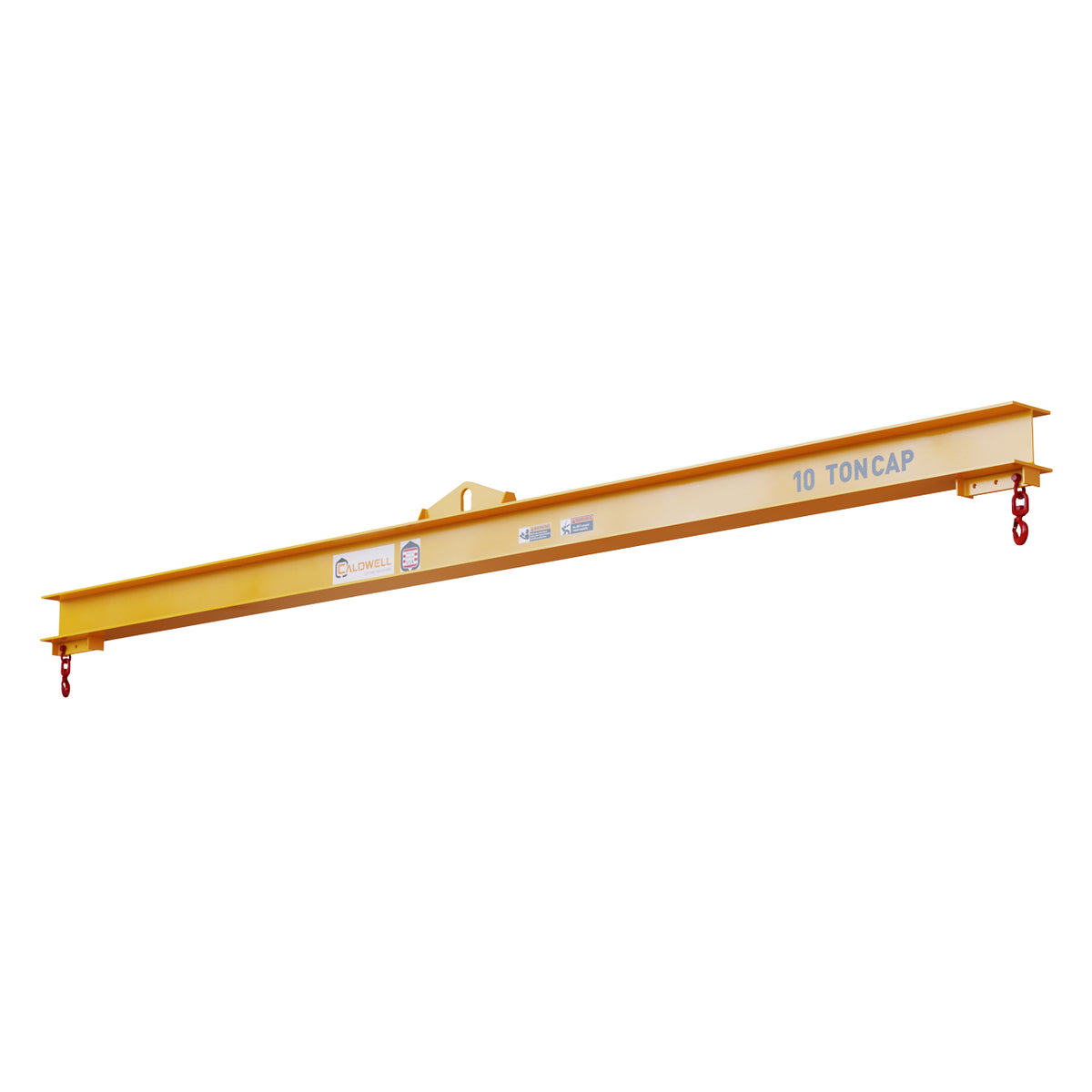

Higher capacities? Greater outside spreads? Both? When you need a more powerful beam to do the work, the Model 20H is ready for the job. Standard units handle up to 40 tons with outside spreads up to 42'L If you need something larger, Caldwell can help. Mill Duty line of Low-Headroom Multiple-Spead Lifting Beams handles loads up to 375 tons!

  • I' beam construction
  • Three spreads to adjust to the load
  • Outside spread
  • Middle spread (outside less 1')
  • Inside spread (outside less 2')
  • Swivel hooks with hook latches standard
  • Wide range of sizes and capacities available

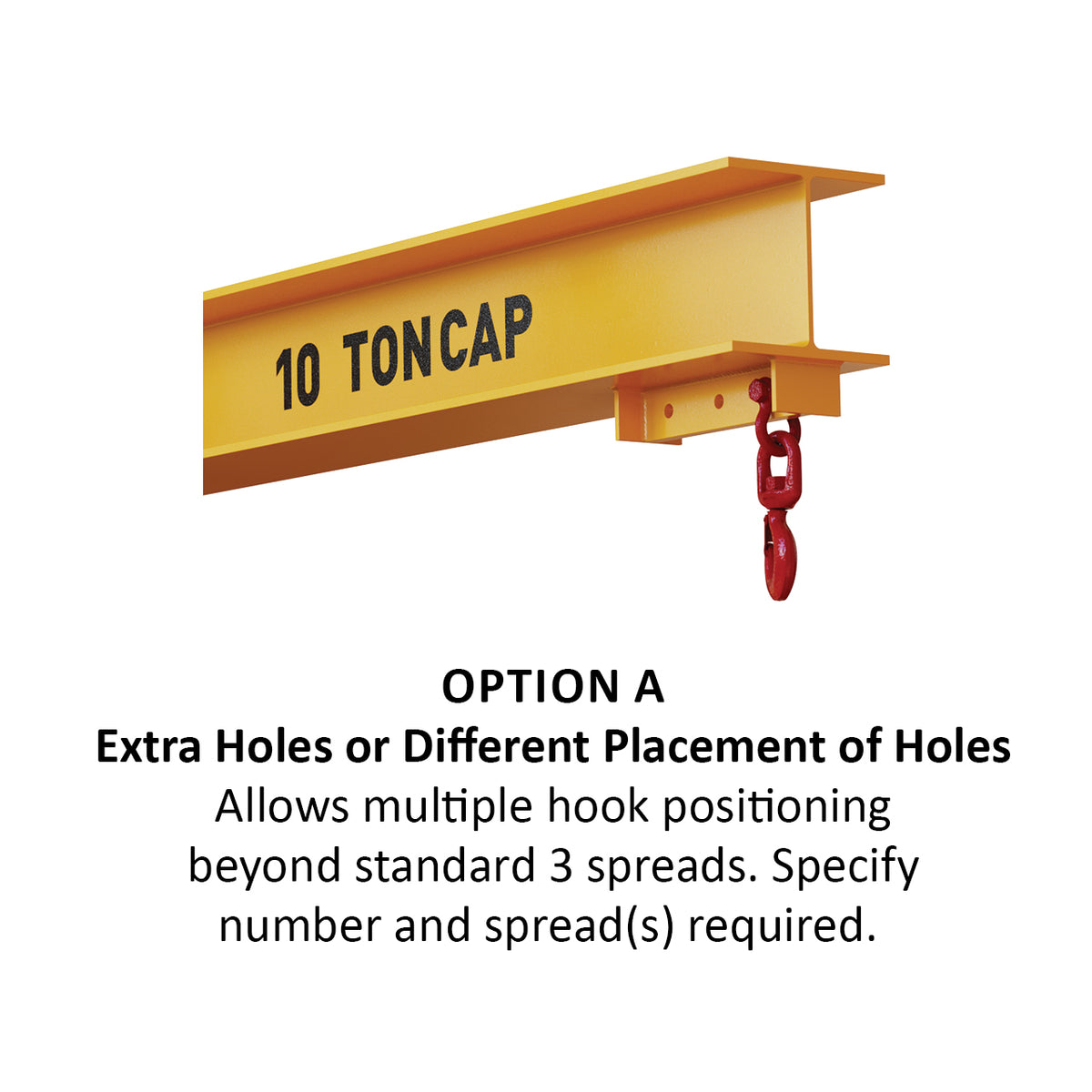

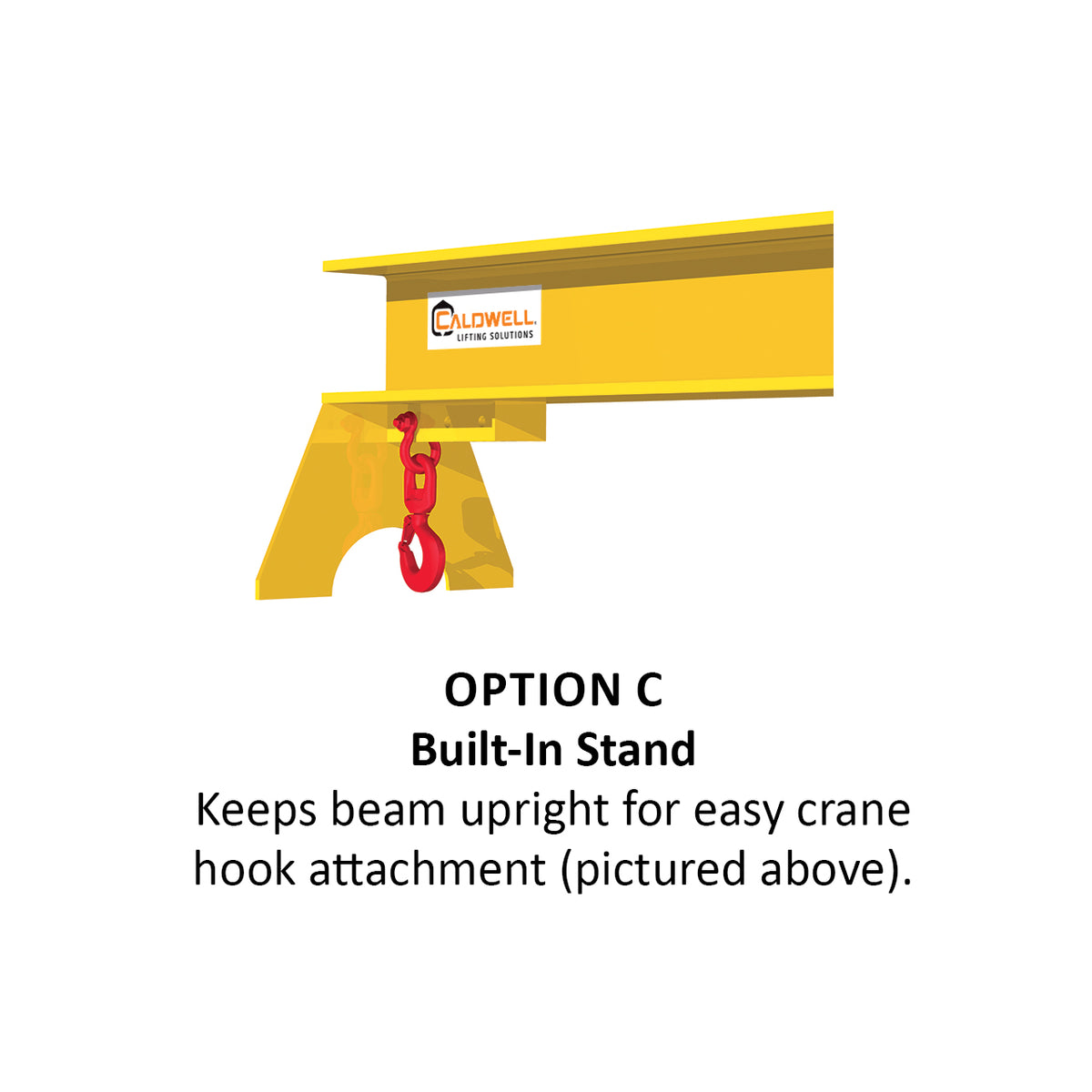

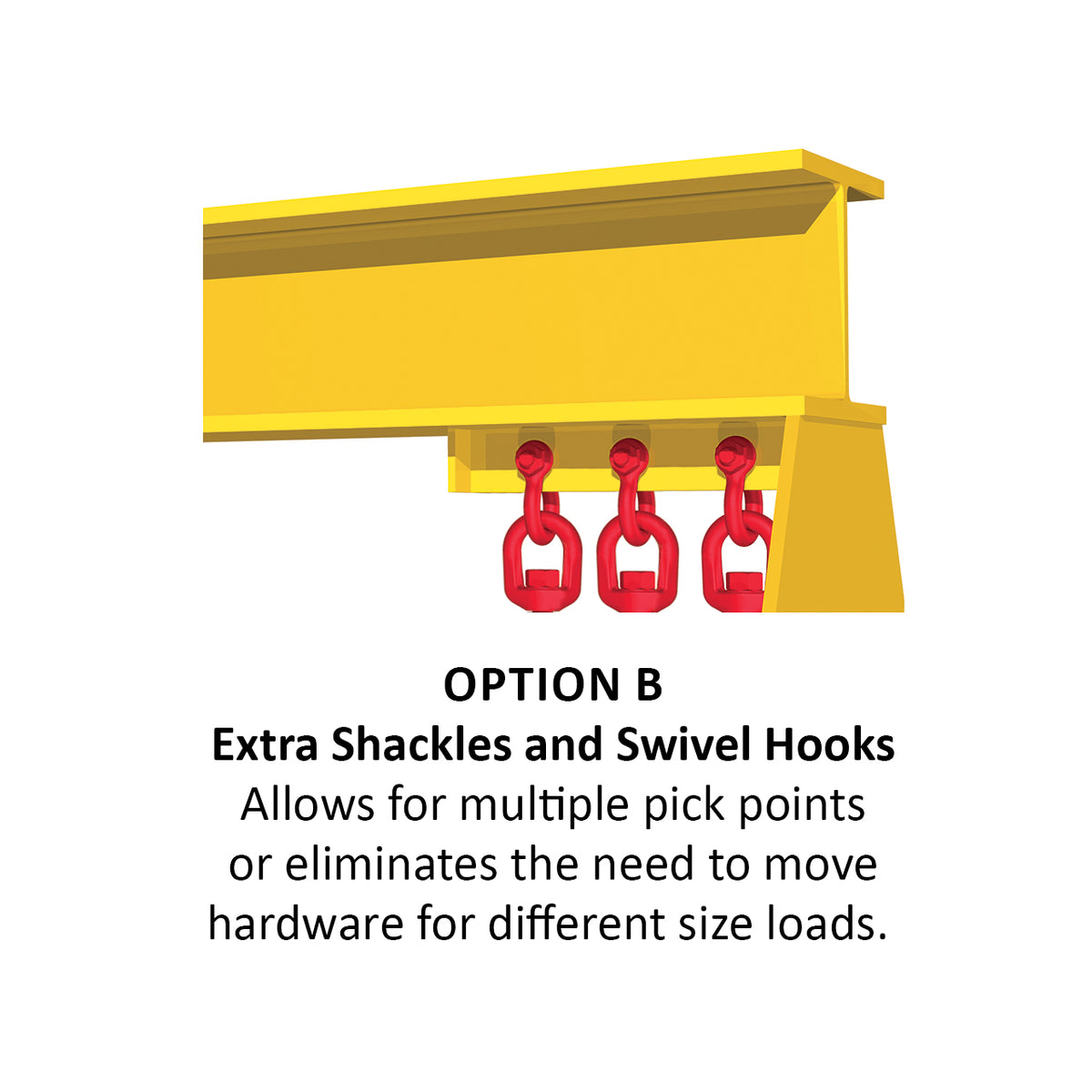

  • Customize your Model 20H with these options: Extra holes/different placements of holes, extra shackles and swivel hooks, and/or built-in stand
  • Complies with ASME standards

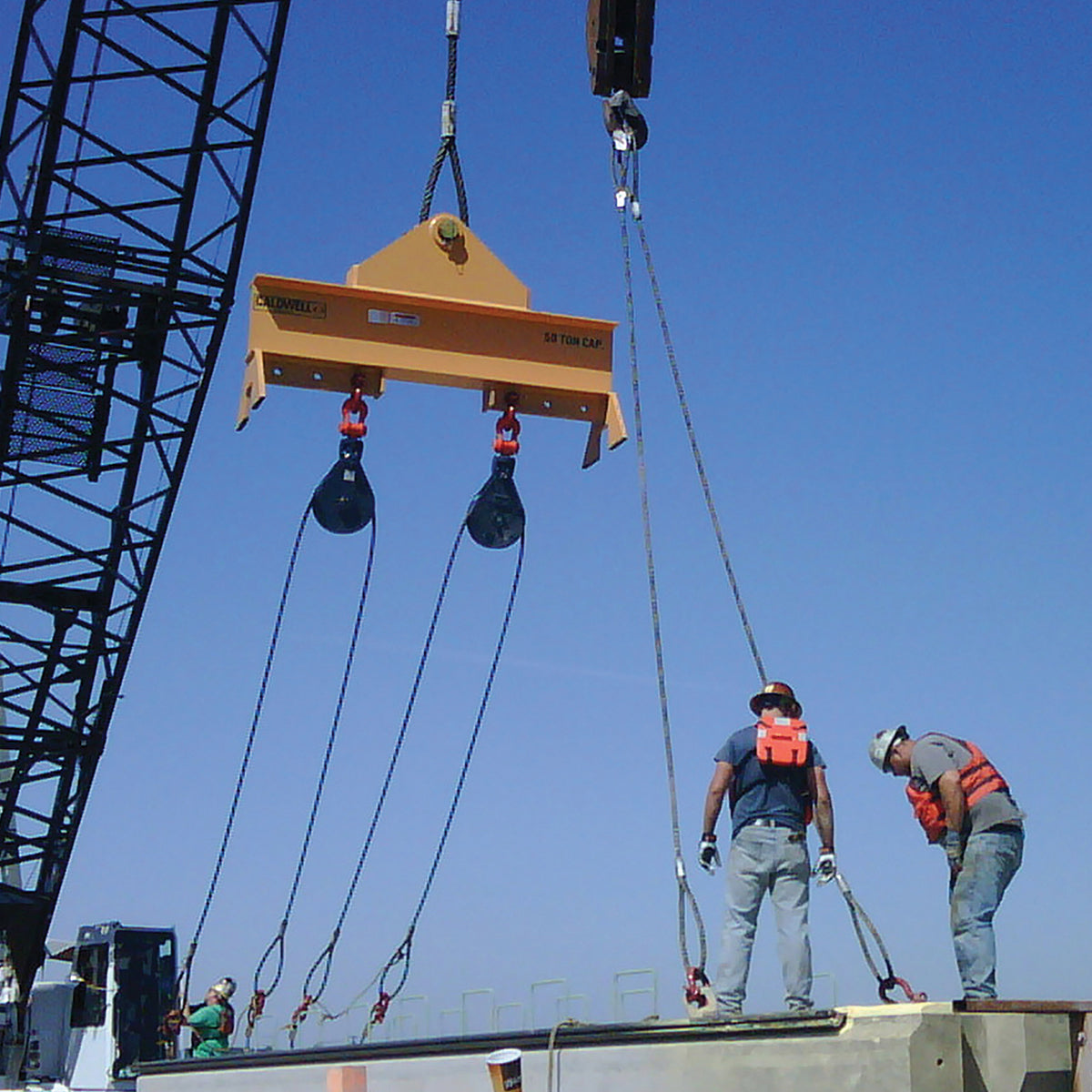

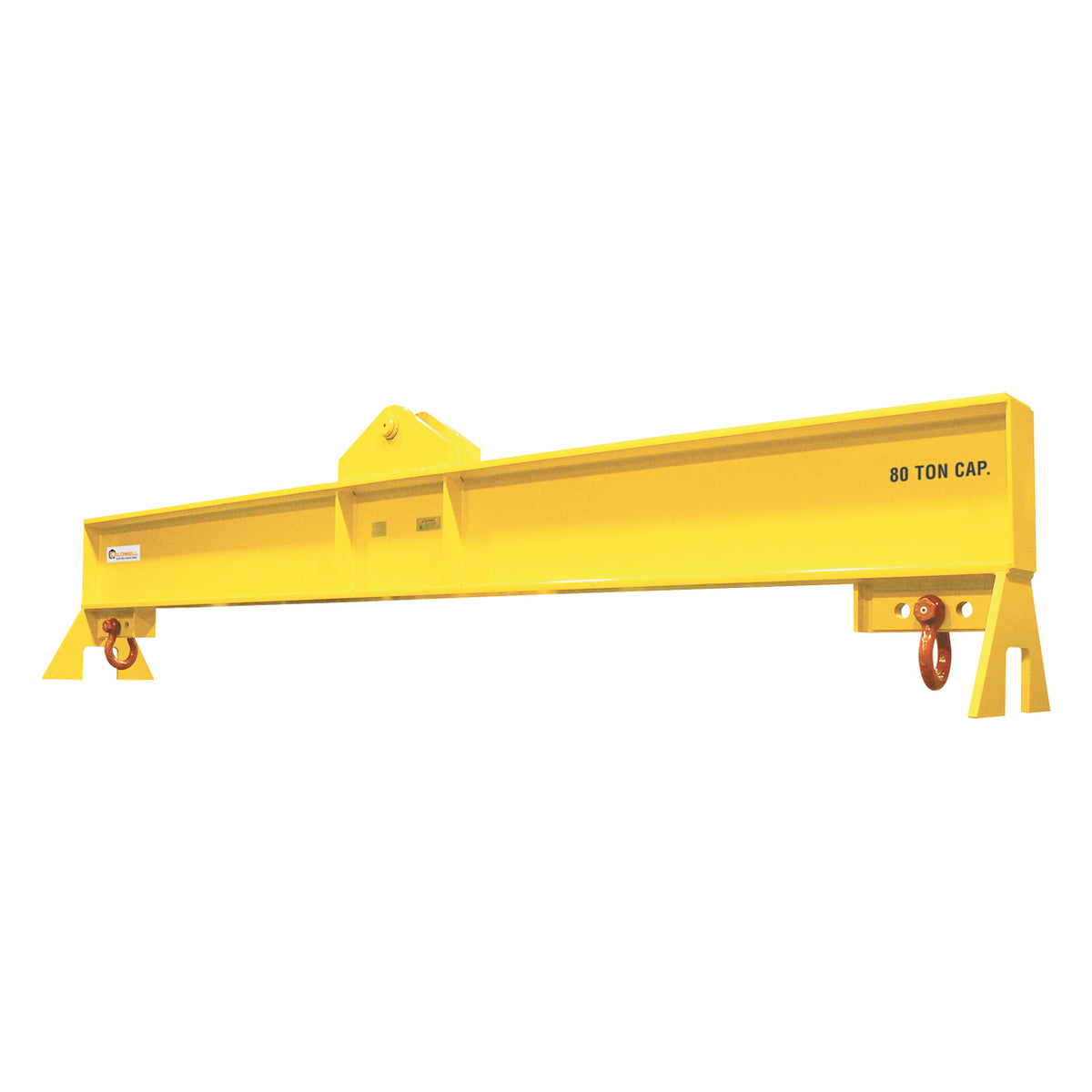

20HC

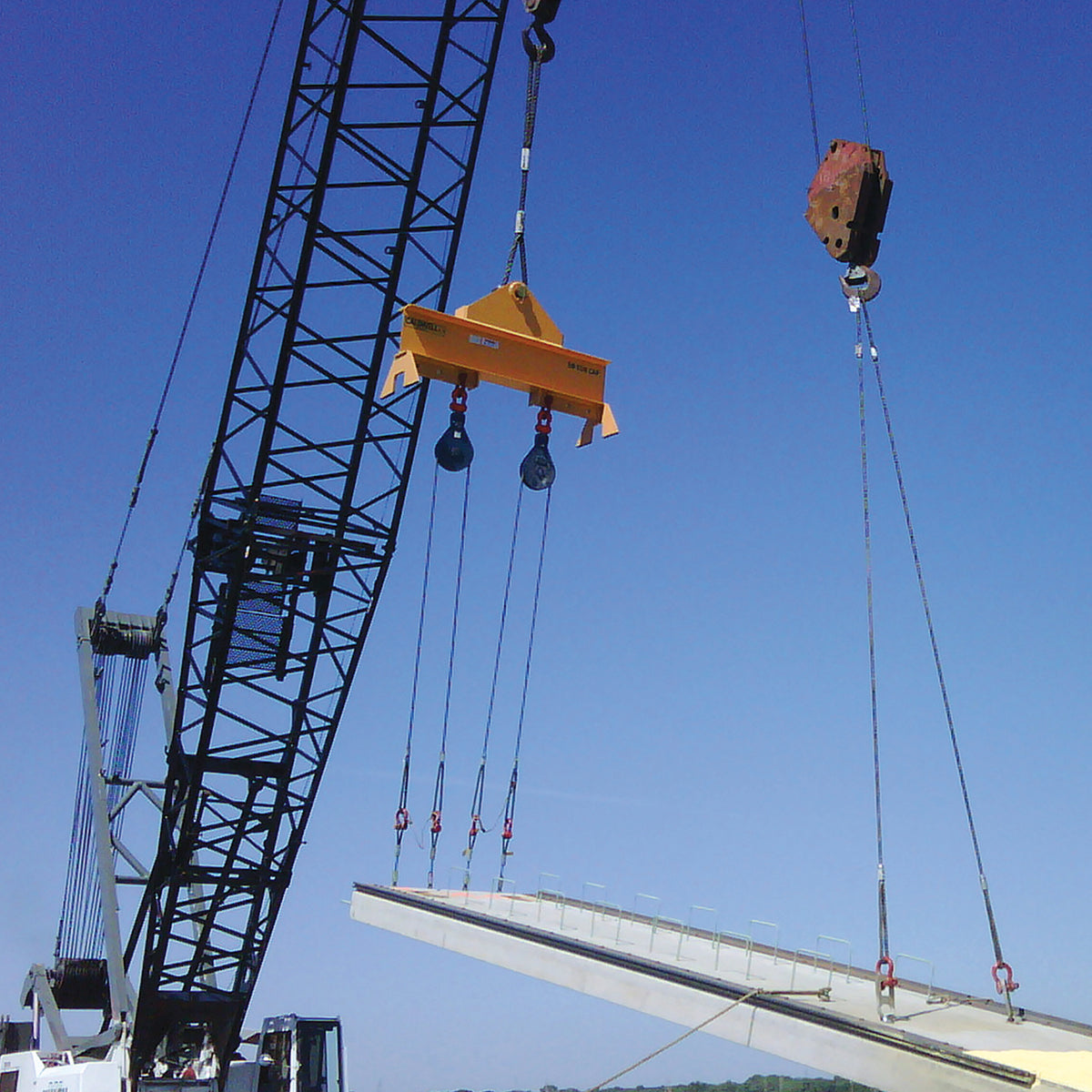

Big loads? Heavy picks? Super-size lifts? No worries. The model 20HC is ready and willing to do the work. With built-in beam stands and reinforced I-beam construction, this beauty is ready for whatever you throw at it.

  • Heavy-duty I-beam construction
  • Built-in beam stands for easy storage
  • Pin Bail allows for quick attachment of large crane hook
  • Beams have three spreads for flexibility
  • Lifting shackles are standard
  • Complies with ASME standards

Available Models

Part No. Model Rated Capacity Max Spread Capacity Bail Oblong Diameter Bail Opening Width Bail Opening Height Bail Thickness Hook Opening With Latch Stand Width Overall Length Headroom
20-1/2-6 20 1000 72 0.5 — 3 5 0.75 0.875 — — 12.75
20-1/2-8 20 1000 96 0.5 — 3 5 0.75 0.88 — — 12.75
20-1/2-10 20 1000 120 0.5 — 3 5 0.75 0.88 — — 13.75
20-1/2-12 20 1000 144 0.5 — 3 5 0.75 0.88 — — 13.75
20-1/2-14 20 1000 168 0.5 — 3 5 0.75 0.875 — — 14.75
20-1/2-16 20 1000 192 0.5 — 3 5 0.75 0.875 — — 15.75
20-1/2-18 20 1000 216 0.5 — 3 5 0.75 0.875 — — 16.75
20-1/2-20 20 1000 240 0.5 — 3 5 0.75 0.875 — — 16.75
20-1/2-24 20 1000 288 0.5 — 3 5 0.75 0.875 — — 20.25
20-1/2-30 20 1000 360 0.5 — 3 5 0.75 0.875 — — 22.25
20-1-3 20 2000 36 1 — 3 5 0.75 0.88 — — 12.75
20-1-6 20 2000 72 1 — 3 5 0.75 0.88 — — 13.75
20-1-8 20 2000 96 1 — 3 5 0.75 0.875 — — 13.75
20-1-10 20 2000 120 1 — 3 5 0.75 0.875 — — 14.75
20-1-12 20 2000 144 1 — 3 5 0.75 0.875 — — 15.75
20-1-14 20 2000 168 1 — 3 5 0.75 0.875 — — 16.75
20-1-16 20 2000 192 1 — 3 5 0.75 0.875 — — 18.5
20-1-18 20 2000 216 1 — 3 5 0.75 0.875 — — 20.25
20-1-20 20 2000 240 1 — 3 5 0.75 0.875 — — 20.25
20-1-24 20 2000 288 1 — 3 5 0.75 0.875 — — 22.25
20-2-3 20 4000 36 2 — 3 5 0.75 0.875 — — 13.75
20-2-6 20 4000 72 2 — 3 5 0.75 0.88 — — 14.75
20-2-8 20 4000 96 2 — 3 5 0.75 0.875 — — 16.5
20-2-10 20 4000 120 2 — 3 5 0.75 0.875 — — 17.5
20-2-12 20 4000 144 2 — 3 5 0.75 0.875 — — 18.25
20-2-14 20 4000 168 2 — 3 5 0.75 0.875 — — 20.25
20-2-16 20 4000 192 2 — 3 5 0.75 0.875 — — 20.25
20-2-18 20 4000 216 2 — 3 5 0.75 0.875 — — 24.75
20-2-20 20 4000 240 2 — 3 5 0.75 0.875 — — 24.75
20-2-24 20 4000 288 2 — 3 5 0.75 0.875 — — 27.75
20-3-3 20 6000 36 3 — 3 5 1 1.25 — — 15.25
20-3-4 20 6000 48 3 — 3 5 1 1.25 — — 15.25
20-3-6 20 6000 72 3 — 3 5 1 1.25 — — 16.25
20-3-8 20 6000 96 3 — 3 5 1 1.25 — — 17.25
20-3-10 20 6000 120 3 — 3 5 1 1.25 — — 18.25
20-3-12 20 6000 144 3 — 3 5 1 1.25 — — 22.5
20-3-14 20 6000 168 3 — 3 5 1 1.25 — — 24.5
20-3-16 20 6000 192 3 — 3 5 1 1.25 — — 24.5
20-3-18 20 6000 216 3 — 3 5 1 1.25 — — 27.5
20-3-20 20 6000 240 3 — 3 5 1 1.25 — — 27.5
20-3-24 20 6000 288 3 — 3 5 1 1.25 — — 27.5
20-5-3 20 10000 36 5 — 4 7 1.25 1.9375 — — 19.5
20-5-4 20 10000 48 5 — 4 7 1.25 1.9375 — — 20.5
20-5-6 20 10000 72 5 — 4 7 1.25 1.94 — — 21.5
20-5-12 20 10000 144 5 — 4 7 1.25 1.94 — — 27.5
20-5-14 20 10000 168 5 — 4 7 1.25 1.94 — — 27.5
20-5-16 20 10000 192 5 — 4 7 1.25 1.94 — — 30.25
20-5-18 20 10000 216 5 — 4 7 1.25 1.94 — — 30.25
20-5-20 20 10000 240 5 — 4 7 1.25 1.94 — — 30.25
20-5-24 20 10000 288 5 — 4 7 1.25 1.9375 — — 33.25
20-7 1/2-3 20 15000 36 7.5 — 4 7 1.25 1.5 — — 22.5
20-7 1/2-4 20 15000 48 7.5 — 4 7 1.25 1.5 — — 23.5
20-7 1/2-6 20 15000 72 7.5 — 4 7 1.25 1.5 — — 25.25
20-7 1/2-8 20 15000 96 7.5 — 4 7 1.25 1.5 — — 27.25
20-7 1/2-10 20 15000 120 7.5 — 4 7 1.25 1.5 — — 27.25
20-7 1/2-12 20 15000 144 7.5 — 4 7 1.25 1.5 — — 30.25
20-7 1/2-14 20 15000 168 7.5 — 4 7 1.25 1.5 — — 30.25
20-7 1/2-16 20 15000 192 7.5 — 4 7 1.25 1.5 — — 30.25
20-7 1/2-18 20 15000 216 7.5 — 4 7 1.25 1.5 — — 33
20-10-3 20 20000 36 10 — 4 7 1.25 1.5625 — — 23.25
20-10-4 20 20000 48 10 — 4 7 1.25 1.5625 — — 25.25
20-10-8 20 20000 96 10 — 4 7 1.25 1.5625 — — 27.25
20-10-12 20 20000 144 10 — 4 7 1.25 1.5625 — — 30.25
20-10-14 20 20000 168 10 — 4 7 1.25 1.5625 — — 30.25
20-10-16 20 20000 192 10 — 4 7 1.25 1.5625 — — 33
20-10-18 20 20000 216 10 — 4 7 1.25 1.5625 — — 33
20-15-3 20 30000 36 15 — 5 9 1.5 2.0625 — — 28.5
20-15-4 20 30000 48 15 — 5 9 1.5 2.0625 — — 30.5
20-15-6 20 30000 72 15 — 5 9 1.5 2.0625 — — 30.5
20-15-8 20 30000 96 15 — 5 9 1.5 2.0625 — — 33.5
20-15-10 20 30000 120 15 — 5 9 1.5 2.0625 — — 33.5
20-15-12 20 30000 144 15 — 5 9 1.5 2.0625 — — 40.25
20-15-14 20 30000 168 15 — 5 9 1.5 2.0625 — — 40.25
20-20-3 20 40000 36 20 — 5 9 1.5 2.25 — — 38.75
20-20-4 20 40000 48 20 — 5 9 1.5 2.25 — — 38.75
20-20-6 20 40000 72 20 — 5 9 1.5 2.25 — — 38.75
20-20-8 20 40000 96 20 — 5 9 1.5 2.25 — — 38.75
20-20-10 20 40000 120 20 — 5 9 1.5 2.25 — — 41.5
20-20-12 20 40000 144 20 — 5 9 1.5 2.25 — — 41.5
20-25-4 20 50000 48 25 — 6 12 1.75 2.25 — — 41.375
20-25-6 20 50000 72 25 — 6 12 1.75 2.25 — — 41.375
20-25-8 20 50000 96 25 — 6 12 1.75 2.25 — — 44.375
20-25-10 20 50000 120 25 — 6 12 1.75 2.25 — — 44.375
20-25-12 20 50000 144 25 — 6 12 1.75 2.25 — — 44.38
20-30-4 20 60000 48 30 — 7 16 2 2.25 — — 45.5
20-30-6 20 60000 72 30 — 7 16 2 2.25 — — 45.5
20-30-8 20 60000 96 30 — 7 16 2 2.25 — — 48.25
20-40-4 20 80000 48 40 — 7 16 2.5 3 — — 44.75
20-40-6 20 80000 72 40 — 7 16 2.5 3 — — 47.75
20H-1-30 20H 2000 360 1 — 3 5 0.75 0.875 — — 24
20H-1-34 20H 2000 408 1 — 3 5 0.75 0.875 — — 24
20H-1-38 20H 2000 456 1 — 3 5 0.75 0.875 — — 24
20H-1-42 20H 2000 504 1 — 3 5 0.75 0.875 — — 26
20H-2-30 20H 4000 360 2 — 3 5 1 0.875 — — 24
20H-2-34 20H 4000 408 2 — 3 5 1 0.875 — — 24
20H-2-38 20H 4000 456 2 — 3 5 1 0.875 — — 24.5
20H-2-42 20H 4000 504 2 — 3 5 1 0.875 — — 26.5
20H-3-30 20H 6000 360 3 — 3 5 1 1 — — 27.25
20H-3-34 20H 6000 408 3 — 3 5 1 1 — — 27.25
20H-3-38 20H 6000 456 3 — 3 5 1 1 — — 27.5
20H-3-42 20H 6000 504 3 — 3 5 1 1 — — 29
20H-5-30 20H 10000 360 5 — 4 7 1.25 1.375 — — 32
20H-5-34 20H 10000 408 5 — 4 7 1.25 1.375 — — 32
20H-5-38 20H 10000 456 5 — 4 7 1.25 1.375 — — 34
20H-5-42 20H 10000 504 5 — 4 7 1.25 1.375 — — 34
20H-7 1/2-20 20H 15000 240 7.5 — 4 7 1.25 1.625 — — 34.75
20H-7 1/2-24 20H 15000 288 7.5 — 4 7 1.25 1.625 — — 34.75
20H-7 1/2-30 20H 15000 360 7.5 — 4 7 1.25 1.625 — — 35
20H-7.5-34 20H 15000 408 7.5 — 4 7 1.25 1.625 — — 36.75
20H-7.5-38 20H 15000 456 7.5 — 4 7 1.25 1.625 — — 37
20H-7.5-42 20H 15000 504 7.5 — 4 7 1.25 1.625 — — 37
20H-10-20 20H 20000 240 10 — 4 7 1.25 1.625 — — 35.75
20H-10-24 20H 20000 288 10 — 4 7 1.25 1.625 — — 36
20H-10-30 20H 20000 360 10 — 4 7 1.25 1.625 — — 37.75
20H-10-34 20H 20000 408 10 — 4 7 1.25 1.625 — — 38
20H-10-38 20H 20000 456 10 — 4 7 1.25 1.625 — — 38
20H-10-42 20H 20000 504 10 — 4 7 1.25 1.625 — — 38.5
20H-15-16 20H 30000 192 15 — 5 9 1.5 2.0625 — — 41.5
20H-15-18 20H 30000 216 15 — 5 9 1.5 2.0625 — — 41.75
20H-15-20 20H 30000 240 15 — 5 9 1.5 2.0625 — — 42
20H-15-24 20H 30000 288 15 — 5 9 1.5 2.0625 — — 41.5
20H-15-30 20H 30000 360 15 — 5 9 1.5 2.0625 — — 42.25
20H-15-34 20H 30000 408 15 — 5 9 1.5 2.06 — — 42.25
20H-15-38 20H 30000 456 15 — 5 9 1.5 2.0625 — — 42.5
20H-15-42 20H 30000 504 15 — 5 9 1.5 2.0625 — — 43
20H-20-14 20H 40000 168 20 — 5 9 1.5 2.25 — — 45.75
20H-20-16 20H 40000 192 20 — 5 9 1.5 2.25 — — 46
20H-20-18 20H 40000 216 20 — 5 9 1.5 2.25 — — 46.25
20H-20-20 20H 40000 240 20 — 5 9 1.5 2.25 — — 48
20H-20-24 20H 40000 288 20 — 5 9 1.5 2.25 — — 48.5
20H-20-30 20H 40000 360 20 — 5 9 1.5 2.25 — — 49.25
20H-20-34 20H 40000 408 20 — 5 9 1.5 2.25 — — 49.25
20H-20-38 20H 40000 456 20 — 5 9 1.5 2.25 — — 55.25
20H-20-42 20H 40000 504 20 — 5 9 1.5 2.25 — — 55.5
20H-25-14 20H 50000 168 25 — 6 12 1.75 2.25 — — 55.75
20H-25-16 20H 50000 192 25 — 6 12 1.75 2.25 — — 55
20H-25-18 20H 50000 216 25 — 6 12 1.75 2.25 — — 56.75
20H-25-20 20H 50000 240 25 — 6 12 1.75 2.25 — — 59.75
20H-25-24 20H 50000 288 25 — 6 12 1.75 2.25 — — 60
20H-25-30 20H 50000 360 25 — 6 12 1.75 2.25 — — 60.75
20H-25-34 20H 50000 408 25 — 6 12 1.75 2.25 — — 64
20H-25-38 20H 50000 456 25 — 6 12 1.75 2.25 — — 64.5
20H-25-42 20H 50000 504 25 — 6 12 1.75 2.25 — — 67.25
20H-30-10 20H 60000 120 30 — 7 16 2 2.25 — — 59.75
20H-30-12 20H 60000 144 30 — 7 16 2 2.25 — — 61.5
20H-30-14 20H 60000 168 30 — 7 16 2 2.25 — — 61.75
20H-30-16 20H 60000 192 30 — 7 16 2 2.25 — — 62
20H-30-18 20H 60000 216 30 — 7 16 2 2.25 — — 67.5
20H-30-20 20H 60000 240 30 — 7 16 2 2.25 — — 67.75
20H-30-24 20H 60000 288 30 — 7 16 2 2.25 — — 68
20H-30-30 20H 60000 360 30 — 7 16 2 2.25 — — 73.25
20H-30-34 20H 60000 408 30 — 7 16 2 2.25 — — 71.75
20H-40-8 20H 80000 96 40 — 7 16 2.5 3 — — 71.5
20H-40-10 20H 80000 120 40 — 7 16 2.5 3 — — 72
20H-40-12 20H 80000 144 40 — 7 16 2.5 3 — — 72.25
20H-40-14 20H 80000 168 40 — 7 16 2.5 3 — — 72
20H-40-16 20H 80000 192 40 — 7 16 2.5 3 — — 74.75
20H-40-18 20H 80000 216 40 — 7 16 2.5 3 — — 75
20H-40-20 20H 80000 240 40 — 7 16 2.5 3 — — 78
20H-40-24 20H 80000 288 40 — 7 16 2.5 3 — — 81
20H-40-30 20H 80000 360 40 — 7 16 2.5 3 — — 84.25
20H-40-34 20H 80000 408 40 — 7 16 2.5 3 — — 77
20H-40-38 20H 80000 456 40 — 7 16 2.5 3 — — 80
20H-40-42 20H 80000 504 40 — 7 16 2.5 3 — — 83
20HC-50-10 20HC 100000 120 50 5 8 19.5 — — 40 138 60.31
20HC-50-15 20HC 100000 180 50 5 8 19.5 — — 40 198 60.73
20HC-50-20 20HC 100000 240 50 5 8 19.5 — — 40 258 61.25
20HC-65-10 20HC 130000 120 65 5 8 19.5 — — 40 138 61.38
20HC-65-15 20HC 130000 180 65 5 8 19.5 — — 40 198 64.5
20HC-65-20 20HC 130000 240 65 5 8 19.5 — — 40 258 67.8
20HC-80-10 20HC 160000 120 80 5.5 8 21.25 — — 44 138 67.1
20HC-80-15 20HC 160000 180 80 5.5 8 21.25 — — 44 198 70.21
20HC-80-20 20HC 160000 240 80 5.5 8 21.25 — — 44 258 73.56
Caldwell Low Headroom Lifting Beam
Caldwell

Caldwell Low Headroom Lifting Beam

Desde $0.00

Caldwell Low Headroom Lifting Beam is available in several model configurations. Compare the models below to select the appropriate design for the application.

Model Comparison

Model Features and Application
20

Versatility is the name of the game with the Model 20 Low-Headroom Multiple-Spread Lifting Beam. Used across the country in manufacturing and industrial applications, it's a favorite on construction sites, too.

With a few dozen standard spreads, lengths and capacities, you're likely to find an economical solution that fits your use.

  • Beams over 6' and longer have 3 spreads
  • 3' and 4' beams have 2 spreads
  • Swivel hooks with hook latches standard
  • Wide range of sizes and capacities available
  • Complies with ASME standards.
20H

Higher capacities? Greater outside spreads? Both? When you need a more powerful beam to do the work, the Model 20H is ready for the job. Standard units handle up to 40 tons with outside spreads up to 42'L If you need something larger, Caldwell can help. Mill Duty line of Low-Headroom Multiple-Spead Lifting Beams handles loads up to 375 tons!

  • I' beam construction
  • Three spreads to adjust to the load
  • Outside spread
  • Middle spread (outside less 1')
  • Inside spread (outside less 2')
  • Swivel hooks with hook latches standard
  • Wide range of sizes and capacities available
  • Customize your Model 20H with these options: Extra holes/different placements of holes, extra shackles and swivel hooks, and/or built-in stand
  • Complies with ASME standards
20HC

Big loads? Heavy picks? Super-size lifts? No worries. The model 20HC is ready and willing to do the work. With built-in beam stands and reinforced I-beam construction, this beauty is ready for whatever you throw at it.

  • Heavy-duty I-beam construction
  • Built-in beam stands for easy storage
  • Pin Bail allows for quick attachment of large crane hook
  • Beams have three spreads for flexibility
  • Lifting shackles are standard
  • Complies with ASME standards

Available Models

Part No. Model Rated Capacity Max Spread Capacity Bail Oblong Diameter Bail Opening Width Bail Opening Height Bail Thickness Hook Opening With Latch Stand Width Overall Length Headroom
20-1/2-6 20 1000 72 0.5 — 3 5 0.75 0.875 — — 12.75
20-1/2-8 20 1000 96 0.5 — 3 5 0.75 0.88 — — 12.75
20-1/2-10 20 1000 120 0.5 — 3 5 0.75 0.88 — — 13.75
20-1/2-12 20 1000 144 0.5 — 3 5 0.75 0.88 — — 13.75
20-1/2-14 20 1000 168 0.5 — 3 5 0.75 0.875 — — 14.75
20-1/2-16 20 1000 192 0.5 — 3 5 0.75 0.875 — — 15.75
20-1/2-18 20 1000 216 0.5 — 3 5 0.75 0.875 — — 16.75
20-1/2-20 20 1000 240 0.5 — 3 5 0.75 0.875 — — 16.75
20-1/2-24 20 1000 288 0.5 — 3 5 0.75 0.875 — — 20.25
20-1/2-30 20 1000 360 0.5 — 3 5 0.75 0.875 — — 22.25
20-1-3 20 2000 36 1 — 3 5 0.75 0.88 — — 12.75
20-1-6 20 2000 72 1 — 3 5 0.75 0.88 — — 13.75
20-1-8 20 2000 96 1 — 3 5 0.75 0.875 — — 13.75
20-1-10 20 2000 120 1 — 3 5 0.75 0.875 — — 14.75
20-1-12 20 2000 144 1 — 3 5 0.75 0.875 — — 15.75
20-1-14 20 2000 168 1 — 3 5 0.75 0.875 — — 16.75
20-1-16 20 2000 192 1 — 3 5 0.75 0.875 — — 18.5
20-1-18 20 2000 216 1 — 3 5 0.75 0.875 — — 20.25
20-1-20 20 2000 240 1 — 3 5 0.75 0.875 — — 20.25
20-1-24 20 2000 288 1 — 3 5 0.75 0.875 — — 22.25
20-2-3 20 4000 36 2 — 3 5 0.75 0.875 — — 13.75
20-2-6 20 4000 72 2 — 3 5 0.75 0.88 — — 14.75
20-2-8 20 4000 96 2 — 3 5 0.75 0.875 — — 16.5
20-2-10 20 4000 120 2 — 3 5 0.75 0.875 — — 17.5
20-2-12 20 4000 144 2 — 3 5 0.75 0.875 — — 18.25
20-2-14 20 4000 168 2 — 3 5 0.75 0.875 — — 20.25
20-2-16 20 4000 192 2 — 3 5 0.75 0.875 — — 20.25
20-2-18 20 4000 216 2 — 3 5 0.75 0.875 — — 24.75
20-2-20 20 4000 240 2 — 3 5 0.75 0.875 — — 24.75
20-2-24 20 4000 288 2 — 3 5 0.75 0.875 — — 27.75
20-3-3 20 6000 36 3 — 3 5 1 1.25 — — 15.25
20-3-4 20 6000 48 3 — 3 5 1 1.25 — — 15.25
20-3-6 20 6000 72 3 — 3 5 1 1.25 — — 16.25
20-3-8 20 6000 96 3 — 3 5 1 1.25 — — 17.25
20-3-10 20 6000 120 3 — 3 5 1 1.25 — — 18.25
20-3-12 20 6000 144 3 — 3 5 1 1.25 — — 22.5
20-3-14 20 6000 168 3 — 3 5 1 1.25 — — 24.5
20-3-16 20 6000 192 3 — 3 5 1 1.25 — — 24.5
20-3-18 20 6000 216 3 — 3 5 1 1.25 — — 27.5
20-3-20 20 6000 240 3 — 3 5 1 1.25 — — 27.5
20-3-24 20 6000 288 3 — 3 5 1 1.25 — — 27.5
20-5-3 20 10000 36 5 — 4 7 1.25 1.9375 — — 19.5
20-5-4 20 10000 48 5 — 4 7 1.25 1.9375 — — 20.5
20-5-6 20 10000 72 5 — 4 7 1.25 1.94 — — 21.5
20-5-12 20 10000 144 5 — 4 7 1.25 1.94 — — 27.5
20-5-14 20 10000 168 5 — 4 7 1.25 1.94 — — 27.5
20-5-16 20 10000 192 5 — 4 7 1.25 1.94 — — 30.25
20-5-18 20 10000 216 5 — 4 7 1.25 1.94 — — 30.25
20-5-20 20 10000 240 5 — 4 7 1.25 1.94 — — 30.25
20-5-24 20 10000 288 5 — 4 7 1.25 1.9375 — — 33.25
20-7 1/2-3 20 15000 36 7.5 — 4 7 1.25 1.5 — — 22.5
20-7 1/2-4 20 15000 48 7.5 — 4 7 1.25 1.5 — — 23.5
20-7 1/2-6 20 15000 72 7.5 — 4 7 1.25 1.5 — — 25.25
20-7 1/2-8 20 15000 96 7.5 — 4 7 1.25 1.5 — — 27.25
20-7 1/2-10 20 15000 120 7.5 — 4 7 1.25 1.5 — — 27.25
20-7 1/2-12 20 15000 144 7.5 — 4 7 1.25 1.5 — — 30.25
20-7 1/2-14 20 15000 168 7.5 — 4 7 1.25 1.5 — — 30.25
20-7 1/2-16 20 15000 192 7.5 — 4 7 1.25 1.5 — — 30.25
20-7 1/2-18 20 15000 216 7.5 — 4 7 1.25 1.5 — — 33
20-10-3 20 20000 36 10 — 4 7 1.25 1.5625 — — 23.25
20-10-4 20 20000 48 10 — 4 7 1.25 1.5625 — — 25.25
20-10-8 20 20000 96 10 — 4 7 1.25 1.5625 — — 27.25
20-10-12 20 20000 144 10 — 4 7 1.25 1.5625 — — 30.25
20-10-14 20 20000 168 10 — 4 7 1.25 1.5625 — — 30.25
20-10-16 20 20000 192 10 — 4 7 1.25 1.5625 — — 33
20-10-18 20 20000 216 10 — 4 7 1.25 1.5625 — — 33
20-15-3 20 30000 36 15 — 5 9 1.5 2.0625 — — 28.5
20-15-4 20 30000 48 15 — 5 9 1.5 2.0625 — — 30.5
20-15-6 20 30000 72 15 — 5 9 1.5 2.0625 — — 30.5
20-15-8 20 30000 96 15 — 5 9 1.5 2.0625 — — 33.5
20-15-10 20 30000 120 15 — 5 9 1.5 2.0625 — — 33.5
20-15-12 20 30000 144 15 — 5 9 1.5 2.0625 — — 40.25
20-15-14 20 30000 168 15 — 5 9 1.5 2.0625 — — 40.25
20-20-3 20 40000 36 20 — 5 9 1.5 2.25 — — 38.75
20-20-4 20 40000 48 20 — 5 9 1.5 2.25 — — 38.75
20-20-6 20 40000 72 20 — 5 9 1.5 2.25 — — 38.75
20-20-8 20 40000 96 20 — 5 9 1.5 2.25 — — 38.75
20-20-10 20 40000 120 20 — 5 9 1.5 2.25 — — 41.5
20-20-12 20 40000 144 20 — 5 9 1.5 2.25 — — 41.5
20-25-4 20 50000 48 25 — 6 12 1.75 2.25 — — 41.375
20-25-6 20 50000 72 25 — 6 12 1.75 2.25 — — 41.375
20-25-8 20 50000 96 25 — 6 12 1.75 2.25 — — 44.375
20-25-10 20 50000 120 25 — 6 12 1.75 2.25 — — 44.375
20-25-12 20 50000 144 25 — 6 12 1.75 2.25 — — 44.38
20-30-4 20 60000 48 30 — 7 16 2 2.25 — — 45.5
20-30-6 20 60000 72 30 — 7 16 2 2.25 — — 45.5
20-30-8 20 60000 96 30 — 7 16 2 2.25 — — 48.25
20-40-4 20 80000 48 40 — 7 16 2.5 3 — — 44.75
20-40-6 20 80000 72 40 — 7 16 2.5 3 — — 47.75
20H-1-30 20H 2000 360 1 — 3 5 0.75 0.875 — — 24
20H-1-34 20H 2000 408 1 — 3 5 0.75 0.875 — — 24
20H-1-38 20H 2000 456 1 — 3 5 0.75 0.875 — — 24
20H-1-42 20H 2000 504 1 — 3 5 0.75 0.875 — — 26
20H-2-30 20H 4000 360 2 — 3 5 1 0.875 — — 24
20H-2-34 20H 4000 408 2 — 3 5 1 0.875 — — 24
20H-2-38 20H 4000 456 2 — 3 5 1 0.875 — — 24.5
20H-2-42 20H 4000 504 2 — 3 5 1 0.875 — — 26.5
20H-3-30 20H 6000 360 3 — 3 5 1 1 — — 27.25
20H-3-34 20H 6000 408 3 — 3 5 1 1 — — 27.25
20H-3-38 20H 6000 456 3 — 3 5 1 1 — — 27.5
20H-3-42 20H 6000 504 3 — 3 5 1 1 — — 29
20H-5-30 20H 10000 360 5 — 4 7 1.25 1.375 — — 32
20H-5-34 20H 10000 408 5 — 4 7 1.25 1.375 — — 32
20H-5-38 20H 10000 456 5 — 4 7 1.25 1.375 — — 34
20H-5-42 20H 10000 504 5 — 4 7 1.25 1.375 — — 34
20H-7 1/2-20 20H 15000 240 7.5 — 4 7 1.25 1.625 — — 34.75
20H-7 1/2-24 20H 15000 288 7.5 — 4 7 1.25 1.625 — — 34.75
20H-7 1/2-30 20H 15000 360 7.5 — 4 7 1.25 1.625 — — 35
20H-7.5-34 20H 15000 408 7.5 — 4 7 1.25 1.625 — — 36.75
20H-7.5-38 20H 15000 456 7.5 — 4 7 1.25 1.625 — — 37
20H-7.5-42 20H 15000 504 7.5 — 4 7 1.25 1.625 — — 37
20H-10-20 20H 20000 240 10 — 4 7 1.25 1.625 — — 35.75
20H-10-24 20H 20000 288 10 — 4 7 1.25 1.625 — — 36
20H-10-30 20H 20000 360 10 — 4 7 1.25 1.625 — — 37.75
20H-10-34 20H 20000 408 10 — 4 7 1.25 1.625 — — 38
20H-10-38 20H 20000 456 10 — 4 7 1.25 1.625 — — 38
20H-10-42 20H 20000 504 10 — 4 7 1.25 1.625 — — 38.5
20H-15-16 20H 30000 192 15 — 5 9 1.5 2.0625 — — 41.5
20H-15-18 20H 30000 216 15 — 5 9 1.5 2.0625 — — 41.75
20H-15-20 20H 30000 240 15 — 5 9 1.5 2.0625 — — 42
20H-15-24 20H 30000 288 15 — 5 9 1.5 2.0625 — — 41.5
20H-15-30 20H 30000 360 15 — 5 9 1.5 2.0625 — — 42.25
20H-15-34 20H 30000 408 15 — 5 9 1.5 2.06 — — 42.25
20H-15-38 20H 30000 456 15 — 5 9 1.5 2.0625 — — 42.5
20H-15-42 20H 30000 504 15 — 5 9 1.5 2.0625 — — 43
20H-20-14 20H 40000 168 20 — 5 9 1.5 2.25 — — 45.75
20H-20-16 20H 40000 192 20 — 5 9 1.5 2.25 — — 46
20H-20-18 20H 40000 216 20 — 5 9 1.5 2.25 — — 46.25
20H-20-20 20H 40000 240 20 — 5 9 1.5 2.25 — — 48
20H-20-24 20H 40000 288 20 — 5 9 1.5 2.25 — — 48.5
20H-20-30 20H 40000 360 20 — 5 9 1.5 2.25 — — 49.25
20H-20-34 20H 40000 408 20 — 5 9 1.5 2.25 — — 49.25
20H-20-38 20H 40000 456 20 — 5 9 1.5 2.25 — — 55.25
20H-20-42 20H 40000 504 20 — 5 9 1.5 2.25 — — 55.5
20H-25-14 20H 50000 168 25 — 6 12 1.75 2.25 — — 55.75
20H-25-16 20H 50000 192 25 — 6 12 1.75 2.25 — — 55
20H-25-18 20H 50000 216 25 — 6 12 1.75 2.25 — — 56.75
20H-25-20 20H 50000 240 25 — 6 12 1.75 2.25 — — 59.75
20H-25-24 20H 50000 288 25 — 6 12 1.75 2.25 — — 60
20H-25-30 20H 50000 360 25 — 6 12 1.75 2.25 — — 60.75
20H-25-34 20H 50000 408 25 — 6 12 1.75 2.25 — — 64
20H-25-38 20H 50000 456 25 — 6 12 1.75 2.25 — — 64.5
20H-25-42 20H 50000 504 25 — 6 12 1.75 2.25 — — 67.25
20H-30-10 20H 60000 120 30 — 7 16 2 2.25 — — 59.75
20H-30-12 20H 60000 144 30 — 7 16 2 2.25 — — 61.5
20H-30-14 20H 60000 168 30 — 7 16 2 2.25 — — 61.75
20H-30-16 20H 60000 192 30 — 7 16 2 2.25 — — 62
20H-30-18 20H 60000 216 30 — 7 16 2 2.25 — — 67.5
20H-30-20 20H 60000 240 30 — 7 16 2 2.25 — — 67.75
20H-30-24 20H 60000 288 30 — 7 16 2 2.25 — — 68
20H-30-30 20H 60000 360 30 — 7 16 2 2.25 — — 73.25
20H-30-34 20H 60000 408 30 — 7 16 2 2.25 — — 71.75
20H-40-8 20H 80000 96 40 — 7 16 2.5 3 — — 71.5
20H-40-10 20H 80000 120 40 — 7 16 2.5 3 — — 72
20H-40-12 20H 80000 144 40 — 7 16 2.5 3 — — 72.25
20H-40-14 20H 80000 168 40 — 7 16 2.5 3 — — 72
20H-40-16 20H 80000 192 40 — 7 16 2.5 3 — — 74.75
20H-40-18 20H 80000 216 40 — 7 16 2.5 3 — — 75
20H-40-20 20H 80000 240 40 — 7 16 2.5 3 — — 78
20H-40-24 20H 80000 288 40 — 7 16 2.5 3 — — 81
20H-40-30 20H 80000 360 40 — 7 16 2.5 3 — — 84.25
20H-40-34 20H 80000 408 40 — 7 16 2.5 3 — — 77
20H-40-38 20H 80000 456 40 — 7 16 2.5 3 — — 80
20H-40-42 20H 80000 504 40 — 7 16 2.5 3 — — 83
20HC-50-10 20HC 100000 120 50 5 8 19.5 — — 40 138 60.31
20HC-50-15 20HC 100000 180 50 5 8 19.5 — — 40 198 60.73
20HC-50-20 20HC 100000 240 50 5 8 19.5 — — 40 258 61.25
20HC-65-10 20HC 130000 120 65 5 8 19.5 — — 40 138 61.38
20HC-65-15 20HC 130000 180 65 5 8 19.5 — — 40 198 64.5
20HC-65-20 20HC 130000 240 65 5 8 19.5 — — 40 258 67.8
20HC-80-10 20HC 160000 120 80 5.5 8 21.25 — — 44 138 67.1
20HC-80-15 20HC 160000 180 80 5.5 8 21.25 — — 44 198 70.21
20HC-80-20 20HC 160000 240 80 5.5 8 21.25 — — 44 258 73.56

Model

  • 20
  • 20H
  • 20HC

Rated Capacity

  • 1000
  • 2000
  • 4000
  • 6000
  • 10000
  • 15000
  • 20000
  • 30000
  • 40000
  • 50000
  • 60000
  • 80000
  • 100000
  • 130000
  • 160000

Max Spread

  • 72
  • 96
  • 120
  • 144
  • 168
  • 192
  • 216
  • 240
  • 288
  • 360
  • 36
  • 48
  • 408
  • 456
  • 504
  • 180
Ver producto
⚠️ Advertencias importantes
Volver al principio
