Caldwell | SKU:
Caldwell-NMBC-01.50-A
Caldwell Non-Marring Beam Clamp
$1,111.00
Precio unitario
/
Agotado
Caldwell Non-Marring Beam Clamp - 3 está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Non-Marring Beam Clamp
Desde
$1,111.00
Precio unitario
/
Agotado

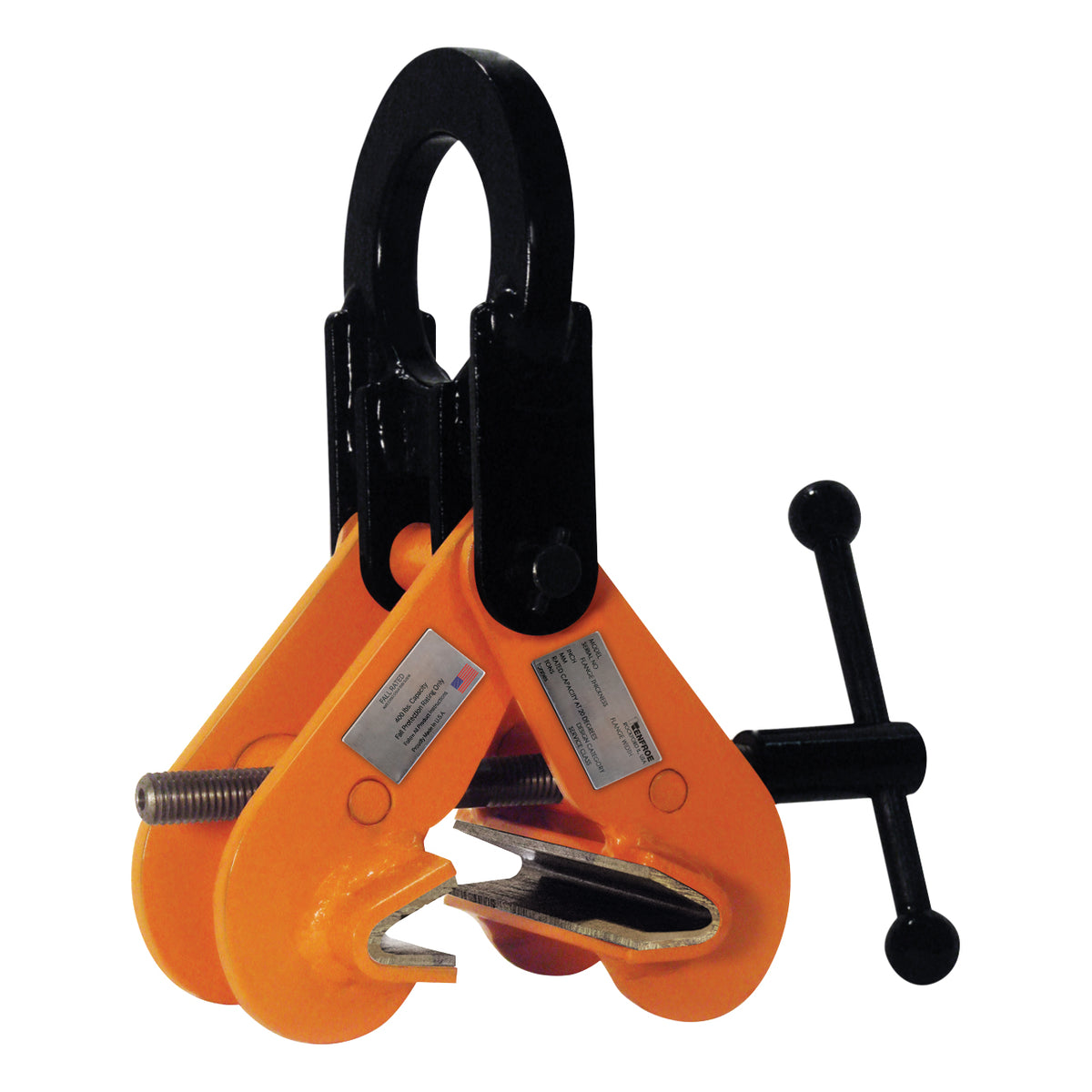

The Model NMBC is a portable beam clamp that has non-marring pads to protect the coating and finish of coated beams.
Available Models
| Part No. | Shackle Hole Diameter | Working Load Limit 0 20 | Rated Capacity | Clamp Height | Clamp Length | Clamp Width | Max Flange Thickness | Max Flange Width | Min Flange Thickness | Min Flange Width | Overall Handle length | Shackle Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NMBC-01.50-A | 3 | 1.5 | 3000 | 11.75 | 11.88 | 5 | 0.5 | 7.25 | 0.25 | 3 | 5.75 | 0.5 |
| NMBC-10.00-A | 4 | 10 | 20000 | 19.12 | 21.25 | 7.12 | 1.25 | 12 | 0.5 | 6 | 9 | 1.5 |
| NMBC-15.00-A | 4.5 | 15 | 30000 | 26.5 | 32 | 8.38 | 2 | 16.75 | 0.875 | 8 | 12 | 1.75 |
| NMBC-25.00-A | 5 | 25 | — | 40.5 | 61 | 15 | 3 | 38 | 2 | 18 | 15 | 2 |
