Caldwell | SKU:
Caldwell-10F-2-20

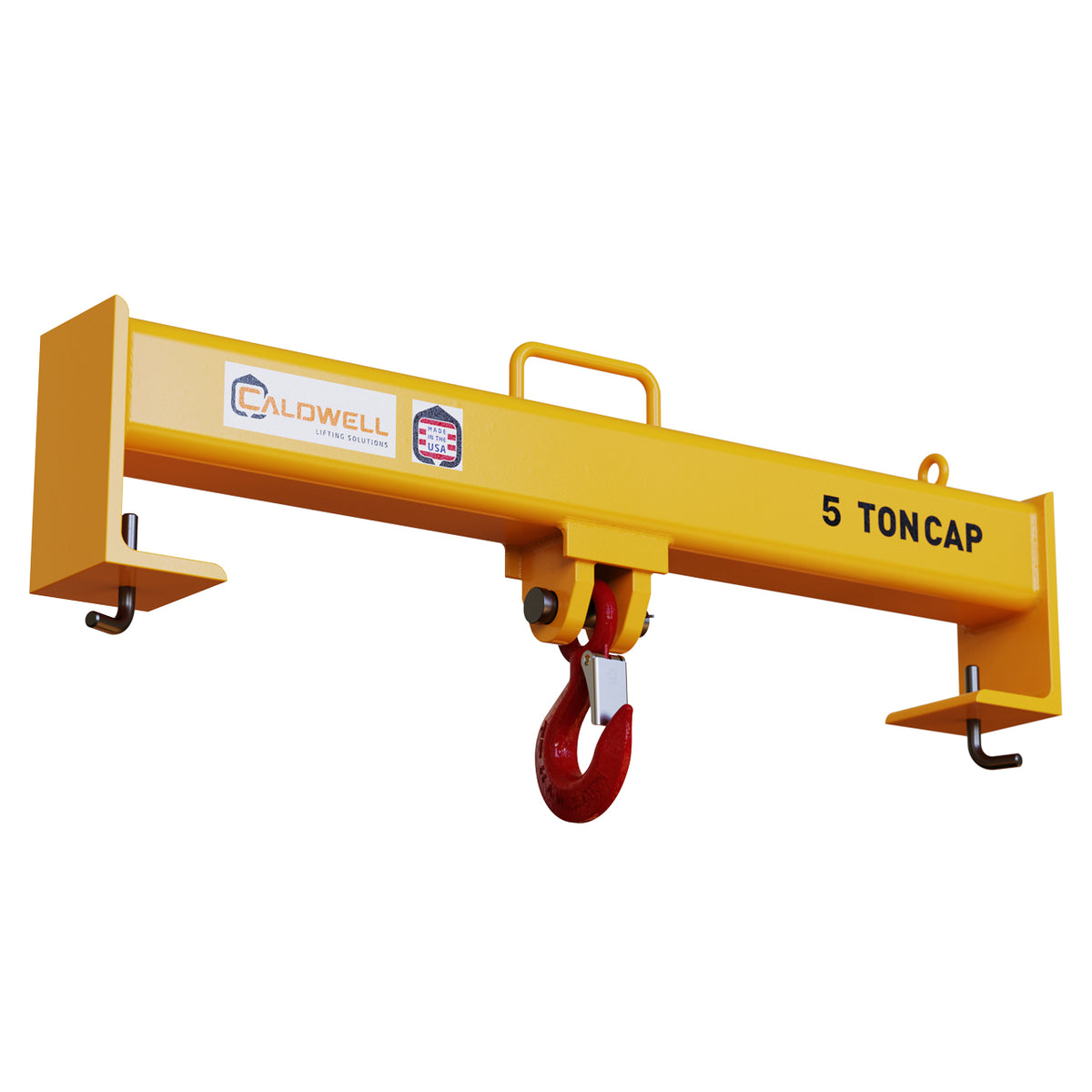

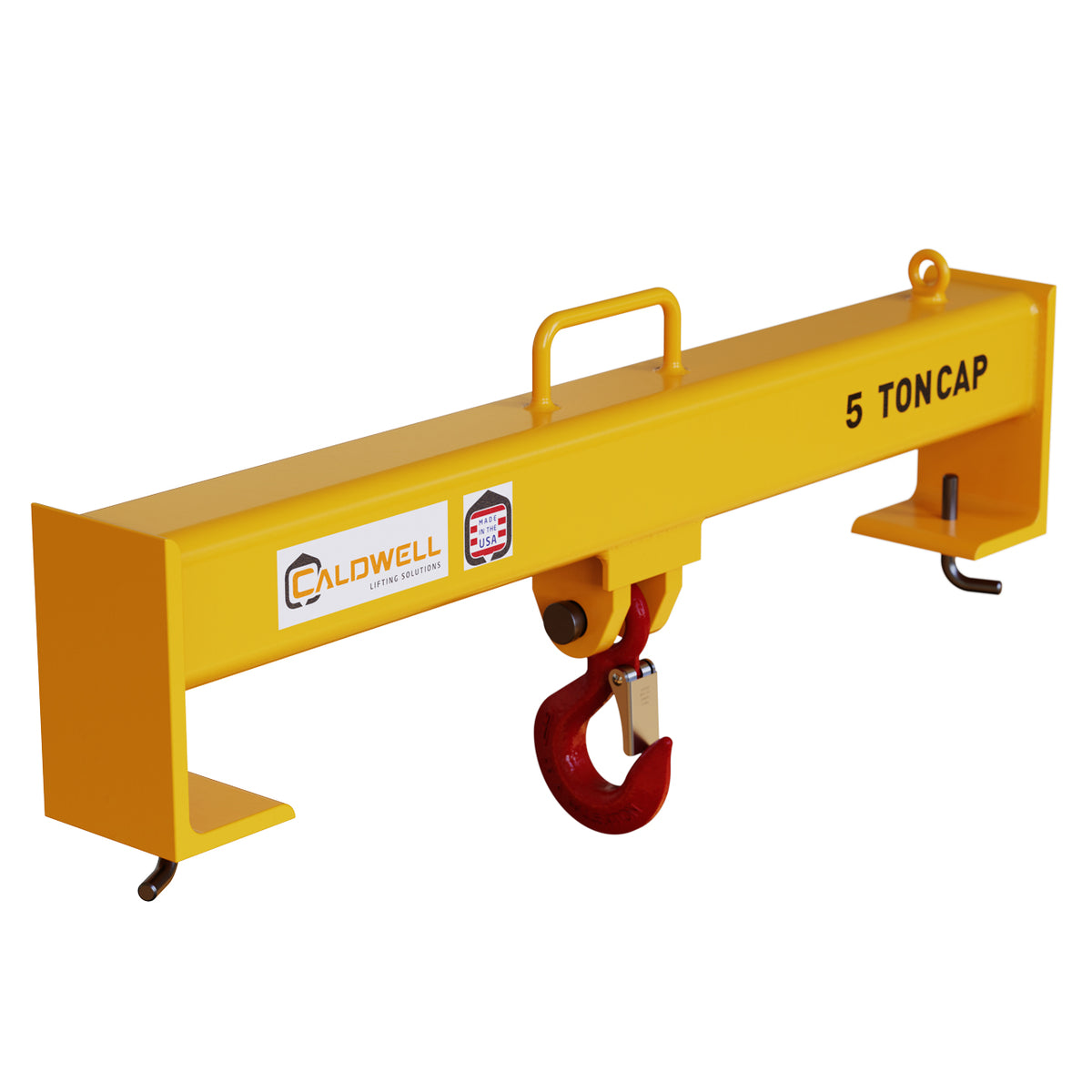

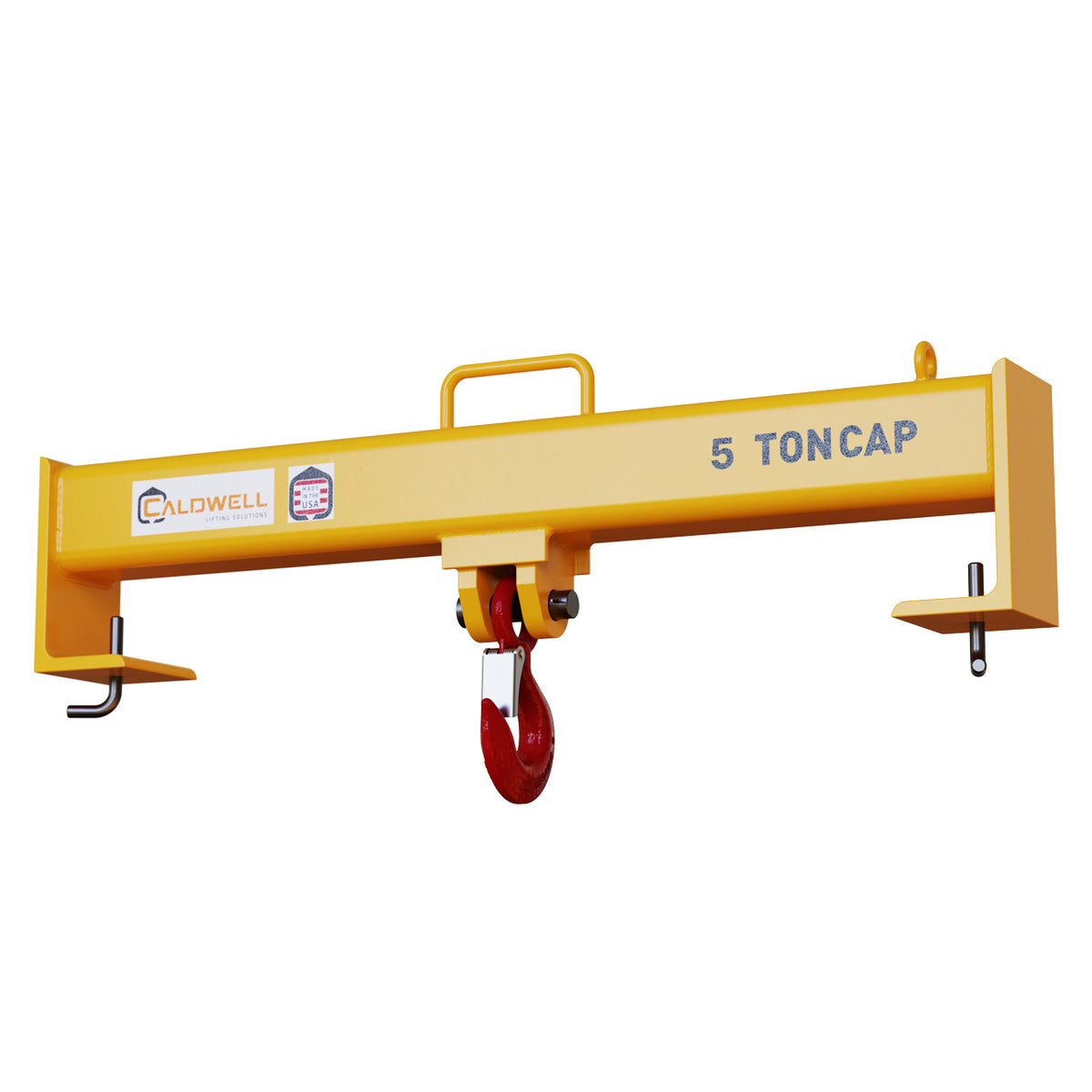

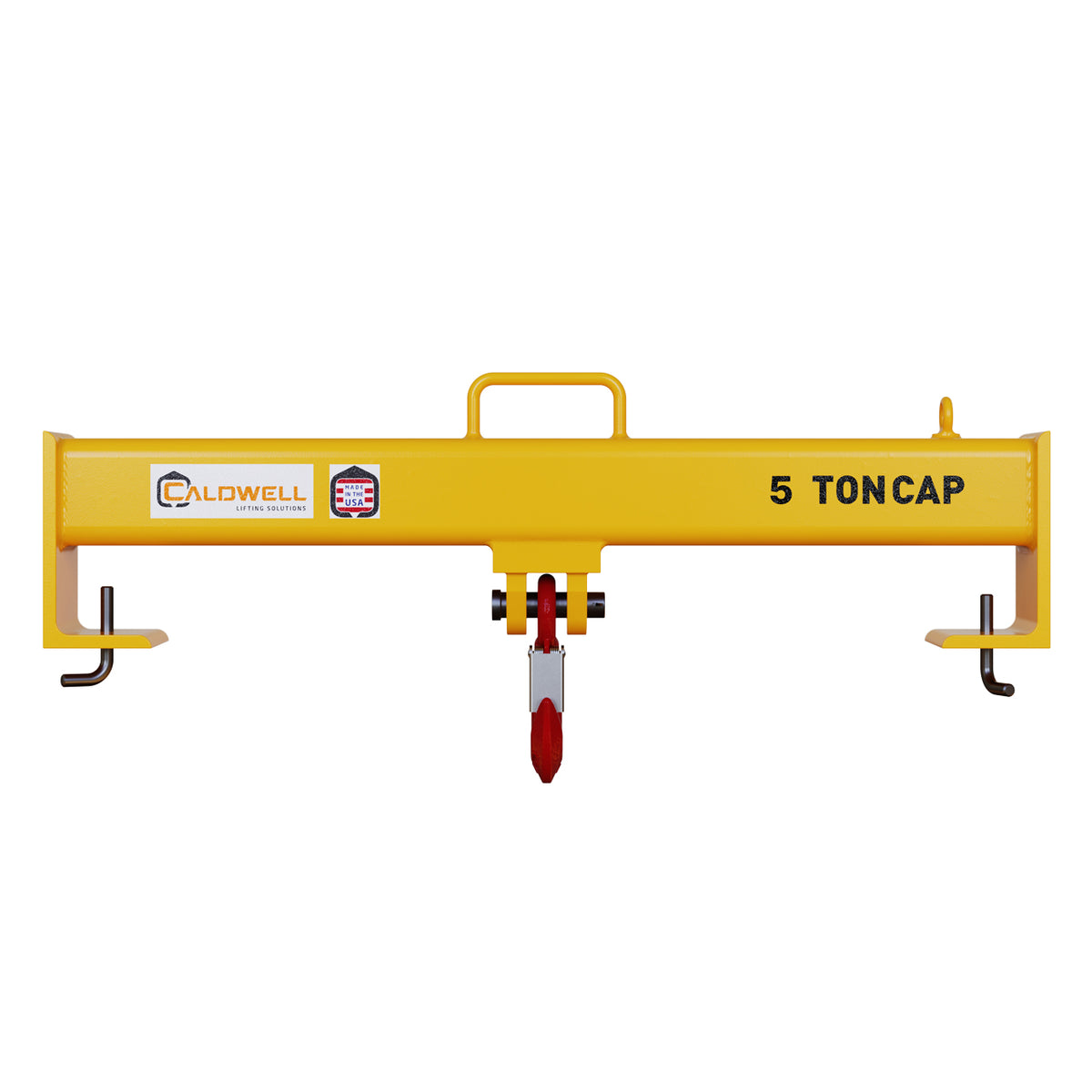

Caldwell Single Hook Beam Fixed
$432.00
Precio unitario
/
Agotado
Caldwell Single Hook Beam Fixed - 2 / 20 está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Single Hook Beam Fixed
Desde
$432.00
Precio unitario
/
Agotado
Caldwell Fork Lift Beams are specifically designed to make fork lifts more versatile by providing positive handling of loads otherwise impractical for fork lifts.
Features
- Includes a fixed hook
- Easy attachment, no special wrenches or tools needed
- Strong, sturdy, all-welded construction
- Easy to use, highly visible yellow paint
- Custom designs available
- Capacity of lift truck and attachment combination may be less than capacity shown on attachment; consult lift truck manufacturer for guidance
- Unit with <a href="http://enterprise.caldwell.local/products/lif-truc/fork-beams/model-10s">Swivel Hook</a> also available
Available Models
| Part No. | Capacity (ton) | Out to Out | Capacity | Rated Capacity | Max Fork Thickness | Max Jaw Opening | Fixed Hook Headroom | Hook Depth | Temp Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 10F-2-20 | 2 | 20 | 2 | 4000 | 3.25 | 1.16 | 7.25 | 9.13 | 21 | 21 |
| 10F-5-24 | 5 | 24 | 5 | 10000 | 3.25 | 1.69 | 9.25 | 10.75 | 42 | 44 |
| 10F-5-36 | 5 | 36 | 5 | 10000 | 3.25 | 1.69 | 9.25 | 16.75 | 80 | 70.871 |
| 10F-7.5-36 | 7.5 | 36 | 7.5 | 15000 | 4.25 | 2.22 | 13.75 | 16.25 | 166 | 146 |
| 10F-10-36 | 10 | 36 | 10 | 20000 | 4.25 | 2.41 | 14.63 | 16 | 180 | 180 |
