Caldwell  |  SKU: Caldwell-82LA-5-36

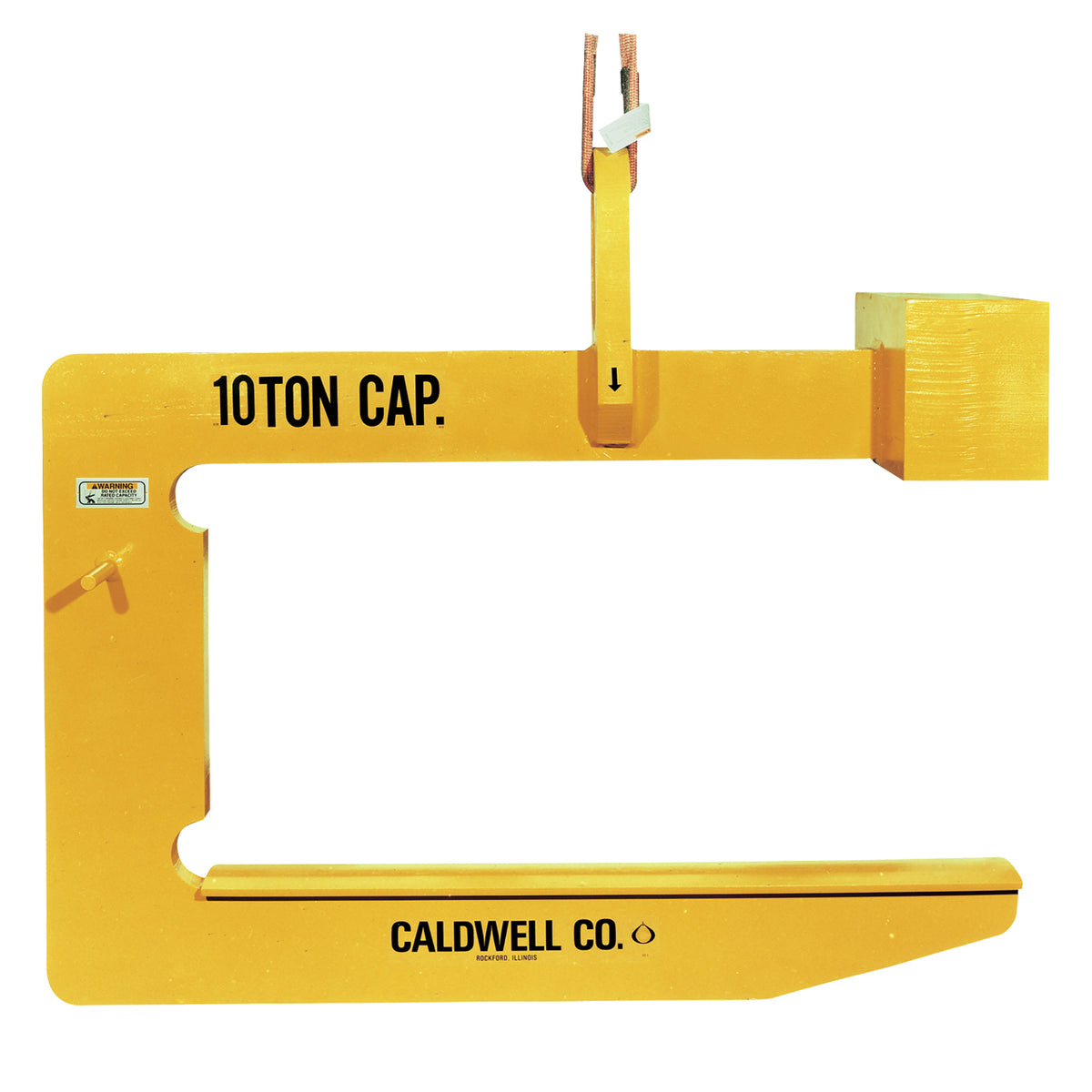

Caldwell Slit Coil C-Hook

$6,625.00
Request a Quote

Efficiency matters. And when you can move more than one slit coil at a time, crane operators save time and, therefore, money. Set them up for success with Caldwell's Model 82LA.

Features

  • Designed for heavy duty applications
  • Handles multiple slit coils to maximize handling efficiency
  • Recessed counterweight minimizes interference with equipment and other obstacles
  • High tensile alloy steel plate reduces size and weight
  • Counter balanced to hang level when empty
  • Inside radius on hooks avoid coil edge contact
  • Curved coil saddle is standard
  • Guide hadles for ease of hook positioning
  • Available with optional padding for additional coil protection
  • Complies with ASME standards

Specifications

Lifting Arm Width With Saddle 4

Available Models

Part No. Capacity (ton) Max Coil Width Capacity Rated Capacity Bail Opening Width Throat Opening Bail Opening Height Lifting Arm Length Bail Thickness Bail Depth Lifting Arm Depth Headroom
82LA-5-36 5 36 5 10000 4 24 7 36 1.25 1.5 5.5 37.5
82LA-5-48 5 48 5 10000 4 24 7 48 1.25 1.5 6.2 38.2
82LA-5-60 5 60 5 10000 4 24 7 60 1.25 1.5 7 38.9
82LA-7.5-36 7.5 36 7.5 15000 4 24 7 36 1.5 1.5 5.8 37.75
82LA-7.5-48 7.5 48 7.5 15000 4 24 7 48 1.5 1.5 6.6 38.5
82LA-7.5-60 7.5 60 7.5 15000 4 24 7 60 1.5 1.5 7.125 39
82LA-10-48 10 48 10 20000 5 24 9 48 1.75 2 7.5 41.4
82LA-10-60 10 60 10 20000 5 24 9 60 1.75 2 7.313 41.6
82LA-10-72 10 72 10 20000 5 24 9 72 1.75 2 8.25 42.125
82LA-15-48 15 48 15 30000 5 30 9 48 1.75 2 7.4 47.25
82LA-15-60 15 60 15 30000 5 30 9 60 1.75 2 8.2 48
82LA-15-72 15 72 15 30000 5 30 9 72 1.75 2 9 48.75
82LA-20-60 20 60 20 40000 6 30 12 60 2 2.25 9.3 52.125
82LA-20-72 20 72 20 40000 6 30 12 72 2 2.25 10.7 53.5
82LA-25-60 25 60 25 50000 6 34 14 60 2.25 2.5 9.25 58
82LA-25-72 25 72 25 50000 6 34 14 72 2.25 2.5 10.7 58.5
