Caldwell | SKU:
Caldwell-WT2

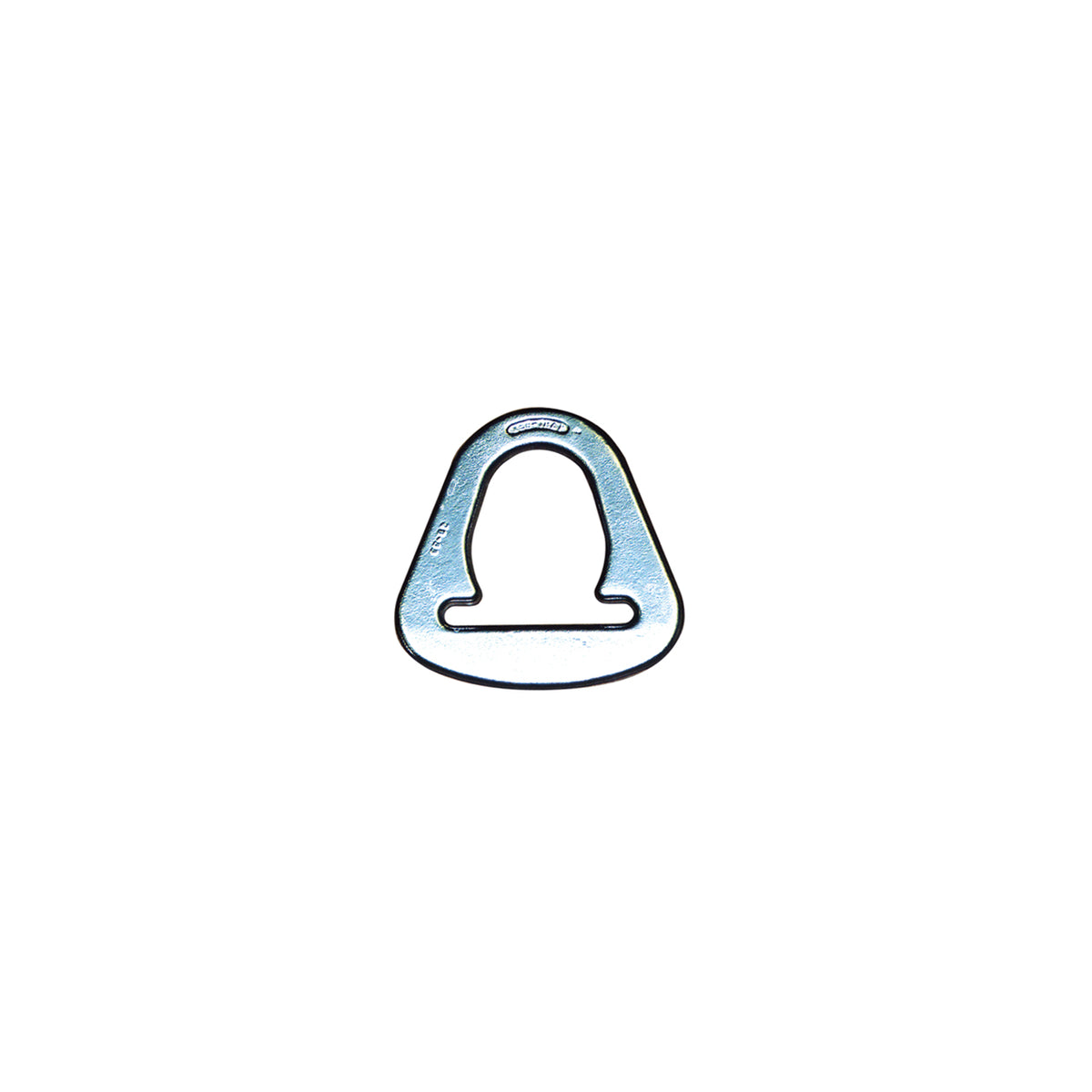

Caldwell Web Trap Steel Triangle
$35.00
Precio unitario
/
Agotado
Caldwell Web Trap Steel Triangle - 8000 está agotado y se enviará tan pronto como vuelva a estar disponible.
No se ha podido cargar la disponibilidad de recogida
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Web Trap Steel Triangle
Desde
$35.00
Precio unitario
/
Agotado
Features
- Forged steel (unless noted)
- For use with one or two-ply web slings
- Plated for corrosion resistance
- Complies with ASME B30.9 sling capacities
Available Models
| Part No. | Capacity pounds | Rated Capacity | Dimension T | Dimension A | Dimension B | Dimension D | Dimension W | Temp Weight |
|---|---|---|---|---|---|---|---|---|
| WT2 | 8000 | 8000 | 0.56 | 0.69 | 2.38 | 1.75 | 2 | 1 |
| WT3 | 8600 | 8600 | 0.56 | 0.81 | 3.44 | 2 | 3 | 2 |
| WT4 | 11500 | 11500 | 0.56 | 0.94 | 4 | 2.38 | 4 | 2.6 |
| WT6 | 16800 | 16800 | 0.75 | 1.06 | 5.56 | 3.13 | 6 | 6.3 |
| WT8 | 22400 | — | 0.75 | 1.44 | 6.5 | 4 | 8 | 10.2 |
| WT10 | 28000 | — | 1 | 1.5 | 8.25 | 5 | 10 | 17 |
| WT12 | 33600 | — | 1 | 1.75 | 8.75 | 5.5 | 12 | 24 |
