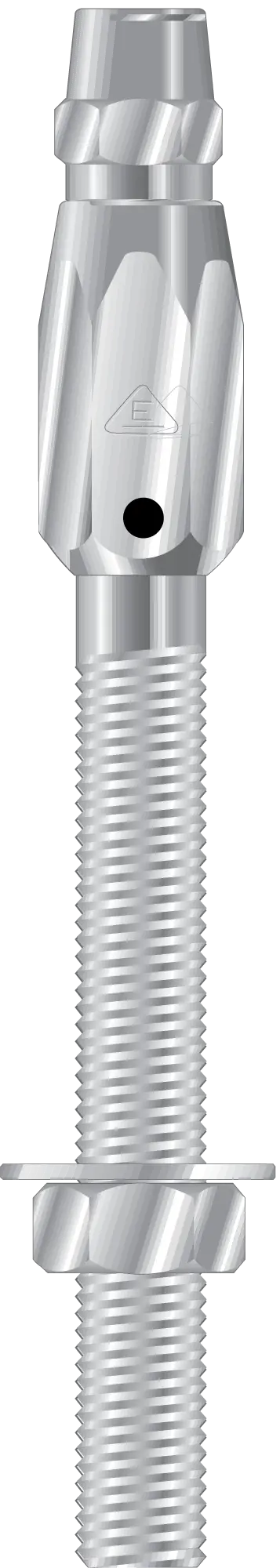

Coarse Thread Stud Socket Fitting
Electroline's stud socket fittings are used for a variety of lifting, rigging, and securement applications.
The swageless rope termination and threaded rod allow a rope to be quickly attached (without special tools or processes) and tensioned using the included washer and nut.
Longer and wider sizes are also available.
Available for rope sizes from 1/8 to 1 inch in diameter.
Fitting strength exceeds the rated breaking strength of most ropes.
Material options include self-colored steel, zinc-plated or galvanized steel for corrosion resistance, or stainless steel for a more attractive appearance.
Available Products
| Rope Size (In.) | Part No. | Thread | Dimensions (In.) | Breaking Strength (lbs.) | |||||
|---|---|---|---|---|---|---|---|---|---|
| Galvanized Steel | Self-Colored Steel | Stainless Steel | Zinc Plated Steel | A | C | D | |||
| 1/8 | IGD-312-N | IGS-312 | IGD-312-V | 1/4-20 | 2-1/2" | 4-1/8" | 5/8" | 1,700 | |
| 3/16 | IGD-318-N | IGS-318 | IGD-318-V | 3/8-16 | 4-1/8" | 6-5/16" | 3/4" | 3,700 | |
| 1/4 | GD-325-X | GD-325-N | IGS-325 | GD-325-V | 1/2-13 | 5-1/4" | 8" | 1" | 6,800 |
| 5/16 | GD-331-X | GD-331-N | IGS-331 | GD-331-V | 1/2-13 | 5-1/4" | 8" | 1" | 10,540 |
| 3/8 | GD-337-X | GD-337-N | IGS-337 | GD-337-V | 5/8-11 | 4-1/2" | 8-1/4" | 1-1/8" | 15,100 |
| 7/16 | GD-343-X | GD-343-N | IGS-343 | GD-343-V | 3/4-10 | 6-3/8" | 10-15/16" | 1-1/2" | 20,400 |
| 1/2 | GD-350-X | GD-350-N | IGS-350 | GD-350-V | 3/4-10 | 6-3/8" | 10-15/16" | 1-1/2" | 26,600 |
| 9/16 | GD-356-X | GD-356-N | 7/8-9 | 7-1/2" | 13-7/8" | 1-3/4" | 33,600 | ||
| 5/8 | GD-362-X | GD-362-N | 7/8-9 | 7-1/2" | 13-7/8" | 1-3/4" | 41,200 | ||
| 3/4 | GD-375-X | GD-375-N | 1-1/8-7 | 8-5/8" | 16-1/8" | 2-3/16" | 58,800 | ||
| 7/8 | GD-387-X | GD-387-N | 1-1/4-7 | 9" | 17-3/16" | 2-5/8" | 79,800 | ||
| 1 | GD-399-X | GD-399-N | 1-1/2-6 | 12-1/8" | 22-5/16" | 3" | 103,400 | ||
