Edwards Wire Rope  |  SKU: BUT02ALUM

Aluminum Button Stops

$0.16

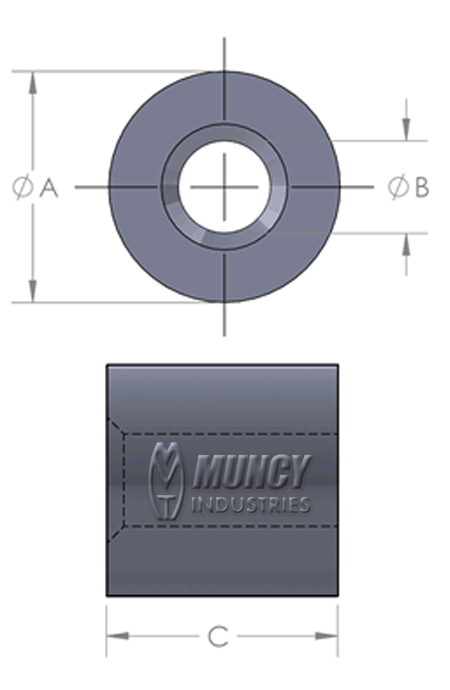

Size A B C WEIGHT PER 100
1/16" 0.025 0.078 0.02 0.10
3/32" 9/32" 13/32" 1/8" 0.30
1/8"  11/32" 1/2" 5/32" 0.66
5/32"   3/8" 9/16" 3/16" 0.88
3/16" 7/16" 21/32" 7/32" 1.60
1/4" 17/32" 13/16" 9/32" 2.80
5/16" 11/16" 1 1/32" 3/8" 4.60
3/8" 3/4" 1 5/32" 7/16" 5.90



Aluminum buttons are available in sizes 1/16-1/2 and require a swaging tool to install. These buttons are generally used to create stops in wire rope but can also be used on the ends of wire rope to prevent unraveling.

Aluminum Button Stops
Edwards Wire Rope

Aluminum Button Stops

From $0.16
Size A B C WEIGHT PER 100
1/16" 0.025 0.078 0.02 0.10
3/32" 9/32" 13/32" 1/8" 0.30
1/8"  11/32" 1/2" 5/32" 0.66
5/32"   3/8" 9/16" 3/16" 0.88
3/16" 7/16" 21/32" 7/32" 1.60
1/4" 17/32" 13/16" 9/32" 2.80
5/16" 11/16" 1 1/32" 3/8" 4.60
3/8" 3/4" 1 5/32" 7/16" 5.90



Aluminum buttons are available in sizes 1/16-1/2 and require a swaging tool to install. These buttons are generally used to create stops in wire rope but can also be used on the ends of wire rope to prevent unraveling.
