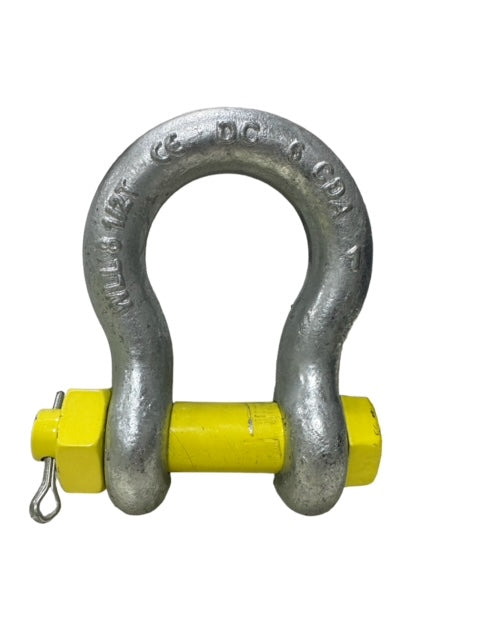

Bolt Type Anchor Shackle

$4.36

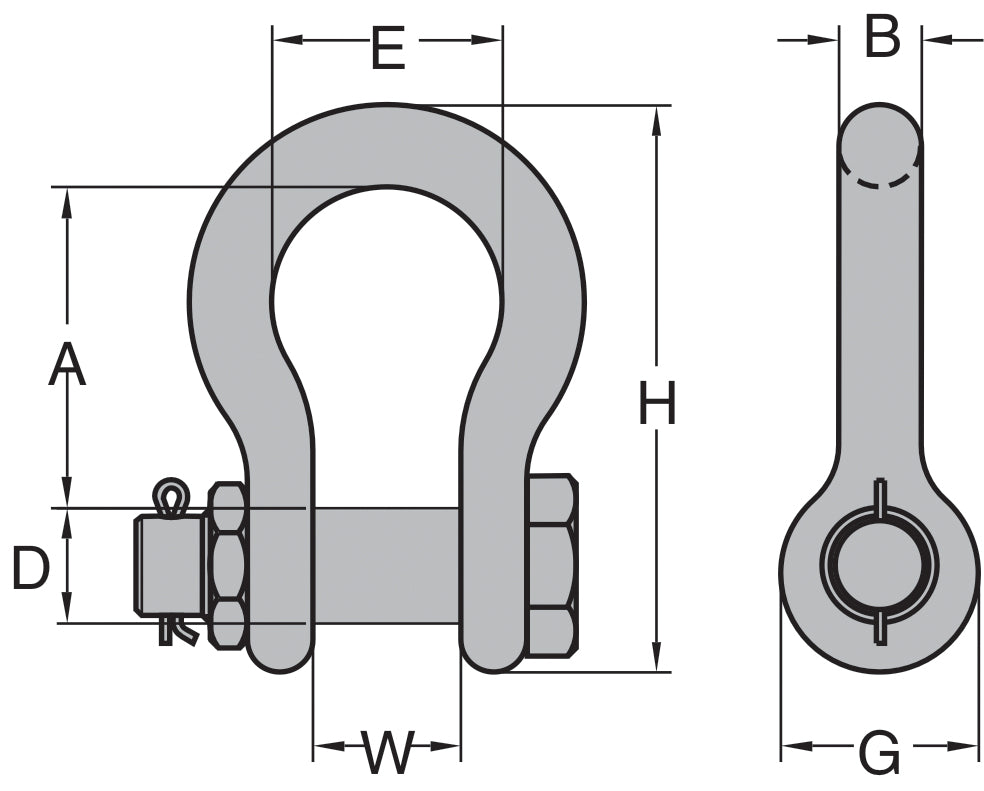

Size Working Bolt Diam. Approx. Dimensions in Inches
(A) Load Limit in Inches Weight Each
  in Tons (B) in Pounds C D E F
1/4 1/2 5/16 .4 .88 .50 .63 .75
5/16 3/4 3/8 .6 1.25 .53 .81 .84
3/8 1 7/16 .8 1.44 .63 .97 1.00
1/2" 2        5/8 0.9 1.88 0.81 1.31 1.25
5/8" 3.1/4   3/4 1.6 2.44 1.06 1.56 1.69
3/4" 4.3/4   7/8 2.8 2.88 1.19 1.88 1.94
7/8" 6.1/2 1      4.2 3.38 1.44 2.13 2.19
1" 8.1/2 1.1/8 6.4 3.81 1.69 2.38 2.63
1.1/8" 9.1/2 1.1/4 8.3 4.25 1.75 2.63 2.88
1.1/4" 12      1.3/8 11.7 4.69 2 3 3.13
1.3/8" 13.1/2 1.1/2 15.6 5.31 2.13 3.25 3.5
1.1/2" 17      1.5/8 19.7 5.69 2.31 3.5 .75



According to Federal Specification RR-C-271D, Type IV B, Class 2, Grade A, Amendment 1. Hot galvanized, forged carbon steel, heat treated, with alloy pins. Permanently marked with size and Working Load Limit.

**Sizes up to 4" available**

CAUTION: NEVER EXCEED THE WORKING LOAD LIMIT.
