Caldwell  |  SKU: Caldwell-24-1/2-3

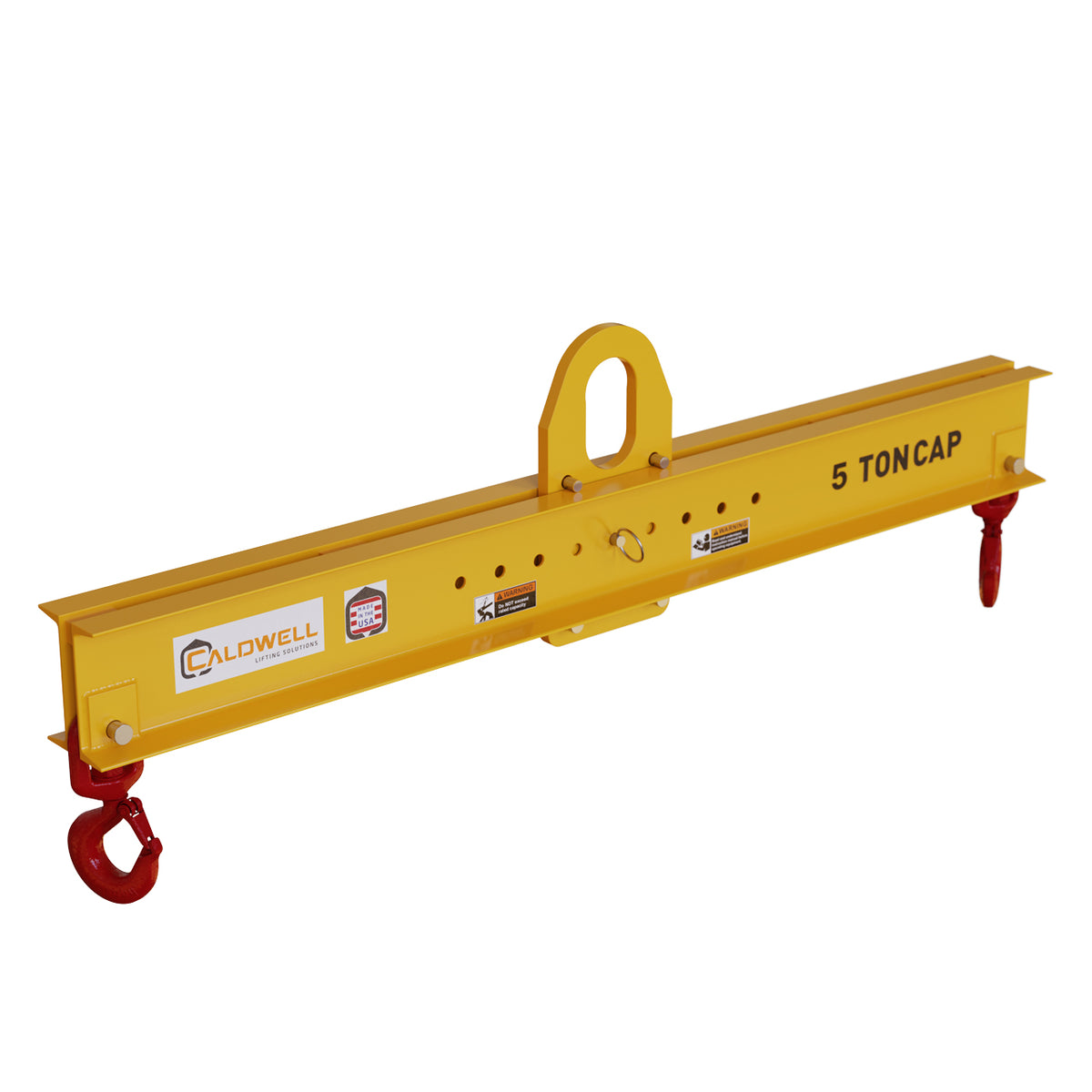

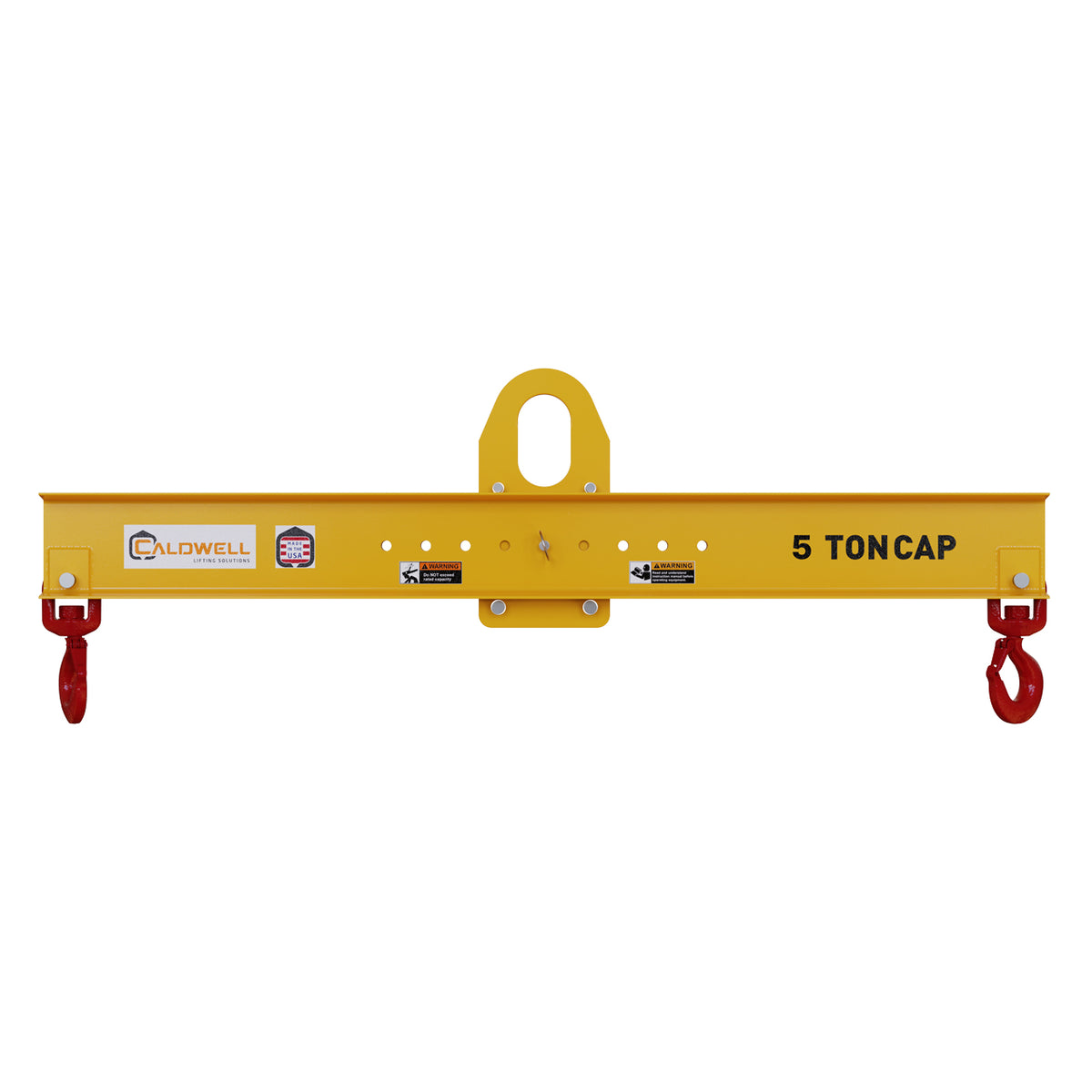

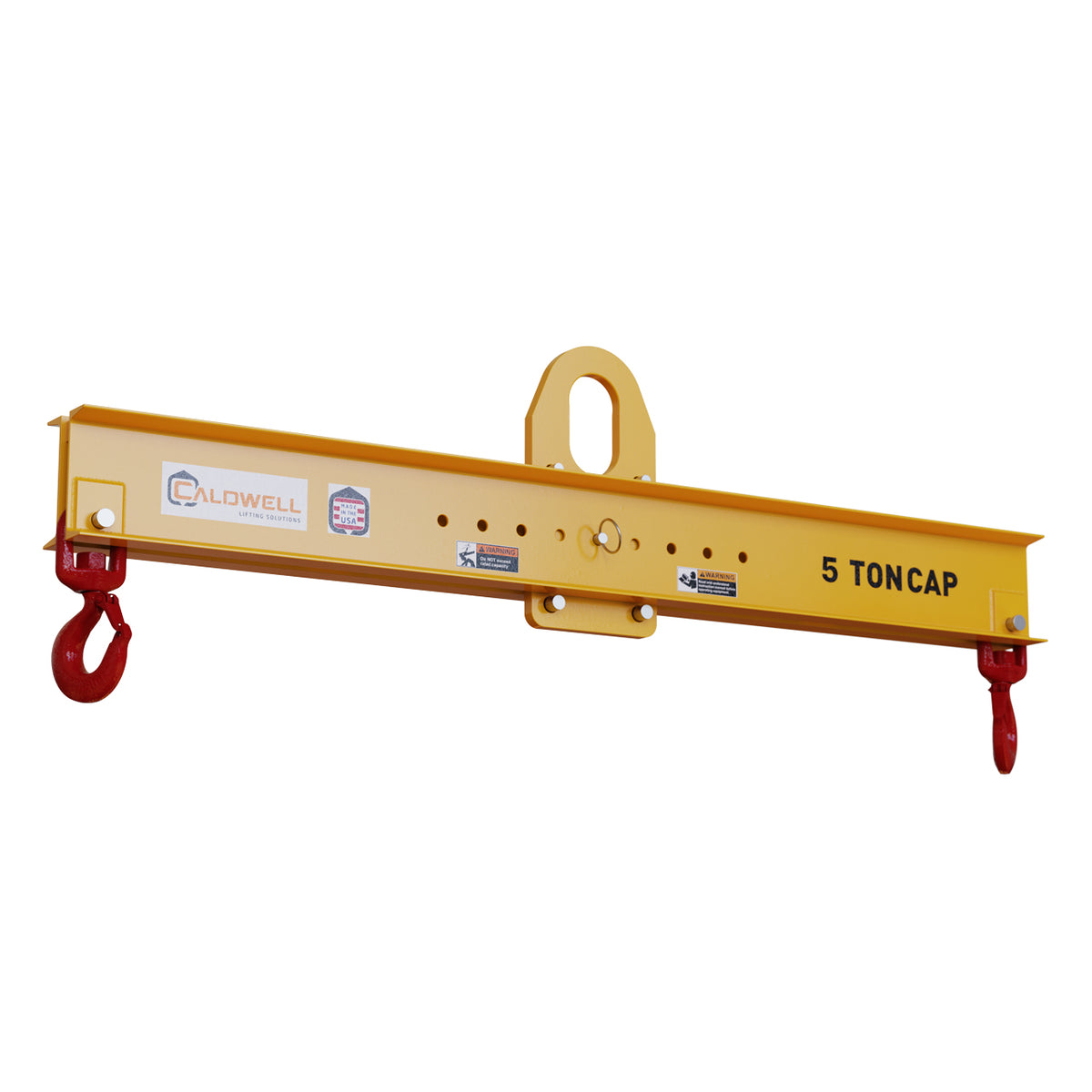

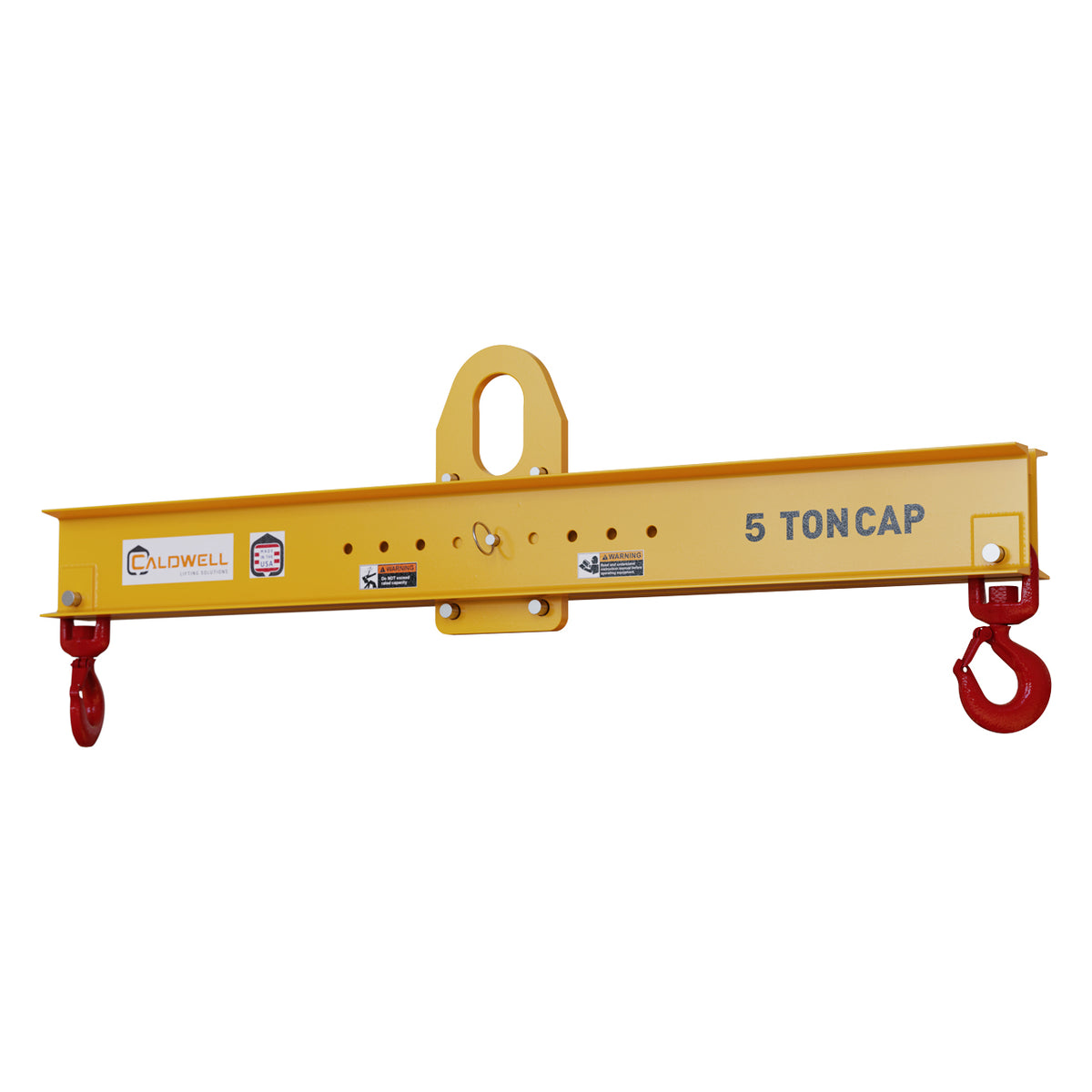

Caldwell Adjustable Bail Lifting beam

$2,153.00
Request a Quote

Off-center loads are easier than ever with the Model 24 Adjustable Bail Lifting Beam. Simply slide the bail along the channel and lock it into preset positions. Simple concept. Fantastic results.

Features

  • Handles off-center loads by adjusting the bail before a lift
  • Adjustable spread options available
  • Swivel hooks with hook latches standard
  • Wide range of sizes and capacities available
  • Complies with ASME standards

Available Models

Part No. Capacity (ton) Outside Spread FT Capacity Rated Capacity Bail Opening Height Bail Opening Width Hook Opening With Latch Bail Thickness Bail Adjustment Spacing Bail Depth Max Bail Movement Headroom
24-1/2-3 0.5 3 0.5 1000 5 3 1 0.625 3 1.5 6 13.5
24-1/2-4 0.5 4 0.5 1000 5 3 1 0.625 3 1.5 9 13.5
24-1/2-6 0.5 6 0.5 1000 5 3 1 0.625 3 1.5 12 13.5
24-1/2-8 0.5 8 0.5 1000 5 3 1 0.62 4 1.5 16 12.63
24-1/2-10 0.5 10 0.5 1000 5 3 1 0.625 4 1.5 20 13.5
24-1/2-12 0.5 12 0.5 1000 5 3 1 0.625 4 1.5 24 13.5
24-1/2-14 0.5 14 0.5 1000 5 3 1 0.625 6 1.5 30 13.5
24-1/2-16 0.5 16 0.5 1000 5 3 1 0.625 6 1.5 36 14.5
24-1/2-18 0.5 18 0.5 1000 5 3 1 0.625 6 1.5 42 14.5
24-1/2-20 0.5 20 0.5 1000 5 3 1 0.625 6 1.5 48 14.5
24-1-3 1 3 1 2000 5 3 1 0.625 3 1.5 6 13.5
24-1-4 1 4 1 2000 5 3 1 0.625 3 1.5 9 13.625
24-1-6 1 6 1 2000 5 3 1 0.625 3 1.5 12 13.625
24-1-8 1 8 1 2000 5 3 1 0.625 4 1.5 16 14.625
24-1-10 1 10 1 2000 5 3 1 0.625 4 1.5 20 14.625
24-1-12 1 12 1 2000 5 3 1 0.625 4 1.5 24 14.625
24-1-14 1 14 1 2000 5 3 1 0.625 6 1.5 30 15.625
24-1-16 1 16 1 2000 5 3 1 0.625 6 1.5 36 15.625
24-1-18 1 18 1 2000 5 3 1 0.625 6 1.5 42 16.5
24-1-20 1 20 1 2000 5 3 1 0.625 6 1.5 48 16.5
24-2-3 2 3 2 4000 5 3 1 0.75 3 1.5 6 14
24-2-4 2 4 2 4000 5 3 1 0.75 3 1.5 9 15.125
24-2-6 2 6 2 4000 5 3 1 0.75 3 1.5 12 15.125
24-2-8 2 8 2 4000 5 3 1 0.75 4 1.5 16 16.125
24-2-10 2 10 2 4000 5 3 1 0.75 4 1.5 20 18.5
24-2-12 2 12 2 4000 5 3 1 0.75 4 1.5 24 17.125
24-2-14 2 14 2 4000 5 3 1 0.75 6 1.5 30 18.25
24-2-16 2 16 2 4000 5 3 1 0.75 6 1.5 36 18.25
24-2-18 2 18 2 4000 5 3 1 0.75 6 1.5 42 19.5
24-2-20 2 20 2 4000 5 3 1 0.75 6 1.5 48 19.5
24-5-3 5 3 5 10000 7 4 1 1 3 2 6 21.5
24-5-4 5 4 5 10000 7 4 1 1 3 2 9 21.5
24-5-6 5 6 5 10000 7 4 1 1 3 2 12 21.5
24-5-8 5 8 5 10000 7 4 1 1 4 2 16 22.5
24-5-10 5 10 5 10000 7 4 1 1 4 2 20 23.5
24-5-12 5 12 5 10000 7 4 1 1 4 2 24 27
24-5-14 5 14 5 10000 7 4 1 1 6 2 30 27
24-5-16 5 16 5 10000 7 4 1 1 6 2 36 28
24-5-18 5 18 5 10000 7 4 1 1 6 2 42 29
24-5-20 5 20 5 10000 7 4 1 1 6 2 48 30.375
24-10-3 10 3 10 20000 7 4 1.75 1.25 3 2 6 25.75
24-10-4 10 4 10 20000 7 4 1.75 1.25 3 2 9 25.75
24-10-6 10 6 10 20000 7 4 1.75 1.25 3 2 12 28.75
24-10-8 10 8 10 20000 7 4 1.75 1.25 4 2 16 28.75
24-10-10 10 10 10 20000 7 4 1.75 1.25 4 2 20 31.75
24-10-12 10 12 10 20000 7 4 1.75 1.25 4 2 24 31.75
24-10-14 10 14 10 20000 7 4 1.75 1.25 6 2 30 31.75
24-10-16 10 16 10 20000 7 4 1.75 1.25 6 2 36 31.75
24-10-18 10 18 10 20000 7 4 1.75 1.25 6 2 42 34.75
24-10-20 10 20 10 20000 7 4 1.75 1.25 6 2 48 34.75
24-15-3 15 3 15 30000 9 5 2 1.5 3 2.5 6 28.25
24-15-4 15 4 15 30000 9 5 2 1.5 3 2.5 9 30.5
24-15-6 15 6 15 30000 9 5 2 1.5 3 2.5 12 33.5
24-15-8 15 8 15 30000 9 5 2 1.5 4 2.5 16 33.5
24-15-10 15 10 15 30000 9 5 2 1.5 4 2.5 20 33.5
24-15-12 15 12 15 30000 9 5 2 1.5 4 2.5 24 37
24-15-14 15 14 15 30000 9 5 2 1.5 6 2.5 30 37
24-15-16 15 16 15 30000 9 5 2 1.5 6 2.5 36 37
24-20-3 20 3 20 40000 9 5 2 1.5 3 2.5 6 31
24-20-4 20 4 20 40000 9 5 2 1.5 3 2.5 9 34
24-20-6 20 6 20 40000 9 5 2 1.5 3 2.5 12 37
24-20-8 20 8 20 40000 9 5 2 1.5 4 2.5 16 34
24-20-10 20 10 20 40000 9 5 2 1.5 4 2.5 20 37
24-20-12 20 12 20 40000 9 5 2 1.5 4 2.5 24 37
