Caldwell  |  SKU: Caldwell-416-1/2-2

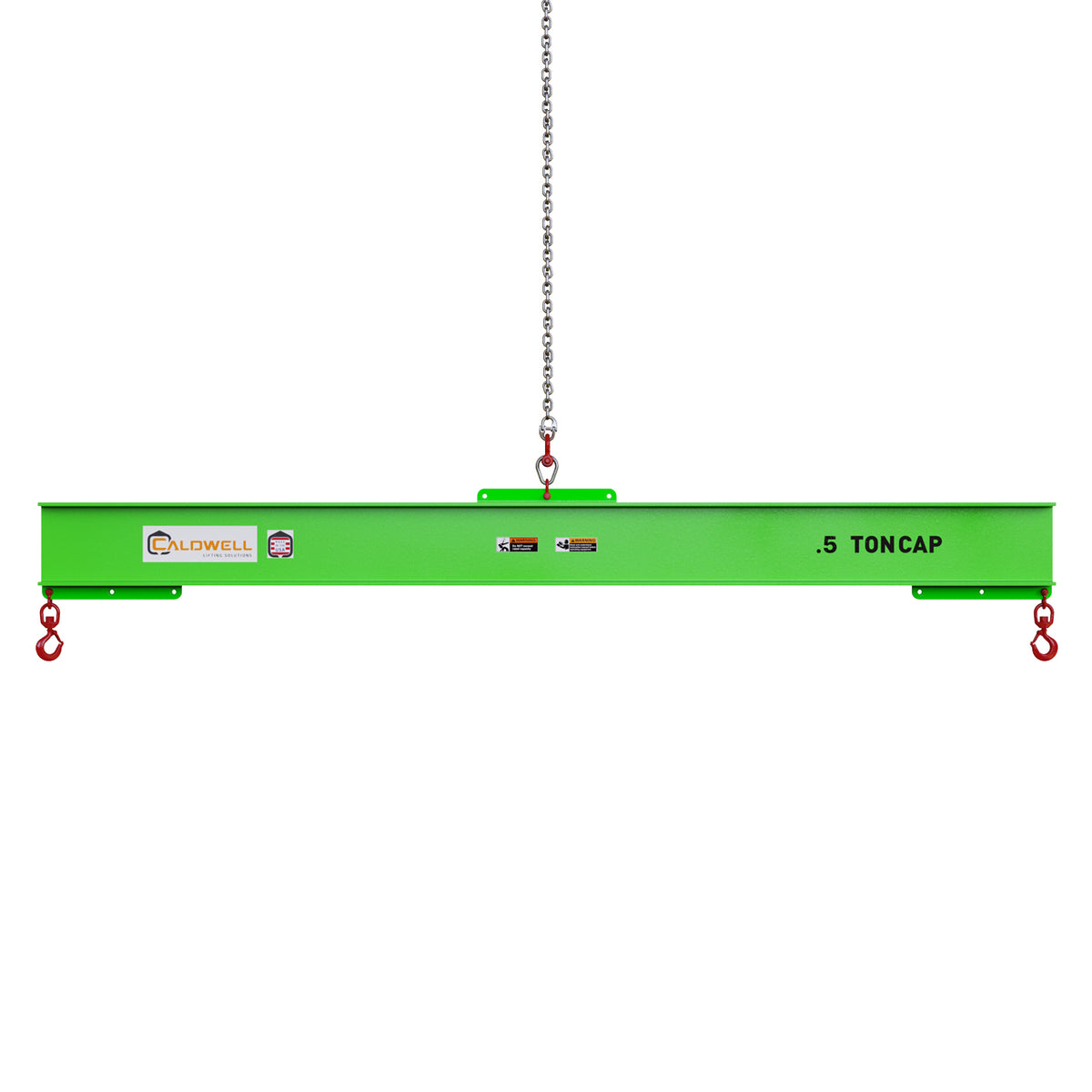

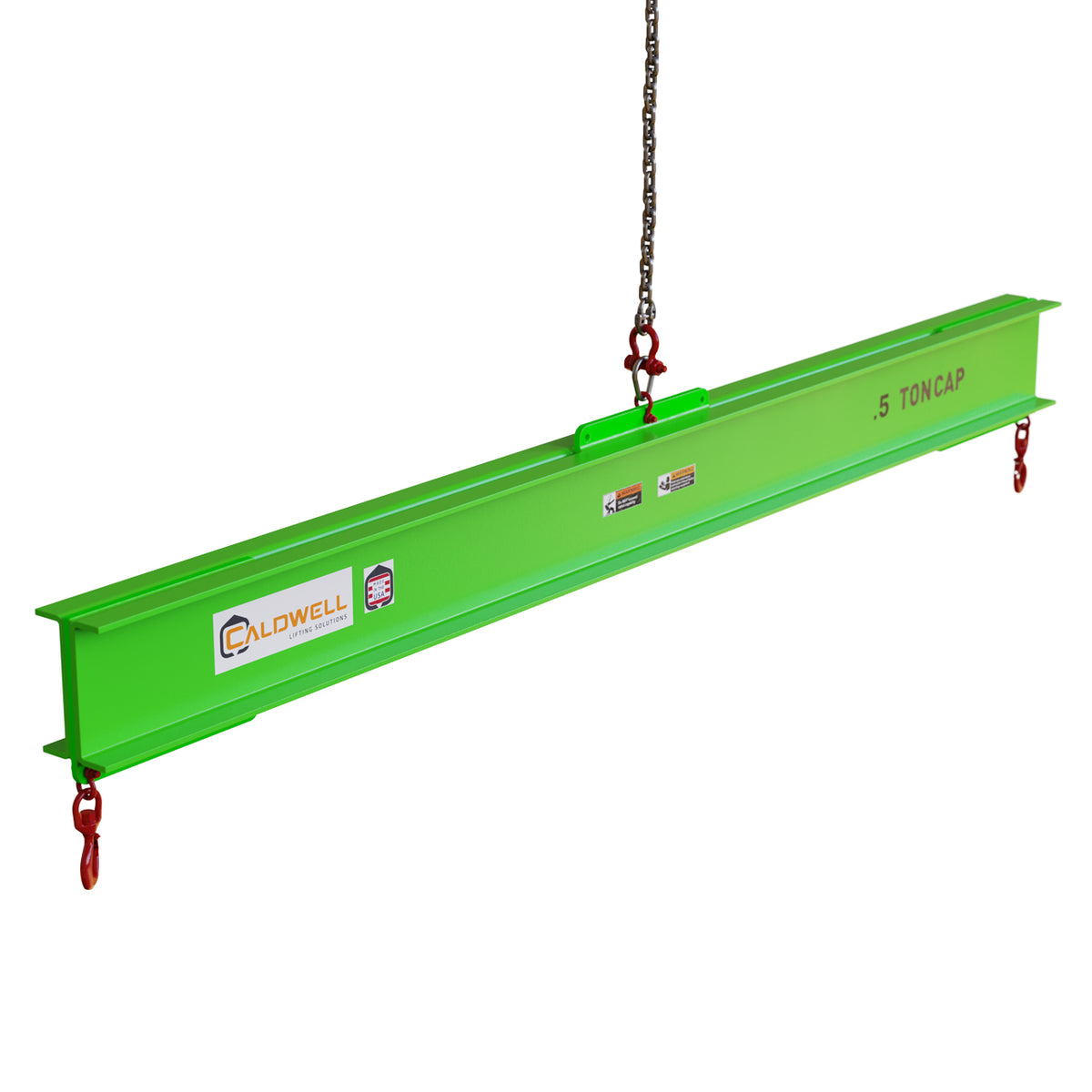

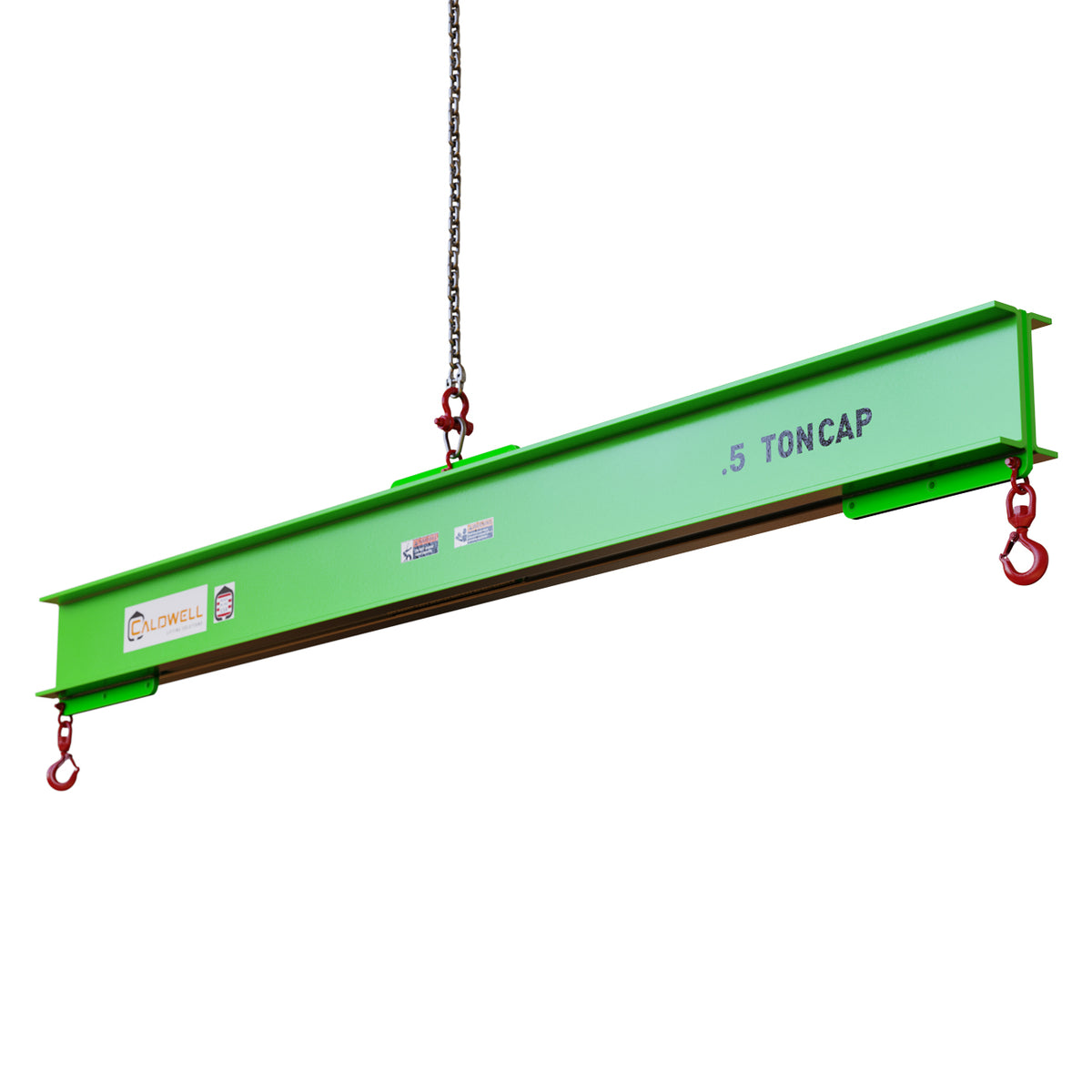

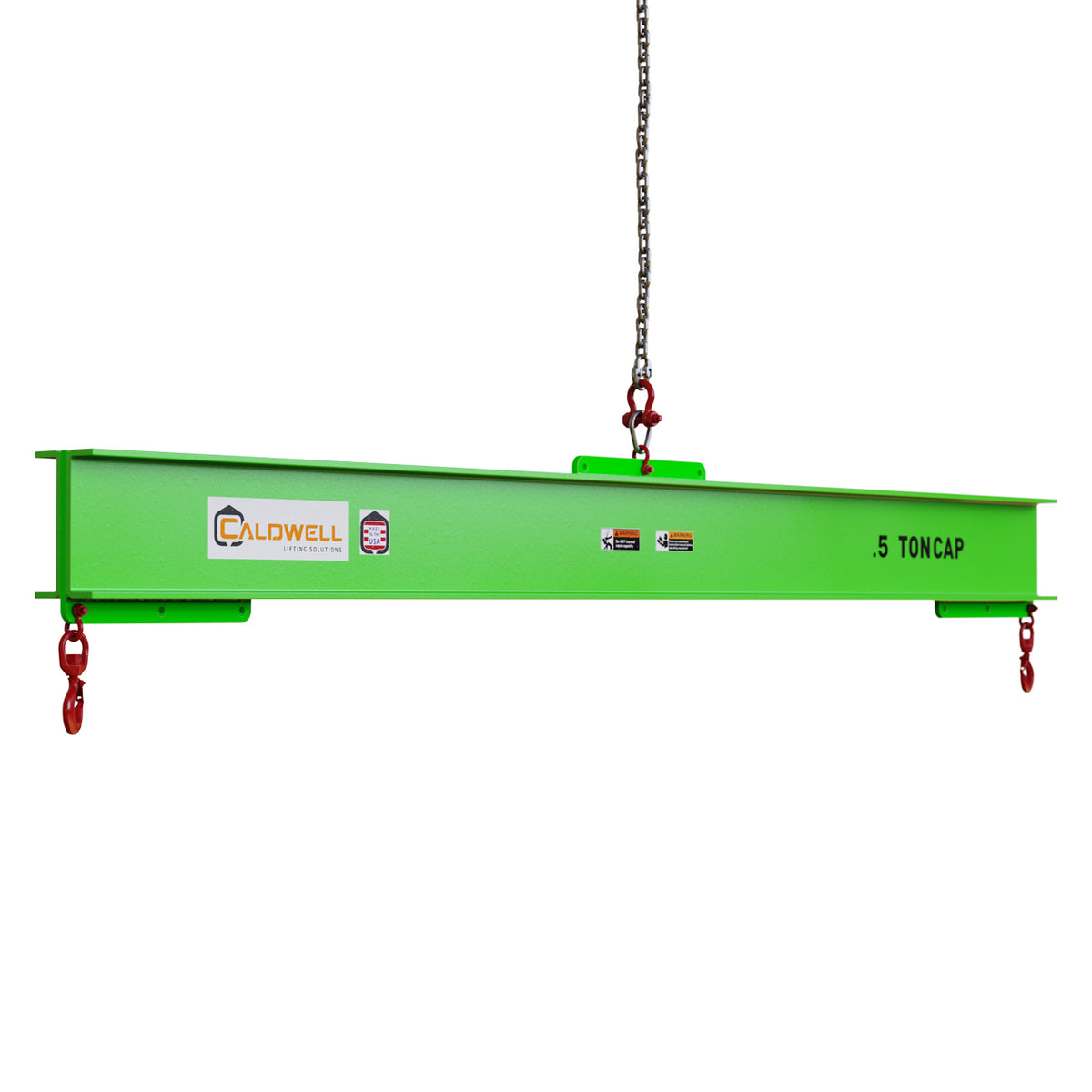

Caldwell Adjustable Composite Spreader/Lifting Beam

$1,749.00
Request a Quote

Dura-Lite Model 416 is the composit version of Caldwell's Model 16 Adjustable Lifting Beam. Choose for corrosive enviroments, or when a lighter beam allows you to pick a heavier load.

Features

  • Lightweight beam gives you additional load capacity while protecting riggers' backs
  • Non-conductive: corrosion-resistant material won't rust
  • 1/2- to 3-ton capacities
  • Complies with ASME B30.20, design category B, service class 4
  • Provided as shown with lifting ring and load hooks
  • Proof tested with certificate issued
  • DURA-LITE product is compliant with European Community standards CE

Available Models

Part No. Rated Capacity Max Spread Capacity Bail Opening Width Bail Opening Height Hook Opening With Latch Min Spread Bail Adjustment Increment Bail Depth Headroom Weight Beam Only Weight With Hardware
416-1/2-2 1000 24 0.5 1.5 1.9 0.89 12 3 0.38 13.9 9 11
416-1/2-3 1000 36 0.5 1.5 1.9 0.89 24 3 0.38 13.9 10 13
416-1/2-4 1000 48 0.5 1.5 1.9 0.89 36 3 0.38 14.9 14 16
416-1/2-6 1000 72 0.5 1.5 1.9 0.89 48 6 0.38 16.9 30 32
416-1/2-8 1000 96 0.5 1.5 1.9 0.89 72 6 0.38 18.9 64 66
416-1/2-10 1000 120 0.5 1.5 1.9 0.89 96 6 0.38 18.9 80 82
0416-1-2 2000 24 1 2.8 4.5 0.91 12 3 0.62 20.4 14 20
0416-1-3 2000 36 1 2.8 4.5 0.91 24 3 0.62 20.4 16 22
0416-1-4 2000 48 1 2.8 4.5 0.91 36 3 0.62 22.4 23 29
0416-1-6 2000 72 1 2.8 4.5 0.91 48 6 0.62 24.4 60 66
0416-1-8 2000 96 1 2.8 4.5 0.91 72 6 0.62 25.4 72 79
0416-2-2 4000 24 2 2.8 4.3 1.09 12 3 0.62 23.5 19 30
0416-2-3 4000 36 2 2.8 4.3 1.09 24 3 0.62 25.5 25 36
0416-2-4 4000 48 2 2.8 4.3 1.09 36 3 0.62 27.5 45 57
0416-2-6 4000 72 2 2.8 4.3 1.09 48 6 0.62 27.5 68 79
0416-3-2 6000 24 3 2.8 4.3 1.36 12 3 0.62 26.5 22 38
0416-3-3 6000 36 3 2.8 4.3 1.36 24 3 0.62 26.5 25 41
0416-3-4 6000 48 3 2.8 4.3 1.36 36 3 0.62 28.5 45 62
