Caldwell  |  SKU: Caldwell-91-1-36

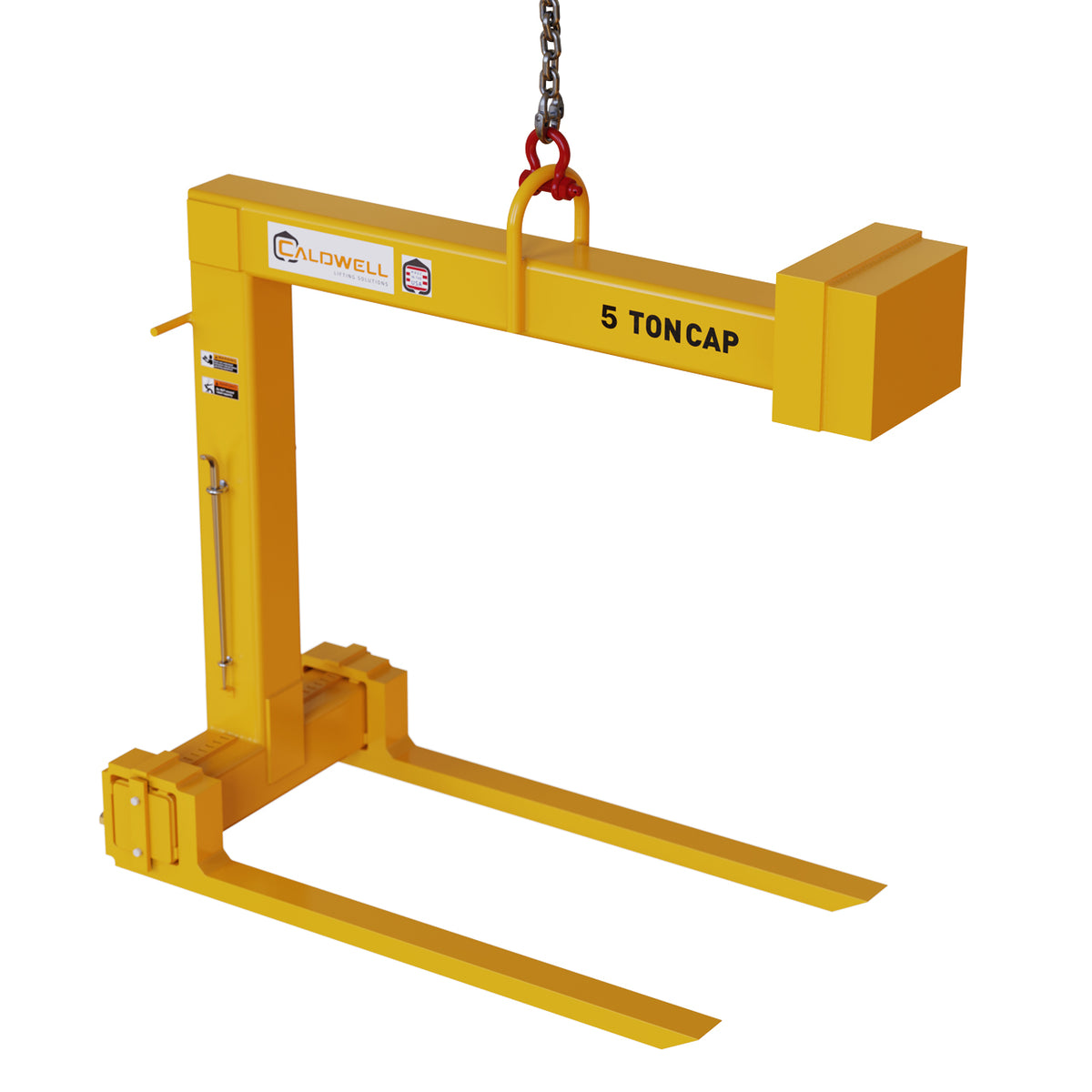

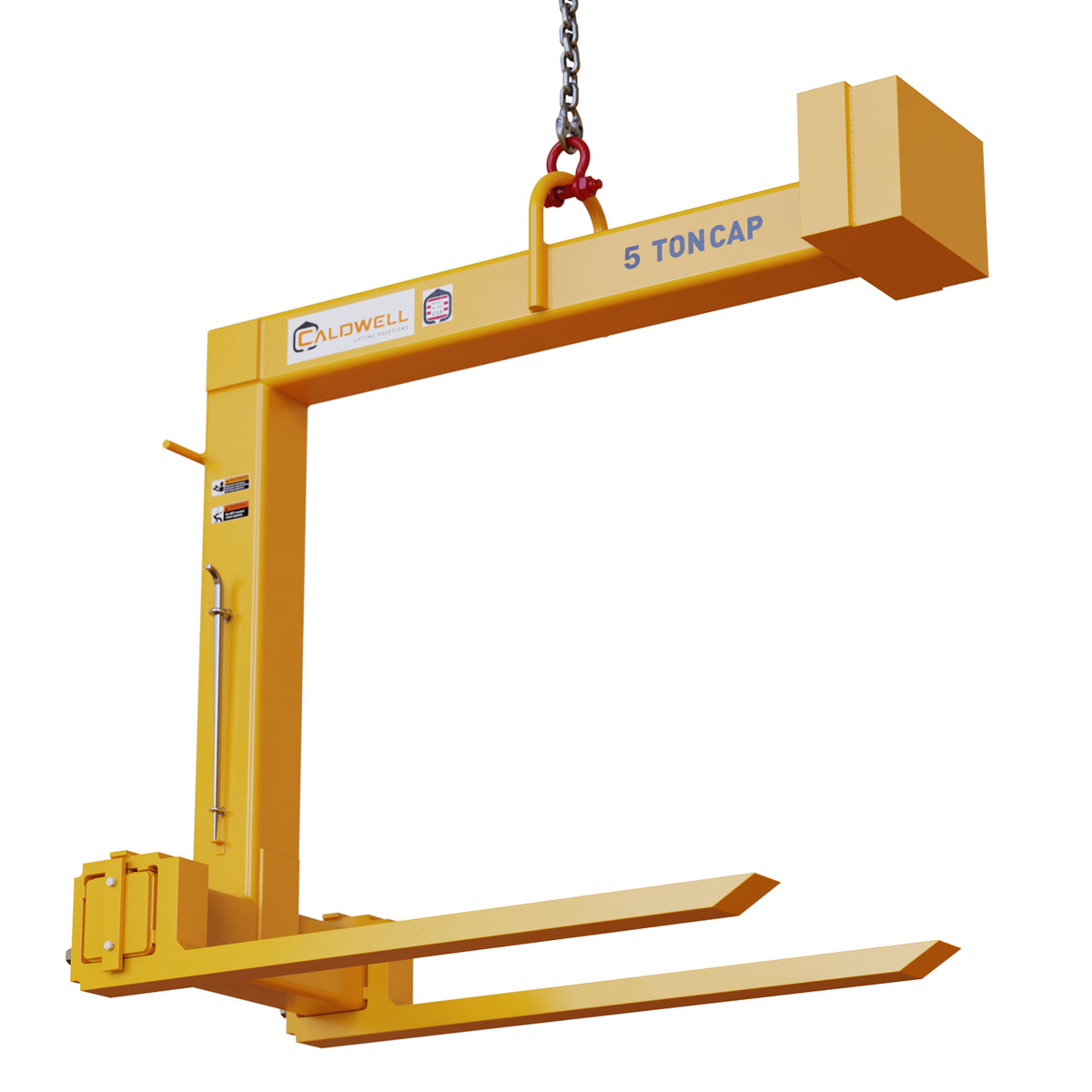

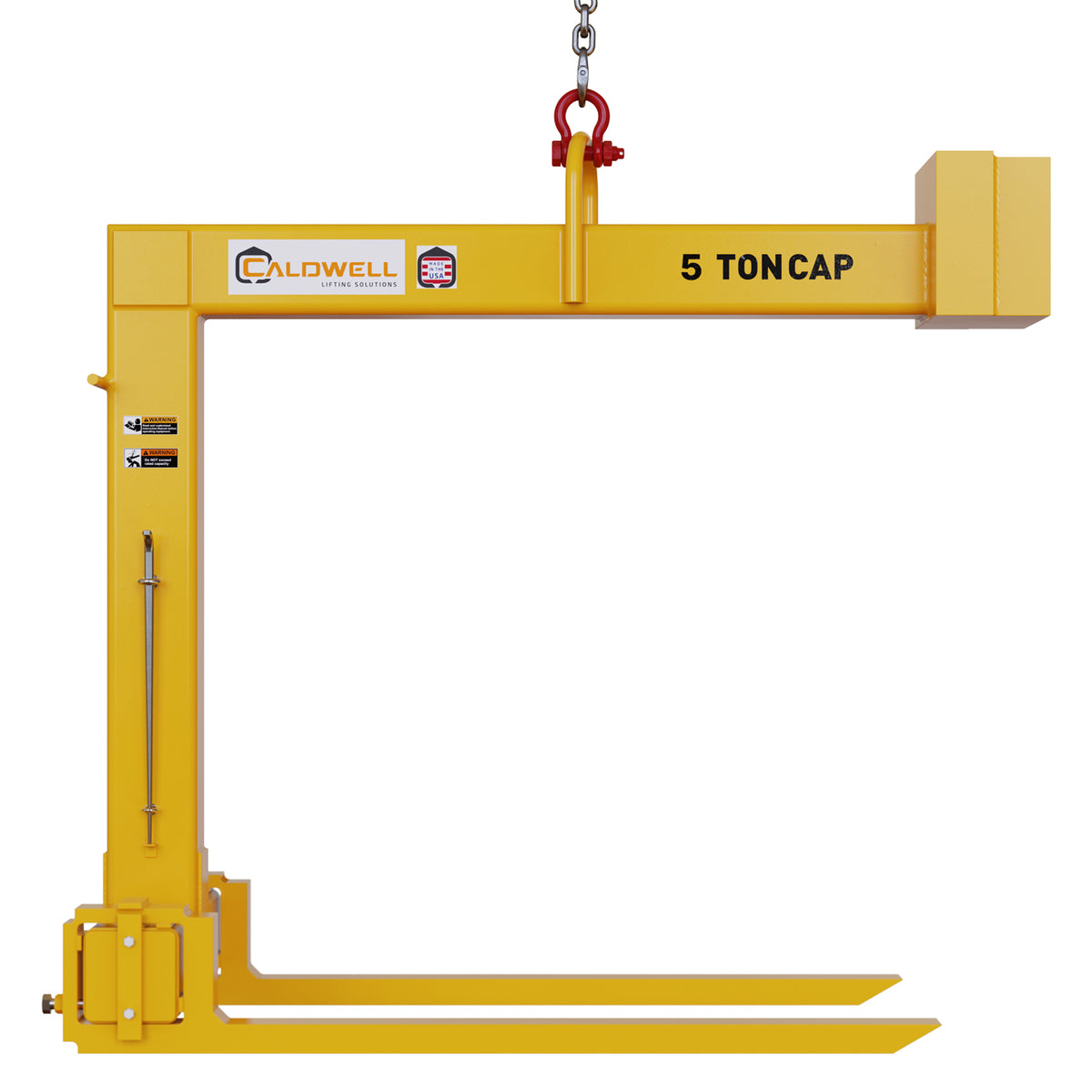

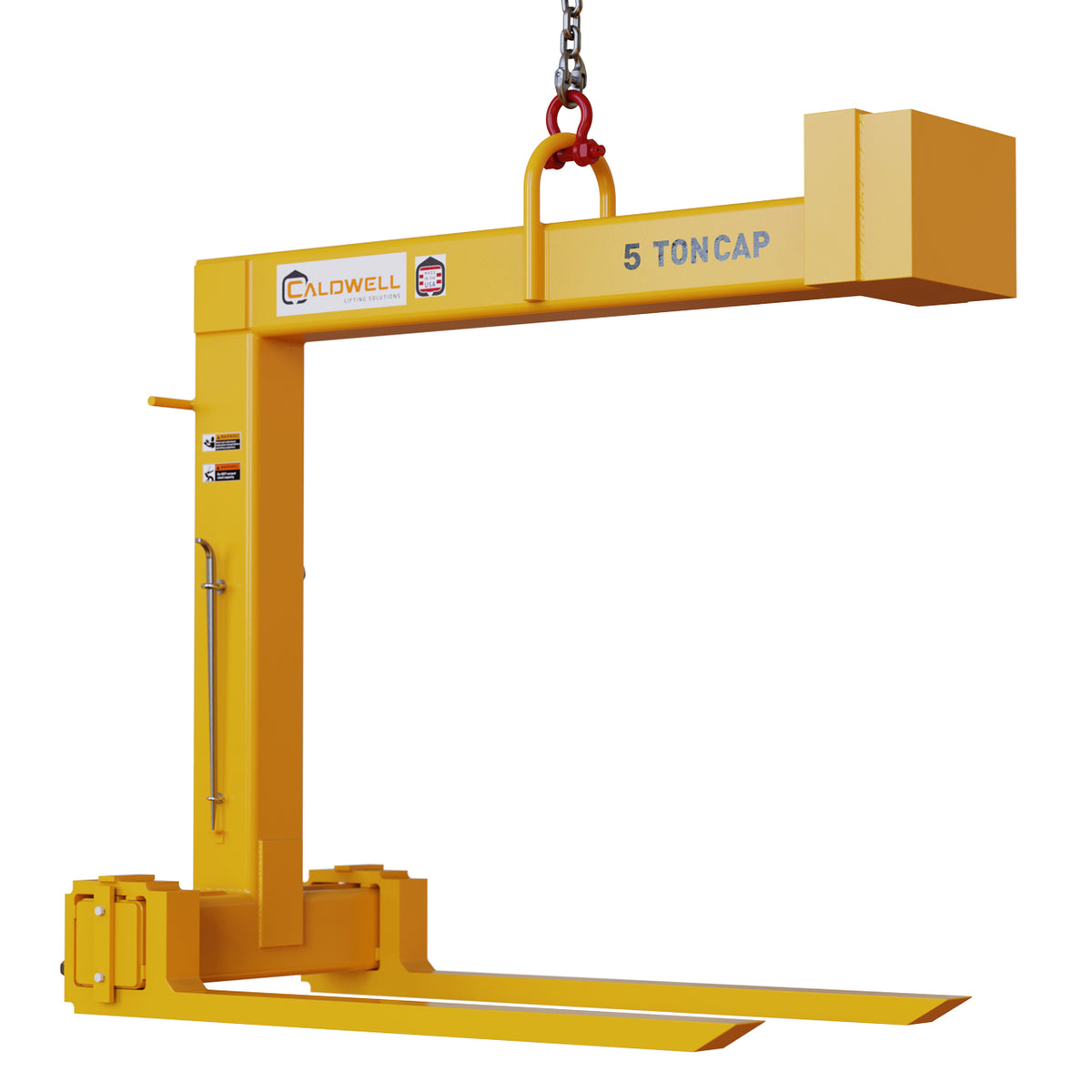

Caldwell Adjustable-Fork Pallet Lifter

$9,260.00
Request a Quote

Adjust fork spread with a pry bar to move multiple pallet sizes off your dock, around your manufacturing floor or across your warehouse.

Features

  • Converts overhead crane into lift truck
  • Pry bar adjustable forks to handle multiple pallet sizes
  • Counter balanced to hang level when empty
  • Complies with ASME standards

Specifications

Fork Inside To Inside Min Width 38

Available Models

Part No. Capacity (ton) Fork Length Capacity Rated Capacity Bail Opening Height Bail Opening Width Fork Inside To Inside Max Width Max Load Height Fork Thickness Fork Width Bail Depth Load Center Point
91-1-36 1 36 1 2000 5 3 16 48 2 2 1 18
91-1-42 1 42 1 2000 5 3 16 48 2 2 1 21
91-1-48 1 48 1 2000 5 3 16 48 2 2 1 24
91-1 1/2-36 1.5 36 1.5 3000 5 3 16 48 2 3 1 18
91-1 1/2-42 1.5 42 1.5 3000 5 3 16 48 2 3 1 21
91-1 1/2-48 1.5 48 1.5 3000 5 3 16 48 2 3 1 24
91-2-36 2 36 2 4000 5 3 16 48 2 3 1 18
91-2-42 2 42 2 4000 5 3 16 48 2 4 1 21
91-2-48 2 48 2 4000 5 3 16 48 2 4 1 24
91-3-42 3 42 3 6000 7 4 16 48 2.5 4.5 1.5 21
91-3-48 3 48 3 6000 7 4 16 48 2.5 4.5 1.5 24
91-3-54 3 54 3 6000 7 4 16 48 2.5 4.5 1.5 27
91-4-48 4 48 4 8000 7 4 19 48 3 5 1.5 24
91-4-60 4 60 4 8000 7 4 19 60 3 5 1.5 30
91-5-48 5 48 5 10000 7 4 19 48 3 5 1.5 24
91-5-60 5 60 5 10000 7 4 19 60 3 5 1.5 30
Caldwell Adjustable-Fork Pallet Lifter
Caldwell

Caldwell Adjustable-Fork Pallet Lifter

From $9,260.00

Adjust fork spread with a pry bar to move multiple pallet sizes off your dock, around your manufacturing floor or across your warehouse.

Features

Specifications

Fork Inside To Inside Min Width 38

Available Models

Part No. Capacity (ton) Fork Length Capacity Rated Capacity Bail Opening Height Bail Opening Width Fork Inside To Inside Max Width Max Load Height Fork Thickness Fork Width Bail Depth Load Center Point
91-1-36 1 36 1 2000 5 3 16 48 2 2 1 18
91-1-42 1 42 1 2000 5 3 16 48 2 2 1 21
91-1-48 1 48 1 2000 5 3 16 48 2 2 1 24
91-1 1/2-36 1.5 36 1.5 3000 5 3 16 48 2 3 1 18
91-1 1/2-42 1.5 42 1.5 3000 5 3 16 48 2 3 1 21
91-1 1/2-48 1.5 48 1.5 3000 5 3 16 48 2 3 1 24
91-2-36 2 36 2 4000 5 3 16 48 2 3 1 18
91-2-42 2 42 2 4000 5 3 16 48 2 4 1 21
91-2-48 2 48 2 4000 5 3 16 48 2 4 1 24
91-3-42 3 42 3 6000 7 4 16 48 2.5 4.5 1.5 21
91-3-48 3 48 3 6000 7 4 16 48 2.5 4.5 1.5 24
91-3-54 3 54 3 6000 7 4 16 48 2.5 4.5 1.5 27
91-4-48 4 48 4 8000 7 4 19 48 3 5 1.5 24
91-4-60 4 60 4 8000 7 4 19 60 3 5 1.5 30
91-5-48 5 48 5 10000 7 4 19 48 3 5 1.5 24
91-5-60 5 60 5 10000 7 4 19 60 3 5 1.5 30

Capacity (ton)

  • 1
  • 1.5
  • 2
  • 3
  • 4
  • 5

Fork Length

  • 36
  • 42
  • 48
  • 54
  • 60
