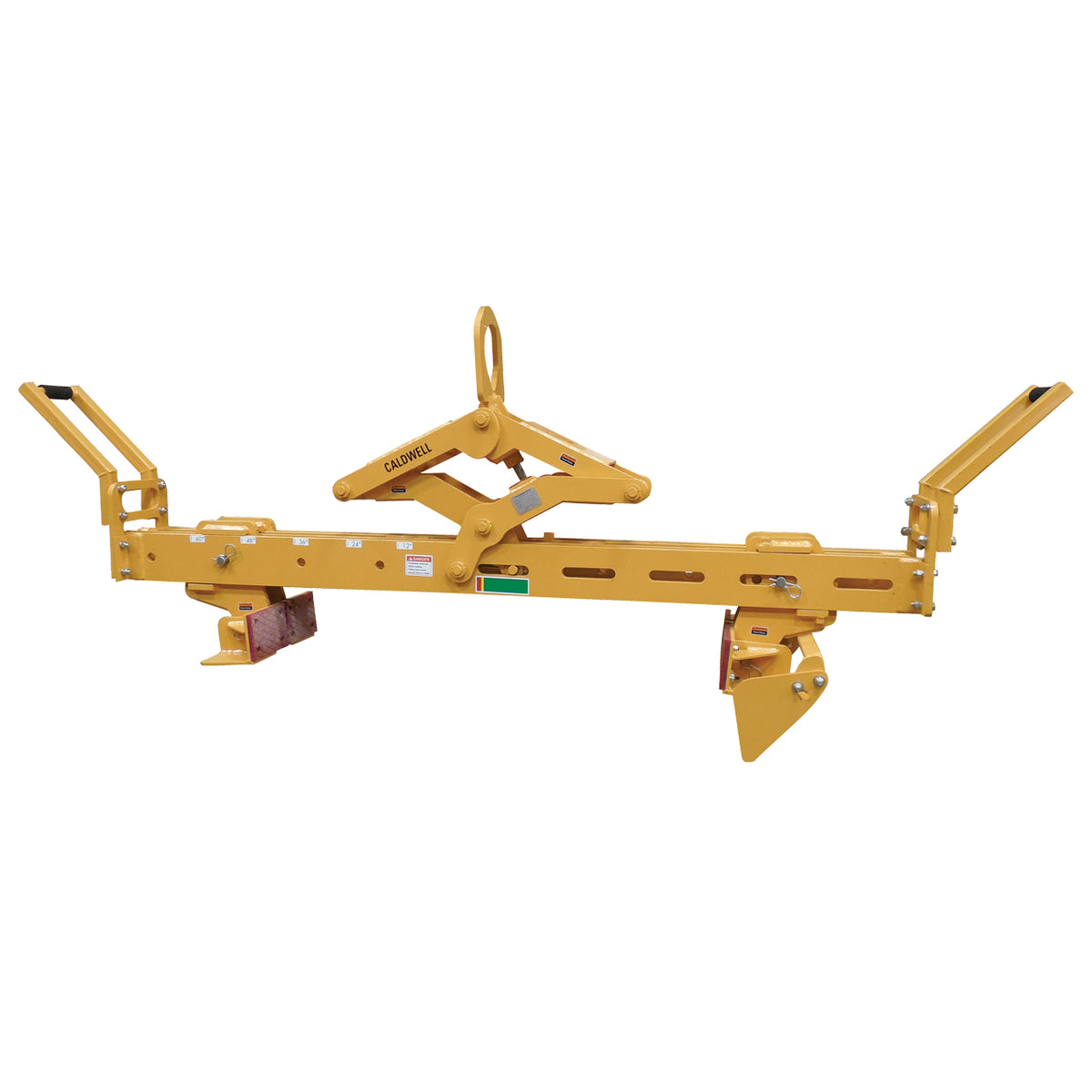

Caldwell Adjustable Lifting Grab

Protect loads, operators, and budgets. First, replaceable poly pads protect the load during a lift. Then, the locating assembly protects the operator by orienting the grab without intervention. Lastly, the heavy-duty design protects your budget with a long service life in tough conditions.

Features

• Heavy duty design to withstand rugged, high-cycle environments
• Infinitely adjustable within range
• Fully adjustable stainless steel auto-latch
• Locating assembly orientates grab on load without operator intervention
• Replacebale polyurethane pads protect load from lifter damage
• Choose the optional alloy steel 'Dog Point" lifting pads to ensure a bite into painted barrier surfaces (typical in coastal areas)
• Color-coded decal indicates the amount of travel remaining for each adjustment
• Position indicating decals for easy adjustment
• Extended handles keep operator away from load and can be adjusted as needed
• Optional hardened alloy steel dog points available
• Lifting eye allows for easy hook attachment, self-centers rigging, and will accommodate a fork
• Designed and manufactured to ASME B30.2, BTH-1, service class 3

Specifications

Available Models
