Caldwell | SKU:
Caldwell-SX-02.00-A
Caldwell Angle Lifting Clamp
$1,315.00
Unit price
/
Unavailable
Caldwell Angle Lifting Clamp - 2 / 9.25 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Angle Lifting Clamp
From
$1,315.00
Unit price
/
Unavailable

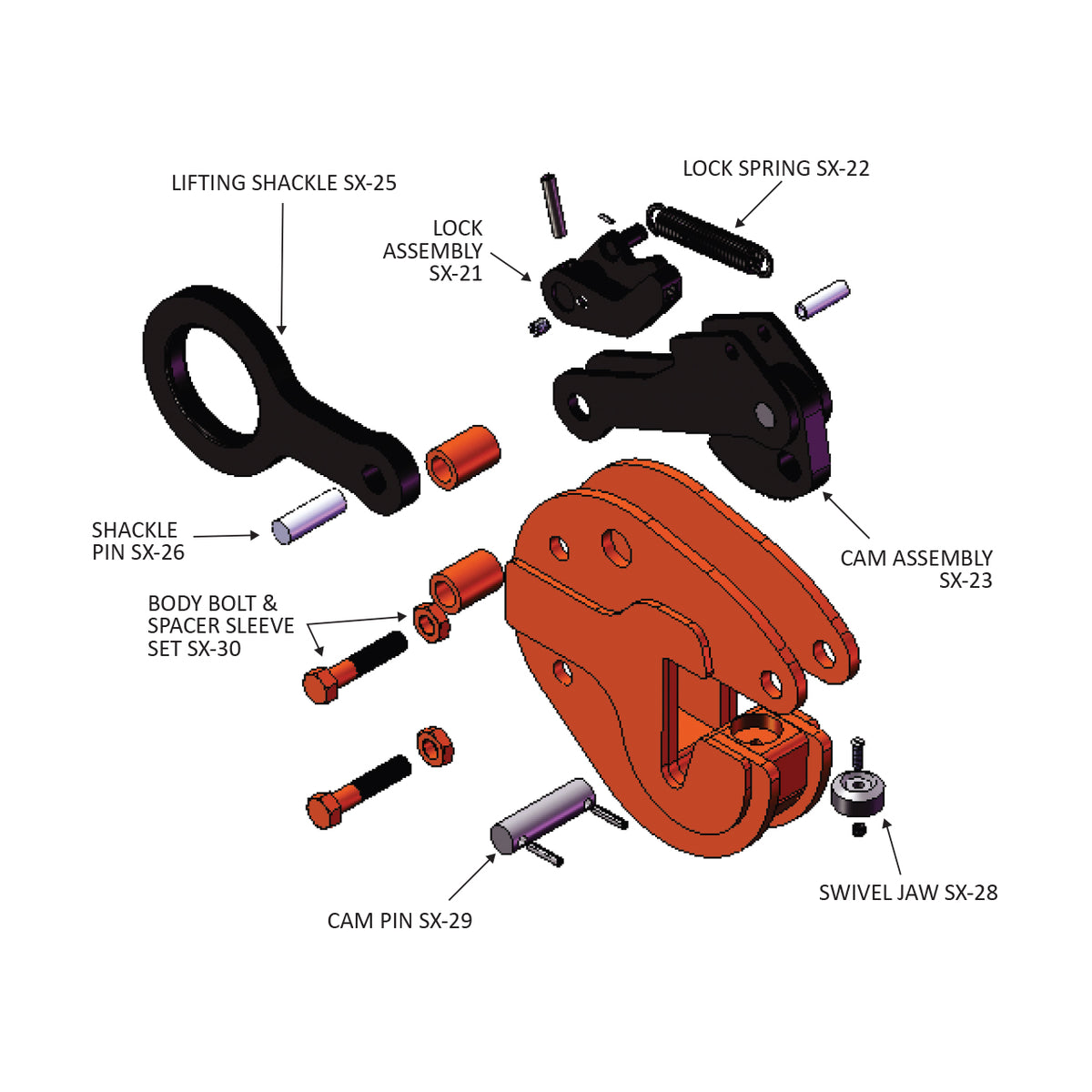

The Model SX clamp is used for lifting andtransporting of angles both in fabrication anderection of steel. It possesses all the features ofthe Model S. All repair parts are identical to thesame tonnage Model S parts.
Specifications
| Shackle Thickness | 0.75 |
| Flange Length | 2.5 |
Available Models
| Part No. | Capacity | Overall Clamp Length | Shackle Hole Diameter | Clamp Height | Clamp Length | Clamp Width | Jaw Height | Jaw Length | Plate Thickness Max | Temp Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| SX-02.00-A | 2 | 9.25 | 3.5 | 18.5 | 9.5 | 3.75 | 4.12 | 3.62 | 1 | 34 |
| SX-02.00-B | 2 | 10.25 | 3.5 | 18.5 | 9.5 | 3.75 | 4.12 | 3.62 | 1.5 | 34 |
| SX-04.00-A | 4 | 10.5 | 3.62 | 19.62 | 11.5 | 4.88 | 4.75 | 4.12 | 1.5 | 51 |
