Caldwell | SKU:
Caldwell-F-5
Caldwell Beam Grabs
$2,509.00
Unit price
/
Unavailable
Caldwell Beam Grabs - 5 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:

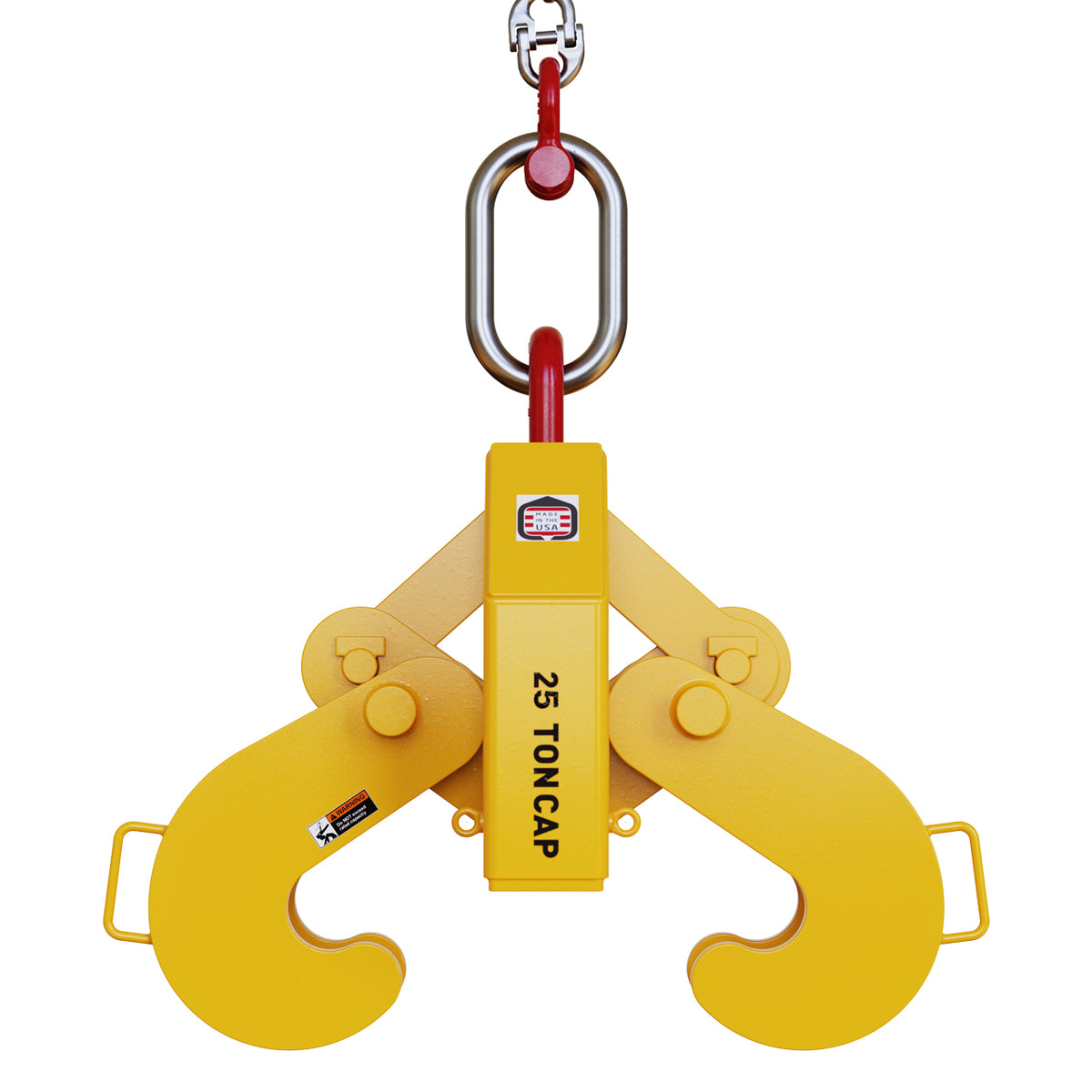

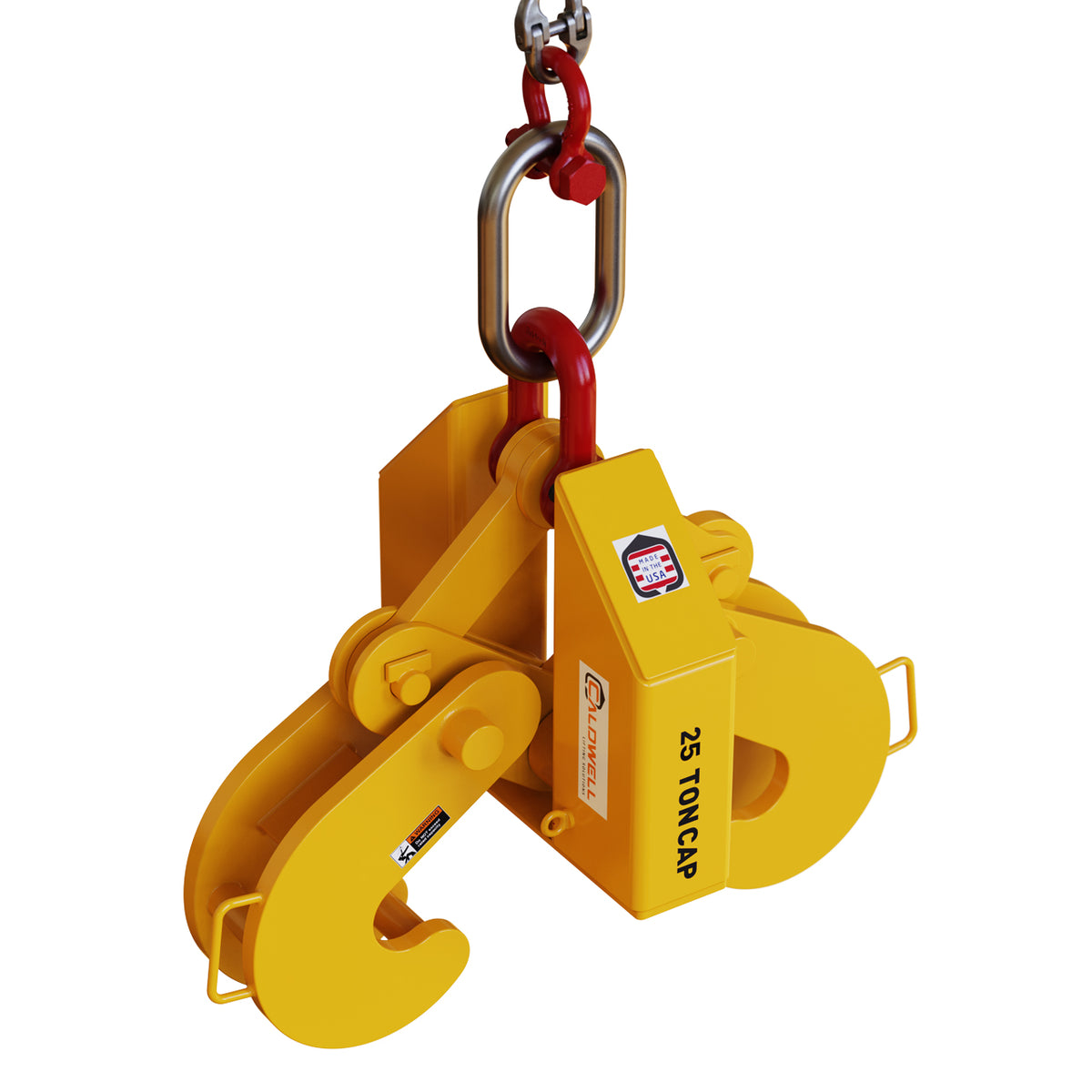

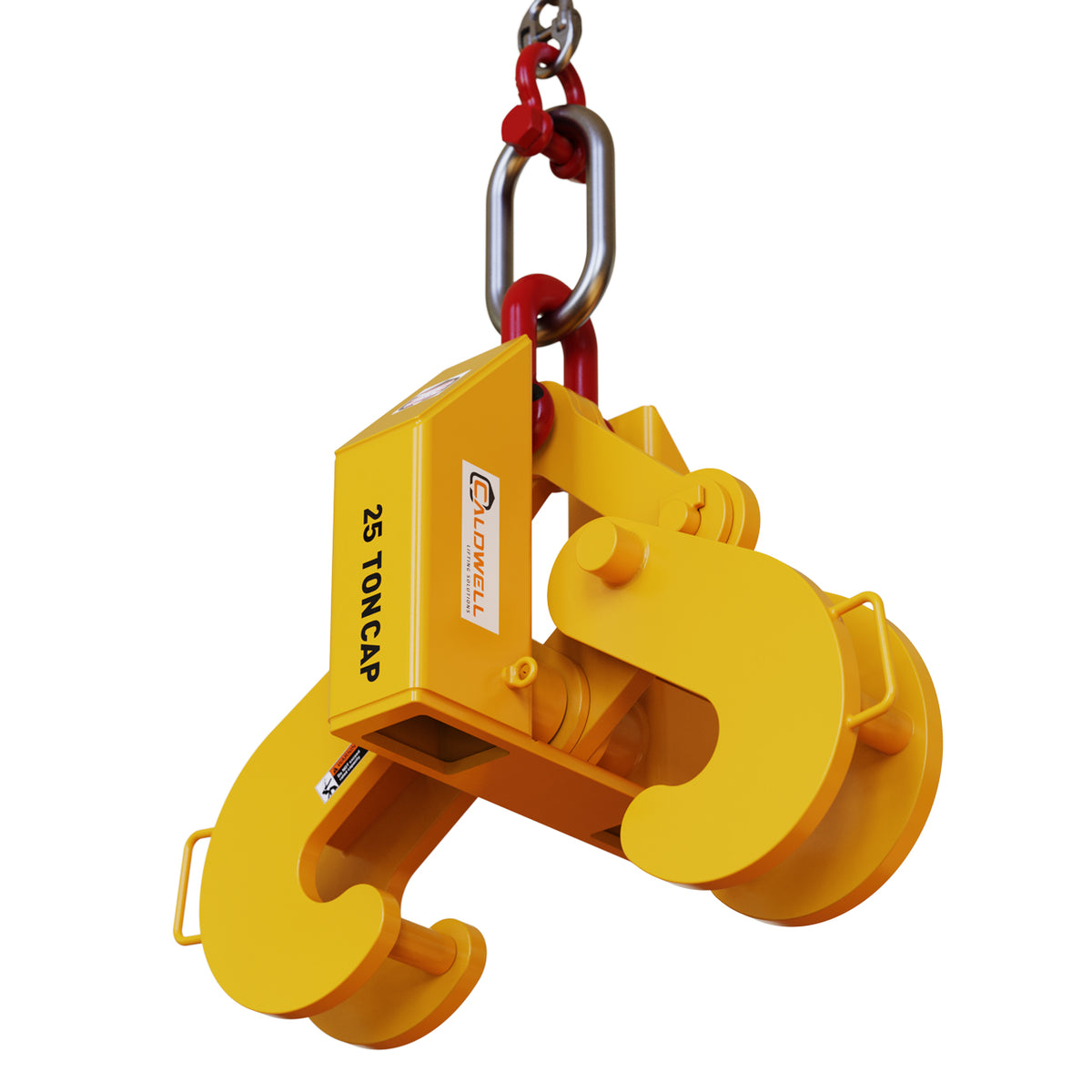

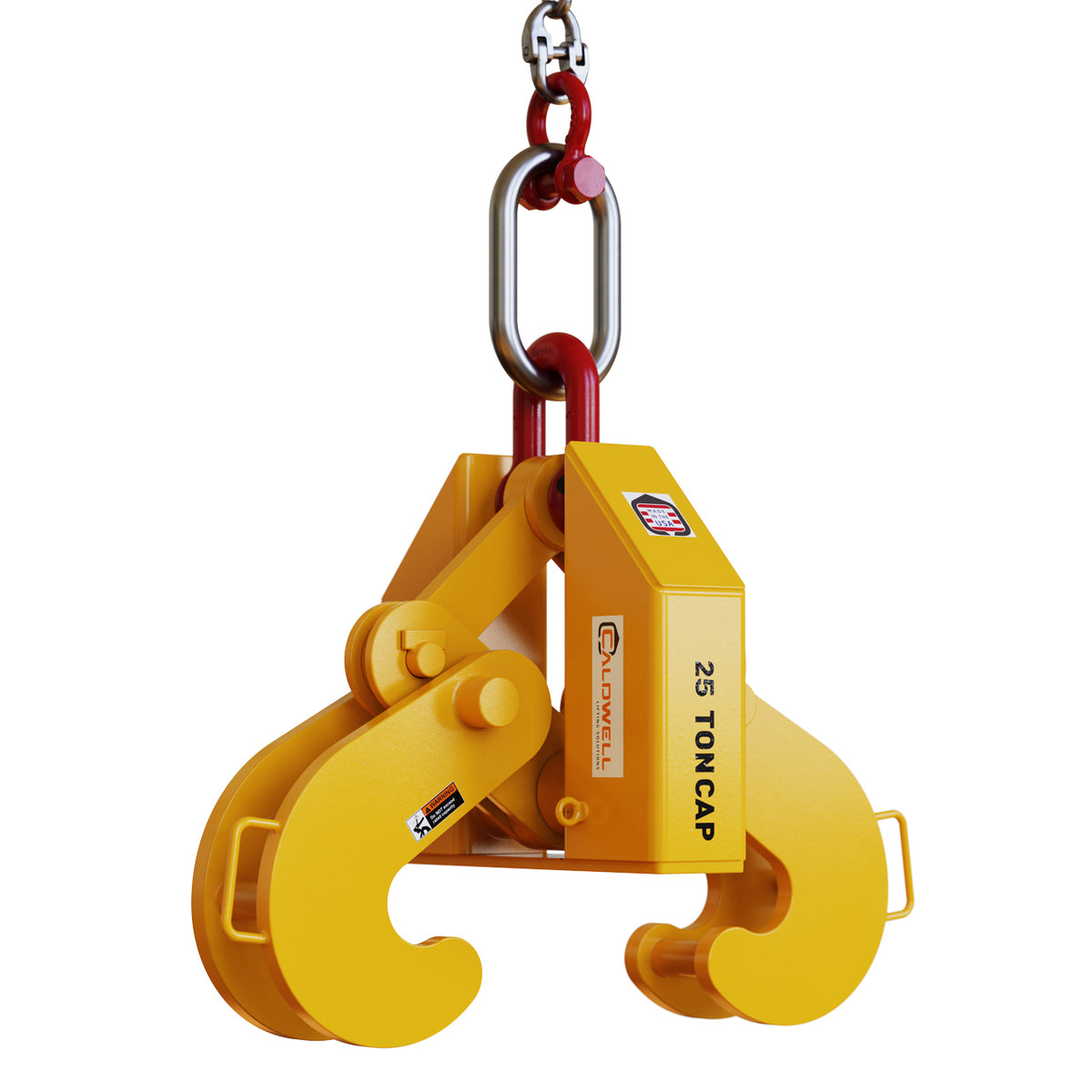

Caldwell Beam Grabs
From
$2,509.00
Unit price
/
Unavailable
This Caldwell classic represents quality engineering, reliable performance, and a dedication to efficiency. With this beam grab on-site, you can eliminate the need for slings and chokers ... saving you time and money in the long run.
Features
- Heavy duty design
- These grabs provide an efficient method for handling wide flange beam sections and plate girders
- Clamps have a recessed base to accept studs welded to a beam's surface
- Beam grabs eliminate the need for slings or chokers
- Use only for vertical lifting
- For longer beams or girders, use units in pairs in conjunction with a spreader/lifting beam
- Complies with ASME standards
Available Models
| Part No. | Capacity (ton) | Capacity | Rated Capacity | Min Flange Thickness | Min Flange Width | Wall Thickness 2 | Cut Out Length | Cut Out Width | Inner Length | Inner Width | Max Flange Thickness | Max Flange Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F-5 | 5 | 5 | 10000 | 0.25 | 4 | 0.5 | 2 | 3 | 3 | 11.6 | 1 | 10 |
| F-15 | 15 | 15 | 30000 | 0.25 | 7 | 0.9 | 2.5 | 4 | 4 | 17.5 | 2 | 17 |
| F-25 | 25 | 25 | 50000 | 1 | 16 | 0.8 | 4 | 6 | 5.5 | 24.5 | 3 | 24 |
| F-35 | 35 | 35 | 70000 | 1 | 16 | 0.8 | 4.5 | 9.3 | 6 | 28.5 | 4 | 36 |
