Caldwell | SKU:
Caldwell-SD-06.00-A
Caldwell Dual-Grip Heavy-Duty Vertical Plate Clamp
$3,057.00
Unit price
/
Unavailable
Caldwell Dual-Grip Heavy-Duty Vertical Plate Clamp - 6 / 7.5 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Dual-Grip Heavy-Duty Vertical Plate Clamp
From
$3,057.00
Unit price
/
Unavailable

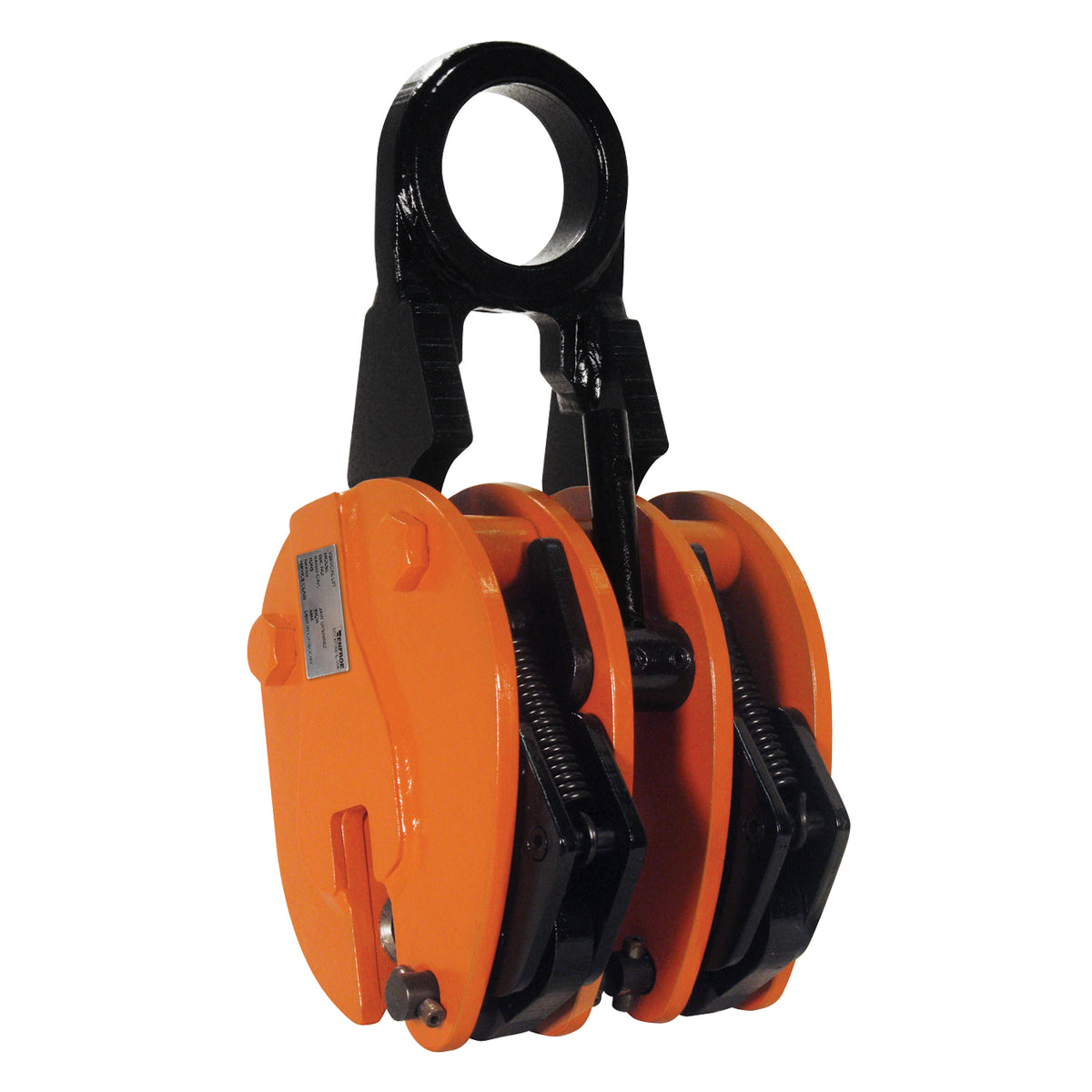

The SD is a vertical lifting clamp that incorporates two Model S clamps into one and is used for heavy duty work where it is desirable to spread the gripping surfaces with two points of contact. It incorporates a “Lock Open,” “Lock Closed” feature which facilitates attaching and removing the clamp from the plate.
Specifications
| Shackle Hole Diameter | 3 |
Available Models
| Part No. | Capacity | Clamp Height | Clamp Length | Clamp Width | Jaw Height | Jaw Length | Overall Length | Shackle Thickness | Plate Thickness Max | Plate Thickness Min | Temp Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SD-06.00-A | 6 | 7.5 | 9.5 | 6.5 | 2.12 | 3.25 | 15.5 | 0.75 | 1 | — | 60 |
| SD-06.00-B | 6 | 8 | 9.5 | 6.5 | 2.12 | 3.25 | 15.5 | 0.75 | 1.5 | 0.75 | 62 |
| SD-08.00-A | 8 | 8.75 | 11.5 | 6.75 | 3 | 4.5 | 17 | 1 | 1.25 | — | 77 |
| SD-08.00-B | 8 | 9.5 | 11.5 | 6.75 | 3 | 4.5 | 17 | 1 | 2 | 1 | 81 |
