Caldwell | SKU:
Caldwell-36E-2.4

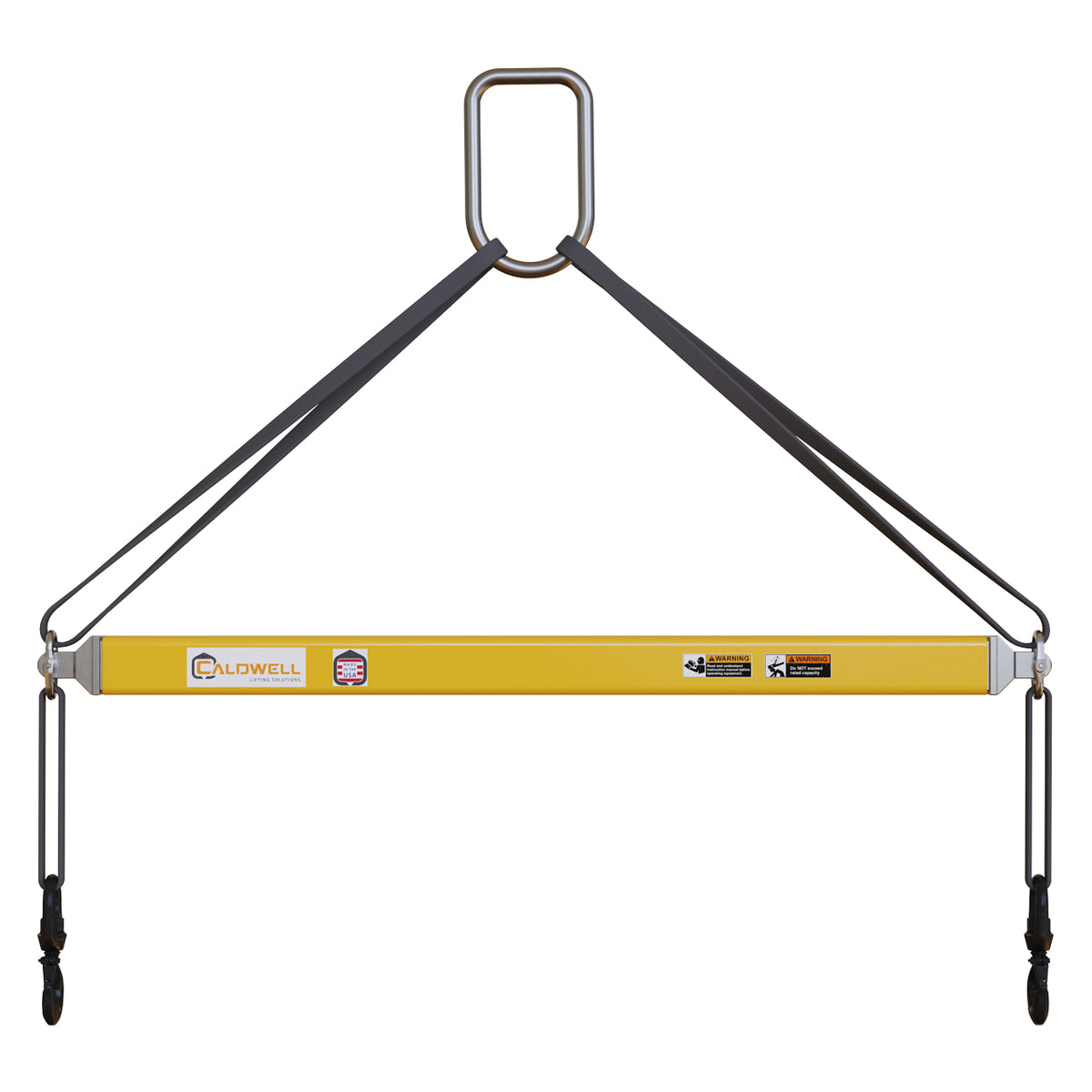

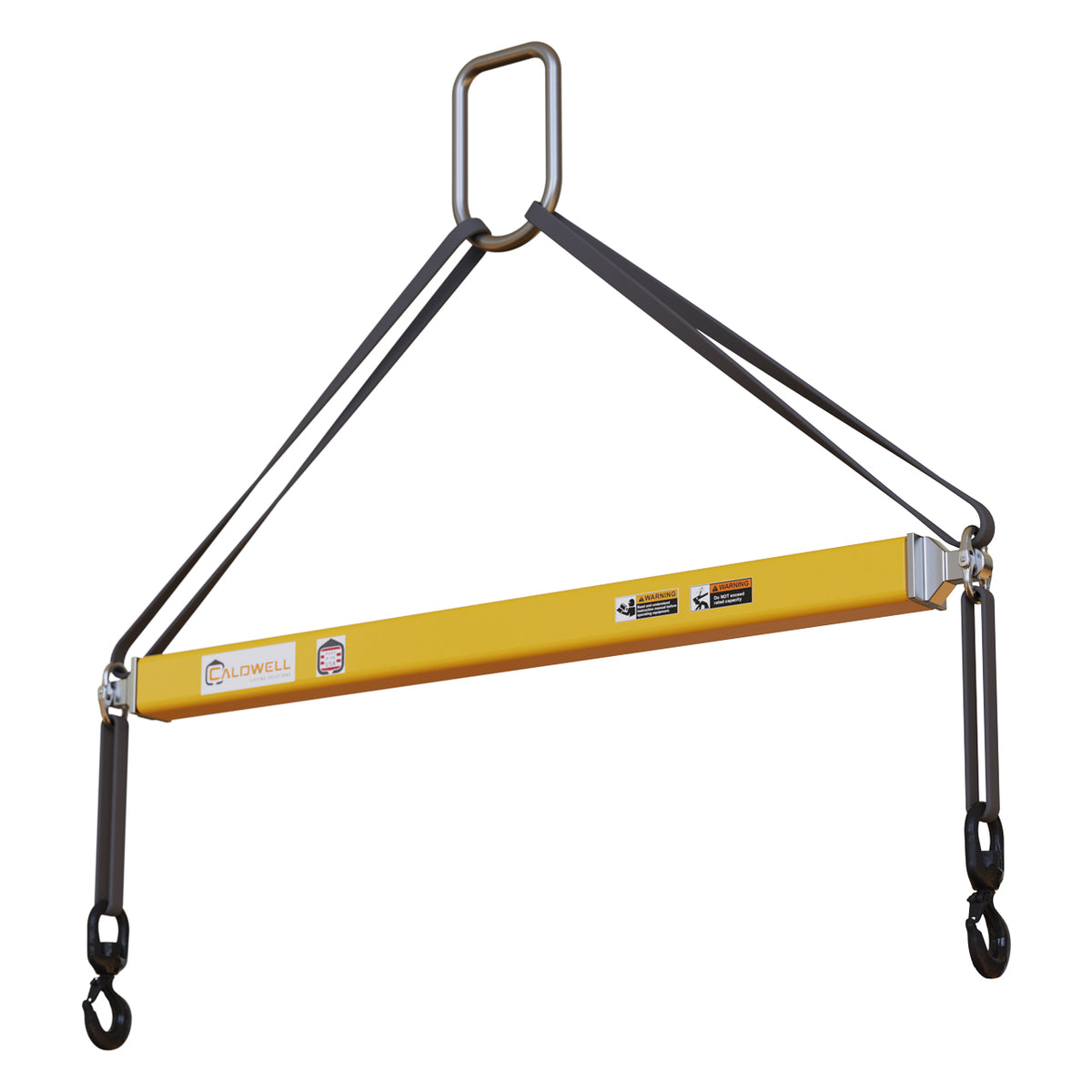

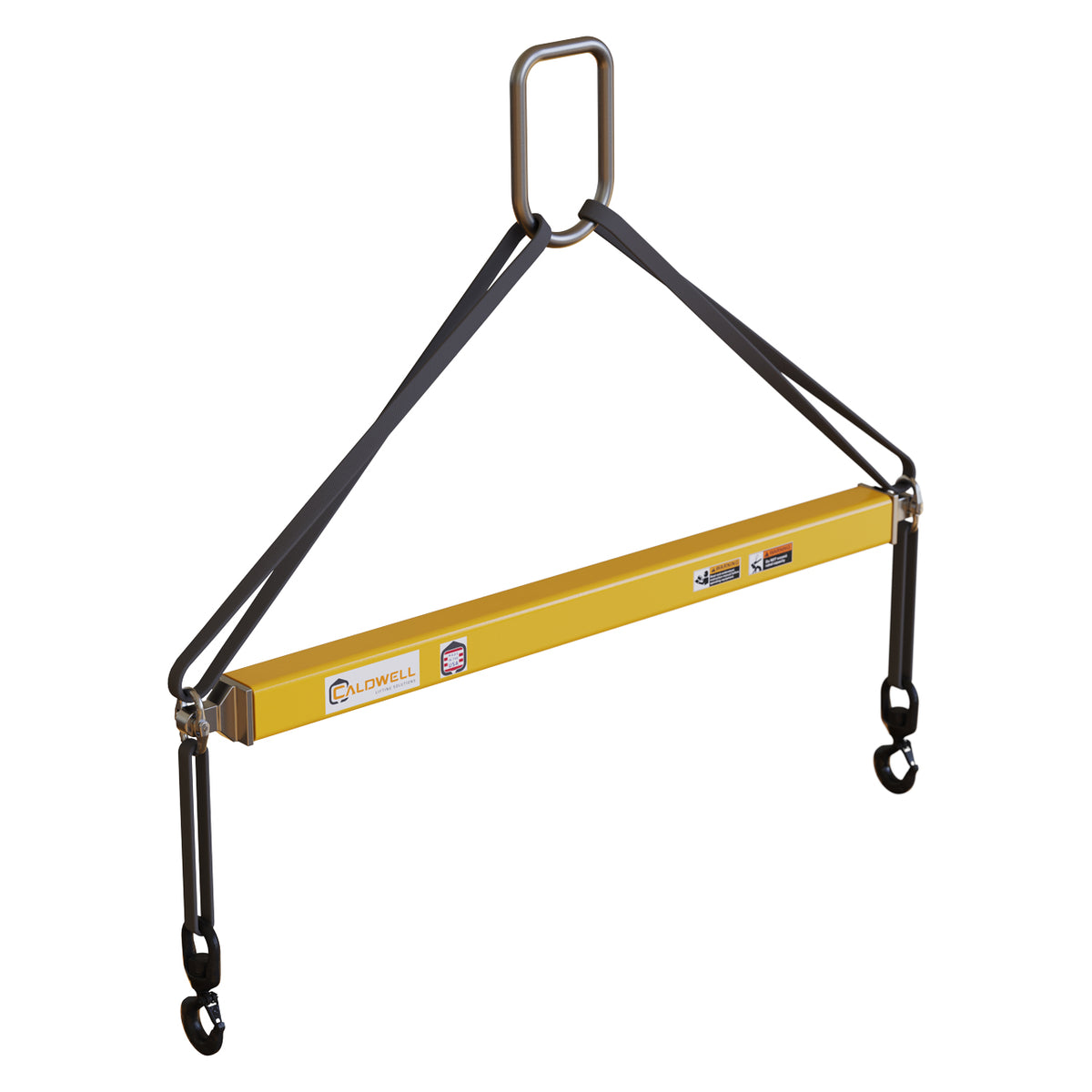

Caldwell Fiberglass Battery Lifting Beams Adjustable
$999.00
Unit price
/
Unavailable
Caldwell Fiberglass Battery Lifting Beams Adjustable - 2.4 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Fiberglass Battery Lifting Beams Adjustable
From
$999.00
Unit price
/
Unavailable
Used for applications that require a non-conductive beam such as lifting industrial forklift truck batteries.
Features
- Lightweight units - 70% lighter than other beams
- Models are available for handling batteries of equal length or different lengths
- Heavy duty 4800-lb and 7000-lb capacities
- Non-conductive fiberglass beam construction
- Acid-resistance, coated polyester straps and hooks
- Standard drop sling length is 10", other lengths available upon request
Specifications
| Spread | 36 |
Available Models
| Part No. | Capacity (ton) | Capacity | Rated Capacity | Bail Opening Height | Bail Opening Width | Hook Thickness | Bail Depth | Headroom | Hook Throat | Temp Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 36E-2.4 | 2.4 | 2.4 | 4800 | 6 | 3 | 1 | 0.62 | 21 | 1 | 17 |
| 36E-3.5 | 3.5 | 3.5 | 7000 | 5.5 | 2.75 | 1.12 | 0.75 | 22.5 | 1.125 | 20 |
