Caldwell | SKU:
Caldwell-96-7 1/2-48
Caldwell Heavy-Duty Adjustable-Fork Pallet Lifter
$28,398.00
Unit price
/
Unavailable
Caldwell Heavy-Duty Adjustable-Fork Pallet Lifter - 7.5 / 48 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Heavy-Duty Adjustable-Fork Pallet Lifter
From
$28,398.00
Unit price
/
Unavailable

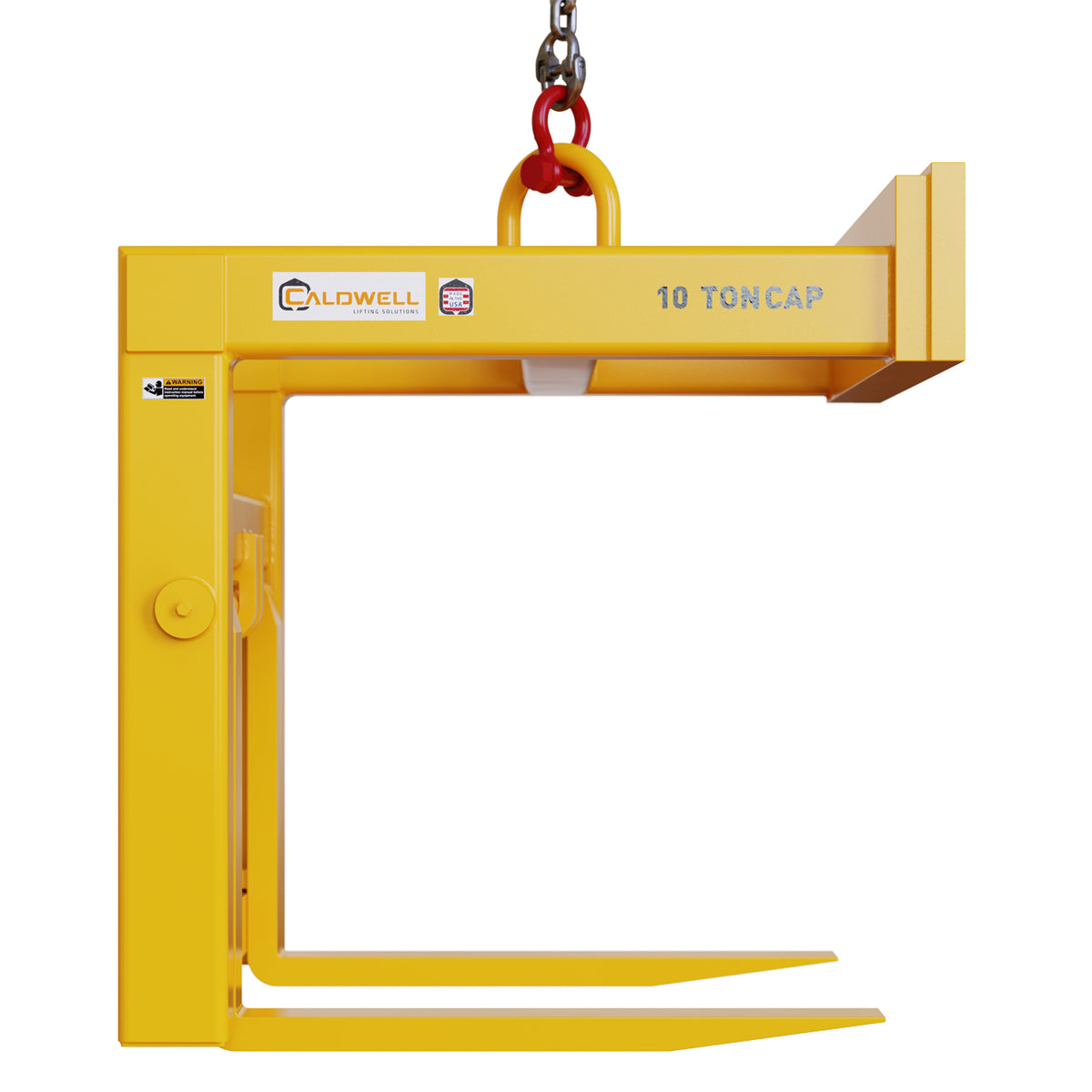

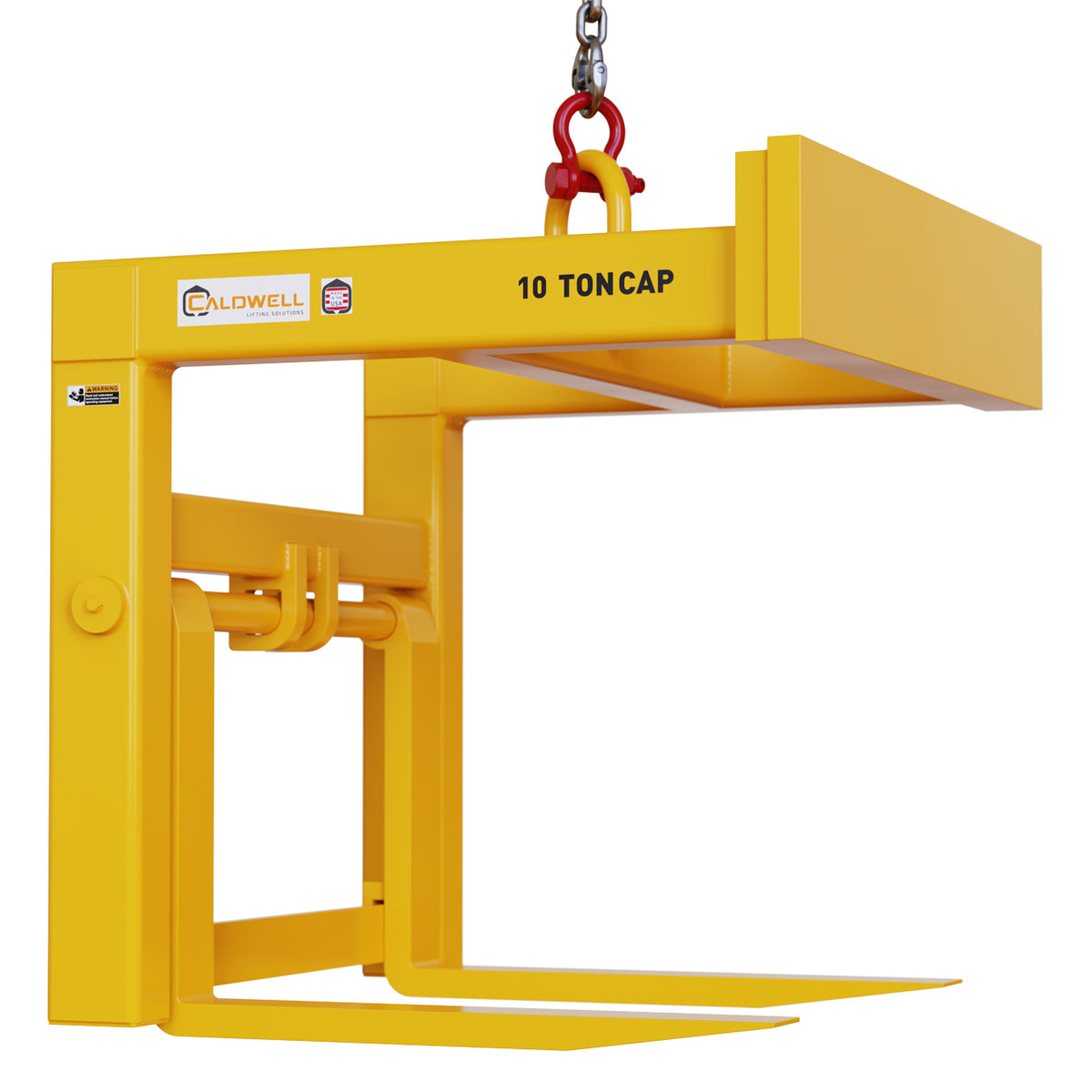

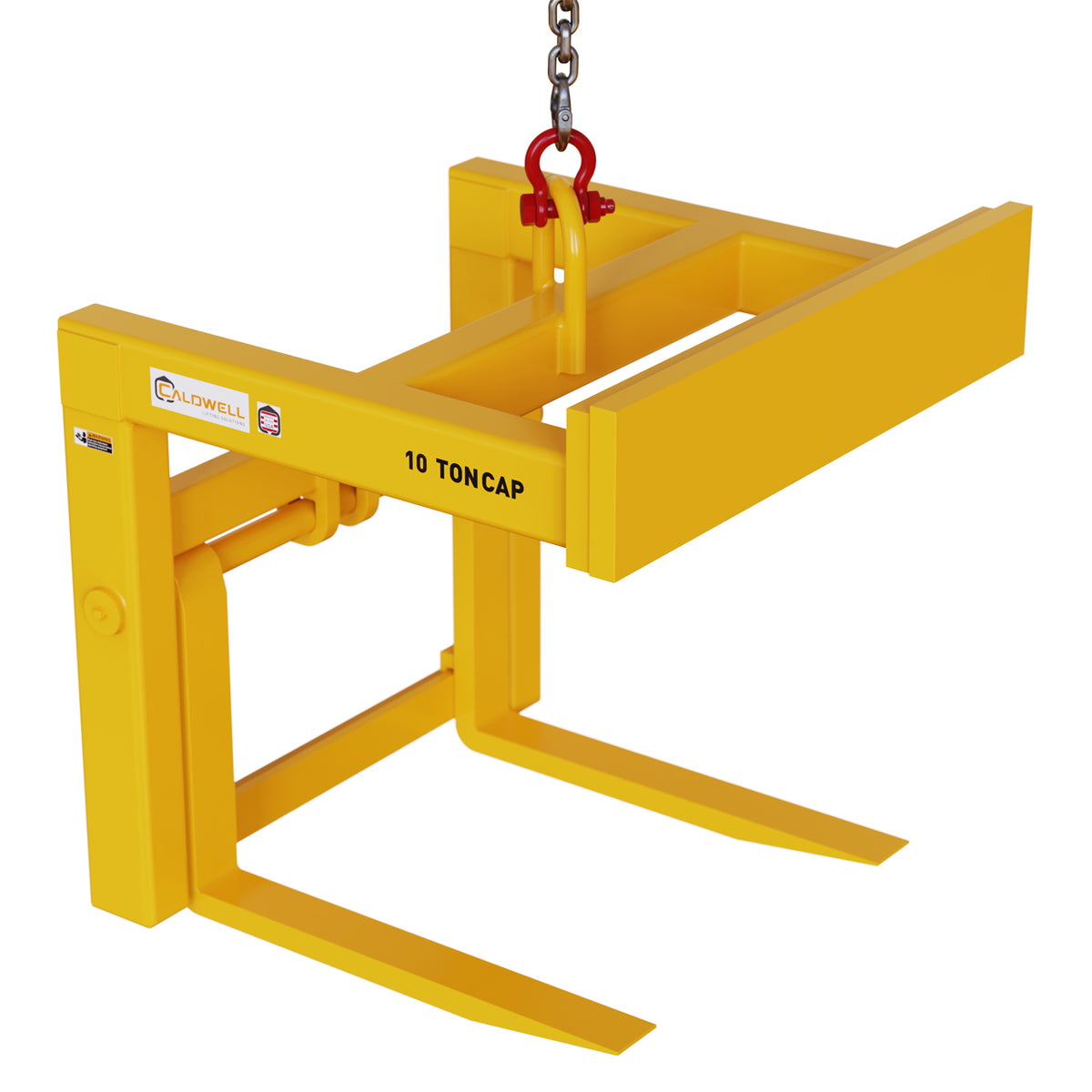

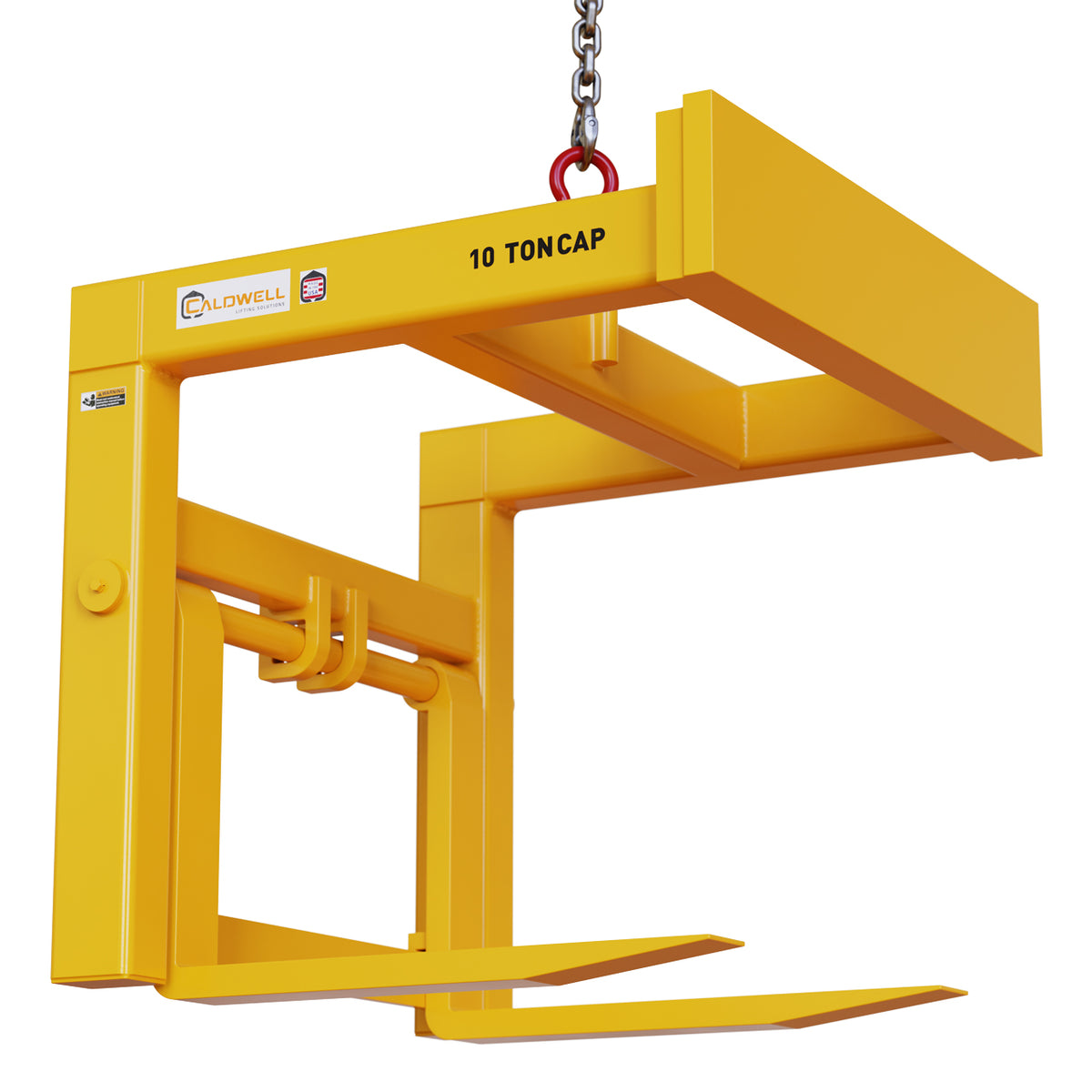

This heavy-duty version of Caldwell's Model 91 handles higher capacity loads with double-frame construction. Choose for your heaviest and toughest jobs.
Features
- Forged forks gives ease of adjustment
- Forged forks allow for smaller fork sizes
- Double frame design for heavy capacities
- Complies with ASME standards
Specifications
| Bail Depth | 2 |
| Fork Inside To Inside Min Width | 20 |
Available Models
| Part No. | Capacity (ton) | Fork Length | Capacity | Rated Capacity | Bail Opening Height | Bail Opening Width | Fork Width | Max Load Height | Fork Inside To Inside Max Width | Fork Thickness | Load Center Point | Headroom |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 96-7 1/2-48 | 7.5 | 48 | 7.5 | 15000 | 9 | 5 | 6 | 48 | 48 | 2.5 | 24 | 64.5 |
| 96-7 1/2-60 | 7.5 | 60 | 7.5 | 15000 | 9 | 5 | 6 | 60 | 48 | 3 | 30 | 77.5 |
| 96-7 1/2-72 | 7.5 | 72 | 7.5 | 15000 | 9 | 5 | 6 | 60 | 48 | 3 | 36 | 80 |
| 96-10-48 | 10 | 48 | 10 | 20000 | 9 | 5 | 6 | 48 | 48 | 3 | 24 | 68 |
| 96-10-60 | 10 | 60 | 10 | 20000 | 9 | 5 | 6 | 60 | 48 | 3 | 30 | 79.5 |
| 96-10-72 | 10 | 72 | 10 | 20000 | 9 | 5 | 7 | 60 | 48 | 3 | 36 | 79.5 |
| 96-12 1/2-48 | 12.5 | 48 | 12.5 | 25000 | 12 | 6 | 6 | 48 | 48 | 3 | 24 | 82 |
| 96-12 1/2-60 | 12.5 | 60 | 12.5 | 25000 | 12 | 6 | 6 | 60 | 42 | 3 | 30 | 82 |
| 96-12 1/2-72 | 12.5 | 72 | 12.5 | 25000 | 12 | 6 | 7 | 60 | 38 | 3.5 | 36 | 82 |
