Caldwell | SKU:
Caldwell-95-7-1/2-48

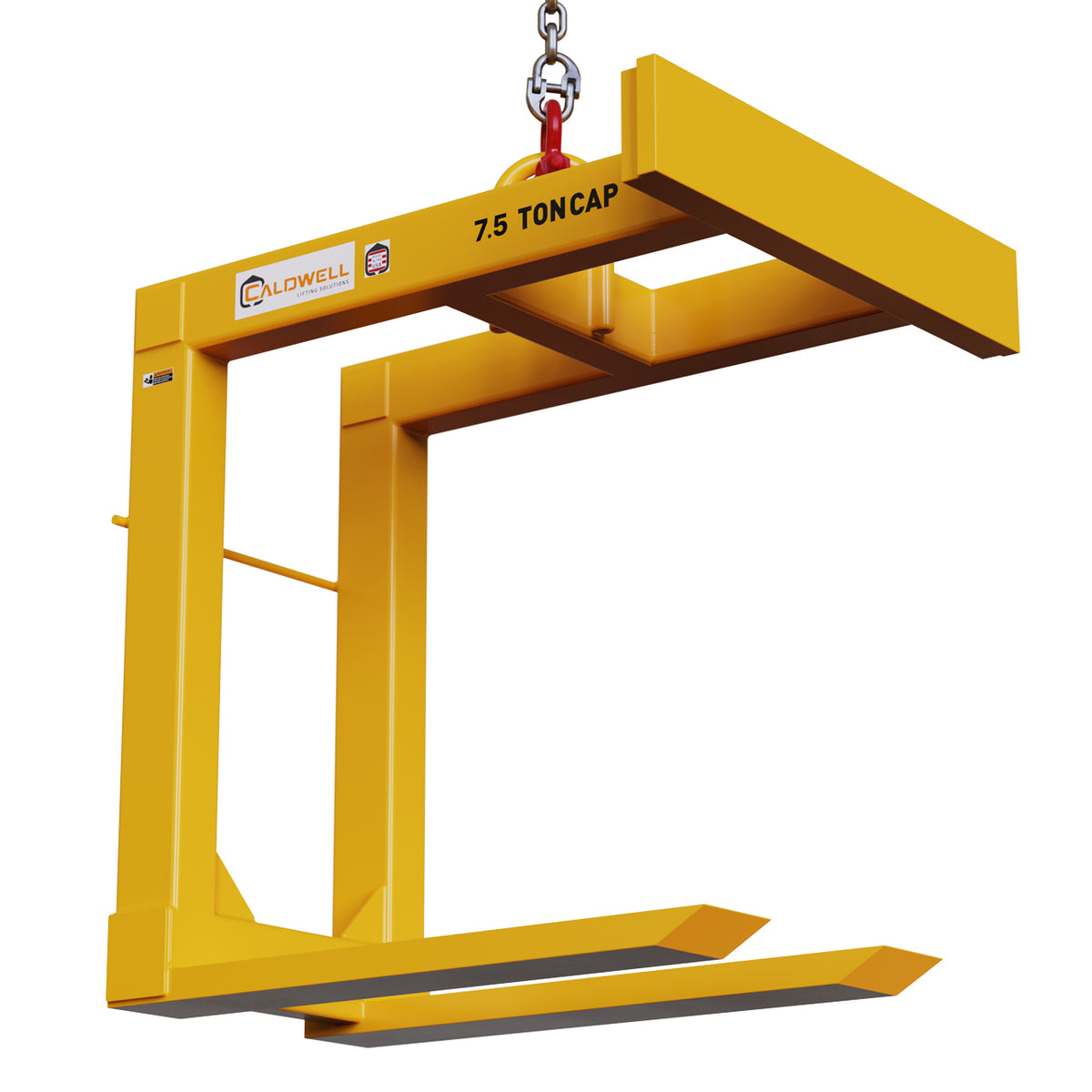

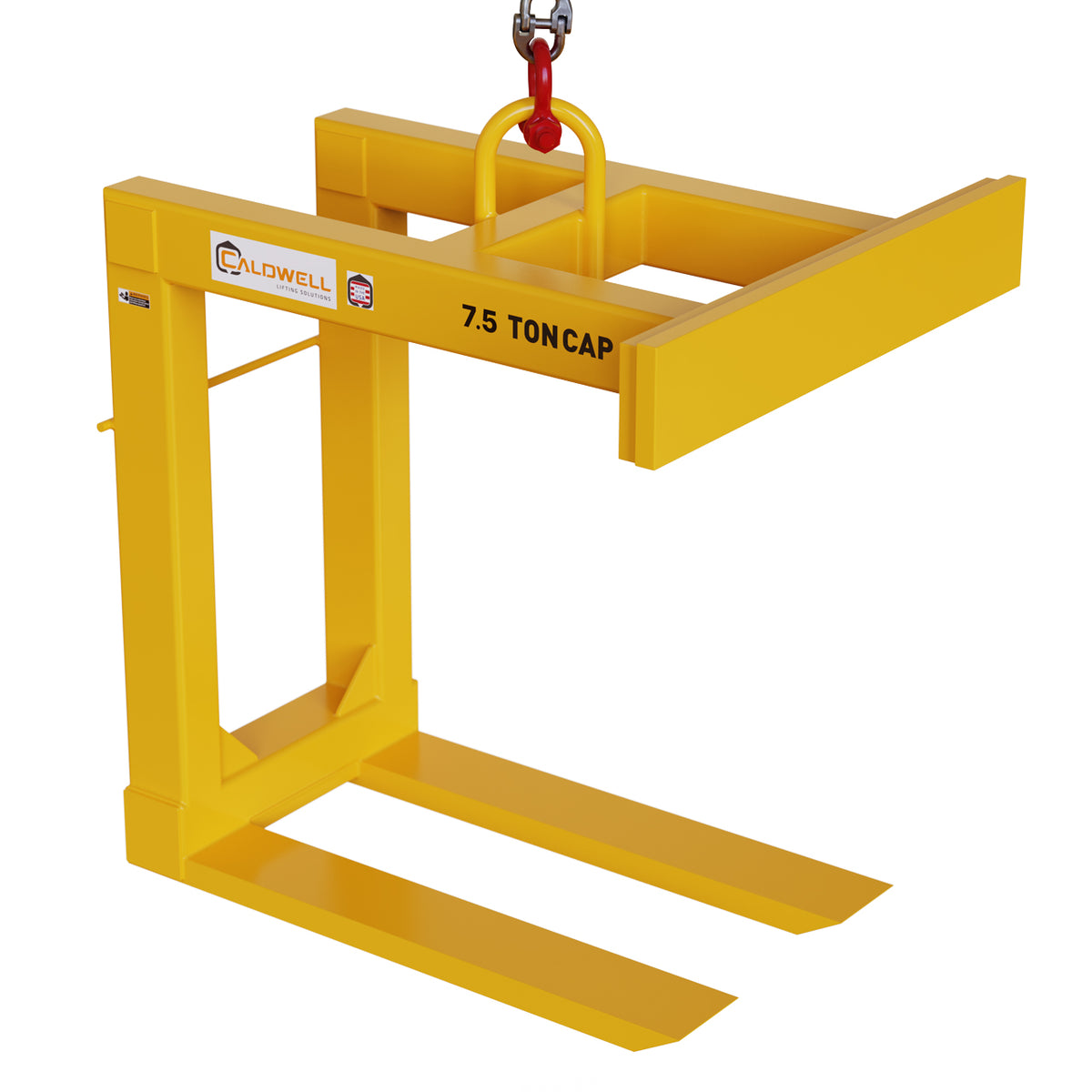

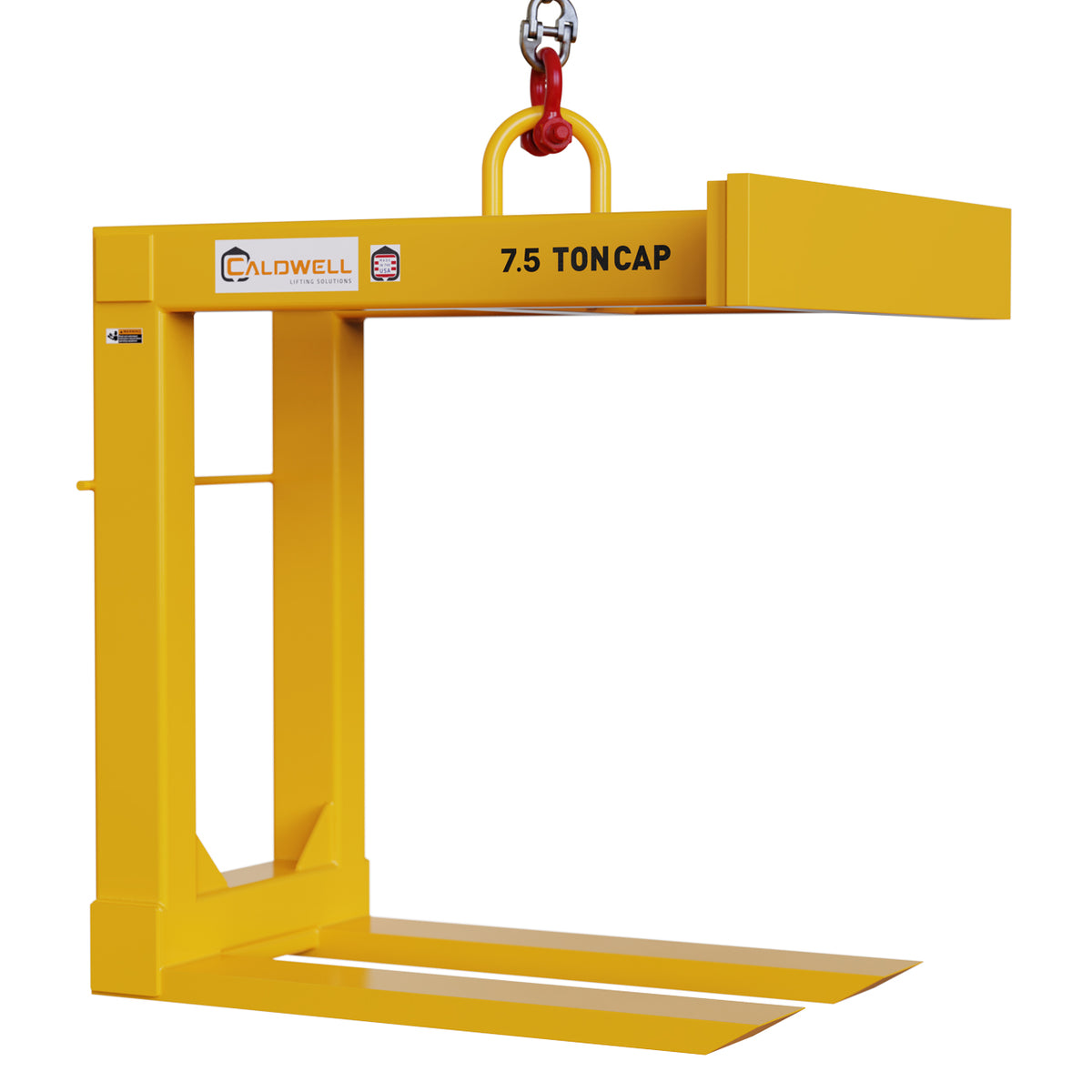

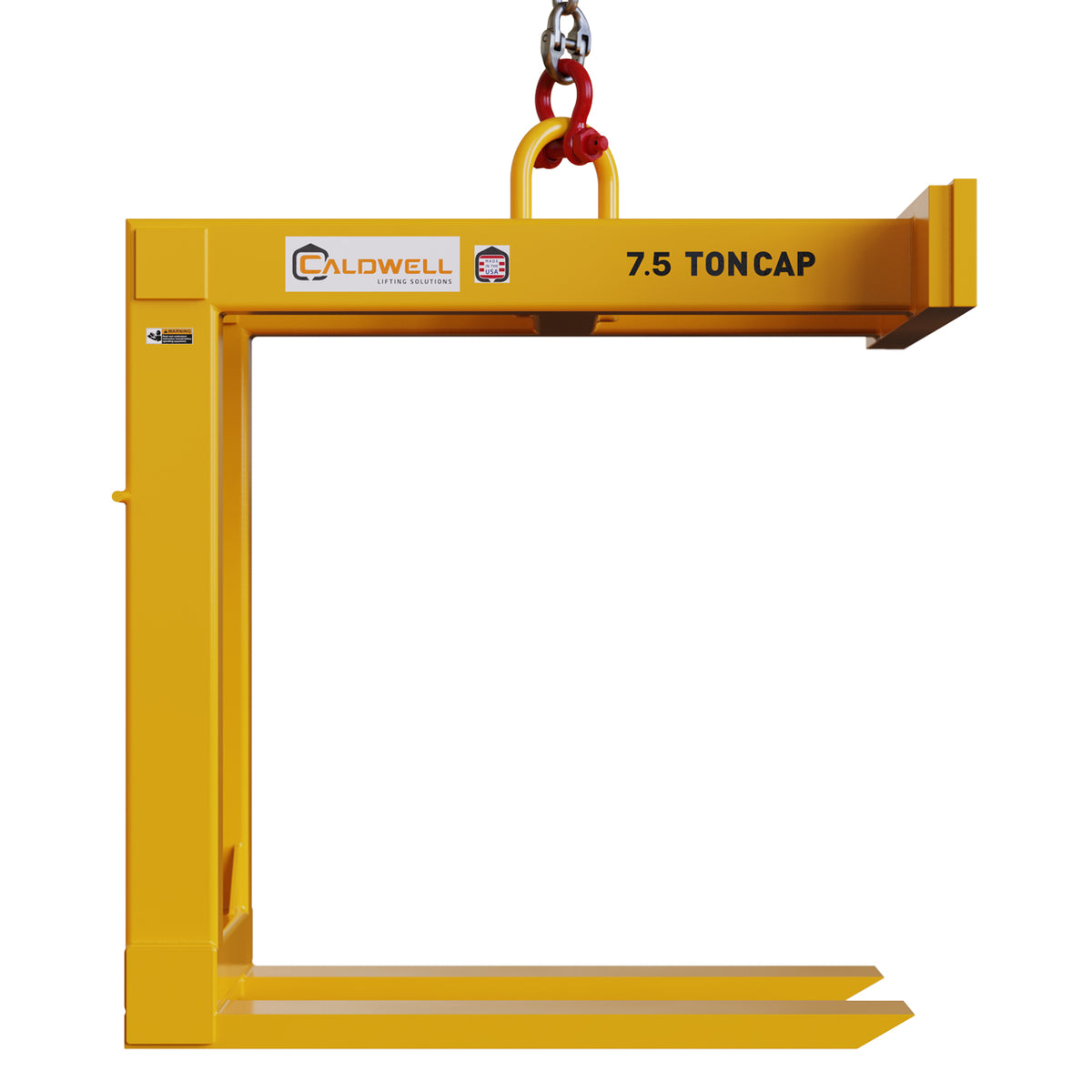

Caldwell Heavy-Duty Fixed-Fork Pallet Lifter
$17,191.00
Unit price
/
Unavailable
Caldwell Heavy-Duty Fixed-Fork Pallet Lifter - 15000 / 48 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Heavy-Duty Fixed-Fork Pallet Lifter
From
$17,191.00
Unit price
/
Unavailable
Beefed up, double-frame construction handles your heaviest lifts, from 7-1/2 to 20 tons.
Features
- Double frame design for heavy capacities
- Counter balanced to hang level when empty
- Maintenance free
- Complies with ASME standards
Available Models
| Part No. | Rated Capacity | Fork Length | Capacity | Bail Opening Height | Bail Opening Width | Max Load Height | Fork Spread | Fork Thickness | Fork Width | Bail Depth | Load Center Point | Headroom |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 95-7-1/2-48 | 15000 | 48 | 7.5 | 9 | 5 | 48 | 30 | 2.5 | 6 | 2 | 24 | 65 |
| 95-7-1/2-60 | 15000 | 60 | 7.5 | 9 | 5 | 60 | 38 | 3 | 10 | 2 | 30 | 79 |
| 95-10-48 | 20000 | 48 | 10 | 9 | 5 | 48 | 30 | 3 | 10 | 2 | 24 | 68.5 |
| 95-10-60 | 20000 | 60 | 10 | 9 | 5 | 60 | 38 | 3 | 10 | 2 | 30 | 77.49 |
| 95-15-48 | 30000 | 48 | 15 | 12 | 6 | 60 | 38 | 3 | 10 | 2 | 24 | 82.5 |
| 95-15-60 | 30000 | 60 | 15 | 12 | 6 | 60 | 38 | 3 | 10 | 2 | 30 | 82.5 |
| 95-20-60 | 40000 | 60 | 20 | 12 | 6 | 60 | 38 | 4 | 7 | 2.25 | 30 | 88 |
| 95-20-72 | 40000 | 72 | 20 | 12 | 6 | 60 | 44 | 4 | 8.25 | 2.25 | 36 | 88 |
