Caldwell | SKU:
Caldwell-LH-49
Caldwell Load Hook
$309.00
Unit price
/
Unavailable
Caldwell Load Hook - 4900 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Load Hook
From
$309.00
Unit price
/
Unavailable

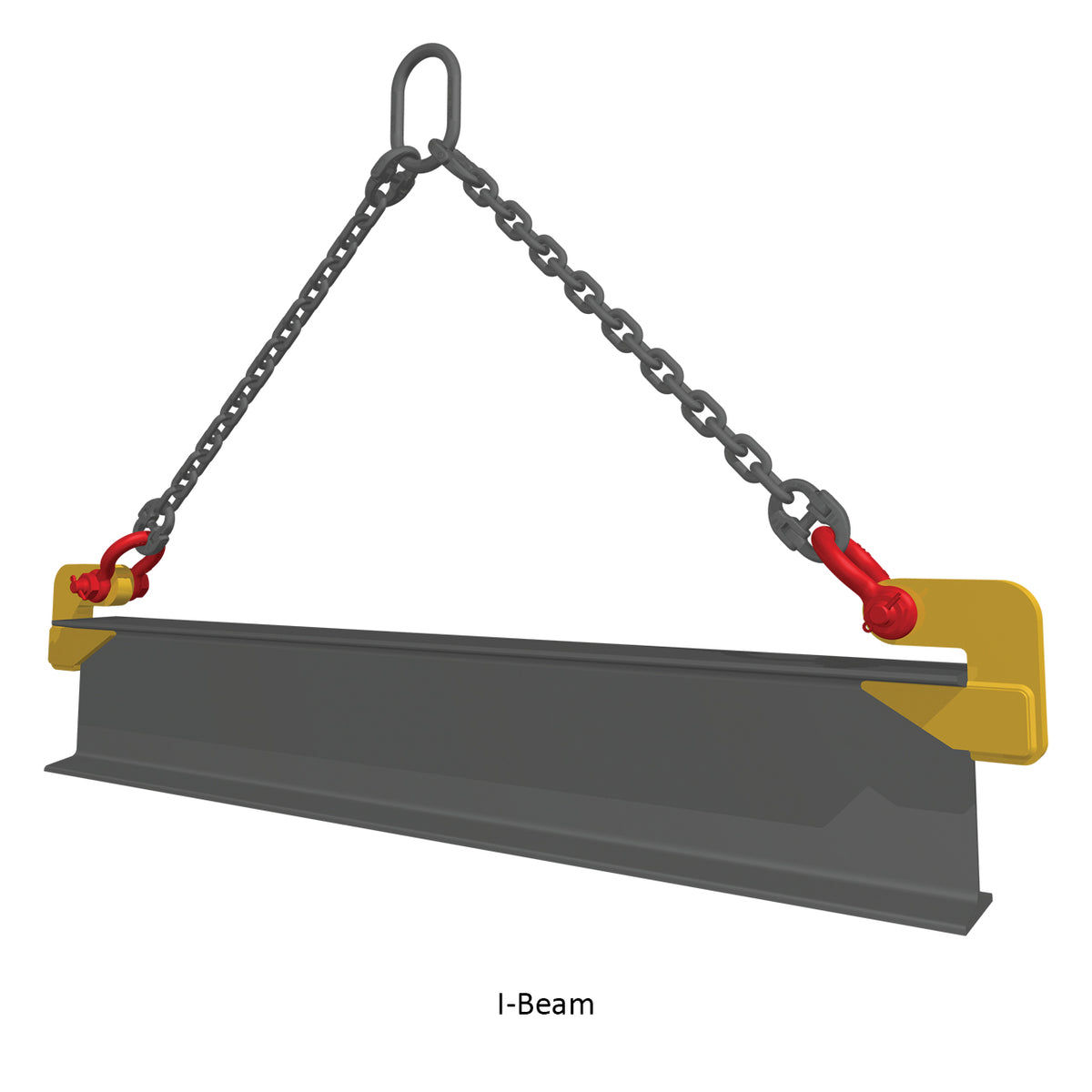

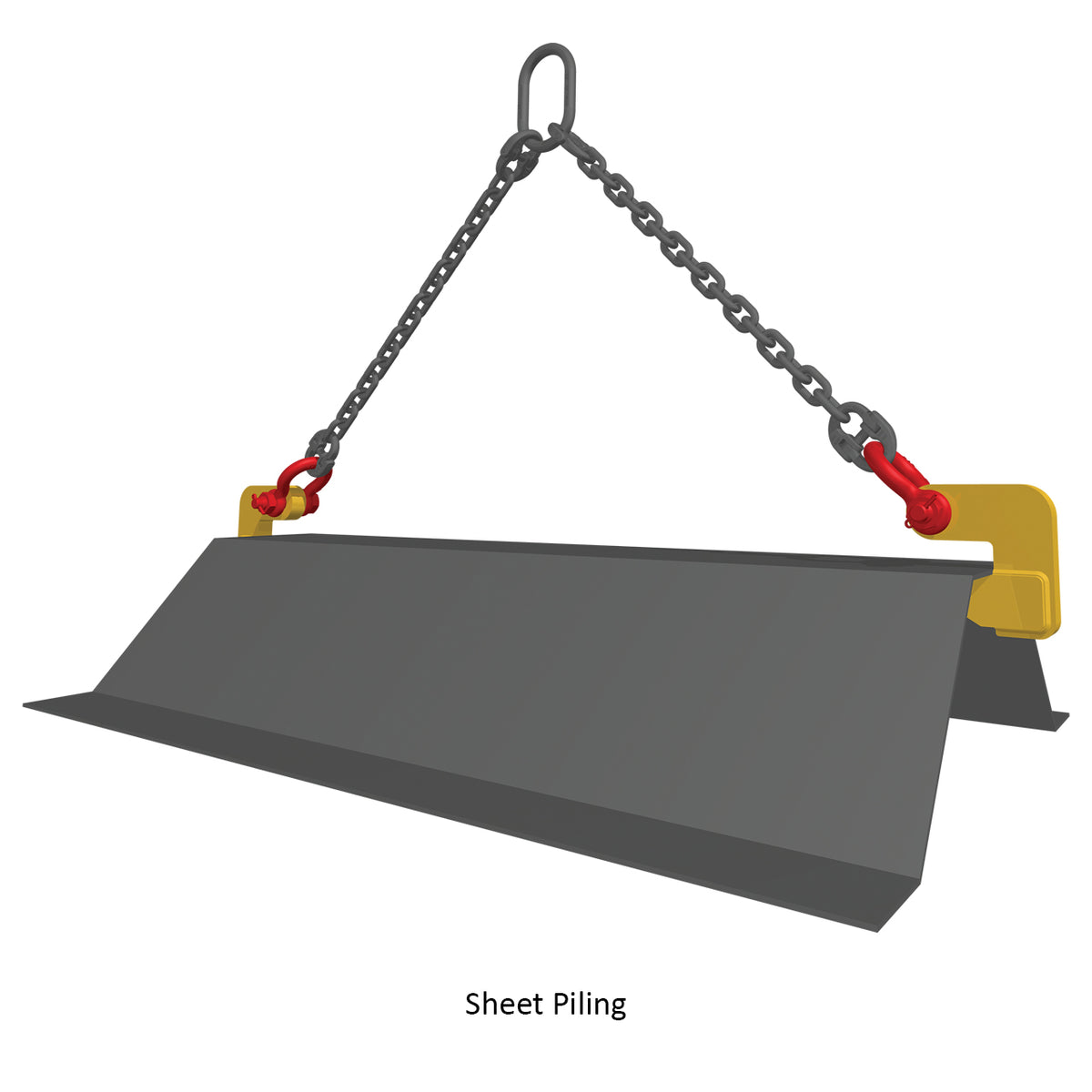

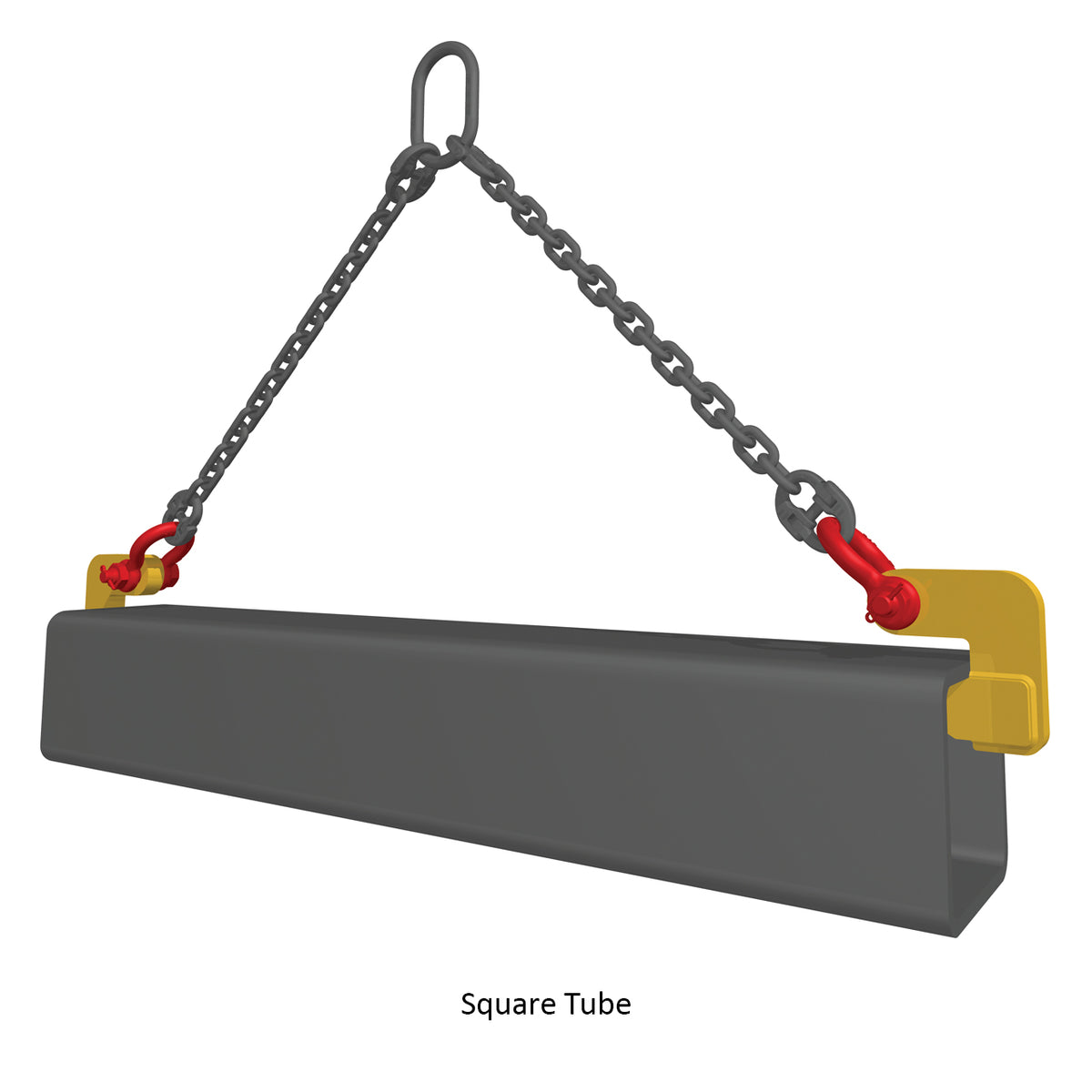

The flat tines with a unique I-beam cutout lets you lift I-beams, sheet piling, or square tube with ease.
Features

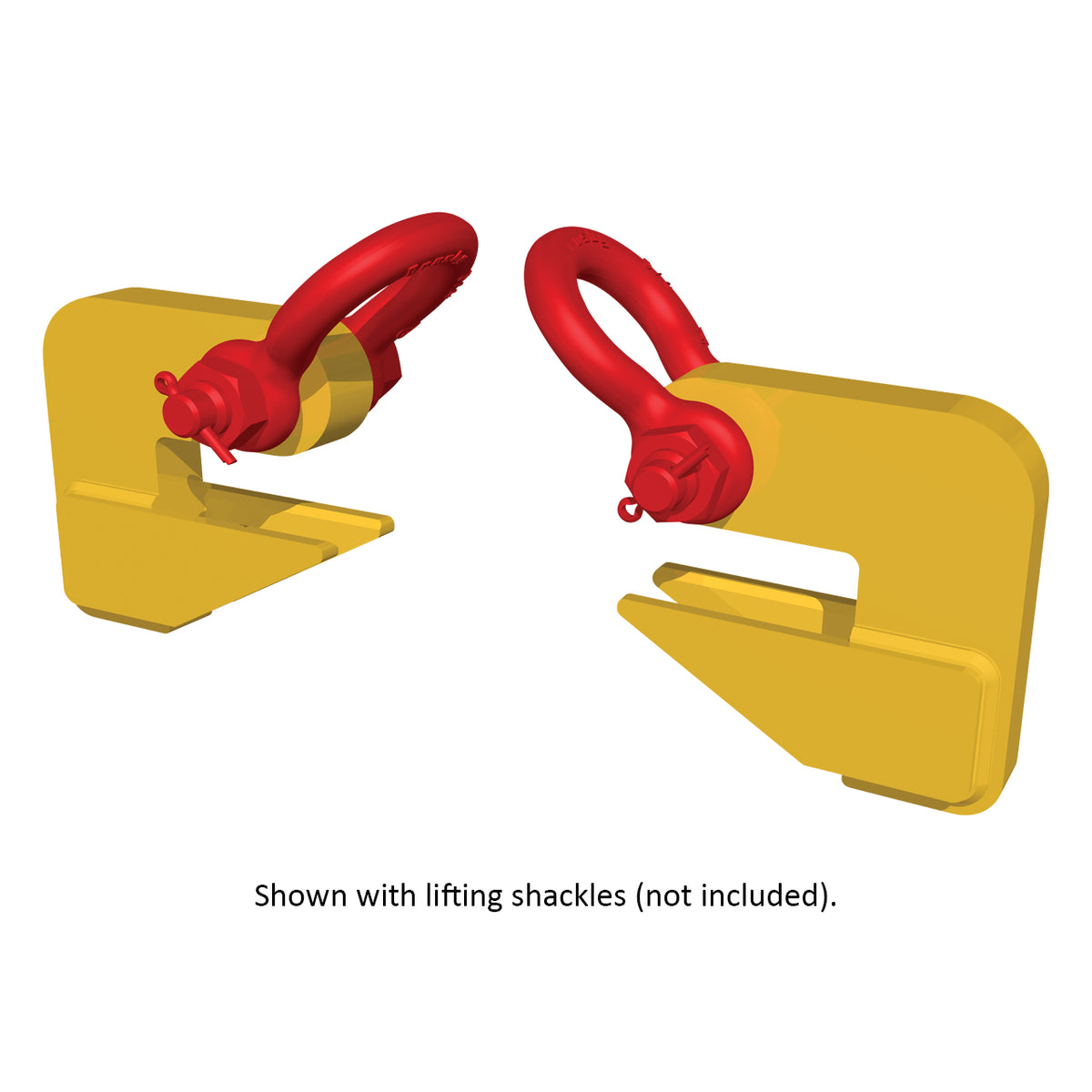

- Unique lifting tines are spaced to easily accommodate I-Beam web
- Flat surface on hooks lifts a wide range of shapes

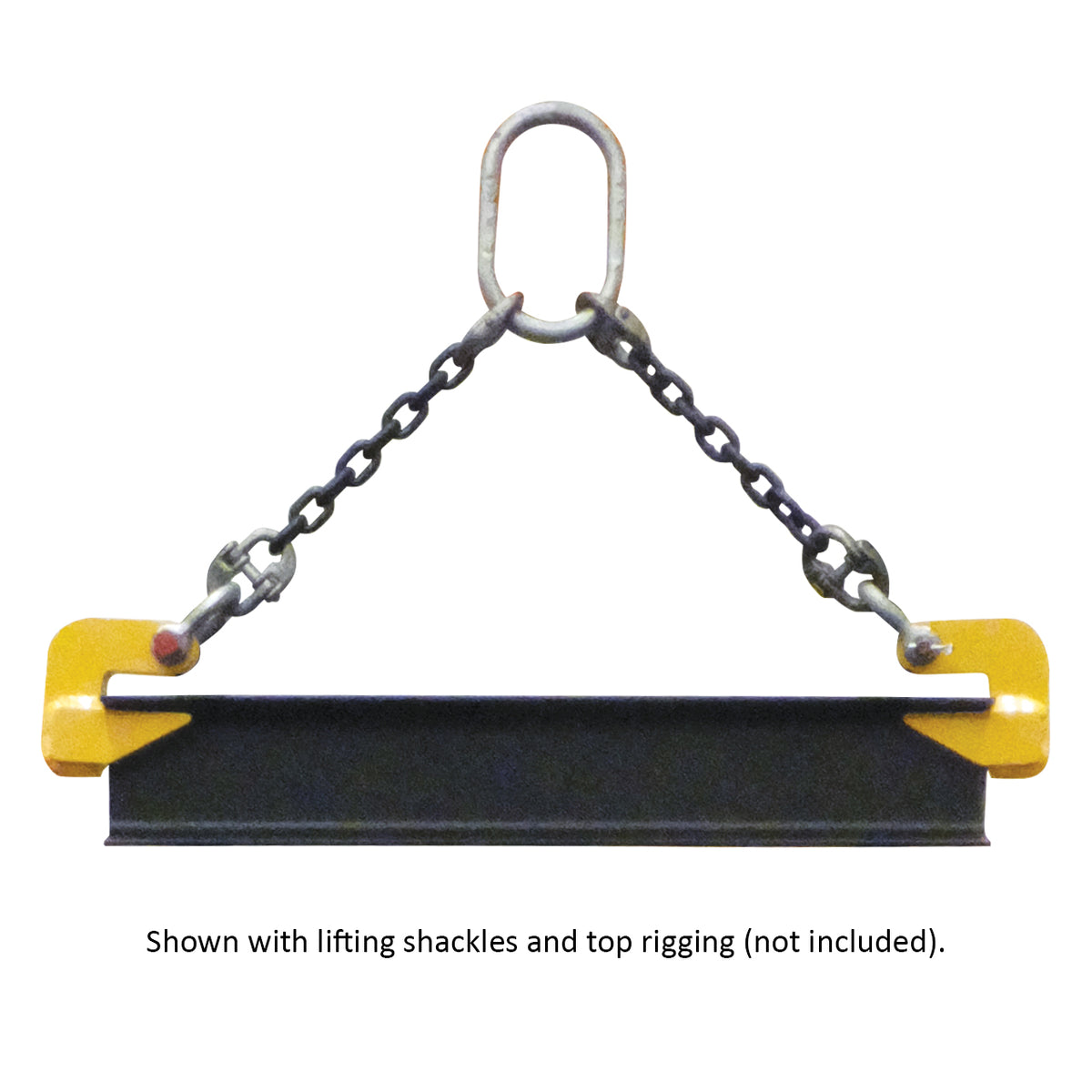

- Use in pairs in conjunction with a bridle sling and shackles
- Capacity shown is for a 45° angle on the lifting system
- Complies with ASME standards
Available Models
| Part No. | Rated Capacity | Capacity Per Pair in Pounds | Shackle Capacity | Shackle Size | A | B | C | D | E | F | G | Weight Per Pair |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LH-49 | 4900 | 4900 | 2 | 0.5 | 0.56 | 1.38 | 1.5 | 1 | 2.5 | 4.4 | 4.9 | 6 |
| LH-100 | 5000 | 10000 | 4.75 | 0.75 | 0.94 | 1.75 | 2 | 1.25 | 3.5 | 5.9 | 6.8 | 16 |
| LH-170 | 8500 | 17000 | 6.5 | 0.88 | 1.19 | 2.25 | 2.25 | 1.5 | 3.88 | 6.7 | 7.3 | 24 |
| LH-256 | 25600 | 25600 | 9.5 | 1.13 | 1.44 | 2.5 | 2.88 | 1.75 | 4.63 | 10.4 | 8.8 | 42 |
| LH-400 | 20000 | 40000 | 17 | 1.5 | 1.94 | 3.5 | 3.25 | 2 | 5.63 | 12.2 | 11 | 86 |
| LH-674 | 33700 | 67400 | 25 | 1.75 | 2.44 | 4.5 | 4 | 2.25 | 6.38 | 14 | 12.8 | 152 |
