Caldwell | SKU:
Caldwell-88L-1/2-36
Caldwell Low Platform Coil Upender
$46,896.00
Unit price
/
Unavailable
Caldwell Low Platform Coil Upender - 0.5 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:

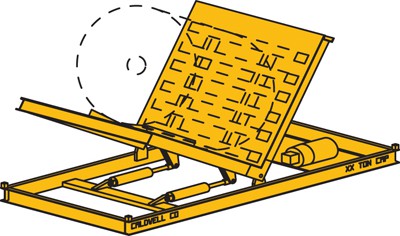

Caldwell Low Platform Coil Upender
From
$46,896.00
Unit price
/
Unavailable
Make life a little easier for operators with this low-platform design. With the Model 88L, they have better access to coils.
Features
- Lower platform design offers easier access by operator
- Fast and convenient way to upend coils to 90 degrees
- Requires less platform height
- Magnetic starter with 115 volt pendant control
- Double acting hydraulic cylinders
- Relief valve prevents over-capacity rotation
- Stop limit switches at each end of rotation
- Additional product options
Available Models
| Part No. | Capacity | Base Length | Platform Length | Platform Width | Platform Height | Temp Weight |
|---|---|---|---|---|---|---|
| 88L-1/2-36 | 0.5 | 78 | 36 | 36 | 8.25 | 1500 |
| 88L-1-36 | 1 | 78 | 36 | 36 | 9.25 | 1600 |
| 88L-1 1/2-36 | 1.5 | 78 | 36 | 36 | 10.25 | 1800 |
| 88L-2-36 | 2 | 78 | 36 | 36 | 12.25 | 2000 |
| 88L-2 1/2-42 | 2.5 | 90 | 42 | 42 | 13.25 | 2200 |
| 88L-3-42 | 3 | 90 | 42 | 42 | 14.25 | 2300 |
| 88L-3 1/2-42 | 3.5 | 90 | 42 | 42 | 15.25 | 2400 |
| 88L-4-48 | 4 | 90 | 42 | 42 | 17.375 | 2600 |
| 88L-4 1/2-48 | 4.5 | 102 | 48 | 48 | 18.375 | 2800 |
| 88L-5-48 | 5 | 102 | 48 | 48 | 19.375 | 3000 |
| 88L-6-48 | 6 | 102 | 48 | 48 | 20.375 | 3600 |
| 88L-7 1/2-48 | 7.5 | 102 | 48 | 48 | 20.375 | 5000 |
