Caldwell | SKU:
Caldwell-A-1-01.00-A

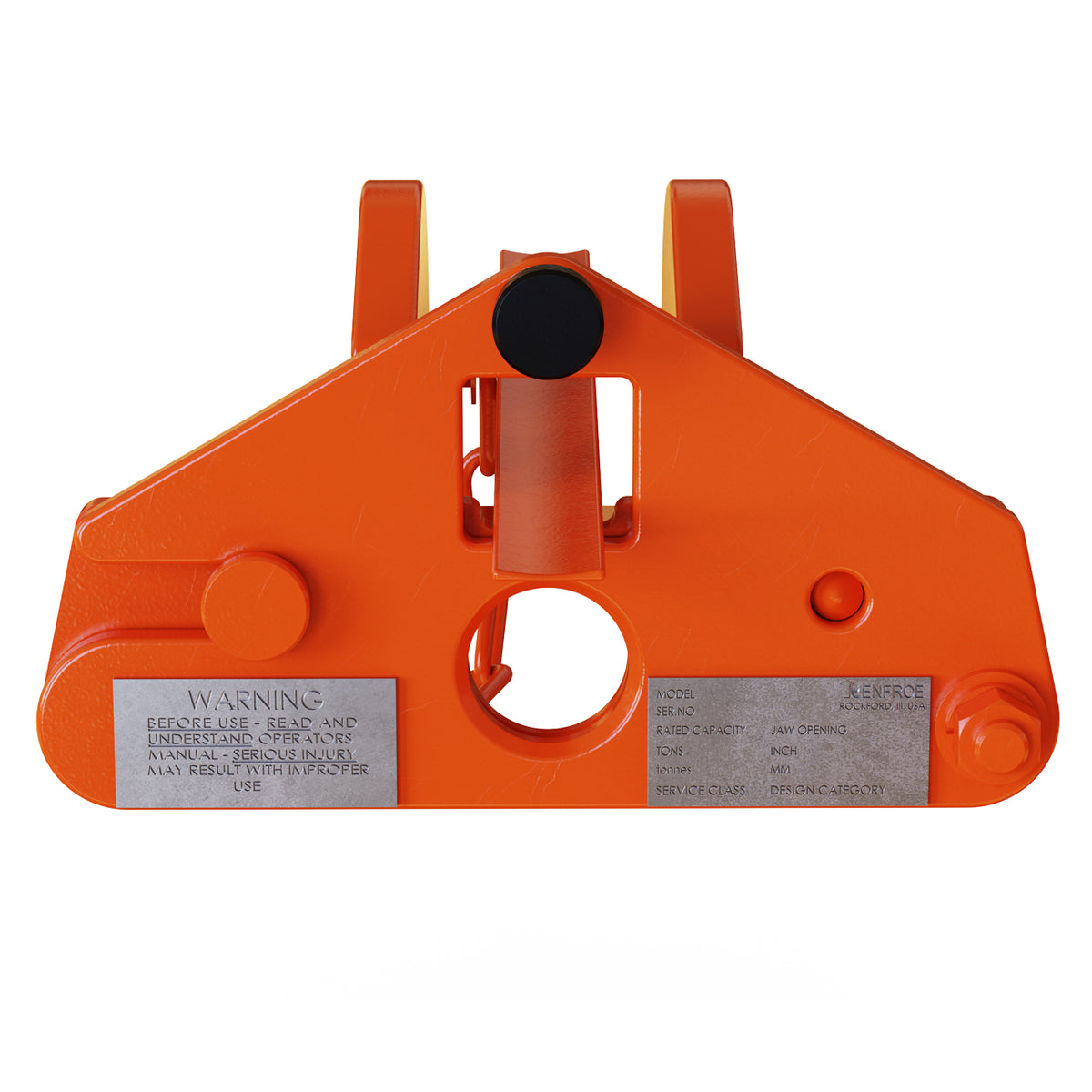

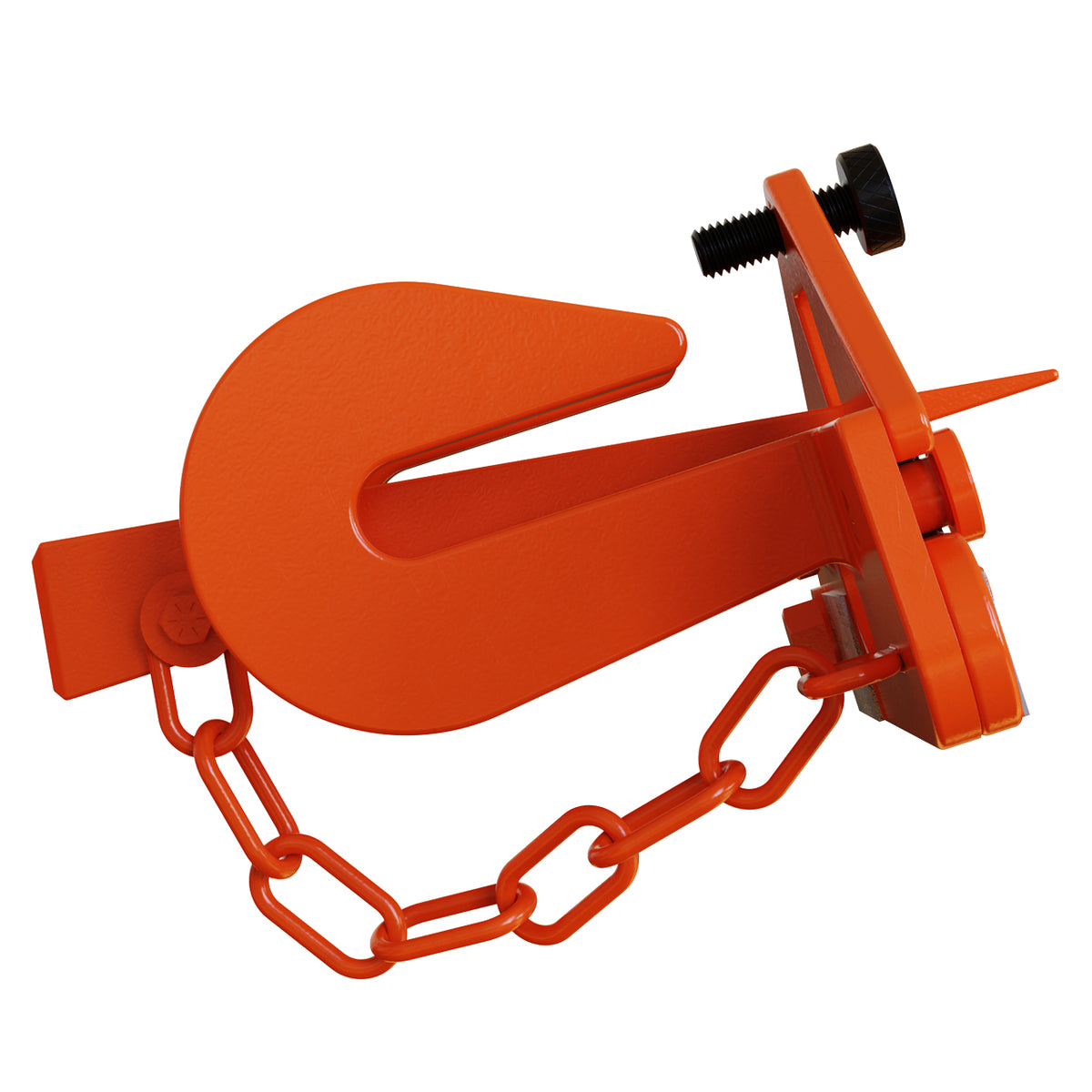

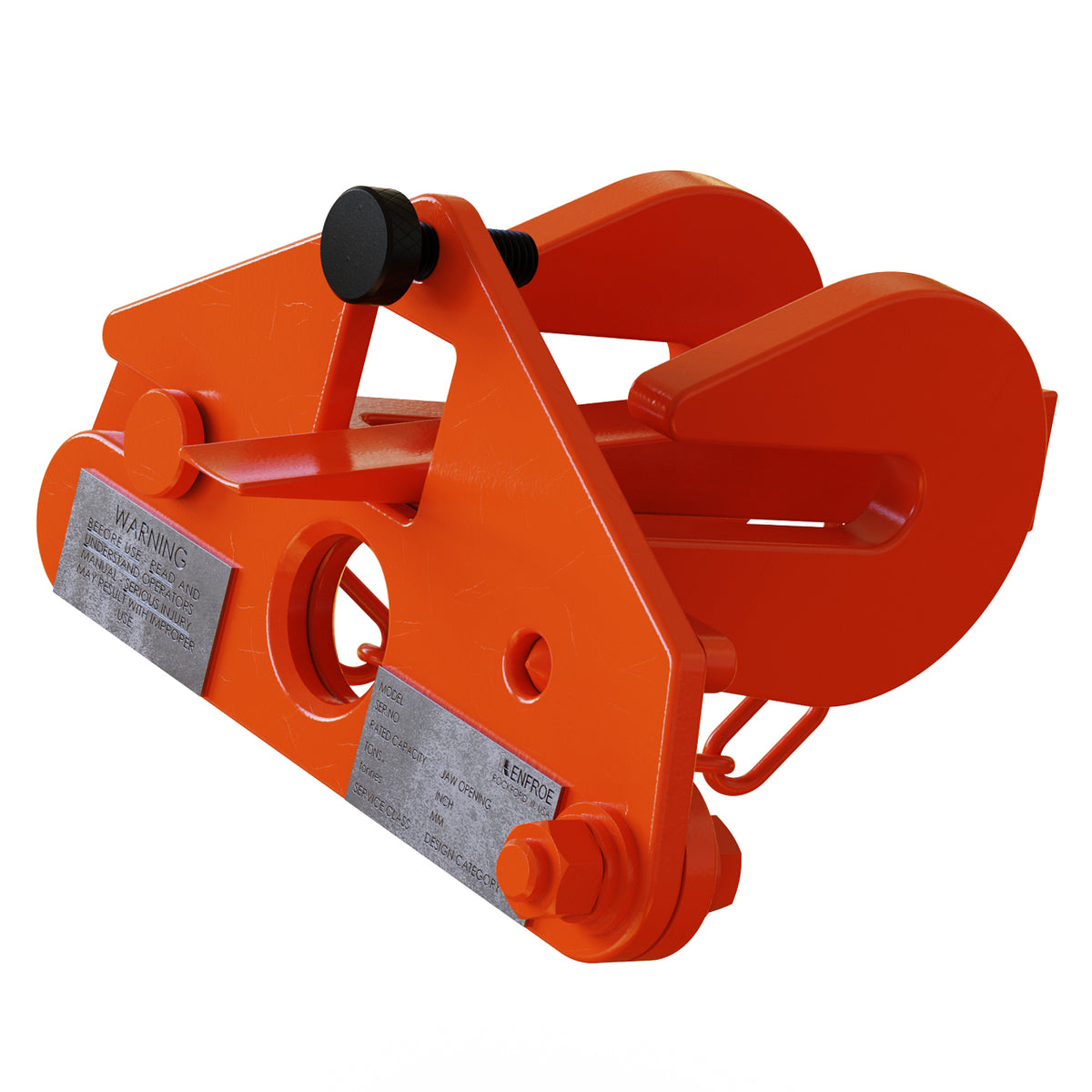

Caldwell Model A-1 Locking Type
$1,297.00
Unit price
/
Unavailable
Caldwell Model A-1 Locking Type - 1 / 4.19 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Model A-1 Locking Type
From
$1,297.00
Unit price
/
Unavailable

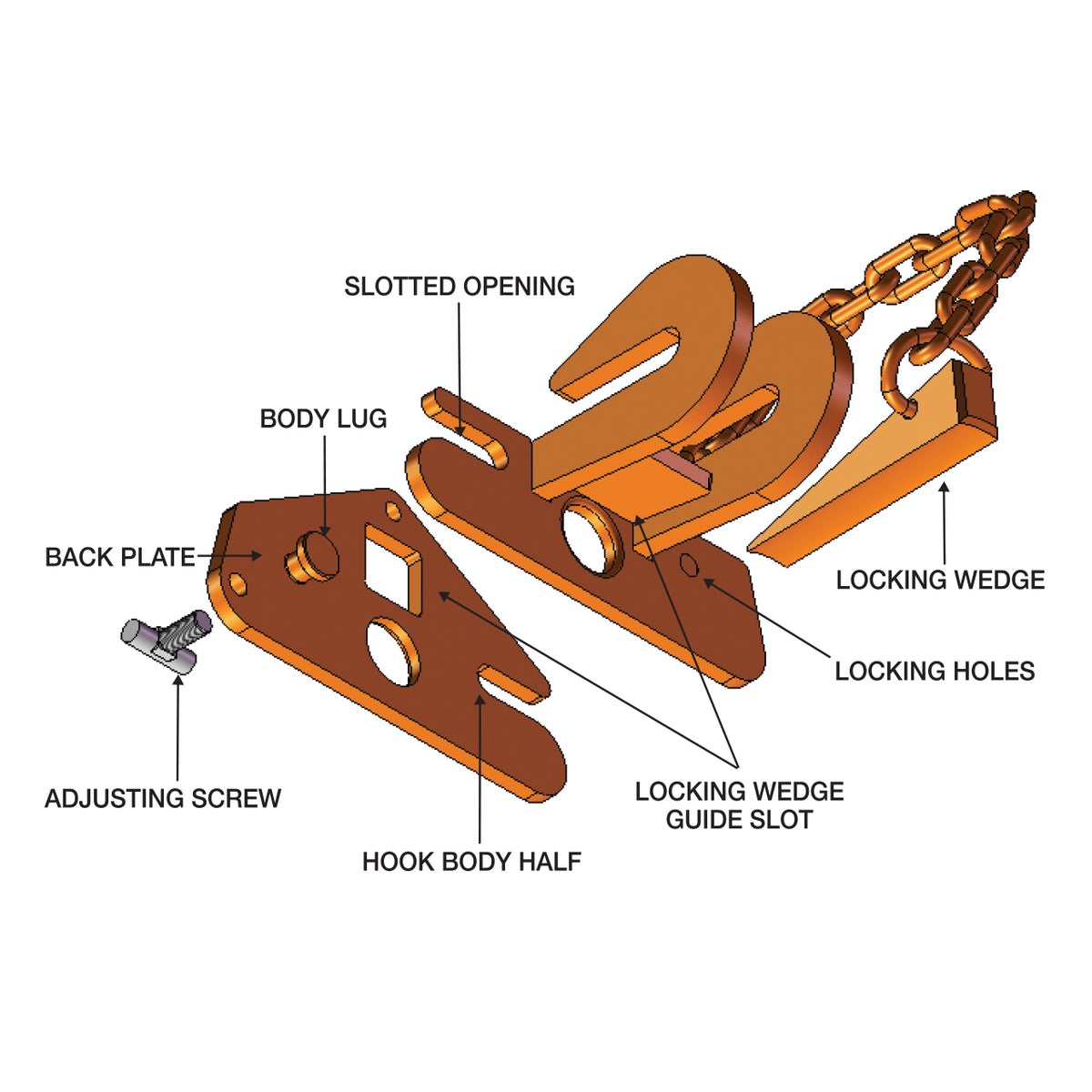

The Model A-1 is a portable beam clamp that provides easy suspension of hoists, from channels or angles thereby eliminating the need for nuts, bolts, shackles and so on. The Model A-1 is designed for use on channel or angle shapes only. This model is furnished with a fluted tool steel locking wedge which holds the clamp in place on channels or angles.
Features
- Provides suspension of a hoist or chain fall
- Designed for use on channel or angle shapes only
- Locking wedge holds the clamp in place on channels or angles
Available Models
| Part No. | Capacity | Clamp to Flange Height | Rated Capacity | Shackle Hole Diameter | Max Flange Width | Shackle Plate Thickness | Clamp Width | Flange to Shackle Eye Length | Min Flange Width | Overall Clamp Height | Overall Clamp Length | Shackle Eye Depth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A-1-01.00-A | 1 | 4.19 | 2000 | 1.5 | 4 | 0.75 | 8.75 | 1.19 | 1.5 | 5.31 | 7.88 | 0.62 |
| A-1-01.00-B | 1 | 4.69 | 2000 | 1.5 | 8 | 0.75 | 8.75 | 1.19 | 4 | 6.25 | 12.25 | 0.62 |
| A-1-03.00-A | 3 | 5.38 | 6000 | 2.25 | 4 | 0.75 | 11.25 | 11.06 | 2 | 6.68 | 8.56 | 0.88 |
| A-1-03.00-B | 3 | 6.5 | 6000 | 2.25 | 8 | 0.75 | 11.25 | 11.06 | 4 | 8.25 | 13.5 | 0.88 |
| A-1-05.00-A | 5 | 6.38 | 10000 | 3.12 | 4 | 1 | 13.25 | 2.75 | 2 | 8.63 | 8.88 | 1 |
| A-1-05.00-B | 5 | 6.88 | — | 3.12 | 8 | 1 | 13.25 | 2.75 | 4 | 10.19 | 13.81 | 1 |
