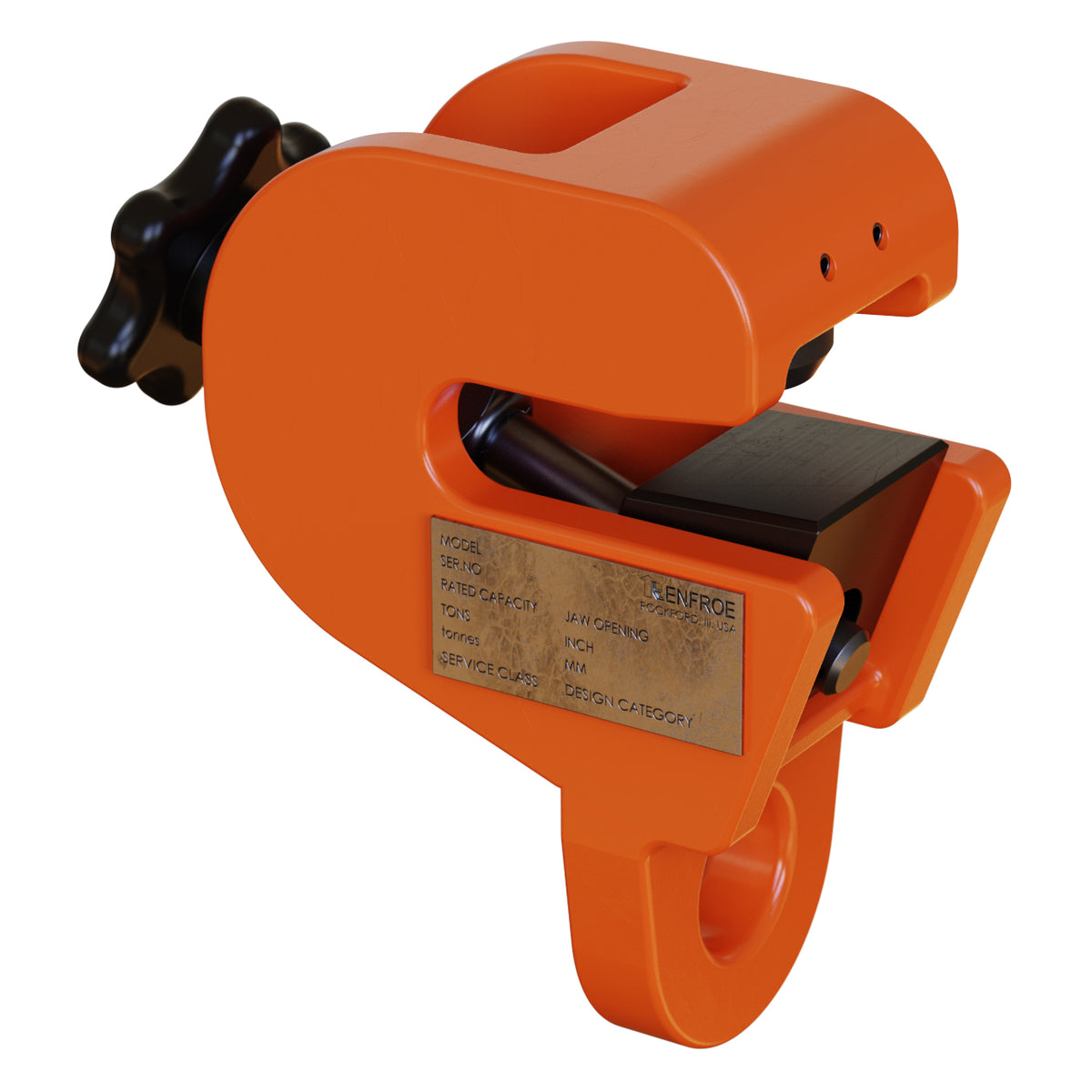

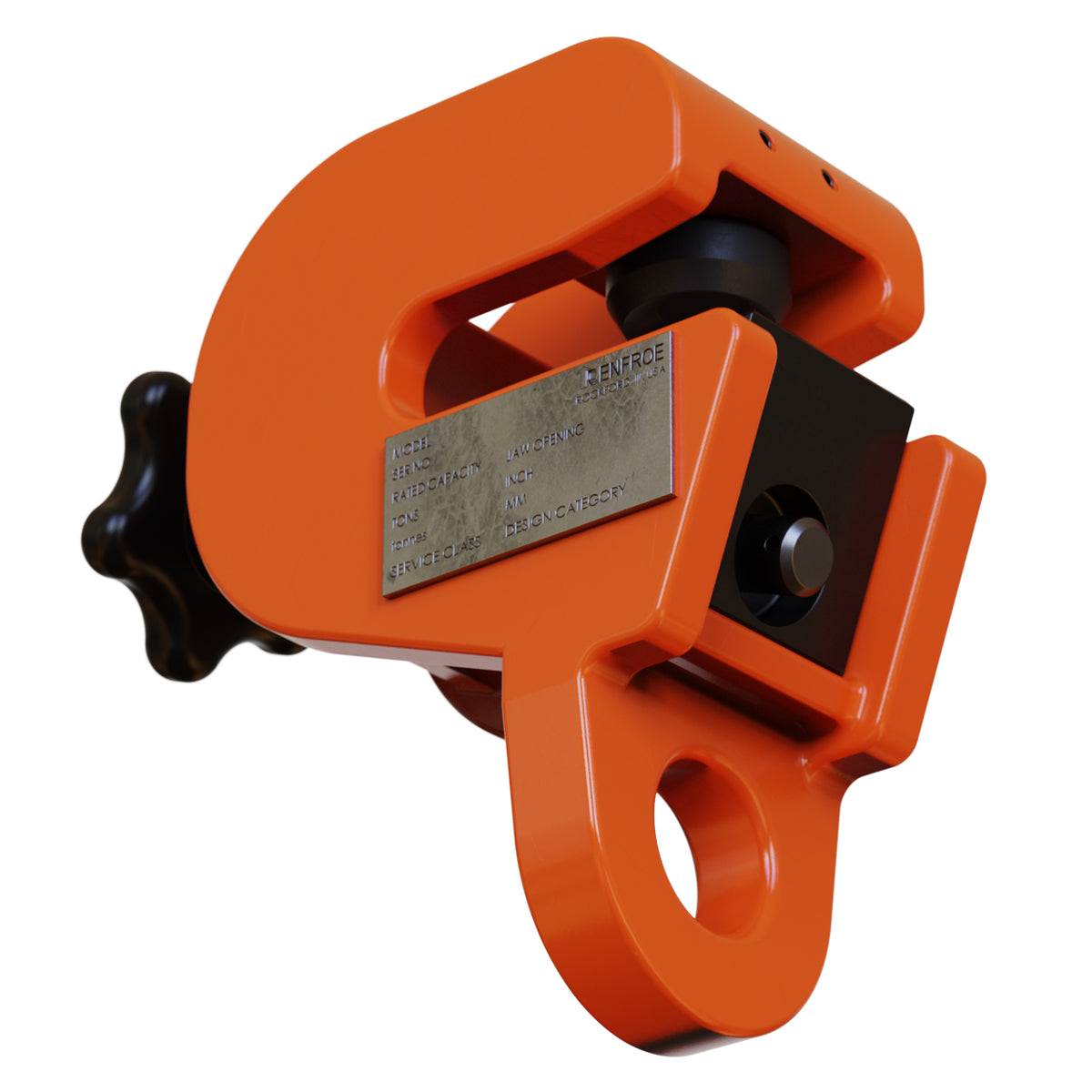

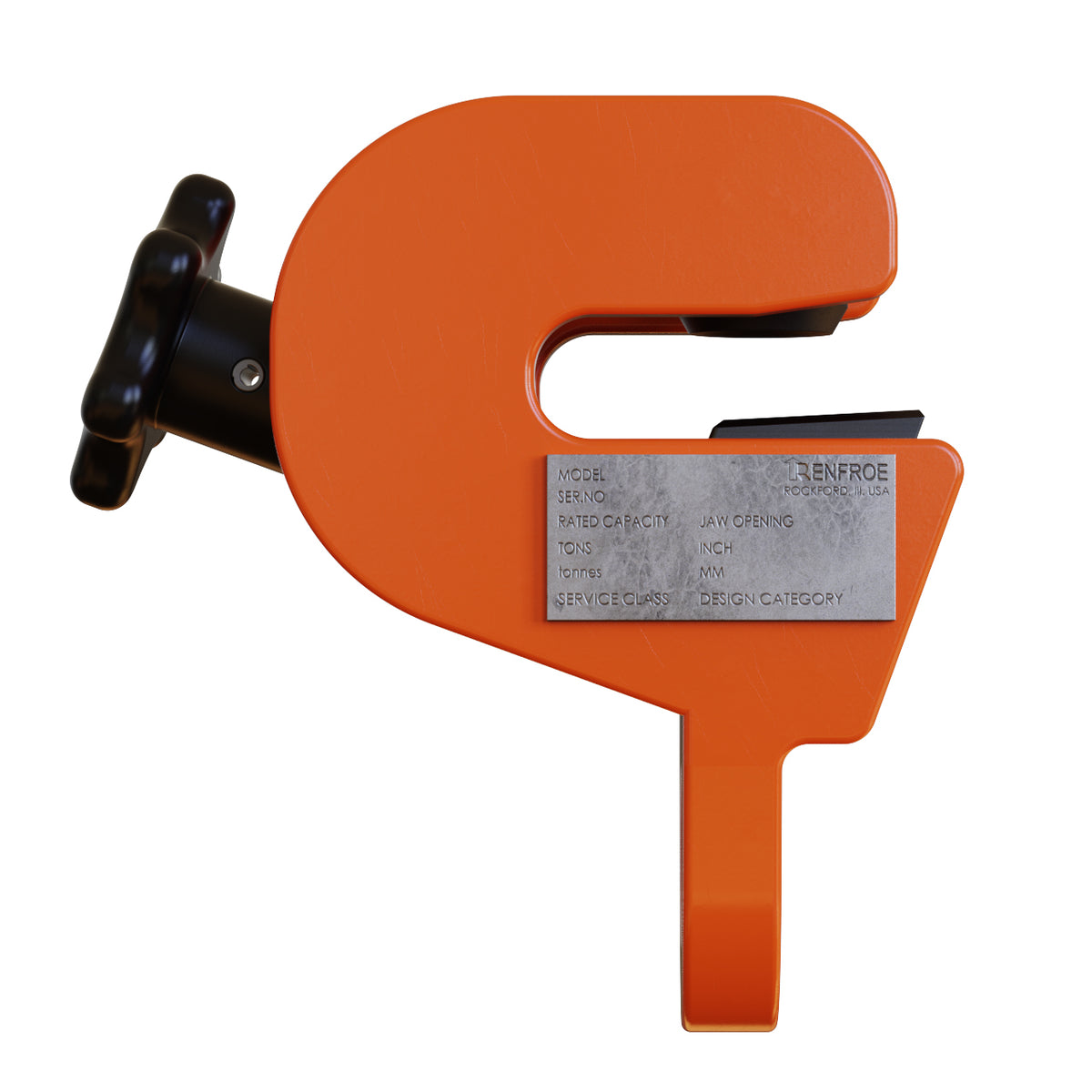

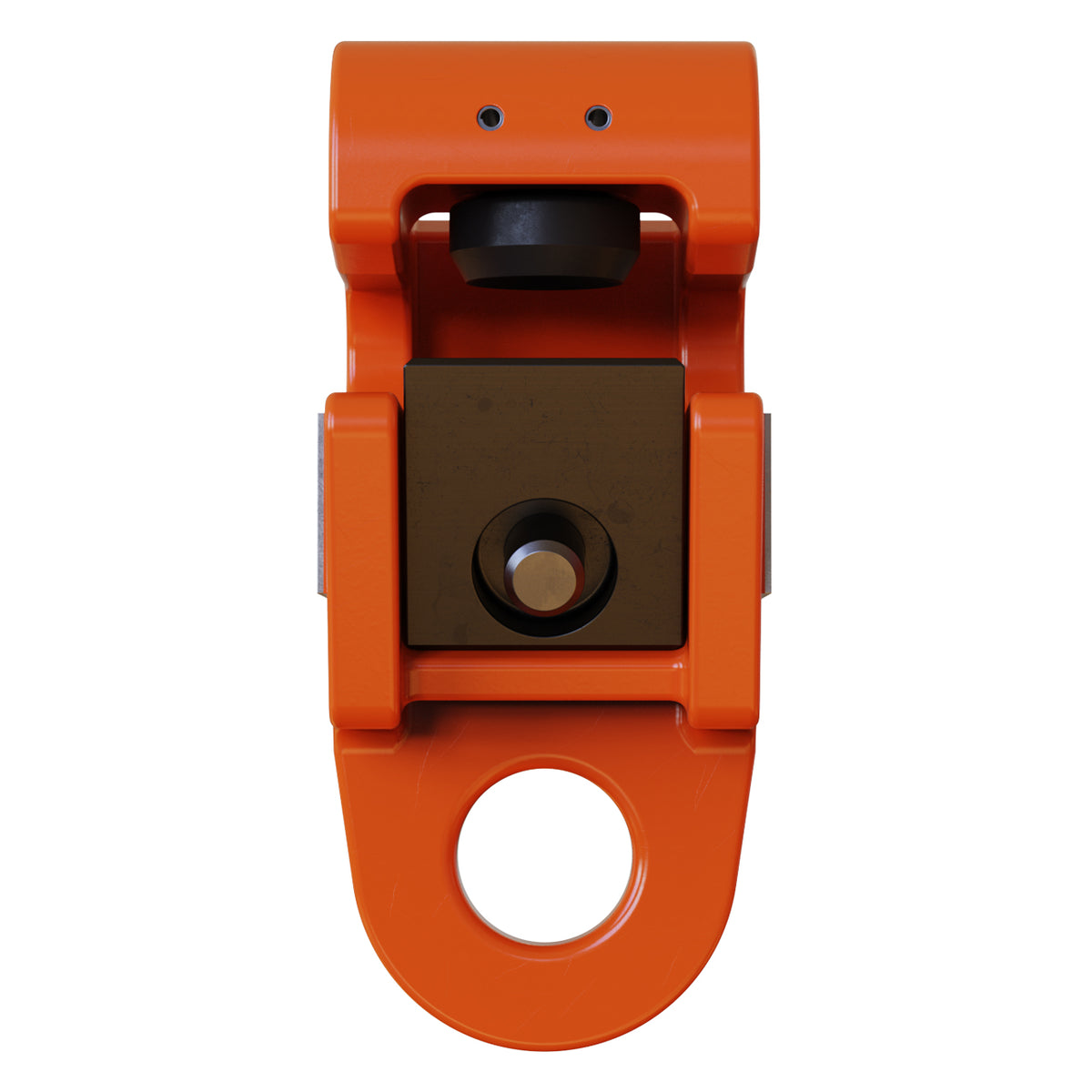

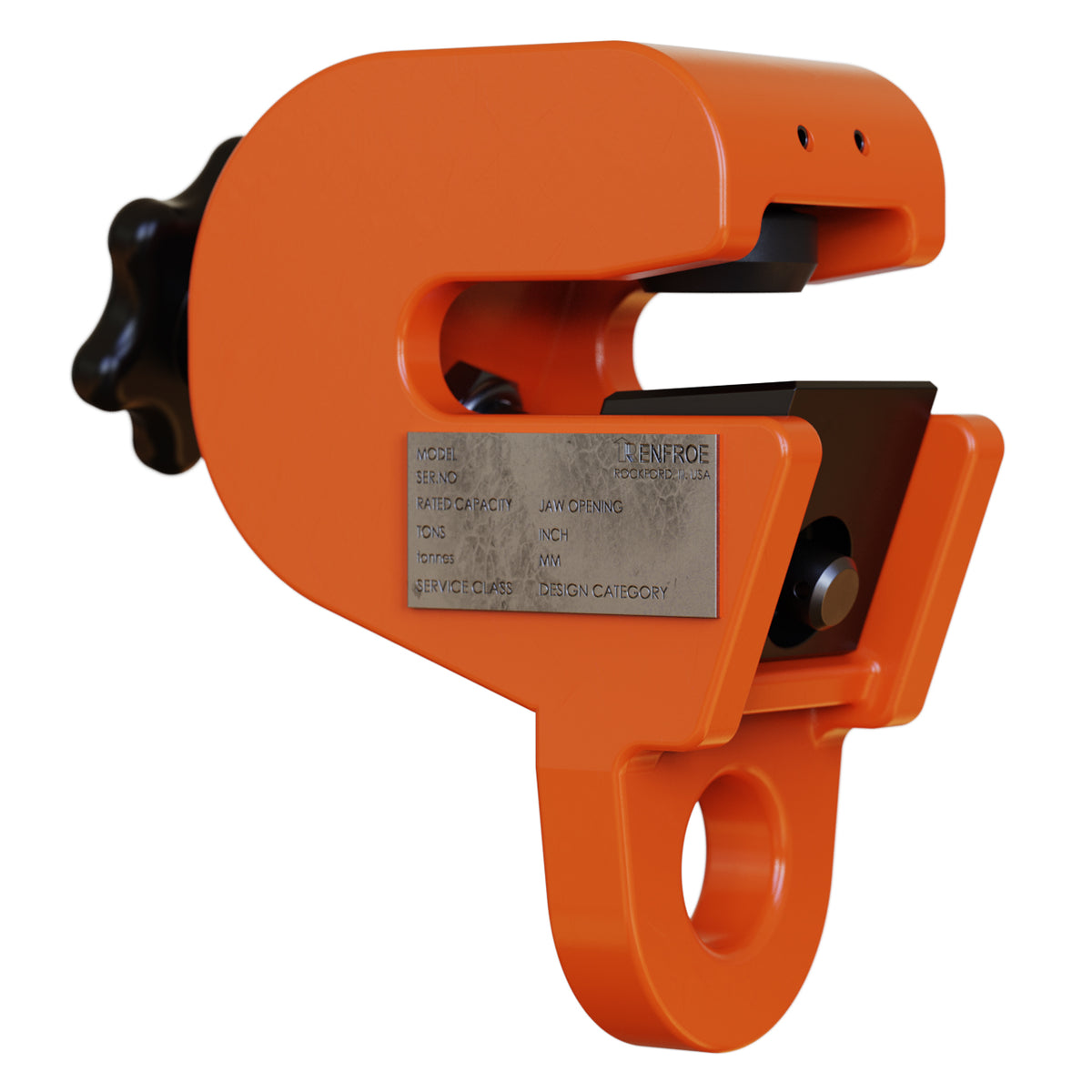

Caldwell Model AC Locking Screw Type
These clamps may be used for Drifting Loads when used in pairs or multiples. The Models AC and ACP are light weight, portable clamps that provide quick, easy attachment to structural members for the use of chain falls, hoists and wire rope pullers. These clamps are of single unit construction with a quick acting hand screw to secure the clamp. The Model AC has a fixed Shackle Eye. These clamps are especially useful in the construction and maintenance for shipbuilding and other industries.
Features
- Used primarily for drifting loads when used in pairs
- Ergonomic light weight design provids quick attachment to structural members
- Single unit construction with easy hand screw adjustment
- Fixed shackle eye makes it useful for consturction & maintenance in shipbuilding
Specifications
| Rated Capacity | 4000 |
| Capacity | 2 |
| Shackle Hole Diameter | 1.25 |
| Shackle Thickness | 0.75 |
| Clamp Length | 5.25 |
| Clamp Width | 3 |
| Jaw Length | 3.25 |
| Shackle Eye Depth | 0.75 |
Available Models
| Part No. | Max Jaw Opening | Jaw Height | Overall Clamp Length | Min Jaw Opening | Overall Clamp Height | Max Flange Width | Top of Jaw to Shackle Eye | Temp Weight |
|---|---|---|---|---|---|---|---|---|
| AC-02.00-A | 0.62 | 1.81 | 6.75 | 0.25 | 7 | — | 3.56 | 11.5 |
| AC-02.00-B | 0.75 | 1.73 | 6.94 | 0.38 | 7.31 | 0.75 | 3.75 | 11.12 |
| AC-02.00-C | 0.88 | 1.73 | 6.94 | 0.5 | 3.31 | 0.88 | 3.75 | 11.26 |
