Caldwell | SKU:
Caldwell-DG-00.50-A
Caldwell Model DG Locking Type
$728.00
Unit price
/
Unavailable
Caldwell Model DG Locking Type - 0.5 / 5.38 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:

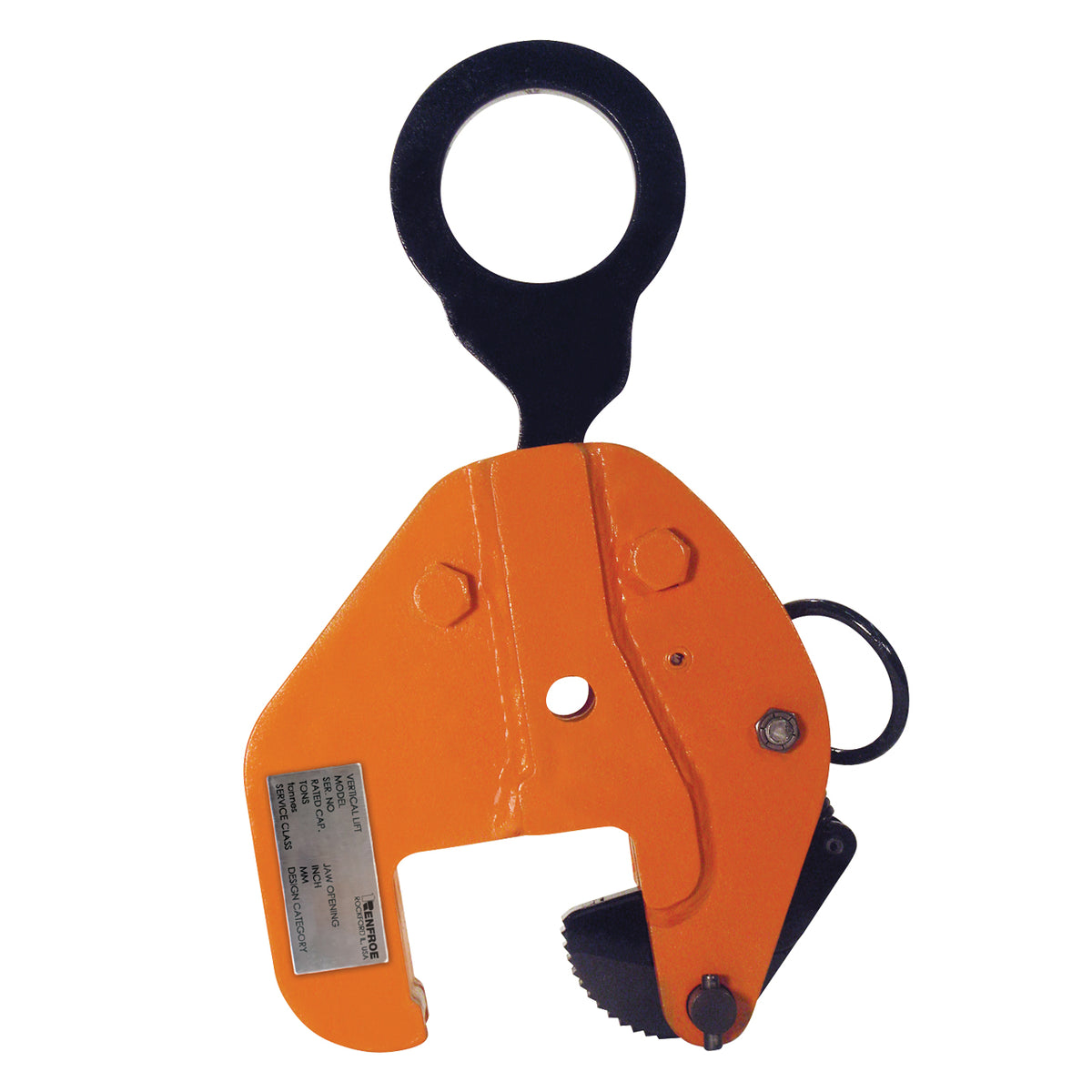

Caldwell Model DG Locking Type
From
$728.00
Unit price
/
Unavailable

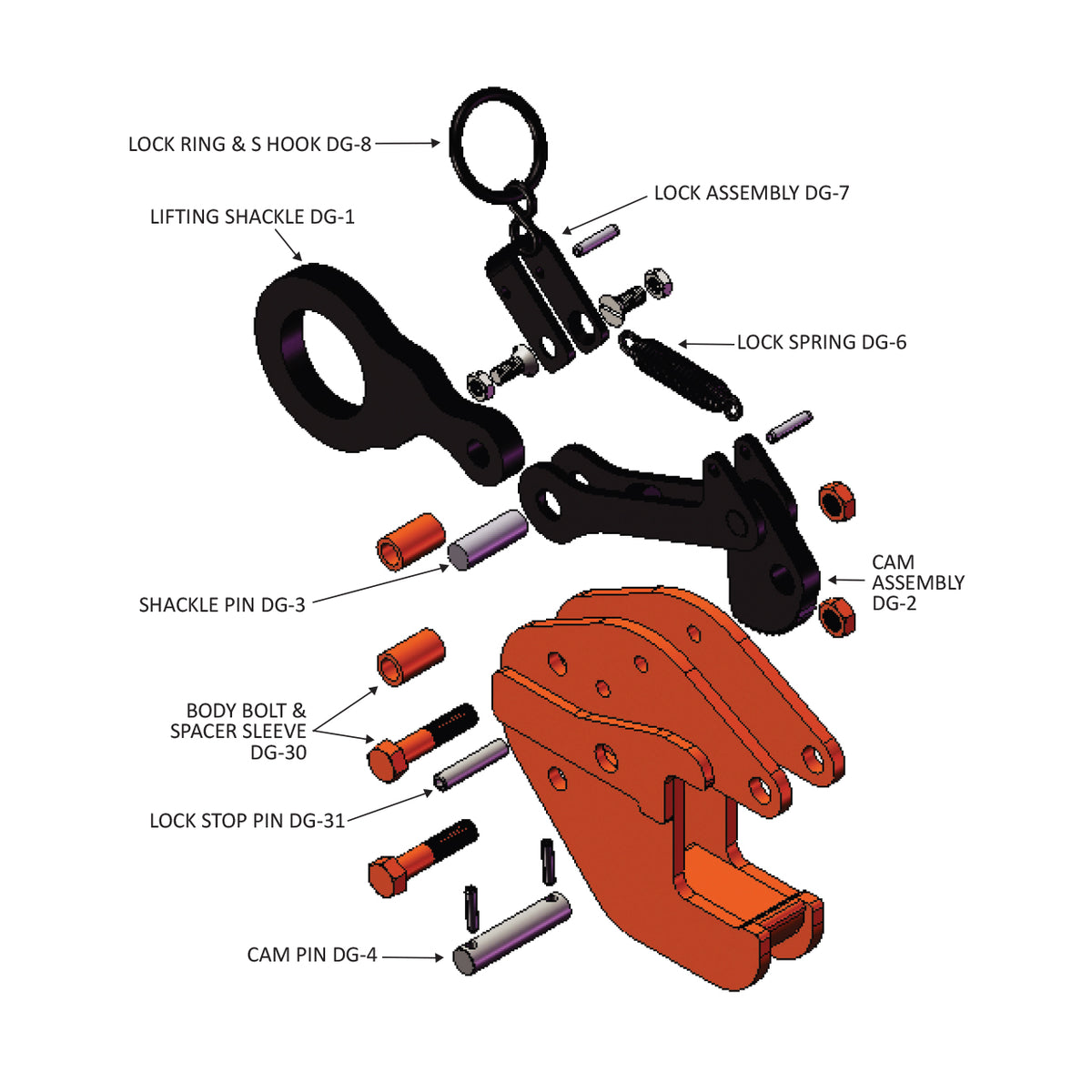

The Model DG rail clamp is used for lifting and transporting crane rails and railroad rails. Lightness of weight allows it to be hand applied and hand removed. The Model DG possesses all the features of the Model FR. All the repair parts are identical to same tonnage of the FR, except the swivel jaw has been eliminated
Features
- Developed to lift & transport crane & railroad rails
- Lightweight design for easy clamp placement & removal
- Incorporates the Lock Closed feature
Available Models
| Part No. | Capacity | Clamp Length | Capacity Std Rail Max | Capacity Std Rail Min | Rated Capacity | Capacity Crane Rail Max | Capacity Crane Rail Min | Model | Shackle Hole Diameter | Clamp Width | Jaw Length | Overall Clamp Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DG-00.50-A | 0.5 | 5.38 | 25 | 12 | 1000 | — | — | 25 | 2.38 | 2.5 | 1.62 | 11.25 |
| DG-00.50-B | 0.5 | 6 | 50 | 30 | — | — | — | 50 | 2.38 | 2.5 | 1.62 | 11.25 |
| DG-01.00-A | 1 | 8.62 | 155 | 85 | 2000 | — | — | 132 | 2.62 | 3.25 | 1.88 | 13.5 |
| DG-02.00-A | 2 | 9.13 | 155 | 60 | — | 105 | 104 | 105 | 3.62 | 3.25 | 2.5 | 16 |
| DG-02.00-B | 2 | 10.38 | — | — | 4000 | 175 | 135 | 175 | 3.62 | 3.25 | 2.5 | 16 |
