Caldwell  |  SKU: Caldwell-FR-00.50-A

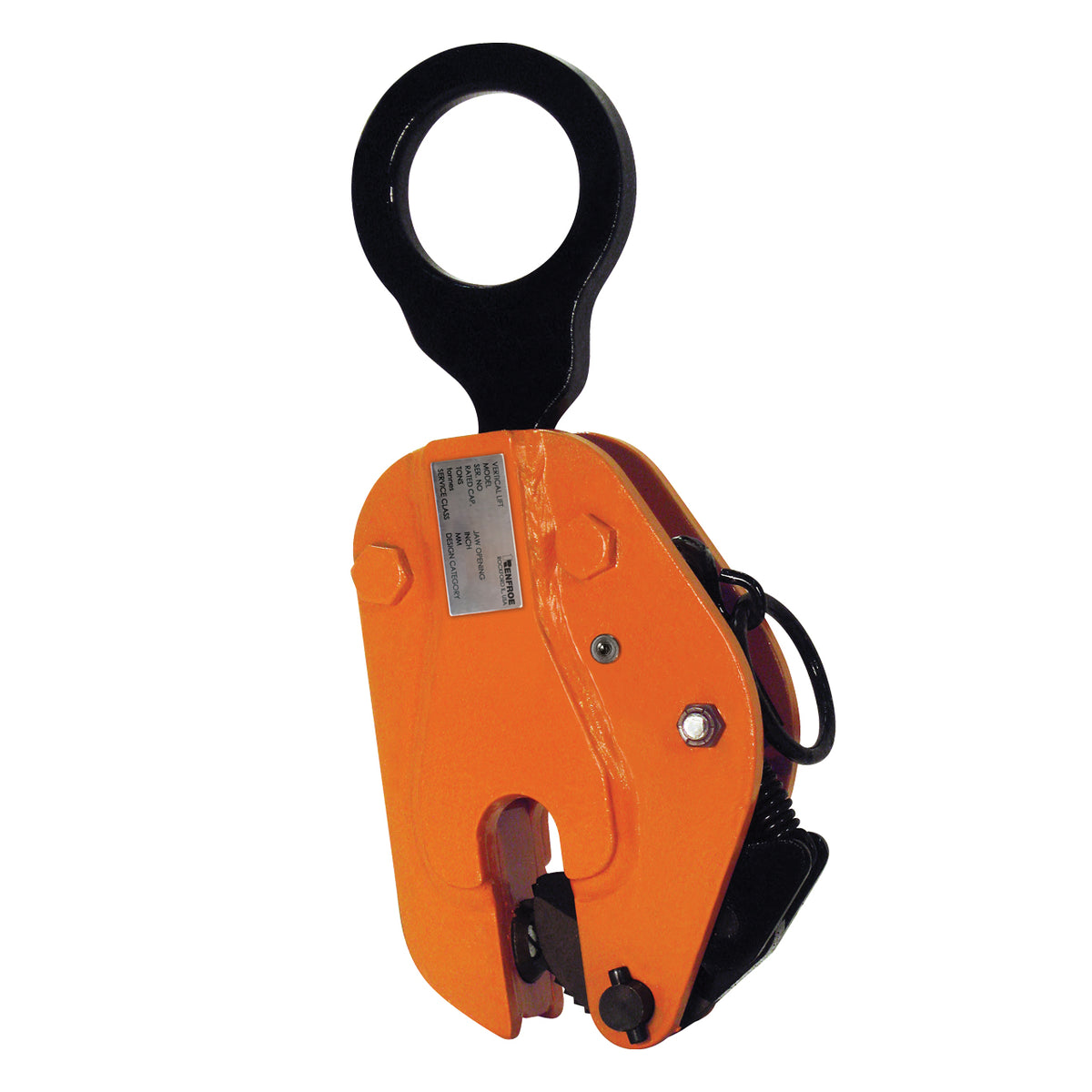

Caldwell Model FR Locking Type

$502.00
Request a Quote

The Model FR is a vertical lifting tool for relatively light work. It is small and easy to handle in capacities through three tons. It incorporates a “Lock Closed” feature which facilitates attaching the clamp to the plate.

Features

  • Vertical clamp for relatively light work
  • Small and easy to handle in capacities up to 3 tons
  • Incorporates a Lock Closed Feature
  • Allows easy attaching & removing of the clamp

Available Models

Part No. Rated Capacity Plate Thickness Max Capacity Shackle Hole Diameter Clamp Length Shackle Thickness Clamp Width Jaw Height Jaw Length Overall Length Clamp Height Plate Thickness Min
FR-00.50-A 1000 0.75 0.5 2.38 7 0.5 2.5 1.5 2.81 11.25 4.62 —
FR-00.50-B 1000 1 0.5 2.38 7 0.5 2.5 1.5 2.81 11.25 4.88 0.5
FR-00.50-C 1000 1.25 0.5 2.38 7 0.5 2.5 1.5 2.81 11.25 5.12 0.75
FR-00.50-D 1000 1.5 0.5 2.38 7 0.5 2.5 1.5 2.81 11.25 5.38 1
FR-00.50-E 1000 1.75 0.5 2.38 7 0.5 2.5 1.5 2.81 11.25 5.38 1.25
FR-01.00-A 2000 0.75 1 2.62 9 0.62 3.19 1.62 3.19 13.75 5.88 —
FR-01.00-B 2000 1 1 2.62 9 0.62 3.19 1.62 3.19 13.75 6.12 0.5
FR-01.00-C 2000 1.25 1 2.62 9 0.62 3.19 1.62 3.19 13.75 6.38 0.75
FR-01.00-D 2000 1.5 1 2.62 9 0.62 3.19 1.62 3.19 13.75 7.12 1.5
FR-01.00-E 2000 1.75 1 2.62 9 0.62 3.19 1.62 3.19 13.75 6.88 1.25
FR-01.00-F 2000 2 1 2.62 9 0.62 3.19 1.62 3.19 13.75 7.13 1.5
FR-02.00-A 4000 1 2 3.62 9 0.75 3.38 2.12 3.5 16 6.75 —
FR-02.00-B 4000 1.5 2 3.62 9 0.75 3.38 2.12 3.5 16.38 7.25 0.75
FR-02.00-C 4000 2 2 3.62 9 0.75 3.38 2.12 3.5 16.38 7.75 1.25
FR-02.00-D 4000 2.5 2 3.62 9 0.75 3.38 2.12 3.5 16.38 8.25 1.75
FR-03.00-A 6000 1.25 3 3.62 10.75 0.75 3.56 2.44 4.19 18.38 7.62 —
FR-03.00-B 6000 1.5 3 3.62 10.75 0.75 3.56 2.44 4.19 18.38 7.88 0.75
FR-03.00-C 6000 2 3 3.62 10.75 0.75 3.56 2.44 4.19 18.38 8.38 1.25
FR-03.00-D 6000 2.5 3 3.62 10.75 0.75 3.56 2.44 4.19 18.38 8.88 1.75
Caldwell Model FR Locking Type
Caldwell

Caldwell Model FR Locking Type

From $502.00

The Model FR is a vertical lifting tool for relatively light work. It is small and easy to handle in capacities through three tons. It incorporates a “Lock Closed” feature which facilitates attaching the clamp to the plate.

Features

Available Models

Part No. Rated Capacity Plate Thickness Max Capacity Shackle Hole Diameter Clamp Length Shackle Thickness Clamp Width Jaw Height Jaw Length Overall Length Clamp Height Plate Thickness Min
FR-00.50-A 1000 0.75 0.5 2.38 7 0.5 2.5 1.5 2.81 11.25 4.62 —
FR-00.50-B 1000 1 0.5 2.38 7 0.5 2.5 1.5 2.81 11.25 4.88 0.5
FR-00.50-C 1000 1.25 0.5 2.38 7 0.5 2.5 1.5 2.81 11.25 5.12 0.75
FR-00.50-D 1000 1.5 0.5 2.38 7 0.5 2.5 1.5 2.81 11.25 5.38 1
FR-00.50-E 1000 1.75 0.5 2.38 7 0.5 2.5 1.5 2.81 11.25 5.38 1.25
FR-01.00-A 2000 0.75 1 2.62 9 0.62 3.19 1.62 3.19 13.75 5.88 —
FR-01.00-B 2000 1 1 2.62 9 0.62 3.19 1.62 3.19 13.75 6.12 0.5
FR-01.00-C 2000 1.25 1 2.62 9 0.62 3.19 1.62 3.19 13.75 6.38 0.75
FR-01.00-D 2000 1.5 1 2.62 9 0.62 3.19 1.62 3.19 13.75 7.12 1.5
FR-01.00-E 2000 1.75 1 2.62 9 0.62 3.19 1.62 3.19 13.75 6.88 1.25
FR-01.00-F 2000 2 1 2.62 9 0.62 3.19 1.62 3.19 13.75 7.13 1.5
FR-02.00-A 4000 1 2 3.62 9 0.75 3.38 2.12 3.5 16 6.75 —
FR-02.00-B 4000 1.5 2 3.62 9 0.75 3.38 2.12 3.5 16.38 7.25 0.75
FR-02.00-C 4000 2 2 3.62 9 0.75 3.38 2.12 3.5 16.38 7.75 1.25
FR-02.00-D 4000 2.5 2 3.62 9 0.75 3.38 2.12 3.5 16.38 8.25 1.75
FR-03.00-A 6000 1.25 3 3.62 10.75 0.75 3.56 2.44 4.19 18.38 7.62 —
FR-03.00-B 6000 1.5 3 3.62 10.75 0.75 3.56 2.44 4.19 18.38 7.88 0.75
FR-03.00-C 6000 2 3 3.62 10.75 0.75 3.56 2.44 4.19 18.38 8.38 1.25
FR-03.00-D 6000 2.5 3 3.62 10.75 0.75 3.56 2.44 4.19 18.38 8.88 1.75
