Caldwell | SKU:
Caldwell-J-00.50-A
Caldwell Model J Locking Type
$727.00
Unit price
/
Unavailable
Caldwell Model J Locking Type - 0.5 / A is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Model J Locking Type
From
$727.00
Unit price
/
Unavailable

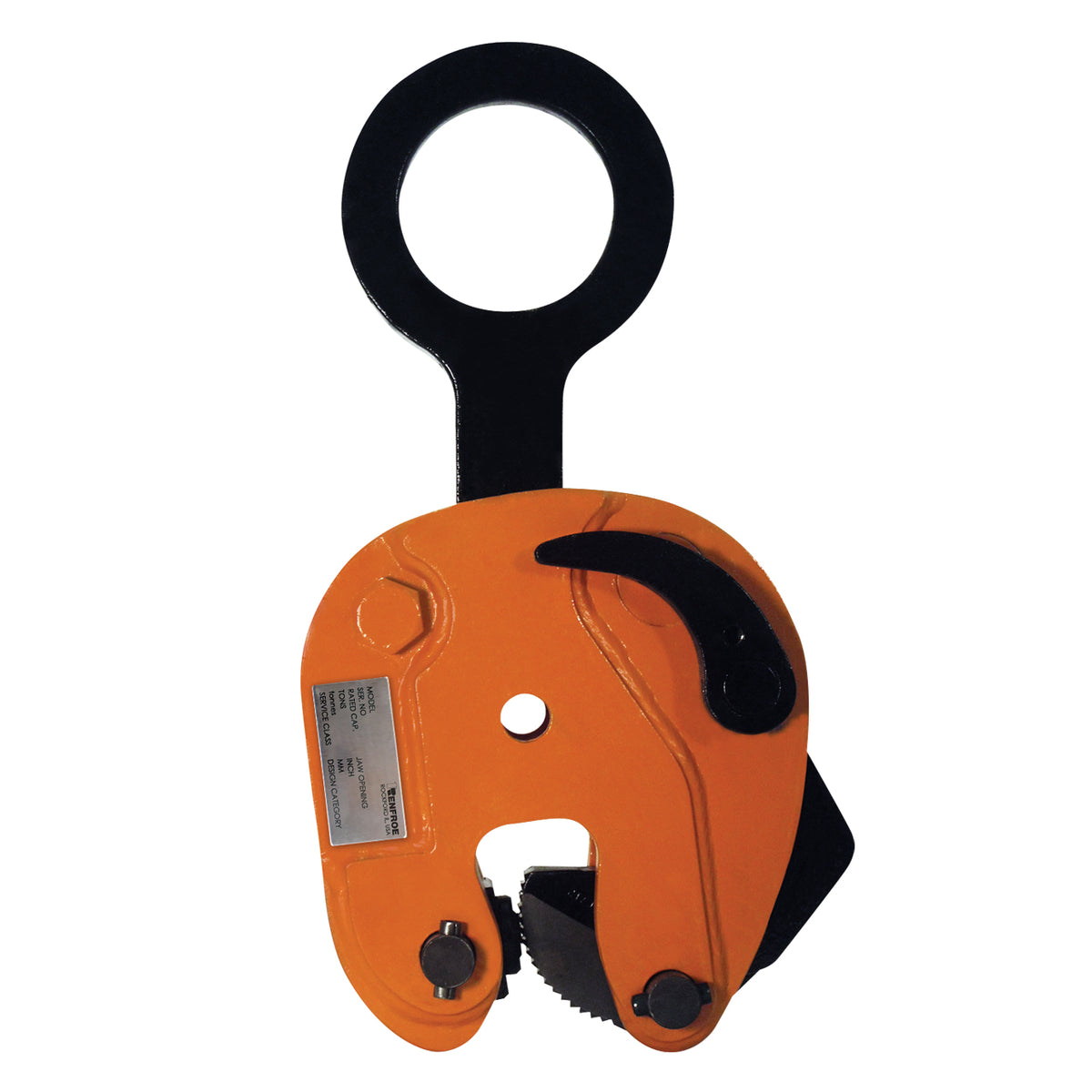

The Model J is a vertical lifting clamp capable of turning a single plate or member from horizontal to vertical and back to horizontal through the same 90° arc.
Features
- Proven rugged design known as the industry standard
- Single plate turning from horizontal to vertical & back through the same 90 degree arc
- Incorporates the Lock Open - Lock Closed Feature
- Allows easy attaching & removing of the clamp
Available Models
| Part No. | Capacity (ton) | Plate Thickness Range Code | Capacity | Rated Capacity | Shackle Opening | Shackle Thickness | Clamp Body Width | Jaw Length | Overall Length | Clamp Body Length | Jaw Height | Plate Thickness Max |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| J-00.50-A | 0.5 | A | 0.5 | 1000 | 2.38 | 0.5 | 3.25 | 2.75 | 12 | 6.5 | 2.25 | 0.62 |
| J-00.50-B | 0.5 | B | 0.5 | 1000 | 2.38 | 0.5 | 3.25 | 2.75 | 12 | 6.5 | 2.25 | 1 |
| J-00.50-C | 0.5 | C | 0.5 | 1000 | 2.38 | 0.5 | 3.25 | 2.75 | 12 | 6.5 | 2.25 | 1.25 |
| J-00.50-D | 0.5 | D | 0.5 | 1000 | 2.38 | 0.5 | 3.25 | 2.75 | 12 | 6.5 | 2.25 | 1.75 |
| J-01.00-A | 1 | A | 1 | 2000 | 2.62 | 0.62 | 3.5 | 3.38 | 13.75 | 7.75 | 2.62 | 0.75 |
| J-01.00-B | 1 | B | 1 | 2000 | 2.62 | 0.62 | 3.5 | 3.38 | 13.75 | 7.75 | 2.62 | 1 |
| J-01.00-C | 1 | C | 1 | 2000 | 2.62 | 0.62 | 3.5 | 3.38 | 13.75 | 7.75 | 2.62 | 1.25 |
| J-01.00-D | 1 | D | 1 | 2000 | 2.62 | 0.62 | 3.5 | 3.38 | 13.75 | 7.75 | 2.62 | 1.5 |
| J-01.00-E | 1 | E | 1 | 4000 | 2.62 | 0.62 | 3.5 | 3.38 | 13.75 | 7.75 | 2.62 | 2 |
| J-02.00-A | 2 | A | 2 | 4000 | 3.5 | 0.75 | 4.5 | 3.62 | 17.38 | 9.5 | 3 | 1 |
| J-02.00-B | 2 | B | 2 | 4000 | 3.5 | 0.75 | 4.5 | 3.62 | 17.38 | 9.5 | 3 | 1.5 |
| J-02.00-C | 2 | C | 2 | 4000 | 3.5 | 0.75 | 4.5 | 3.62 | 17.38 | 9.5 | 3 | 2 |
| J-02.00-D | 2 | D | 2 | 4000 | 3.5 | 0.75 | 4.5 | 3.62 | 17.38 | 9.5 | 3 | 2.75 |
| J-04.00-A | 4 | A | 4 | 8000 | 3.5 | 1.5 | 4.5 | 4.38 | 20.12 | 11.5 | 3.25 | 1.25 |
| J-04.00-B | 4 | B | 4 | 8000 | 3.5 | 1.5 | 4.5 | 4.38 | 20.12 | 11.5 | 3.25 | 2 |
| J-04.00-C | 4 | C | 4 | 8000 | 3.5 | 1.5 | 4.5 | 4.38 | 20.12 | 11.5 | 3.25 | 3 |
| J-04.00-D | 4 | D | 4 | 8000 | 3.5 | 1.5 | 4.5 | 4.38 | 20.12 | 11.5 | 3.25 | 4 |
| J-06.00-A | 6 | A | 6 | 12000 | 3.5 | 1.5 | 4.75 | 4.88 | 20.88 | 12.38 | 3.75 | 1.38 |
| J-06.00-B | 6 | B | 6 | 12000 | 3.5 | 1.5 | 4.75 | 4.88 | 20.88 | 12.38 | 3.75 | 2.12 |
| J-06.00-C | 6 | C | 6 | — | 3.5 | 1.5 | 4.75 | 4.88 | 20.88 | 12.38 | 3.75 | 3.12 |
| J-06.00-D | 6 | D | 6 | 12000 | 3.5 | 1.5 | 4.75 | 4.88 | 20.88 | 12.38 | 3.75 | 4.12 |
| J-08.00-A | 8 | A | 8 | — | 3.75 | 2 | 5.25 | 5.38 | 22.62 | 12.75 | 4.25 | 1.5 |
| J-08.00-B | 8 | B | 8 | 16000 | 3.75 | 2 | 5.25 | 5.38 | 22.62 | 12.75 | 4.25 | 2.12 |
| J-08.00-C | 8 | C | 8 | 16000 | 3.75 | 2 | 5.25 | 5.38 | 22.62 | 12.75 | 4.25 | 3.12 |
| J-08.00-D | 8 | D | 8 | — | 3.75 | 2 | 5.25 | 5.38 | 22.62 | 12.75 | 4.25 | 4.12 |
| J-12.00-A | 12 | A | 12 | 24000 | 3.88 | 2 | 7.06 | 7.25 | 28.12 | 17.38 | 5.38 | 2.5 |
| J-12.00-B | 12 | B | 12 | 24000 | 3.88 | 2 | 7.06 | 7.25 | 28.12 | 17.38 | 5.38 | 4 |
| J-12.00-C | 12 | C | 12 | 24000 | 3.88 | 2 | 7.06 | 7.25 | 28.12 | 17.38 | 5.38 | 6 |
| J-16.00-A | 16 | A | 16 | — | 4.5 | 2.25 | 8.69 | 8 | 32.31 | 19.81 | 6.25 | 2.5 |
| J-20.00-A | 20 | A | 20 | — | 5 | 2.75 | 11.5 | 8.62 | 35.88 | 21.81 | 6.88 | 3 |
| J-25.00-A | 25 | A | 25 | — | 5 | 3 | 9.62 | 8.62 | 35.88 | 23.62 | 6.75 | 2.5 |
| J-25.00-B | 25 | B | 25 | — | 5 | 3 | 9.62 | 8.62 | 35.88 | 23.62 | 6.75 | 5 |
