Caldwell  |  SKU: Caldwell-L-00.50-A

Caldwell Model L Locking Type

$963.00
Request a Quote

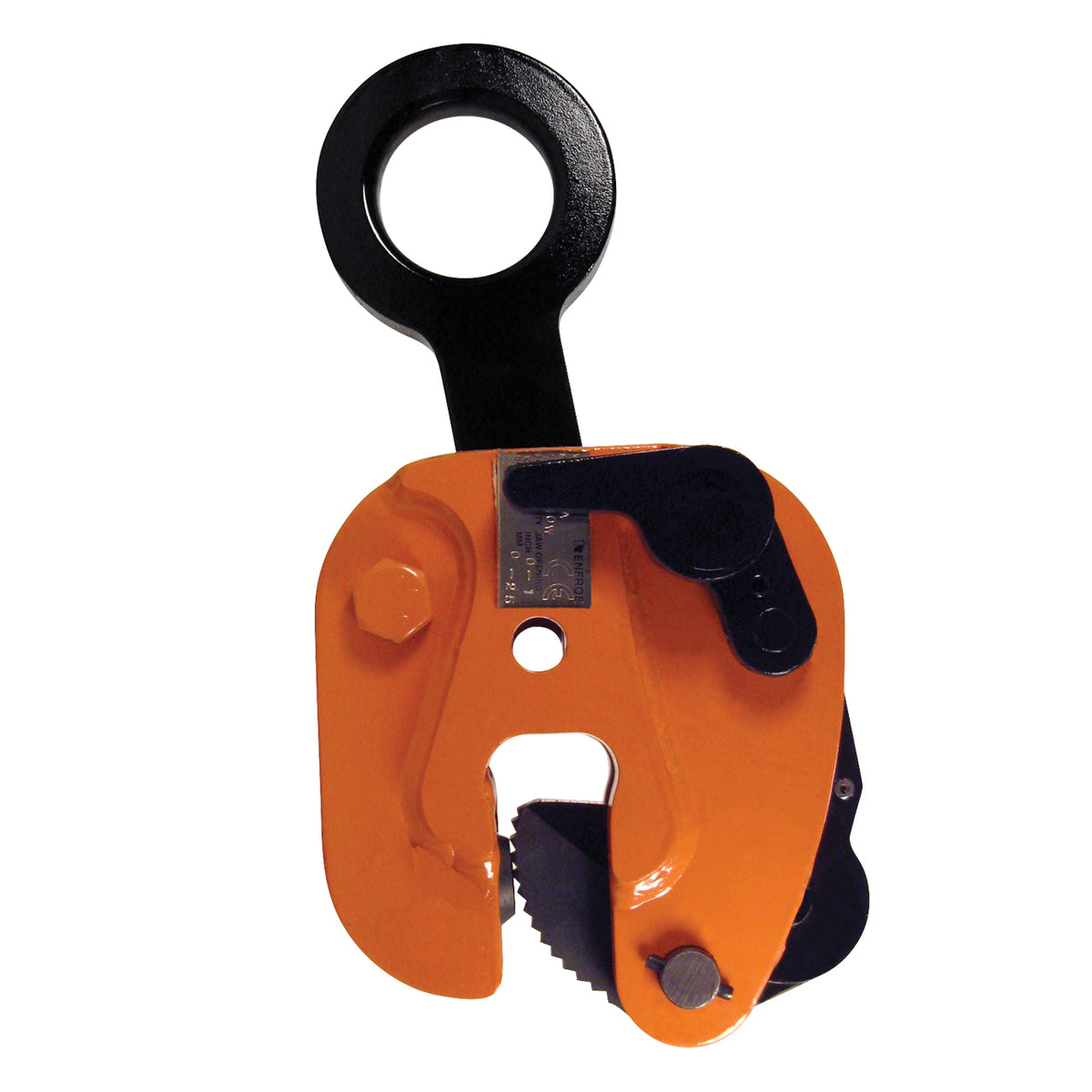

The Model L is an ergonomic vertical lifting clamp capable of turning a single plate or member from horizontal to vertical and back to horizontal through the same 90° arc. The “Lock Open – Lock Closed” feature facilitates attaching and removing the clamp from the plate.

Features

  • Ergonomic Lifting Clamp
  • Single plate turning from horizontal to vertical & back through the same 90 degree arc
  • Lock Open - Lock Closed Feature
  • Allows easy attaching & removing of the clamp

Available Models

Part No. Capacity (ton) Capacity Rated Capacity Clamp Body Width Jaw Height Jaw Length Overall Length Plate Thickness Max Shackle Opening Shackle Thickness Clamp Body Height Clamp Body Length
L-00.50-A 0.5 0.5 1000 2.44 1.38 2 8 0.63 1.13 0.38 4.25 1.13
L-01.00-A 1 1 2000 2.44 1.38 2 8 0.75 1.13 0.5 4.38 4.88
L-02.00-A 2 2 4000 3.63 2.38 3.31 12.5 1 2.38 0.75 7.06 6.88
L-03.00-A 3 3 6000 3.81 2.75 3.44 17 1 3.38 0.75 8.5 10
Caldwell Model L Locking Type
Caldwell

Caldwell Model L Locking Type

From $963.00

The Model L is an ergonomic vertical lifting clamp capable of turning a single plate or member from horizontal to vertical and back to horizontal through the same 90° arc. The “Lock Open – Lock Closed” feature facilitates attaching and removing the clamp from the plate.

Features

Available Models

Part No. Capacity (ton) Capacity Rated Capacity Clamp Body Width Jaw Height Jaw Length Overall Length Plate Thickness Max Shackle Opening Shackle Thickness Clamp Body Height Clamp Body Length
L-00.50-A 0.5 0.5 1000 2.44 1.38 2 8 0.63 1.13 0.38 4.25 1.13
L-01.00-A 1 1 2000 2.44 1.38 2 8 0.75 1.13 0.5 4.38 4.88
L-02.00-A 2 2 4000 3.63 2.38 3.31 12.5 1 2.38 0.75 7.06 6.88
L-03.00-A 3 3 6000 3.81 2.75 3.44 17 1 3.38 0.75 8.5 10

Capacity (ton)

  • 0.5
  • 1
  • 2
  • 3
View product
