Caldwell Model SCPA Locking, Screw Type

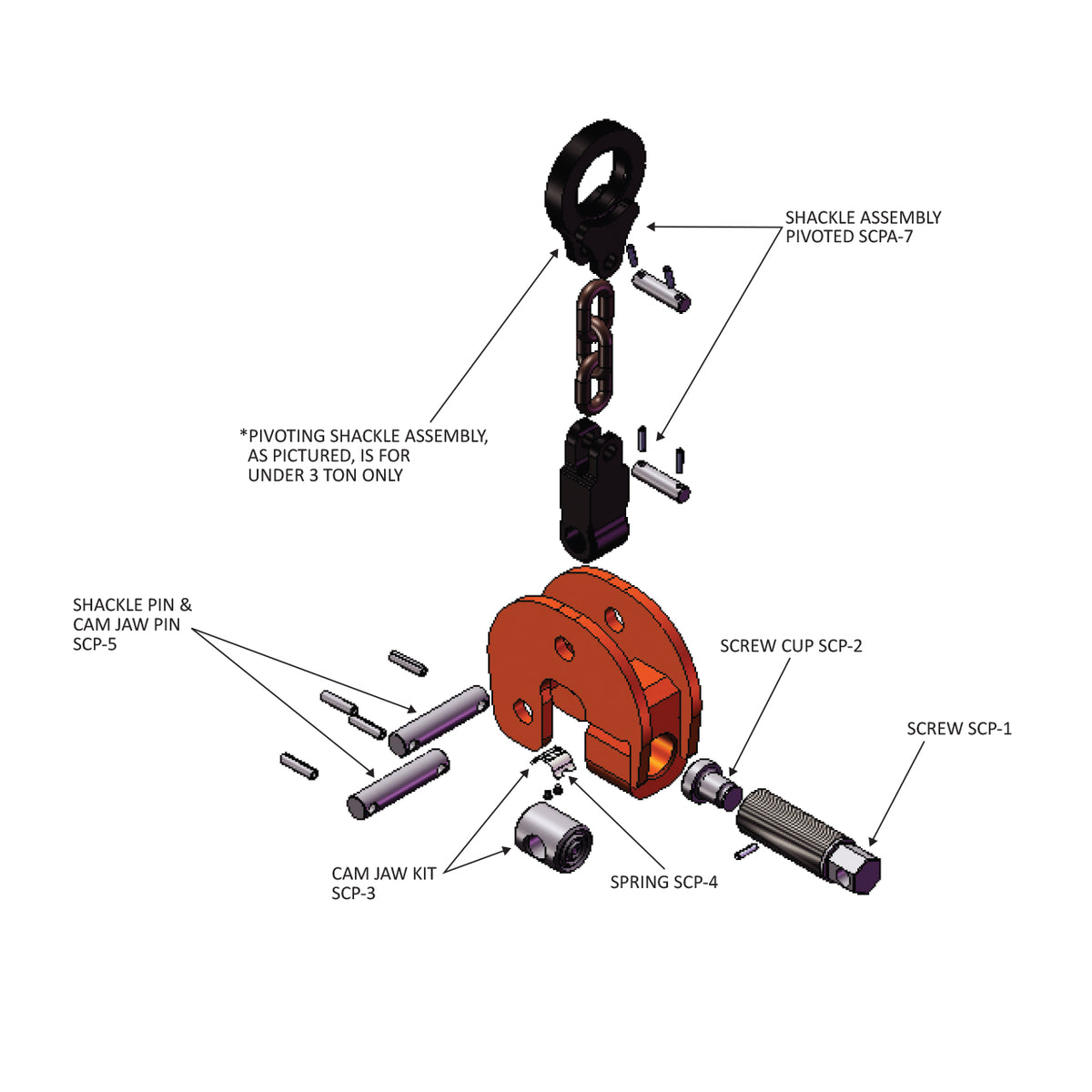

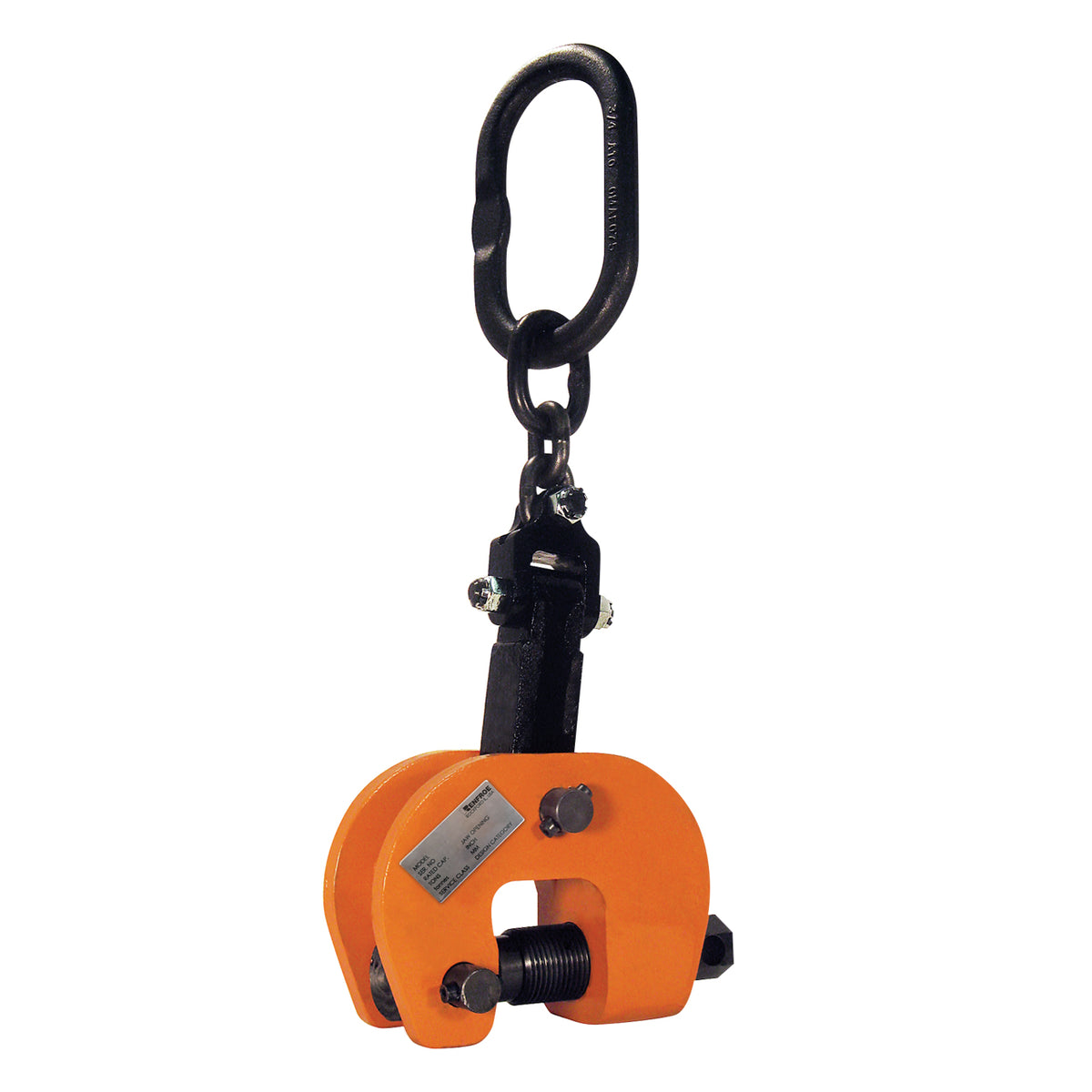

The SCPA clamp is capable of handling steel plate from horizontal to vertical to horizontal through a 180 degree arc and may be used for handling plate at rolling and forming machines. These clamps feature a spring loaded pivoting cam jaw that "cams in" when a load is applied to the lifting shackle. Clamp is capable of handling plate horizontally when used in pairs or sets of pairs, or in a tripod arrangement. *Pivoting shackle assembly, as shown, is available on capacities of 3 tons and larger.
Features
- Developed to handle plate at rolling & forming machines
- Single plate handling from horizontal to vertical to horizontal through a 180 degree arc
- Features spring loaded pivoting jaw to engage when a load is applied
- Can be used in pairs, sets of pairs or tripod arrangement
Available Models
| Part No. | Capacity (ton) | Capacity | Rated Capacity | Shackle Hole Diameter | Oblong Opening Length | Oblong Opening Width | Oblong Thickness | Plate Thickness Max | Shackle Thickness | Clamp Height | Clamp Length | Clamp Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCPA-00.50-A | 0.5 | 0.5 | 1000 | 2.38 | 1.75 | 1.75 | 0.56 | 0.75 | 0.5 | 4.5 | 6.62 | 2.38 |
| SCPA-01.50-A | 1.5 | 1.5 | 3000 | 2.62 | 2 | 2 | 0.69 | 0.75 | 0.62 | 5.5 | 8.44 | 3.38 |
| SCPA-03.00-A | 3 | 3 | 6000 | 2.38 | 6 | 3 | 0.75 | 1.5 | 0.75 | 5.75 | 10.81 | 4.06 |
| SCPA-06.00-A | 6 | 6 | 12000 | 3 | 7 | 3.5 | 1 | 2.5 | 1 | 7.56 | 14.38 | 5.38 |
| SCPA-10.00-A | 10 | 10 | 20000 | 3.25 | 7 | 3.5 | 1 | 3 | 1 | 9.75 | 16.38 | 6.75 |
| SCPA-15.00-A | 15 | 15 | 30000 | 3.75 | 8 | 3.88 | 1.25 | 4 | 1.25 | 12.12 | 21.5 | 8.25 |
