Caldwell | SKU:
Caldwell-SCSM-01.00-A
Caldwell Model SCSM Locking, Screw Type
$2,169.00
Unit price
/
Unavailable
Caldwell Model SCSM Locking, Screw Type is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Model SCSM Locking, Screw Type
$2,169.00
Unit price
/
Unavailable

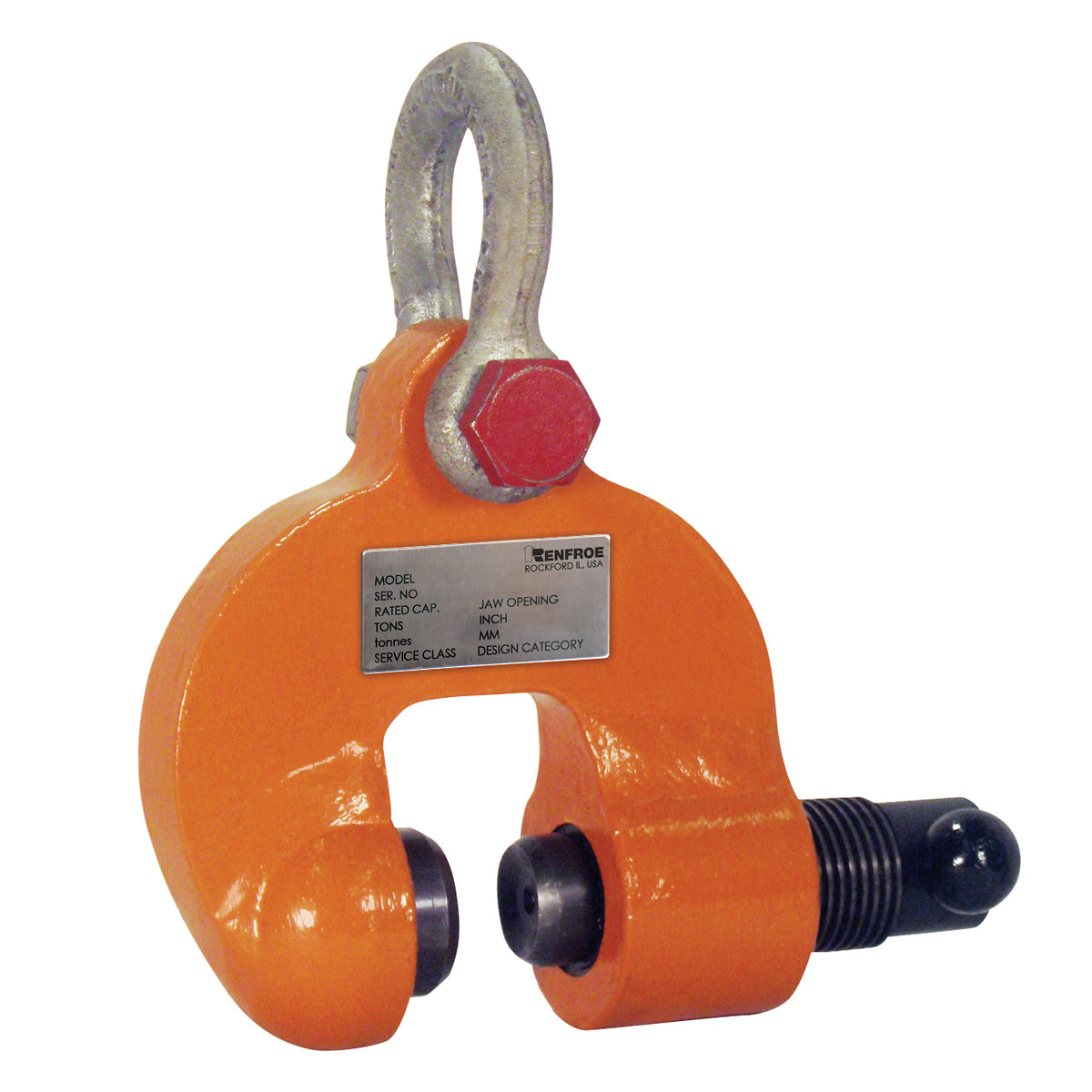

The Model SCSM is a locking screw clamp capable of handling a steel plate from horizontal to vertical to horizontal through a 180-degree arc. It is a lightweight clamp primarily used for bench work. It is capable of handling up to a 2,000-pound load.
Features
- Single plate turning from horizontal to vertical to horizontal through a 180 degree arc
- Lightweight clamp typically used for bench work
- Screw handle allows easy fastening & removal of the clamp
Specifications
| Rated Capacity | 2000 |
| Capacity | 1 |
| Temp Weight | 12 |
| Max Jaw Opening | 0.75 |
| Overall Handle length | 6 |
| Shackle Inner Width | 1.69 |
| Shackle Thickness | 0.62 |
| Clamp Body Width | 2.5 |
| Clamp Height | 6.62 |
| Jaw Height | 3.25 |
| Overall Height | 9.19 |
| Shackle Eye Opening Height | 1.88 |
