Caldwell Model TL Locking Type

$772.00
Request a Quote

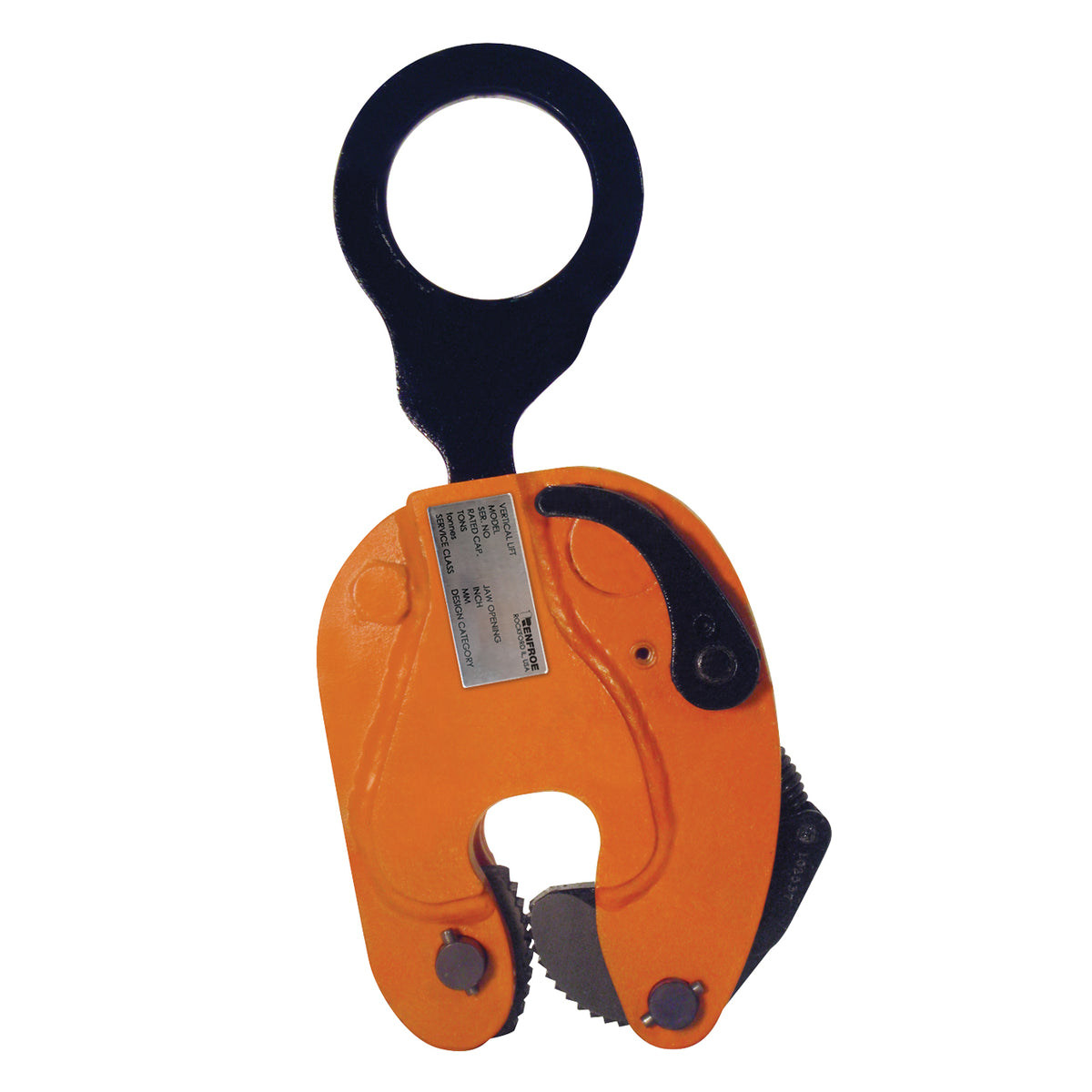

The Model TL is a vertical lifting clamp capable of turning a single plate or member from horizontal to vertical and back to horizontal through the same 90° arc. The “Lock Open – Lock Closed” feature facilitates attaching and removing the clamp from the plate.

Features

  • Single plate turning from horizontal to vertical & back through the same 90 degree arc
  • Allows easy attaching & removing of the clamp
  • Used in places you'd use the Model J, but it has a serrated cam jaw that only pivots back and forth. Better for less bumpy lifts.

Available Models

Part No. Capacity (ton) Plate Thickness Range Code Capacity Rated Capacity Shackle Thickness Shackle Opening Clamp Body Length Clamp Body Width Jaw Height Overall Length Jaw Length Plate Thickness Max
TL-00.50-A 0.5 A 0.5 1000 0.5 2.38 6.25 2.75 1.81 11.12 2.38 0.62
TL-00.50-B 0.5 B 0.5 1000 0.5 2.38 6.25 2.75 1.81 11.12 2.38 1
TL-00.50-C 0.5 C 0.5 1000 0.5 2.38 6.25 2.75 1.81 11.12 2.38 1.25
TL-00.50-D 0.5 D 0.5 1000 0.5 2.38 6.25 2.75 1.81 11.12 2.38 1.75
TL-01.00-A 1 A 1 2000 0.62 2.62 7.5 2.81 2 13.12 2.44 0.75
TL-01.00-B 1 B 1 2000 0.62 2.62 7.5 2.81 2 13.12 2.44 1
TL-01.00-C 1 C 1 2000 0.62 2.62 7.5 2.81 2 13.12 2.44 1.25
TL-01.00-D 1 D 1 — 0.62 2.62 7.5 2.81 2 13.12 2.44 1.5
TL-01.00-E 1 E 1 2000 0.62 2.62 7.5 2.81 2 13.12 3 2
TL-02.00-A 2 A 2 4000 0.75 3.62 9.38 3.75 2.88 16.25 3.5 1
TL-02.00-B 2 B 2 4000 0.75 3.62 9.38 3.75 2.88 16.25 3.5 1.5
TL-02.00-C 2 C 2 4000 0.75 3.62 9.38 3.75 2.88 16.25 3.5 2
TL-02.00-D 2 D 2 4000 0.75 3.62 9.38 3.75 2.88 16.25 3.5 2.75
TL-04.00-A 4 A 4 8000 0.75 3.62 9.88 3.81 3 17.62 4 1.25
TL-04.00-B 4 B 4 8000 0.75 3.62 9.88 3.81 3 17.62 4 2
TL-04.00-C 4 C 4 12000 0.75 3.62 9.88 3.81 3 17.62 4 3
TL-04.00-D 4 D 4 12000 0.75 3.62 9.88 3.81 3 17.62 4 4
TL-06.00-A 6 A 6 12000 0.75 3.5 11.12 3.88 3.38 20.12 4.62 1.38
TL-06.00-B 6 B 6 12000 0.75 3.5 11.12 3.88 3.38 20.12 4.62 2.12
TL-06.00-C 6 C 6 12000 0.75 3.5 11.12 3.88 3.38 20.12 4.62 3.12
TL-06.00-D 6 D 6 — 0.75 3.5 11.12 3.88 3.38 20.12 4.62 4.12
TL-08.00-A 8 A 8 16000 1 3.75 12.31 4.75 3.88 21.31 4.81 1.5
TL-08.00-B 8 B 8 16000 1 3.75 12.31 4.75 3.88 21.31 4.81 2.12
TL-08.00-C 8 C 8 16000 1 3.75 12.31 4.75 3.88 21.31 4.81 3.12
TL-08.00-D 8 D 8 — 1 3.75 12.31 4.75 3.88 21.31 4.81 4.12
TL-12.00-A 12 A 12 24000 1.75 3.88 15.12 6.75 4.38 26.19 6.25 2.5
TL-12.00-B 12 B 12 24000 1.75 3.88 15.12 6.75 4.38 26.19 6.25 4
TL-12.00-C 12 C 12 24000 1.75 3.88 15.12 6.75 4.38 26.19 6.25 5
TL-12.00-D 12 D 12 — 1.75 3.88 15.12 6.75 4.38 26.19 6.25 6
TL-20.00-A 20 A 20 — 2.75 5 21.75 8.06 6.19 36.69 8.12 3
TL-20.00-B 20 B 20 — 2.75 5 21.75 8.06 6.19 36.69 8.12 4.5
TL-20.00-C 20 C 20 — 2.75 5 21.75 8.06 6.19 36.69 8.12 5
TL-20.00-D 20 D 20 — 2.75 5 21.75 8.06 6.19 36.69 8.12 7
