Caldwell  |  SKU: Caldwell-TLA-00.50-A

Caldwell Model TLA Locking Type

$955.00
Request a Quote

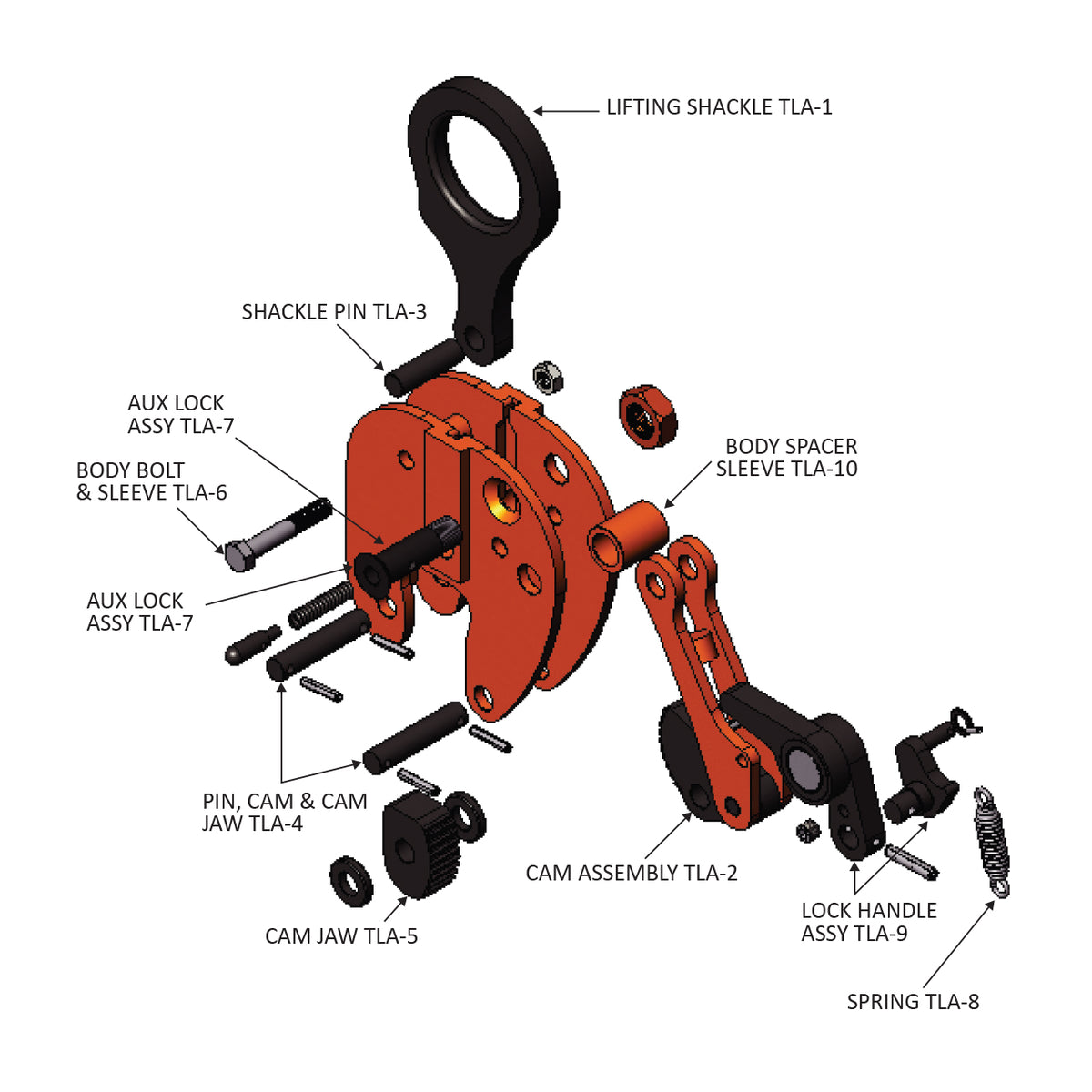

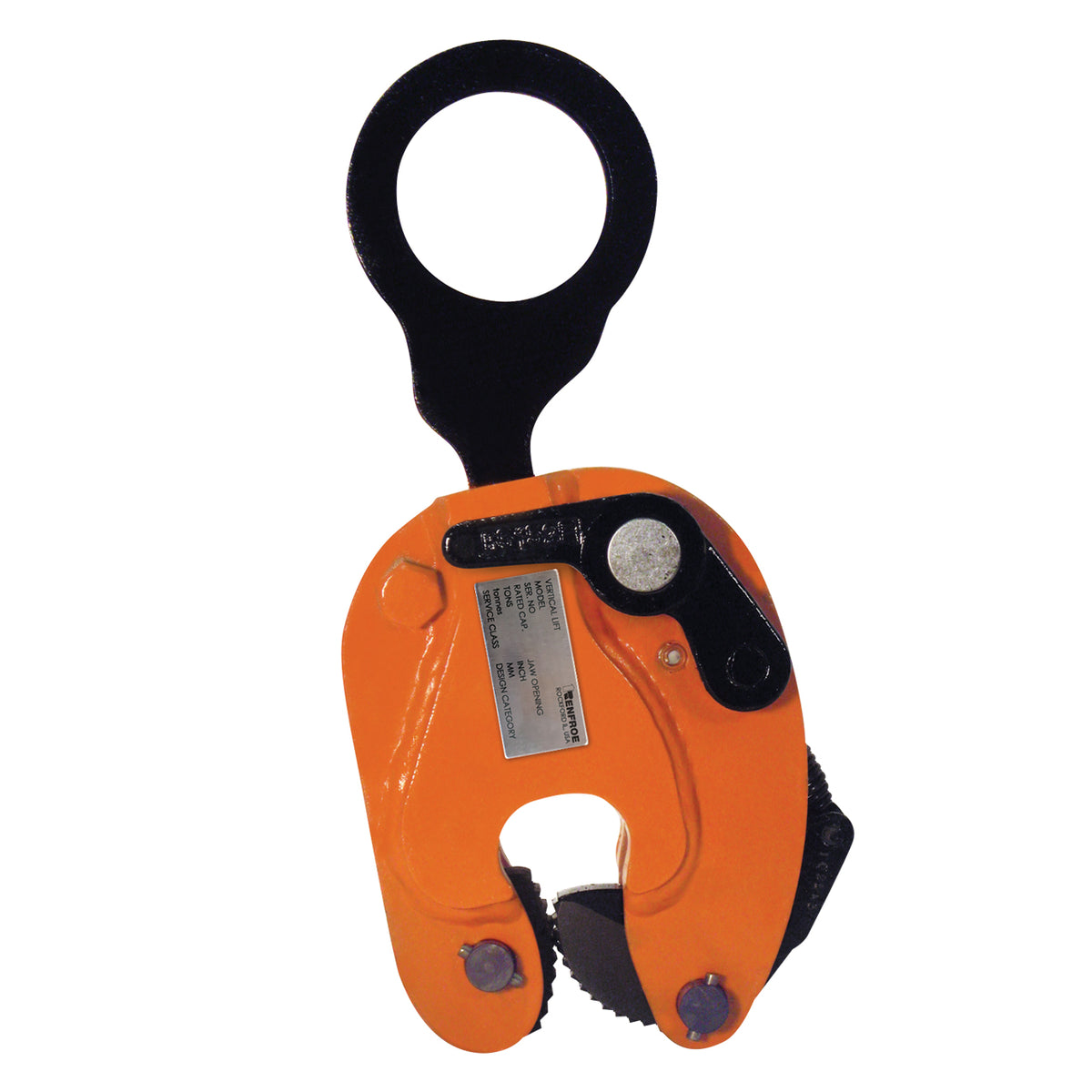

The Model TLA is a vertical lifting clamp incorporating a “Lock Open” and a “Lock Closed” feature and an auxiliary push-button lock. The clamp is capable of turning a steel plate from horizontal to vertical to horizontal through a 180° arc. The “Lock Open,” “Lock Closed” feature facilitates attaching and removing the clamp from the plate.

Features

  • Single plate turning from horizontal to vertical to horizontal through a 180 degree arc
  • Incorporates an auxiliary push button lock
  • Lock Open - Lock Closed Feature
  • Allows easy attaching & removing of the clamp
  • Similar to the Model JA with a serrated cam jaw

Available Models

Part No. Capacity (ton) Plate Thickness Range Code Capacity Rated Capacity Shackle Hole Diameter Shackle Thickness Clamp Body Length Clamp Width Jaw Height Jaw Length Overall Length Plate Thickness Max
TLA-00.50-A 0.5 A 0.5 1000 2.38 0.5 6.25 2.75 1.81 2.38 11.12 0.62
TLA-00.50-B 0.5 B 0.5 1000 2.38 0.5 6.25 2.75 1.81 2.38 11.12 1
TLA-00.50-C 0.5 C 0.5 1000 2.38 0.5 6.25 2.75 1.81 2.38 11.12 1.25
TLA-00.50-D 0.5 D 0.5 1000 2.38 0.5 6.25 2.75 1.81 2.38 11.12 1.75
TLA-01.00-A 1 A 1 2000 2.62 0.62 7.5 2.81 2 3 13.12 0.75
TLA-01.00-B 1 B 1 2000 2.62 0.62 7.5 2.81 2 3 13.12 1
TLA-01.00-C 1 C 1 2000 2.62 0.62 7.5 2.81 2 3 13.12 1.25
TLA-01.00-D 1 D 1 2000 2.62 0.62 7.5 2.81 2 3 13.12 1.5
TLA-01.00-E 1 E 1 2000 2.62 0.62 7.5 2.81 2 3 13.12 2
TLA-02.00-A 2 A 2 4000 3.62 0.75 9.38 3.75 2.88 3.5 16.25 1
TLA-02.00-B 2 B 2 4000 3.62 0.75 9.38 3.75 2.88 3.5 16.25 1.5
TLA-02.00-C 2 C 2 4000 3.62 0.75 9.38 3.75 2.88 3.5 16.25 2
TLA-02.00-D 2 D 2 4000 3.62 0.75 9.38 3.75 2.88 3.5 16.25 2.75
TLA-04.00-A 4 A 4 8000 3.62 0.75 9.88 3.81 3 4 17.62 1.25
TLA-04.00-B 4 B 4 8000 3.62 0.75 9.88 3.81 3 4 17.62 2
TLA-04.00-C 4 C 4 8000 3.62 0.75 9.88 3.81 3 4 17.62 3
TLA-04.00-D 4 D 4 8000 3.62 0.75 9.88 3.81 3 4 17.62 4
TLA-06.00-A 6 A 6 12000 3.5 0.75 11.12 3.88 3.38 4.62 20.12 1.38
TLA-06.00-B 6 B 6 12000 3.5 0.75 11.12 3.88 3.38 4.62 20.12 2.12
TLA-06.00-C 6 C 6 12000 3.5 0.75 11.12 3.88 3.38 4.62 20.12 3.12
TLA-06.00-D 6 D 6 12000 3.5 0.75 11.12 3.88 3.38 4.62 20.12 4.12
TLA-08.00-A 8 A 8 16000 3.75 1 12.31 4.75 3.88 4.81 21.31 1.5
TLA-08.00-B 8 B 8 16000 3.75 1 12.31 4.75 3.88 4.81 21.31 2.12
TLA-08.00-C 8 C 8 16000 3.75 1 12.31 4.75 3.88 4.81 21.31 3.12
TLA-12.00-A 12 A 12 24000 3.88 1.75 15.12 6.75 4.38 6.25 26.19 2.5
TLA-12.00-B 12 B 12 — 3.88 1.75 15.12 6.75 4.38 6.25 26.19 4
TLA-12.00-C 12 C 12 24000 3.88 1.75 15.12 6.75 4.38 6.25 26.19 5
TLA-12.00-E 12 E 12 — 3.88 1.75 15.12 6.75 4.38 6.25 26.19 5
TLA-20.00-A 20 A 20 40000 5 2.75 21.75 8.06 6.19 8.12 36.69 3
TLA-20.00-B 20 B 20 — 5 2.75 21.75 8.06 6.19 8.12 36.69 4.5
TLA-20.00-C 20 C 20 — 5 2.75 21.75 8.06 6.19 8.12 36.69 5
TLA-20.00-D 20 D 20 — 5 2.75 21.75 8.06 6.19 8.12 36.69 7
Caldwell Model TLA Locking Type
Caldwell

Caldwell Model TLA Locking Type

From $955.00

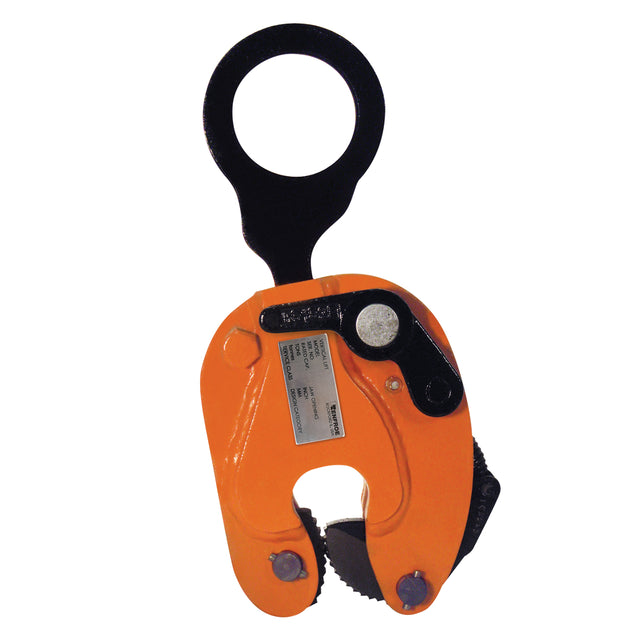

The Model TLA is a vertical lifting clamp incorporating a “Lock Open” and a “Lock Closed” feature and an auxiliary push-button lock. The clamp is capable of turning a steel plate from horizontal to vertical to horizontal through a 180° arc. The “Lock Open,” “Lock Closed” feature facilitates attaching and removing the clamp from the plate.
