Caldwell Model WHSR Non-Locking Type

$1,690.00
Request a Quote

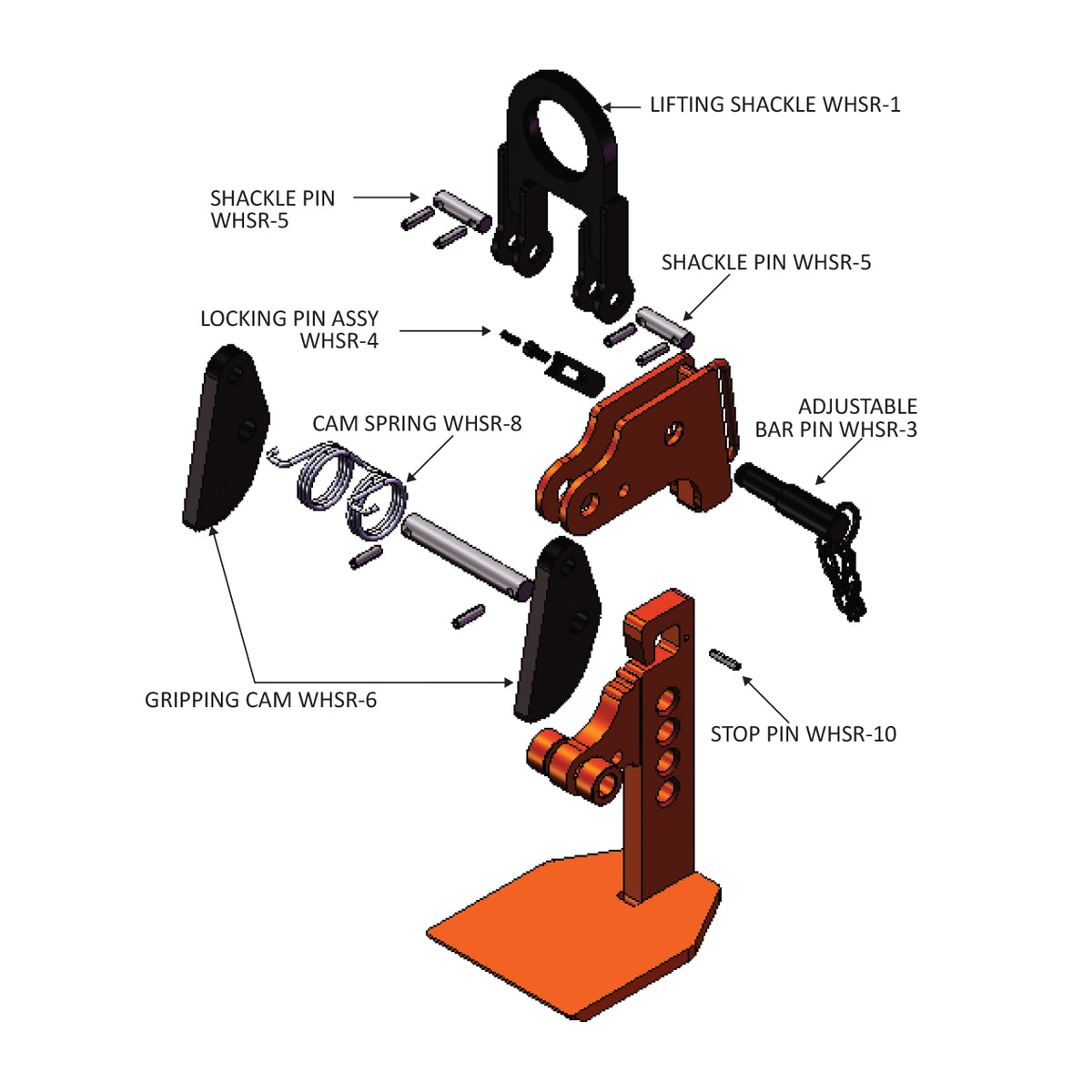

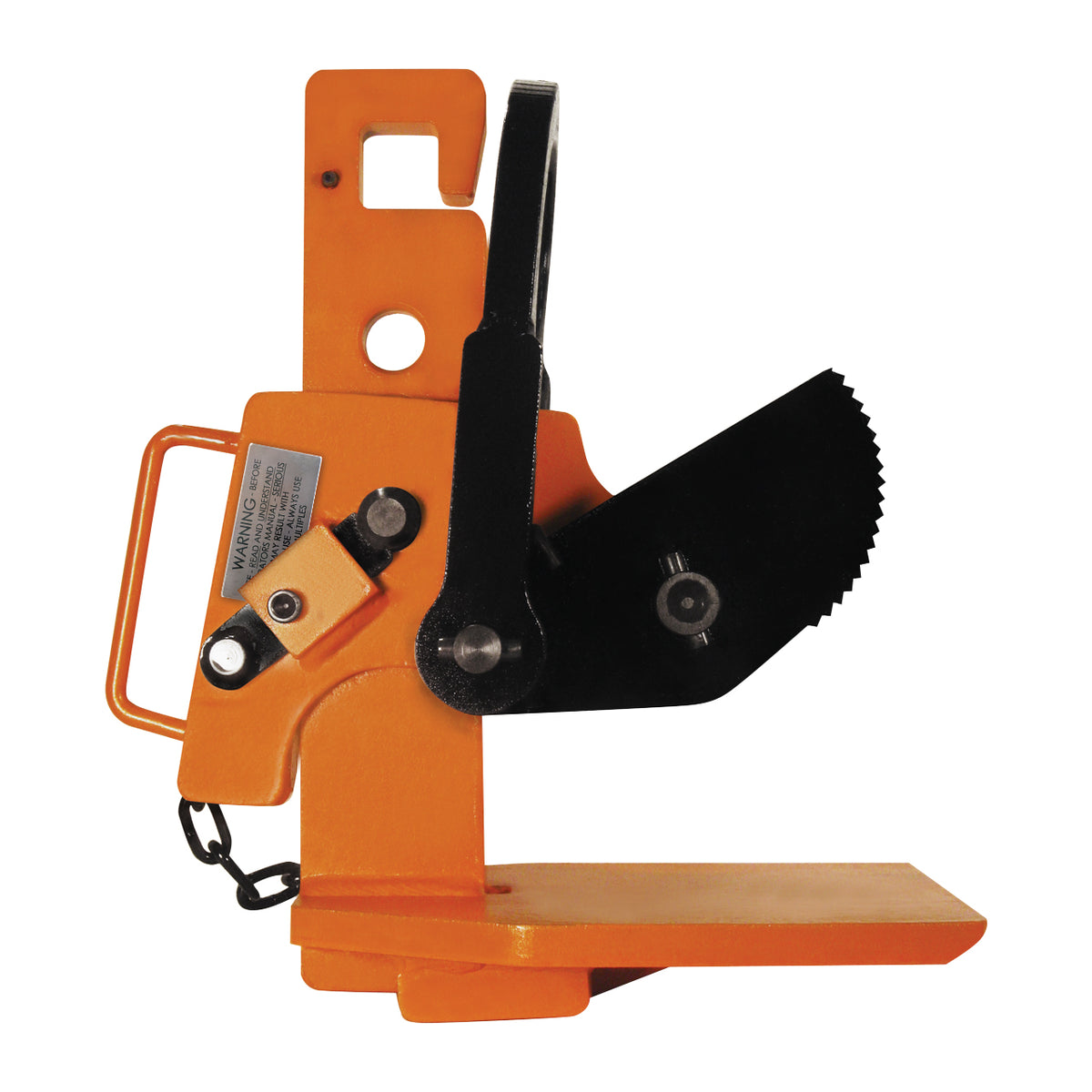

The Model WHSR is an adjustable, horizontal clamp intended to be used in pairs, sets of pairs, or in a tripod arrangement for transporting steel plates horizontally.  In addition to incorporating two gripping cams, the jaw opening may be adjusted by the positioning of a pin in the body of the clamp.  The gripping cams are spring loaded to remain in the "open" position until the load is applied.  This feature permits the clamp to be easily applied and removed from the load.  Normally furnished with serrated gripping surfaces, it is available with smooth faced bronze or stainless steel surfaces to prevent marring when handling polished plates.

Features

  • Adjustable horizontal clamp intended to be used in pairs
  • Dual spring loaded gripping cams remain open until the load is applied
  • Easy jaw opening adjustments by positioning the pin
  • Allows easy attaching & removing of the clamp

Specifications

Shackle Hole Diameter 3.5

Available Models

Part No. Capacity Clamp Height Rated Capacity Clamp Length Jaw Width Body Thickness Clamp Body Width Max Jaw Opening Shackle Center to Center Length Jaw Thickness Temp Weight
WHSR-00.50-A 0.5 14.19 1000 10.75 8.38 0.5 3 6 4.5 0.62 46
WHSR-00.50-B 0.5 23.12 1000 13 8.25 0.5 5 12 4.5 0.62 60
WHSR-00.50-C 0.5 27.19 1000 13 8.25 0.5 5 16 4.5 0.62 80
WHSR-01.50-A 1.5 14.31 3000 10.75 8.38 0.75 3 6 4.62 0.75 66
WHSR-01.50-B 1.5 23.25 3000 13 8.25 0.75 5 12 4.62 0.75 90
WHSR-01.50-C 1.5 27.31 — 13 8.25 0.75 5 16 4.62 0.75 104
WHSR-03.00-A 3 15.25 6000 10.75 8.38 1 3 6 4.62 1.62 70
WHSR-03.00-B 3 23.31 6000 13 8.25 1 5 12 4.62 1.62 94
WHSR-03.00-C 3 27.81 6000 13 8.25 1 5 16 4.62 1.62 112
WHSR-06.00-A 6 18.06 12000 13 8.25 1 5 6 4.62 2.25 108
WHSR-06.00-B 6 24.81 12000 13 8.25 1 5 12 4.62 2.25 114
WHSR-08.00-A 8 28.88 16000 13 8.25 1 6 16 5.25 3 220
WHSR-08.00-B 8 24.88 16000 13 8.25 1 6 12 5.25 3 141
Caldwell Model WHSR Non-Locking Type
Caldwell

Caldwell Model WHSR Non-Locking Type

From $1,690.00

The Model WHSR is an adjustable, horizontal clamp intended to be used in pairs, sets of pairs, or in a tripod arrangement for transporting steel plates horizontally.  In addition to incorporating two gripping cams, the jaw opening may be adjusted by the positioning of a pin in the body of the clamp.  The gripping cams are spring loaded to remain in the "open" position until the load is applied.  This feature permits the clamp to be easily applied and removed from the load.  Normally furnished with serrated gripping surfaces, it is available with smooth faced bronze or stainless steel surfaces to prevent marring when handling polished plates.

Features

Specifications

Shackle Hole Diameter 3.5

Available Models

Part No. Capacity Clamp Height Rated Capacity Clamp Length Jaw Width Body Thickness Clamp Body Width Max Jaw Opening Shackle Center to Center Length Jaw Thickness Temp Weight
WHSR-00.50-A 0.5 14.19 1000 10.75 8.38 0.5 3 6 4.5 0.62 46
WHSR-00.50-B 0.5 23.12 1000 13 8.25 0.5 5 12 4.5 0.62 60
WHSR-00.50-C 0.5 27.19 1000 13 8.25 0.5 5 16 4.5 0.62 80
WHSR-01.50-A 1.5 14.31 3000 10.75 8.38 0.75 3 6 4.62 0.75 66
WHSR-01.50-B 1.5 23.25 3000 13 8.25 0.75 5 12 4.62 0.75 90
WHSR-01.50-C 1.5 27.31 — 13 8.25 0.75 5 16 4.62 0.75 104
WHSR-03.00-A 3 15.25 6000 10.75 8.38 1 3 6 4.62 1.62 70
WHSR-03.00-B 3 23.31 6000 13 8.25 1 5 12 4.62 1.62 94
WHSR-03.00-C 3 27.81 6000 13 8.25 1 5 16 4.62 1.62 112
WHSR-06.00-A 6 18.06 12000 13 8.25 1 5 6 4.62 2.25 108
WHSR-06.00-B 6 24.81 12000 13 8.25 1 5 12 4.62 2.25 114
WHSR-08.00-A 8 28.88 16000 13 8.25 1 6 16 5.25 3 220
WHSR-08.00-B 8 24.88 16000 13 8.25 1 6 12 5.25 3 141
