Caldwell | SKU:
Caldwell-NMBL-02.00-A
Caldwell NMBL-04.00-A
$4,891.00
Unit price
/
Unavailable
Caldwell NMBL-04.00-A - 2 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell NMBL-04.00-A
From
$4,891.00
Unit price
/
Unavailable

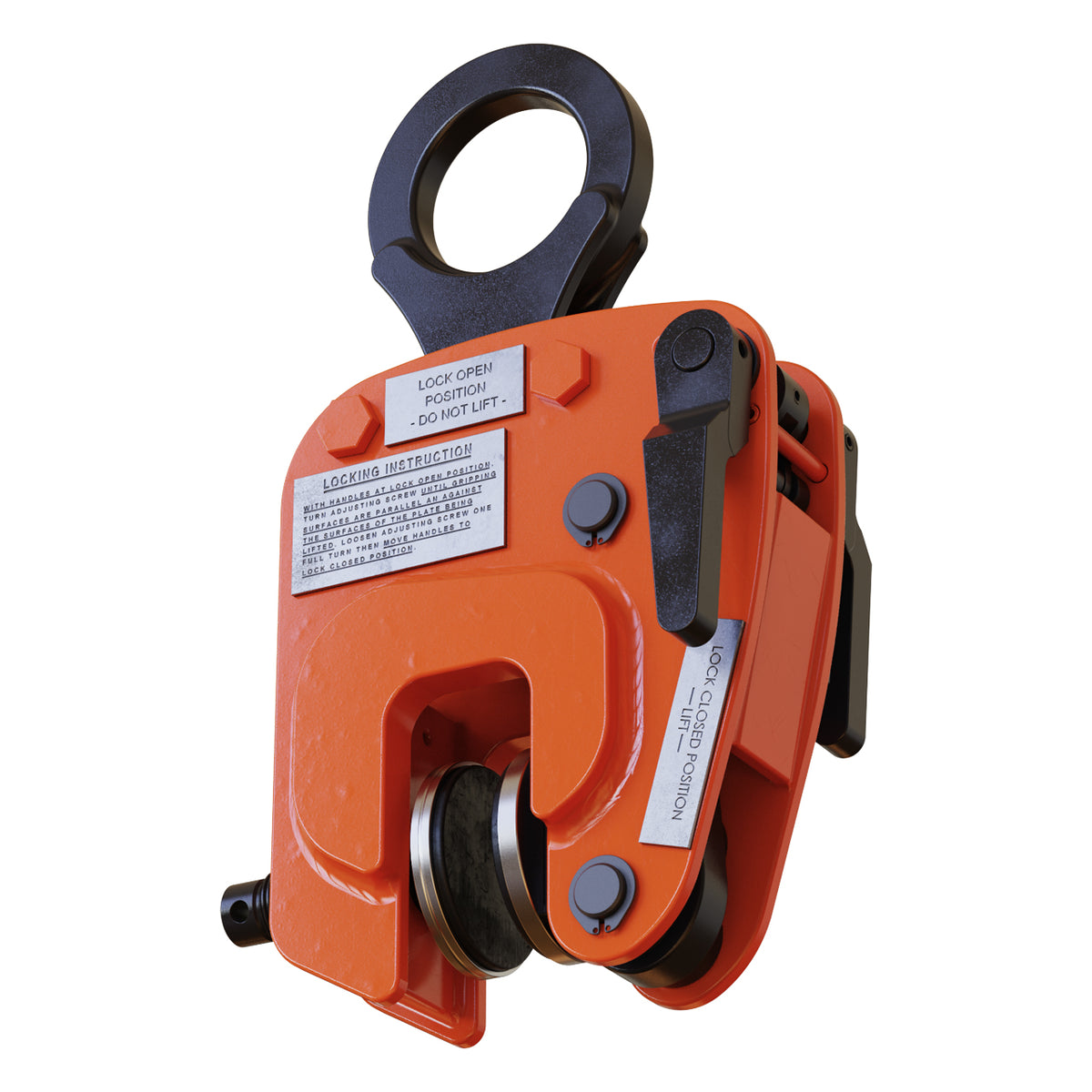

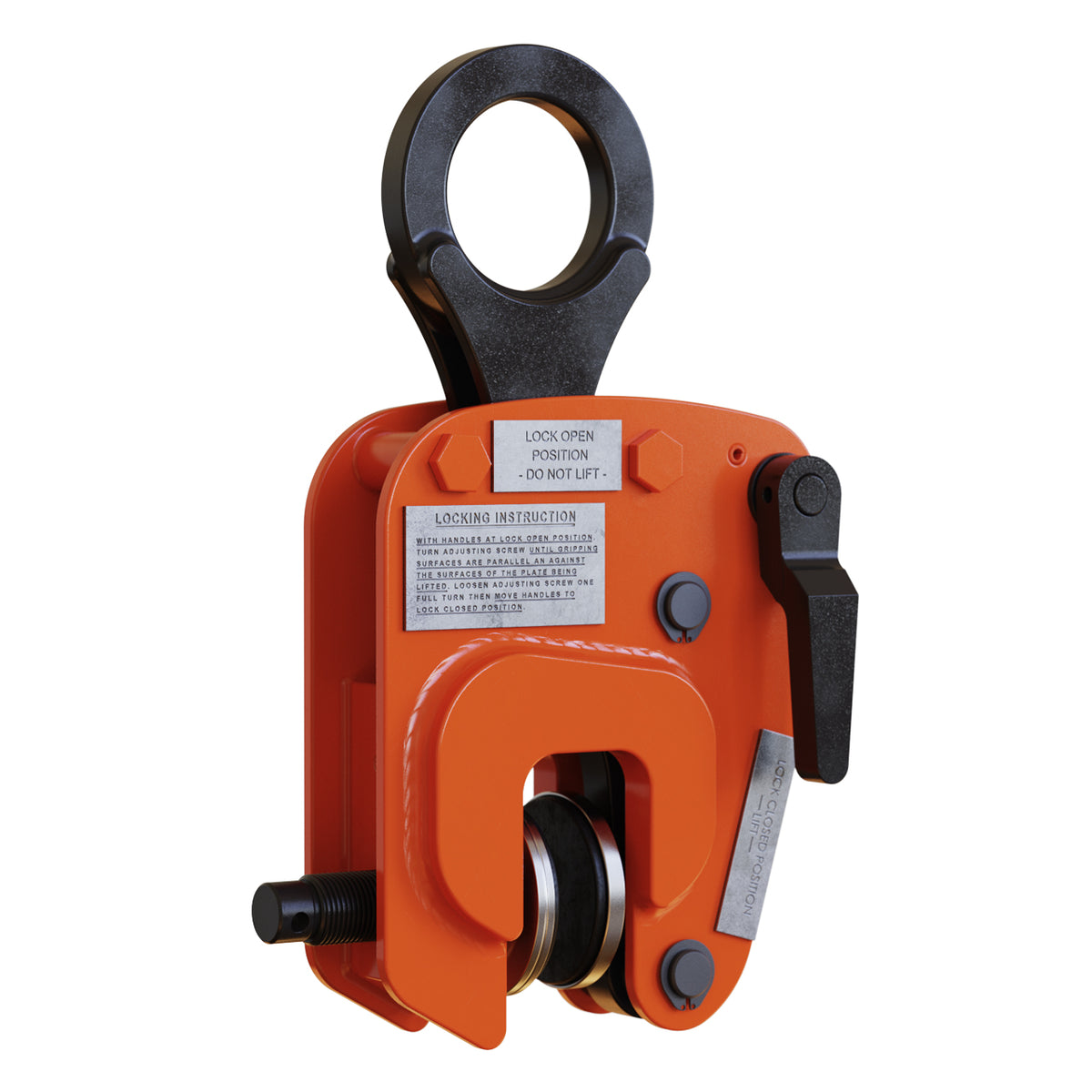

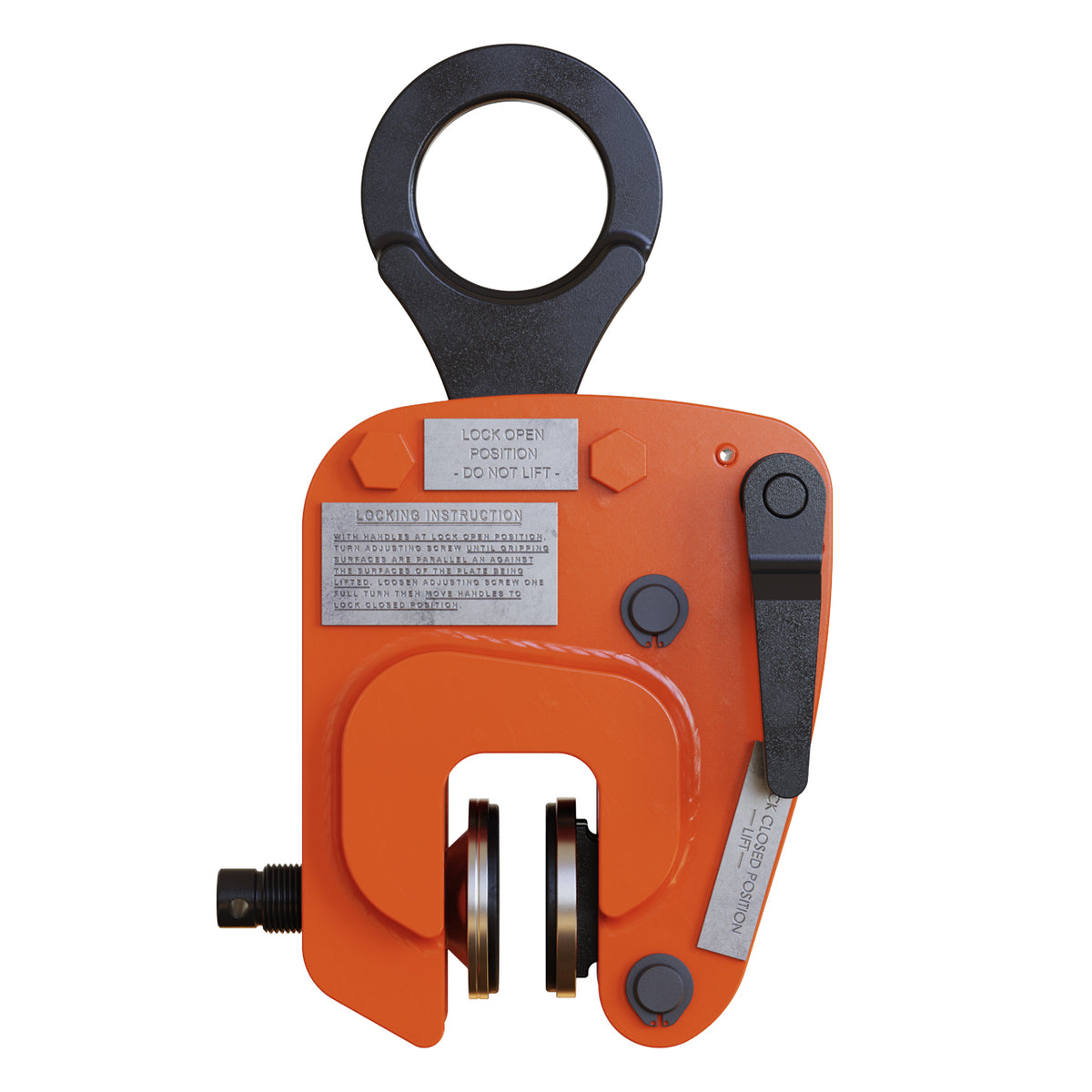

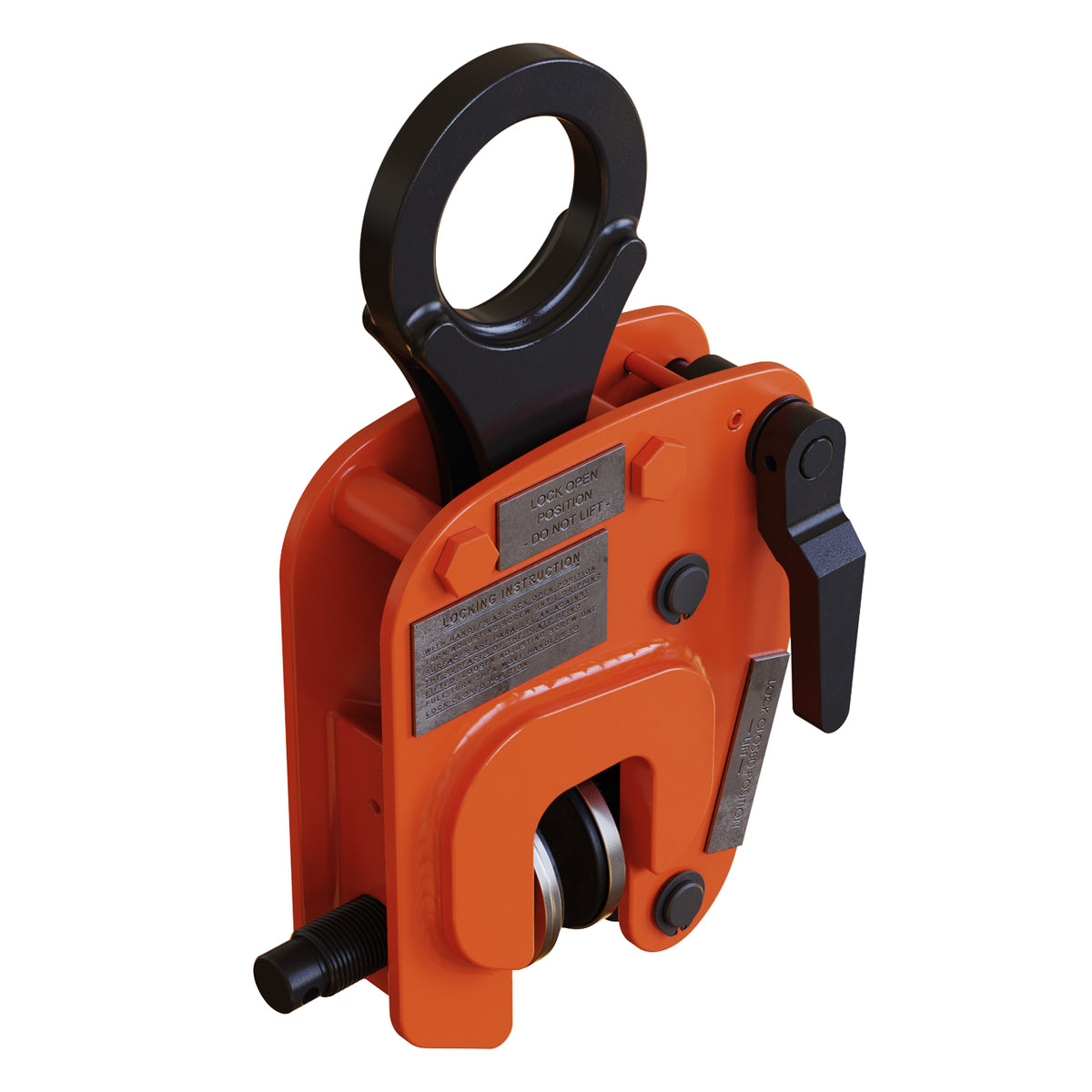

The NMBL Model is used to turn plates from the horizontal through a 180° arc. It is manufactured with smooth gripping surfaces to prevent marring when gripping stainless steel, copper, aluminum, and other polished metal plates. The NMBL incorporates a lock open - lock closed feature to facilitate attaching and removing the clamp from the plate. Recommended for use in pairs.
Features
- Turns plates from horizontal through 180° arc
- Incorporates a Lock Open - Lock Closed feature for easy on & off clamp positioning
- Recommended for use in pairs
- Supplied with smooth gripping surfaces to prevent marring
- Capable of gripping stainless steel, copper, aluminum and other polished metal plates
- Non-marring with 180° turn
- Stainless steel gripping component good for polished surfaces
Specifications
| Bail Opening Diameter | 3 |
Available Models
| Part No. | Capacity (ton) | Capacity | Rated Capacity | Bail Thickness | Clamp Body Height | Clamping Screw Length | Jaw Opening Length | Overall Height | Overall Length | Overall Width | Plate Thickness Max | Temp Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NMBL-02.00-A | 2 | 2 | 4000 | 0.75 | 10.88 | 5.44 | 4.88 | 17.56 | 12.03 | 5.5 | 2 | 31 |
| NMBL-04.00-A | 4 | 4 | 8000 | 1.25 | 16.19 | 8.14 | 7.17 | 23.78 | 6.25 | 8.5 | 1.5 | 126 |
