Caldwell | SKU:
Caldwell-PB-60-PLB

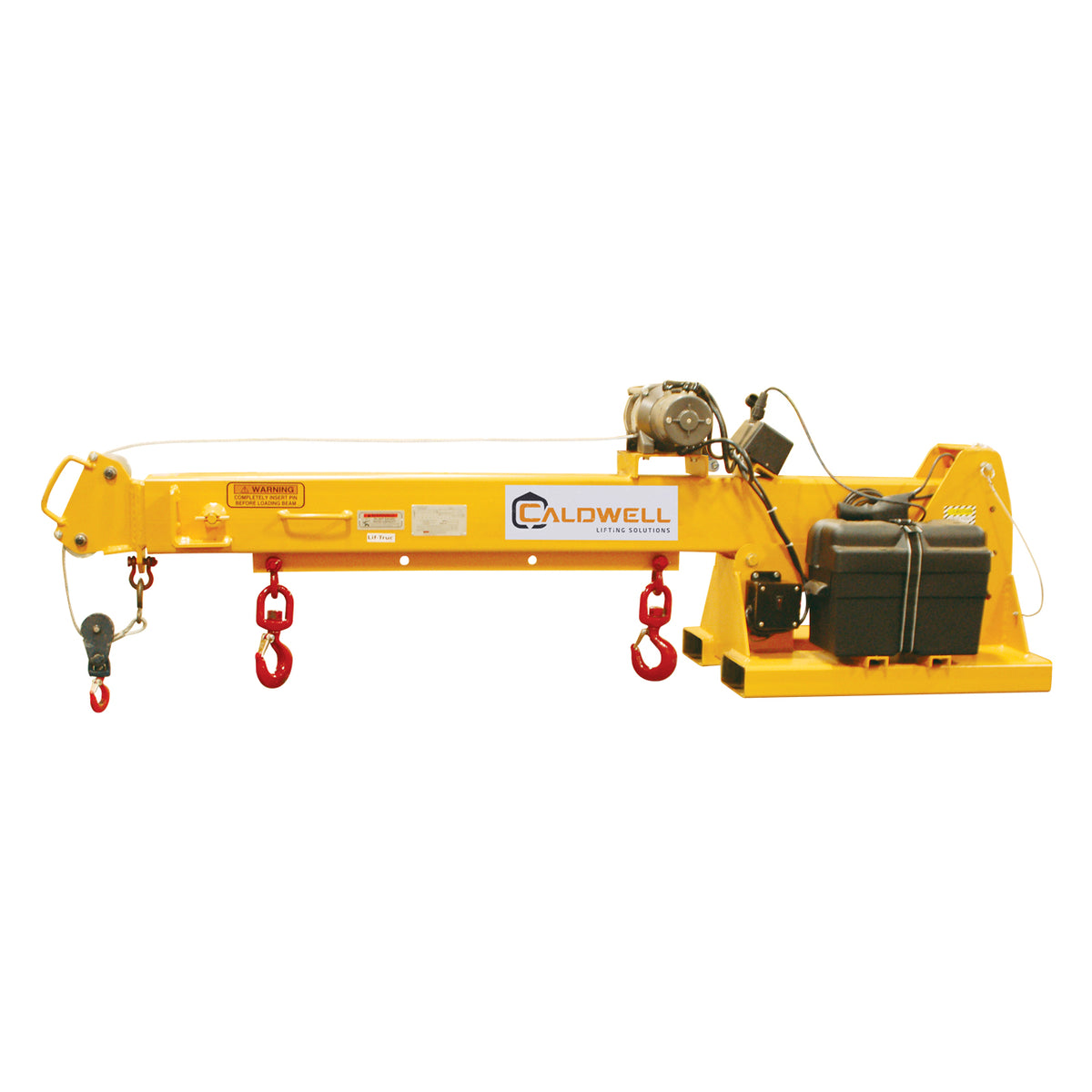

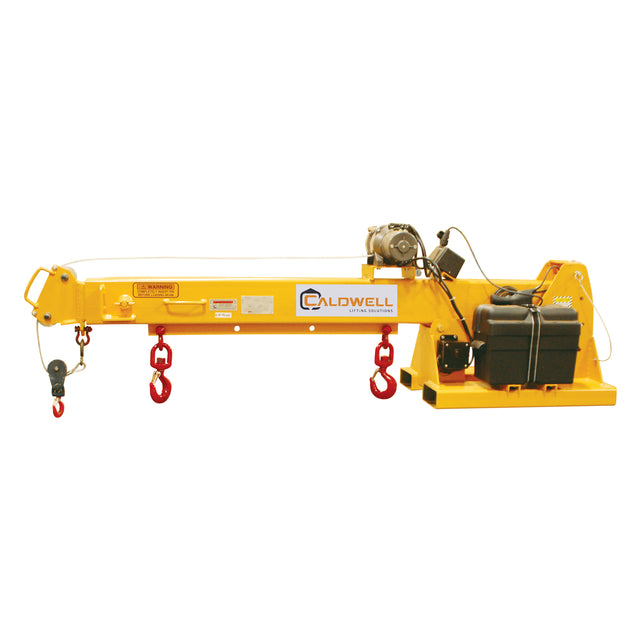

Caldwell Precision Lifting Boom
$20,032.00
Unit price
/
Unavailable
Caldwell Precision Lifting Boom - 6000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Precision Lifting Boom
From
$20,032.00
Unit price
/
Unavailable

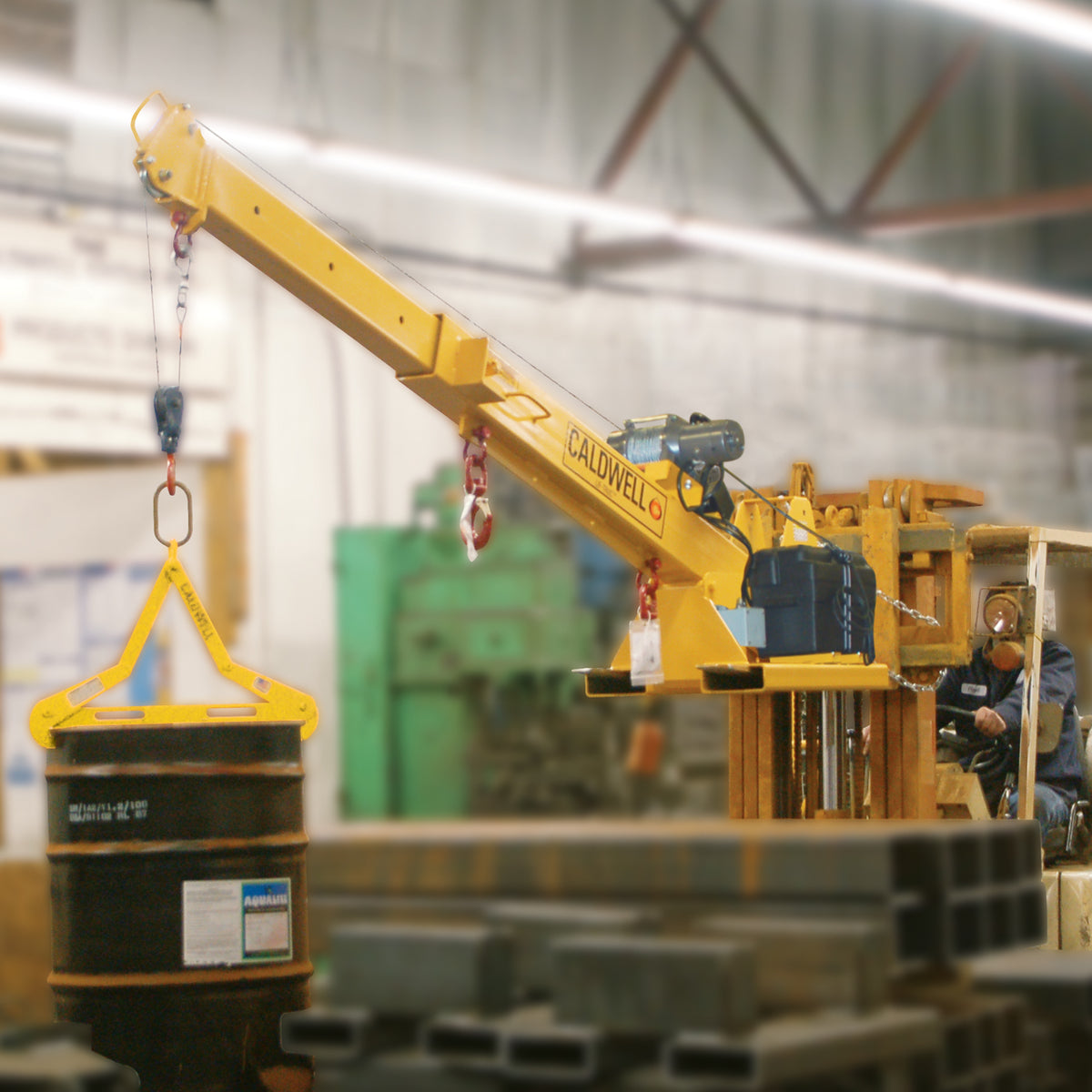

Quickly turns your fork lift into a portable crane. Real time test: Starting with a fully charged battery, the Precision lifting Boom lifts and lowers a 1,000-pound load from an eight-foot steel pit forty times. The battery charges in four to five hours with the supplied charger.
Features
- Portable, compact and versatile lifting
- Fits standard fork lift truck
- Hook travels approximately 20'
- Adjusts both horizontally and vertically
- Restraining chain with grab hooks
- Completely self-contained 12Volt DC power supply
- 100 AMP Hour Battery with charger
- Easy to use toggle button control with standard 12' cord
- Hoist hook speed averages 7.5 FPM
- Capacity of lift truck and attachment combination may be less than capacity shown on attachment; consult lift truck manufacturer for guidance
Specifications
| Capacity at Hook Position 7 12ft | 2400 |
| Capacity at Boom Hook Position 3 6ft | 6000 |
| Capacity at Boom Hook Position 12ft | 2500 |
| Capacity at Boom Hook Position 13ft | 2300 |
| Capacity at Boom Hook Position 14ft | 2100 |
| Capacity at Lifting Hook Position 15ft | 2000 |
| Max Jaw Opening | 1.36 |
| Fork Pocket Height | 2.5 |
| Fork Pocket Width | 7.5 |
| Out to Out | 22.5 |
Available Models
| Part No. | Rated Capacity | Min Height | Headroom | Temp Weight |
|---|---|---|---|---|
| PB-60-PLB | 6000 | 28.25 | 28.25 | 620 |
| FB-60-PLB | 2400 | 26 | 26 | 590 |
