Caldwell | SKU:
Caldwell-23QS-1/2-10

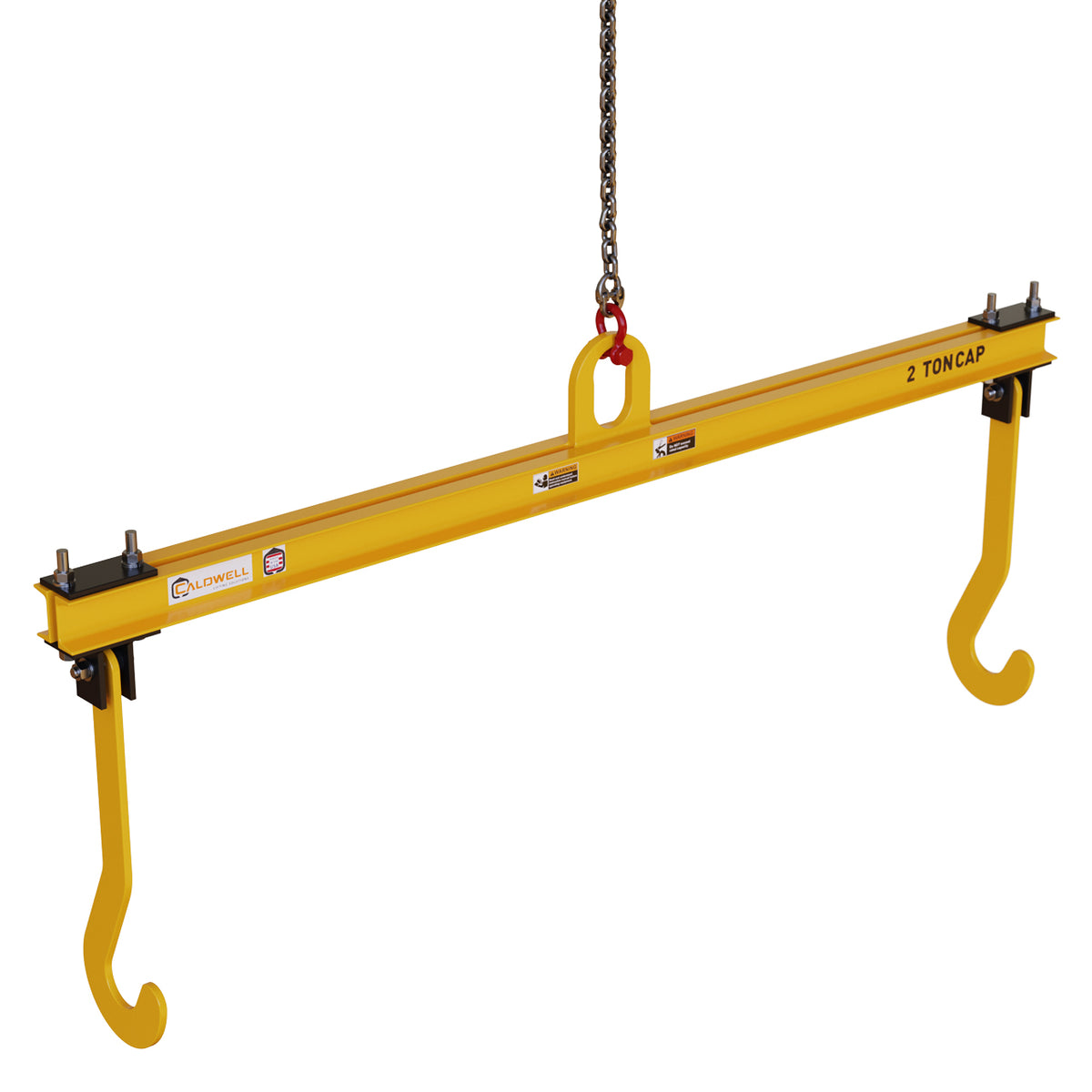

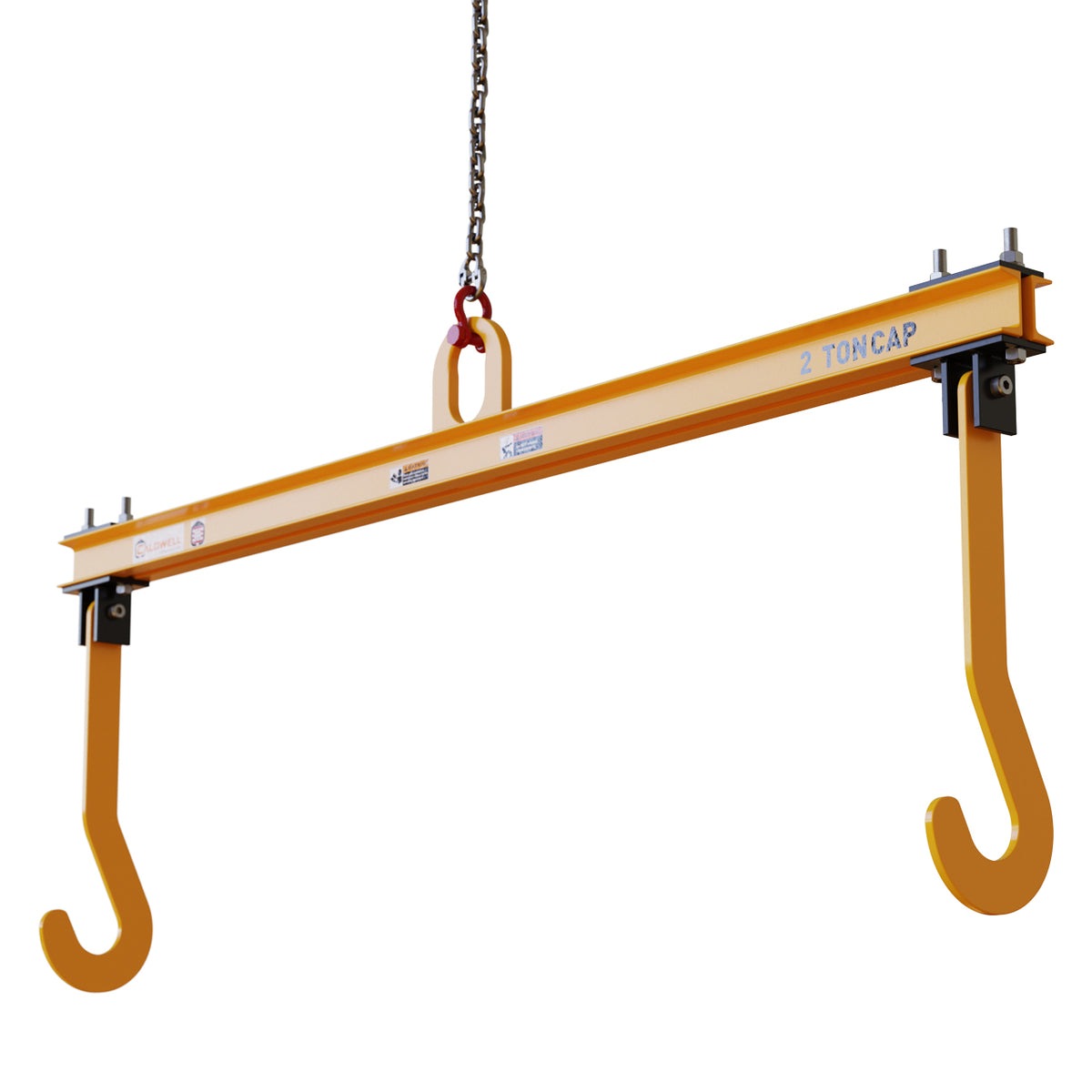

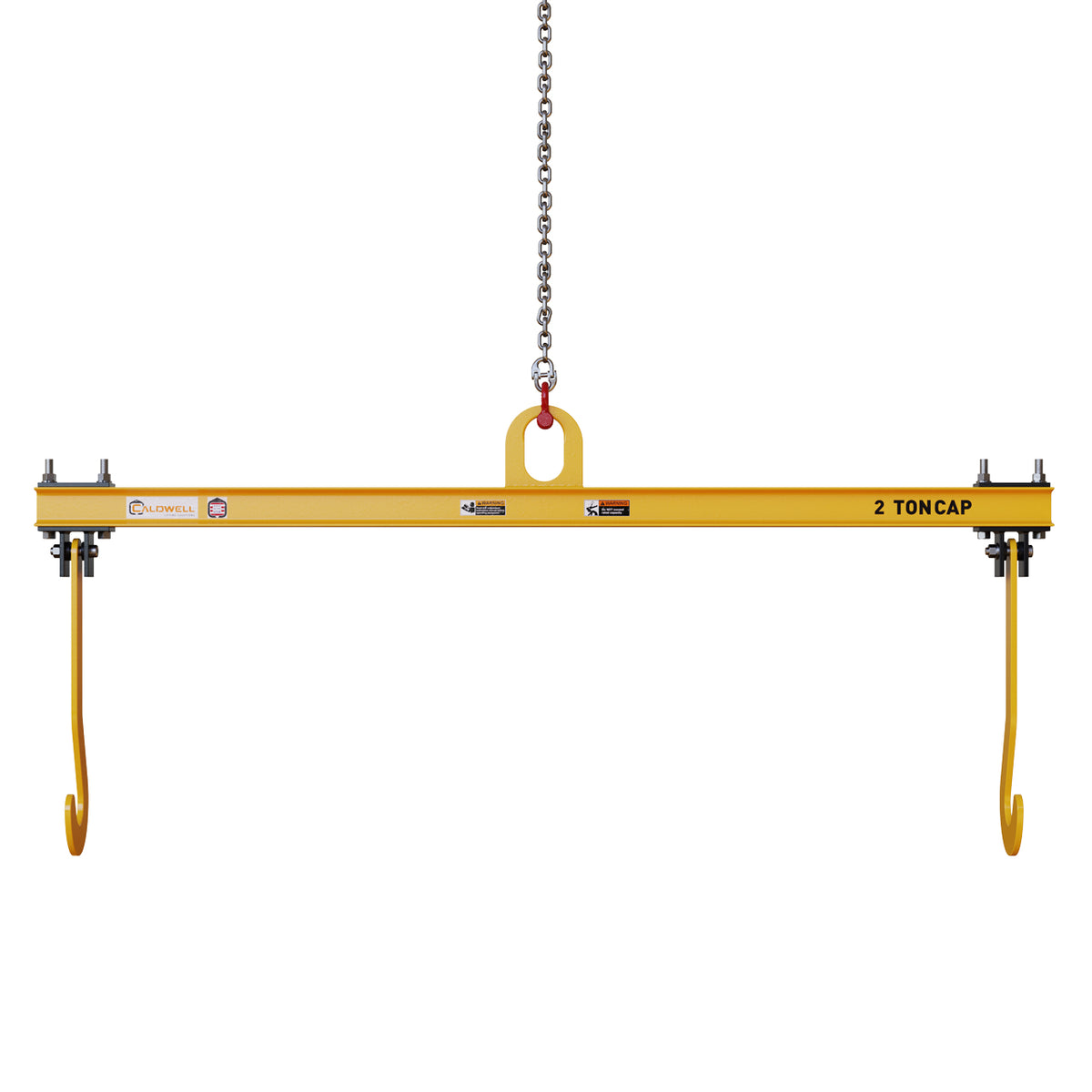

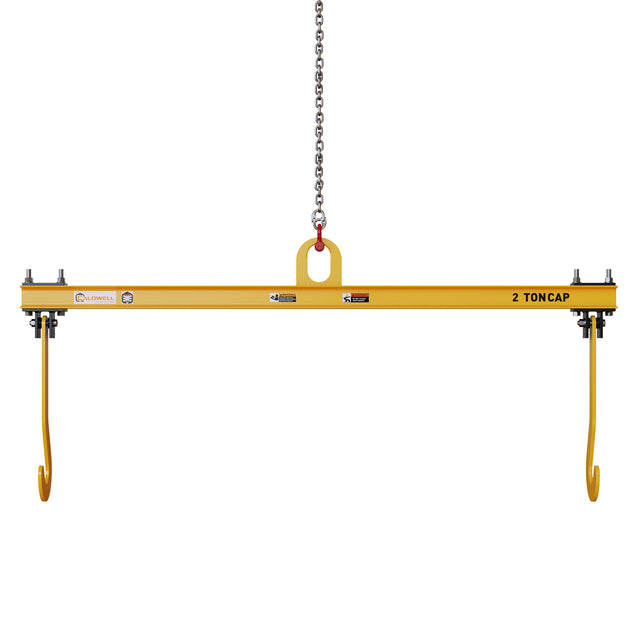

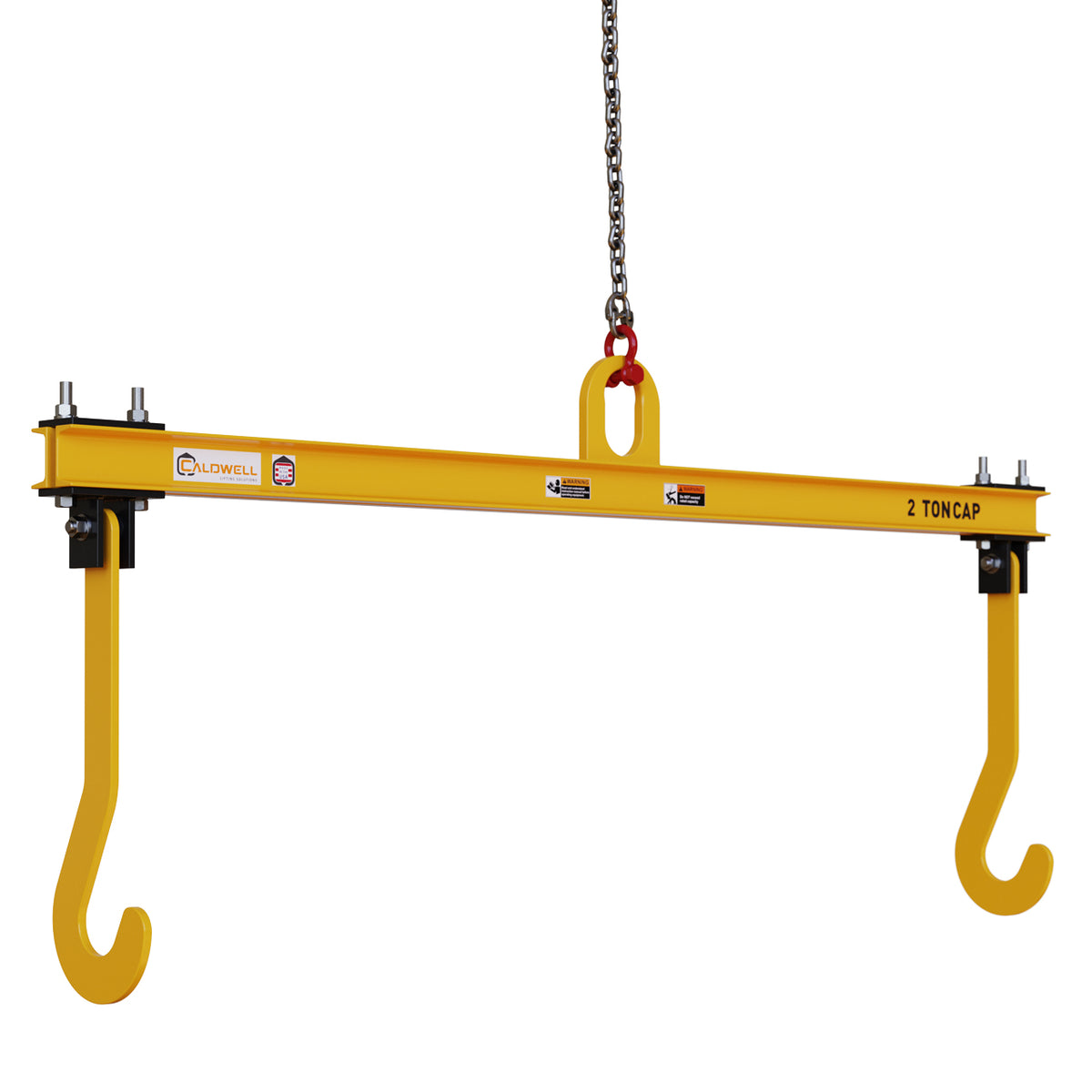

Caldwell QUICKSHIP Roll Lifting Beam
$2,632.00
Unit price
/
Unavailable
Caldwell QUICKSHIP Roll Lifting Beam - 0.5 / 120 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell QUICKSHIP Roll Lifting Beam
From
$1,752.00
Unit price
/
Unavailable

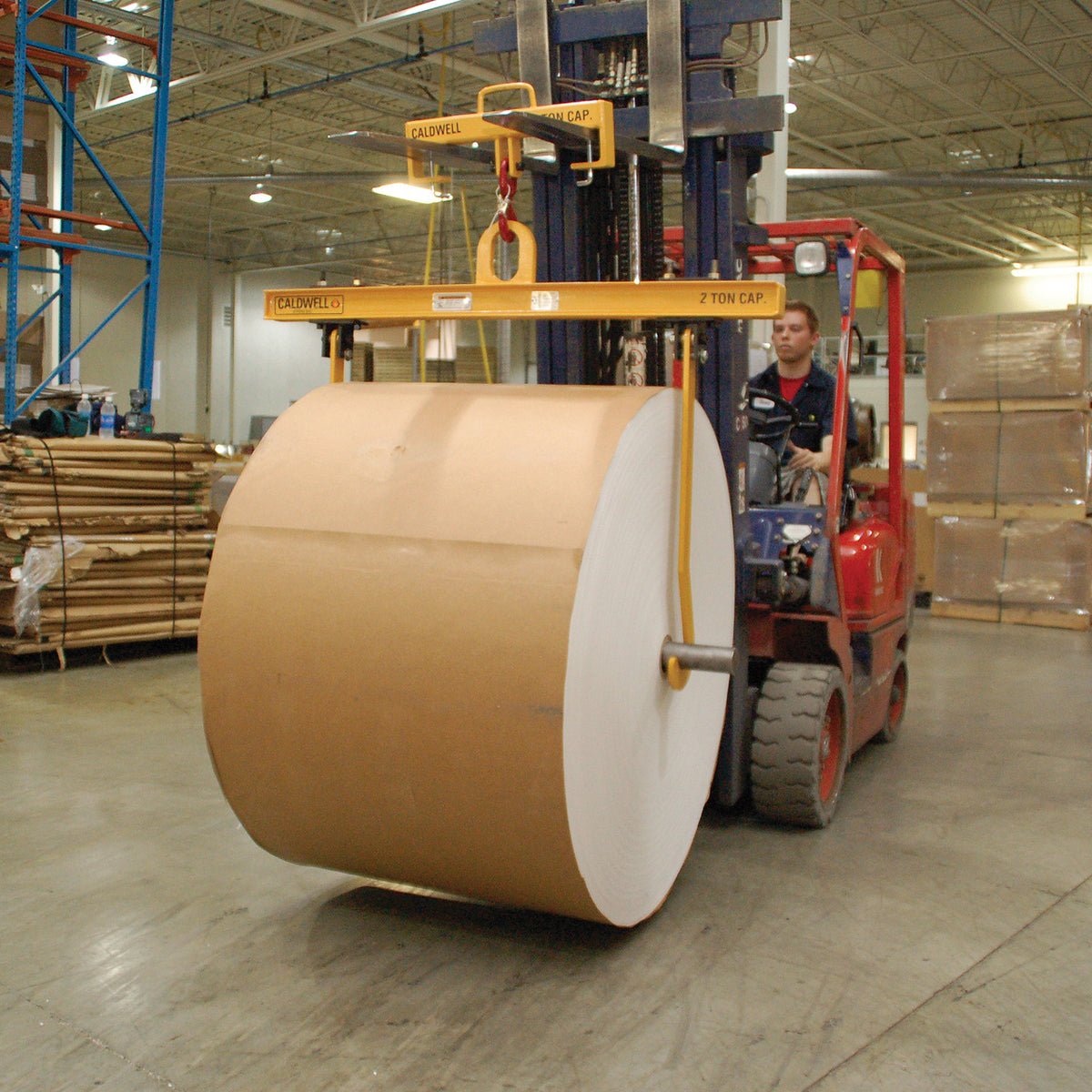

Sometimes the simple designs are the best. This product has been part of the Caldwell assortment for a long time ... and for good reason. It works. You tell us how to cut the J-hooks and choose fixed or pivot. They're fast to set, easy to train, and help material handlers on the shop floor get the job done.
Features
- Standard beam sizes
- J-hooks are custom cut to fit your specific application
- Hooks can be fixed or pivot style
- J-hooks are quickly and infinitely adjustable between minimum and maximum spread
- Complies with ASME standards
Available Models
| Part No. | Capacity | Max Spread | Bail Opening Height | Bail Opening Width | Bail Thickness | Min Spread | Hook Thickness | Bail Depth | Headroom |
|---|---|---|---|---|---|---|---|---|---|
| 23QS-1/2-10 | 0.5 | 120 | 5 | 3 | 0.75 | 24 | 0.5 | 0.875 | 9.5 |
| 23QS-1/2-12 | 0.5 | 144 | 5 | 3 | 0.75 | 24 | 0.5 | 0.875 | 9.5 |
| 23QS-1/2-3 | 0.5 | 36 | 5 | 3 | 0.75 | 12 | 0.5 | 0.875 | 8.5 |
| 23QS-1/2-4 | 0.5 | 48 | 5 | 3 | 0.75 | 12 | 0.5 | 0.875 | 8.5 |
| 23QS-1/2-6 | 0.5 | 72 | 5 | 3 | 0.75 | 12 | 0.5 | 0.875 | 8.5 |
| 23QS-1/2-8 | 0.5 | 96 | 5 | 3 | 0.75 | 24 | 0.5 | 0.875 | 8.5 |
| 23QS-1-10 | 1 | 120 | 5 | 3 | 0.75 | 24 | 0.5 | 0.875 | 10.5 |
| 23QS-1-12 | 1 | 144 | 5 | 3 | 0.75 | 24 | 0.5 | 0.875 | 10.5 |
| 23QS-1-3 | 1 | 36 | 5 | 3 | 0.75 | 12 | 0.5 | 0.875 | 8.5 |
| 23QS-1-4 | 1 | 48 | 5 | 3 | 0.75 | 12 | 0.5 | 0.875 | 8.5 |
| 23QS-1-6 | 1 | 72 | 5 | 3 | 0.75 | 12 | 0.5 | 0.875 | 9.5 |
| 23QS-1-8 | 1 | 96 | 5 | 3 | 0.75 | 24 | 0.5 | 0.875 | 9.5 |
| 23QS-2-10 | 2 | 120 | 5 | 3 | 0.75 | 24 | 0.5 | 0.875 | 12.5 |
| 23QS-2-12 | 2 | 144 | 5 | 3 | 0.75 | 24 | 0.5 | 0.875 | 12.5 |
| 23QS-2-3 | 2 | 36 | 5 | 3 | 0.75 | 12 | 0.5 | 0.875 | 9.5 |
| 23QS-2-4 | 2 | 48 | 5 | 3 | 0.75 | 12 | 0.5 | 0.875 | 9.5 |
| 23QS-2-6 | 2 | 72 | 5 | 3 | 0.75 | 12 | 0.5 | 0.875 | 10.5 |
| 23QS-2-8 | 2 | 96 | 5 | 3 | 0.75 | 24 | 0.5 | 0.875 | 11.5 |
| 23QS-3-10 | 3 | 120 | 5 | 3 | 1 | 24 | 0.75 | 1.5 | 13.5 |
| 23QS-3-12 | 3 | 144 | 5 | 3 | 1 | 24 | 0.75 | 1.5 | 13.5 |
| 23QS-3-3 | 3 | 36 | 5 | 3 | 1 | 12 | 0.75 | 1.5 | 10.5 |
| 23QS-3-4 | 3 | 48 | 5 | 3 | 1 | 12 | 0.75 | 1.5 | 10.5 |
| 23QS-3-6 | 3 | 72 | 5 | 3 | 1 | 24 | 0.75 | 1.5 | 11.5 |
| 23QS-3-8 | 3 | 96 | 5 | 3 | 1 | 24 | 0.75 | 1.5 | 12.5 |
| 23QS-5-10 | 5 | 120 | 7 | 4 | 1 | 24 | 1 | 2 | 17.5 |
| 23QS-5-12 | 5 | 144 | 7 | 4 | 1 | 24 | 1 | 2 | 19.5 |
| 23QS-5-3 | 5 | 36 | 7 | 4 | 1 | 24 | 1 | 2 | 13.5 |
| 23QS-5-4 | 5 | 48 | 7 | 4 | 1 | 24 | 1 | 2 | 14.5 |
| 23QS-5-6 | 5 | 72 | 7 | 4 | 1 | 24 | 1 | 2 | 15.5 |
| 23QS-5-8 | 5 | 96 | 7 | 4 | 1 | 24 | 1 | 2 | 17.5 |
