Caldwell | SKU:
Caldwell-RR-5R
Caldwell Radio-Controlled Rig-Release Hook
$11,413.00
Unit price
/
Unavailable
Caldwell Radio-Controlled Rig-Release Hook - 10000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Radio-Controlled Rig-Release Hook
From
$10,167.00
Unit price
/
Unavailable

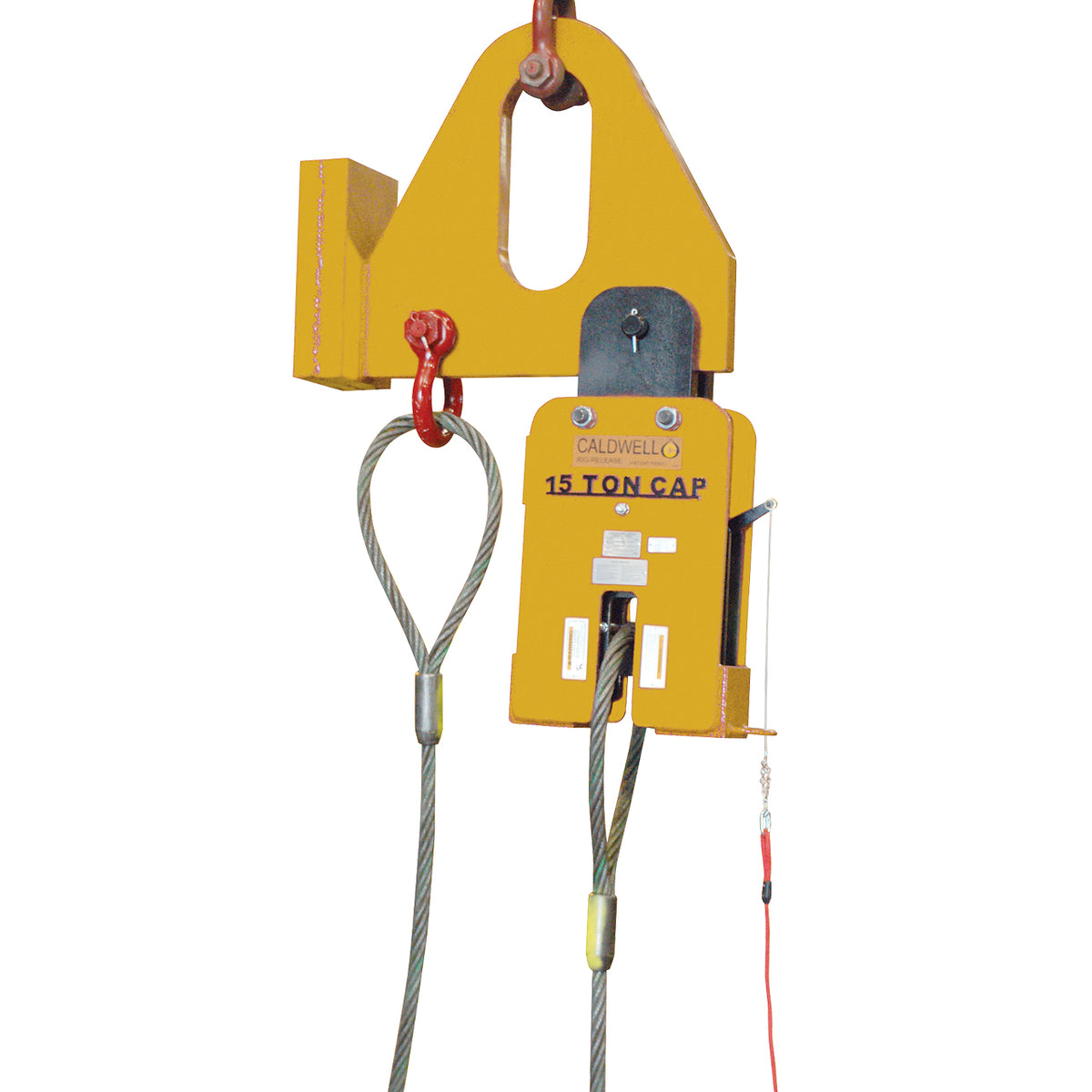

When you need even more lifting power, the Extended Capacity Rig-Release® Hook is ready to go. Choose from a 10-ton Remote Controlled unit or a 20- or 30-ton Manual Unit for the big jobs.
Features
- Allows rigging to be released from a safe distance with the push of a button
- For basket hitch only
- Designed for rugged outdoor use
- Easy to use - simply rig, lift, set, and release
- 20 or 30 ton capacity manual release units
- LOCK & CAPTURE feature engages with very little load weight
- 10 ton capacity radio controlled release units
- Includes two 12 VDC .8 Amp Hr. sealed maintenance free lead acid batteries (rechargeable)
- Includes one charger, and one vehicle adapter for standard 12 VDC vehicle outlets
- Oversized bail for easy mounting on crane hook
- Battery life lasts through an 8 hour shift, depending on frequency of operation
- Counter balanced to hang level
- Minimum required cycle time is 1-2 minutes between releases
- Designed and manufactured to ASME standards
- Oversized bail for easy mounting on crane hook, 5 ton unit provided with fixed bail
Specifications
| Rope Opening Max Width | 1.5 |
Available Models
| Part No. | Rated Capacity | Capacity | Bail Opening Height | Bail Opening Width | Bail Thickness | Max Jaw Opening | Support Width | Unit Max Height with Bail | Unit Max Thickness | Unit Max Width with Bail | Wire Rope Opening | Bail Depth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RR-5R | 10000 | 5 | 7 | 4 | 1.25 | 1.36 | 0.88 | 36.4 | 5 | 11.13 | 1.83 | 2 |
| RR-10R-EC | 20000 | 10 | 7 | 4 | 1.25 | — | — | — | — | — | — | 2 |
| RR-2.5R | 5000 | 2.5 | 6 | 3 | 0.63 | 1.09 | 0.63 | 31.15 | 4.25 | 9.56 | 1.75 | 0.63 |
