Caldwell | SKU:
Caldwell-10S-2-20

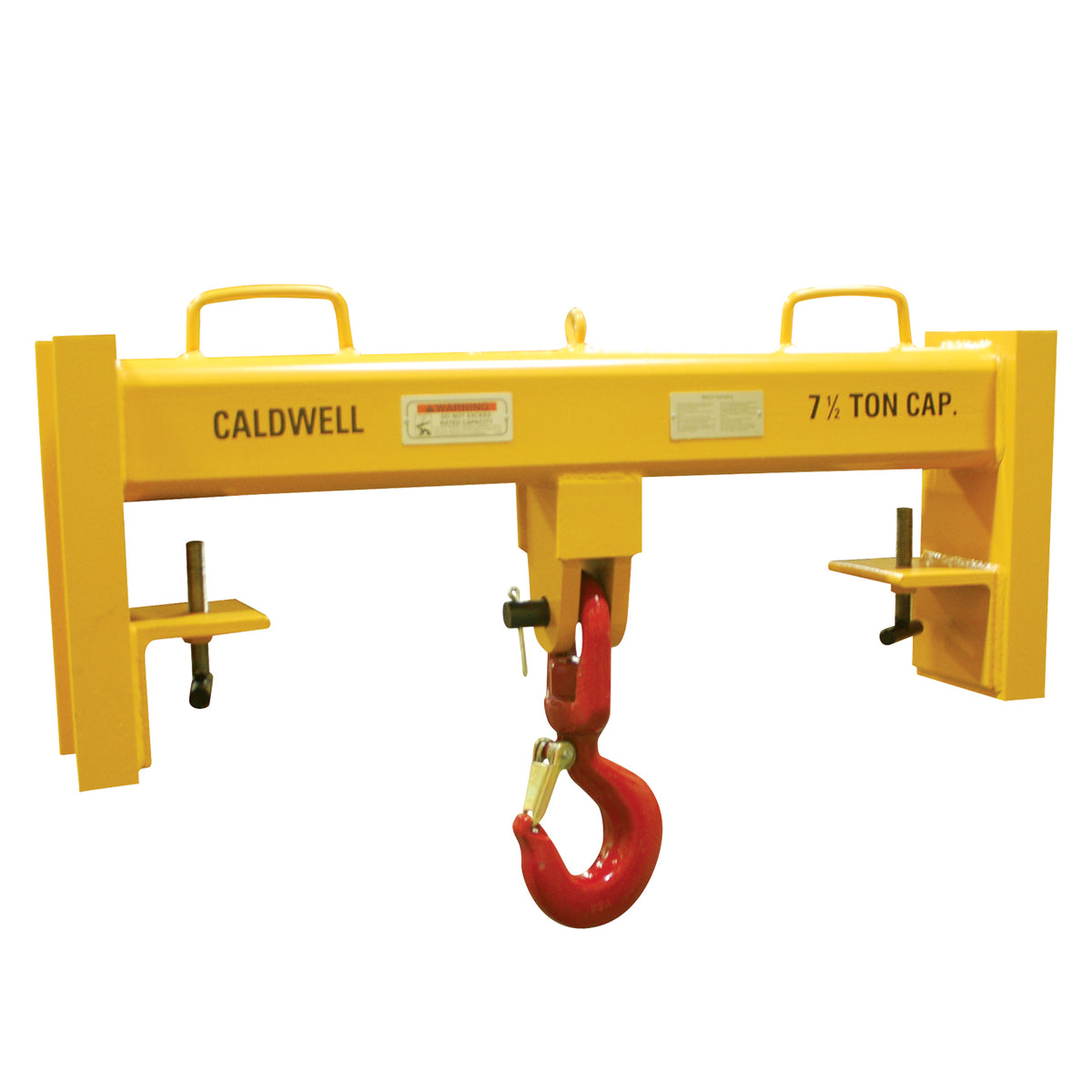

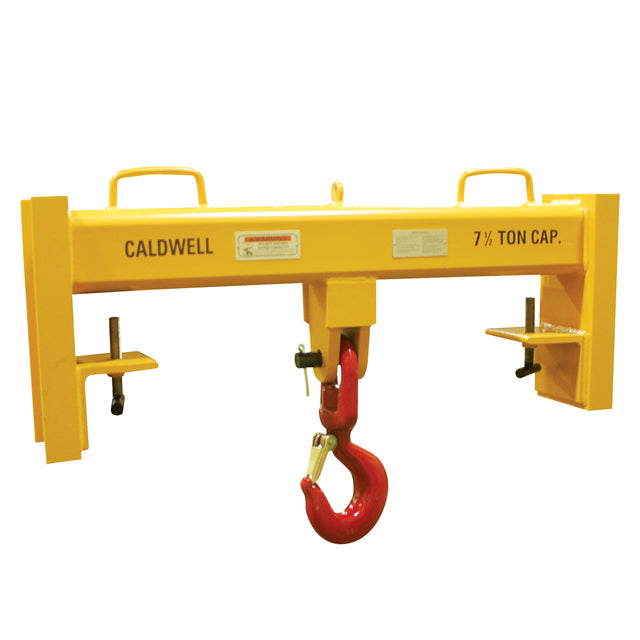

Caldwell Single Hook Beam Swivel
$524.00
Unit price
/
Unavailable
Caldwell Single Hook Beam Swivel - 2 / 20 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Single Hook Beam Swivel
From
$524.00
Unit price
/
Unavailable
Caldwell Fork Lift Beams are specifically designed to make fork lifts more versatile by providing positive handling of loads otherwise impractical for fork lifts.
Features
- Includes a swivel hook
- Easy attachment, no special wrenches or tools needed
- Strong, sturdy, all-welded construction
- Easy to use, highly visible yellow paint
- Custom designs available
- Unit with <a href="http://enterprise.caldwell.local/products/lif-truc/fork-beams/model-10f">Fixed Hook</a> also available
Available Models
| Part No. | Capacity (ton) | Out to Out | Capacity | Rated Capacity | Max Fork Thickness | Max Jaw Opening | Fixed Hook Headroom | Hook Depth | Weight | Temp Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 10S-2-20 | 2 | 20 | 2 | 4000 | 3.25 | 1.16 | 8.88 | 9.13 | 21 | 21 |
| 10S-5-24 | 5 | 24 | 5 | 10000 | 3.25 | 1.69 | 11.44 | 10.75 | 44 | 42 |
| 10S-5-36 | 5 | 36 | 5 | 10000 | 3.25 | 1.69 | 11.44 | 16.75 | 70.871 | 80 |
| 10S-7.5-36 | 7.5 | 36 | 7.5 | 15000 | 4.25 | 2.22 | 15.75 | 16.25 | 140 | 166 |
| 10S-10-36 | 10 | 36 | 10 | 20000 | 4.25 | 2.41 | 16.44 | 16 | 173 | 180 |
| 10S-15-36 | 15 | 36 | 15 | 30000 | 4.25 | 2.41 | 16.44 | 15.88 | 173 | 210 |
