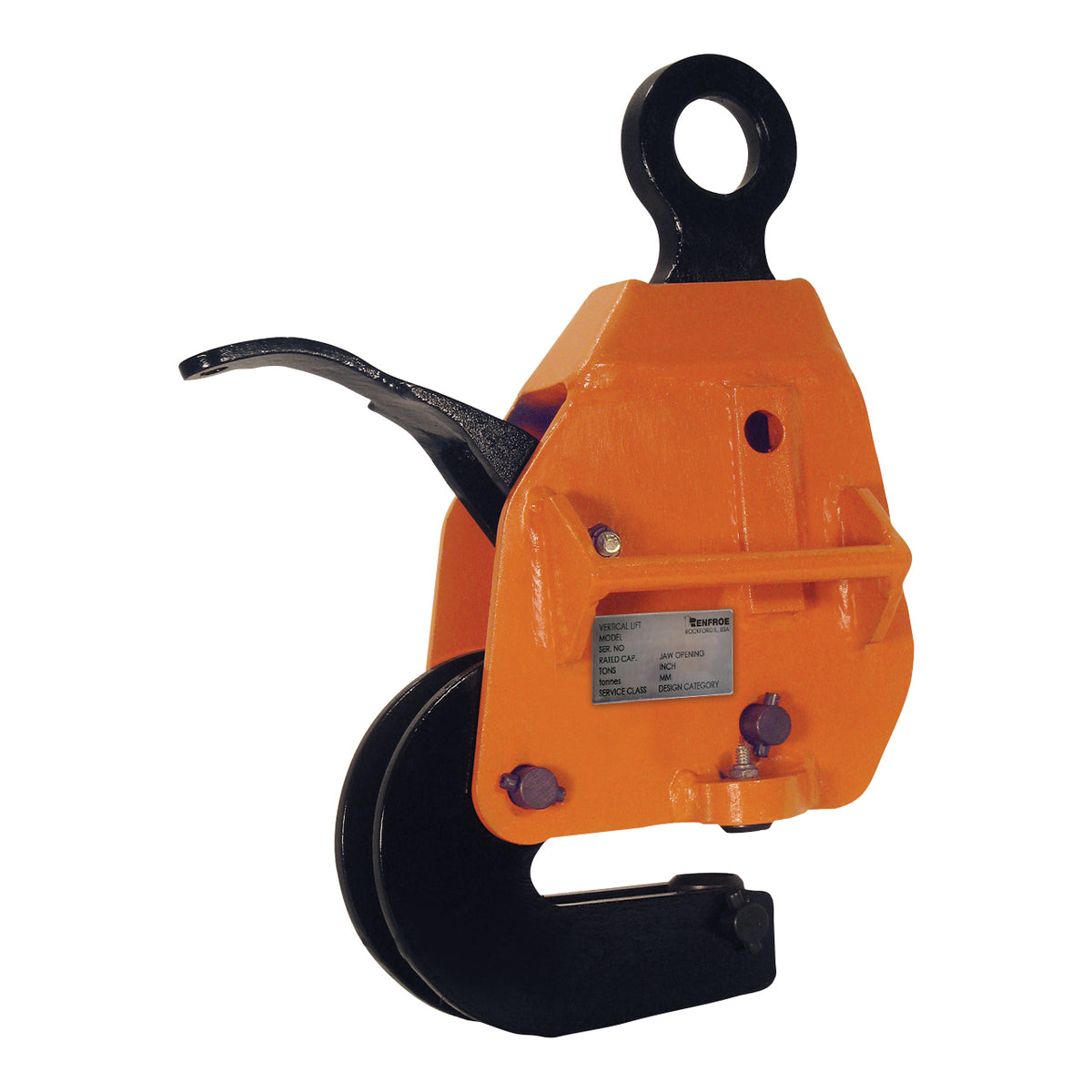

Caldwell Structural Beam Erection Clamp

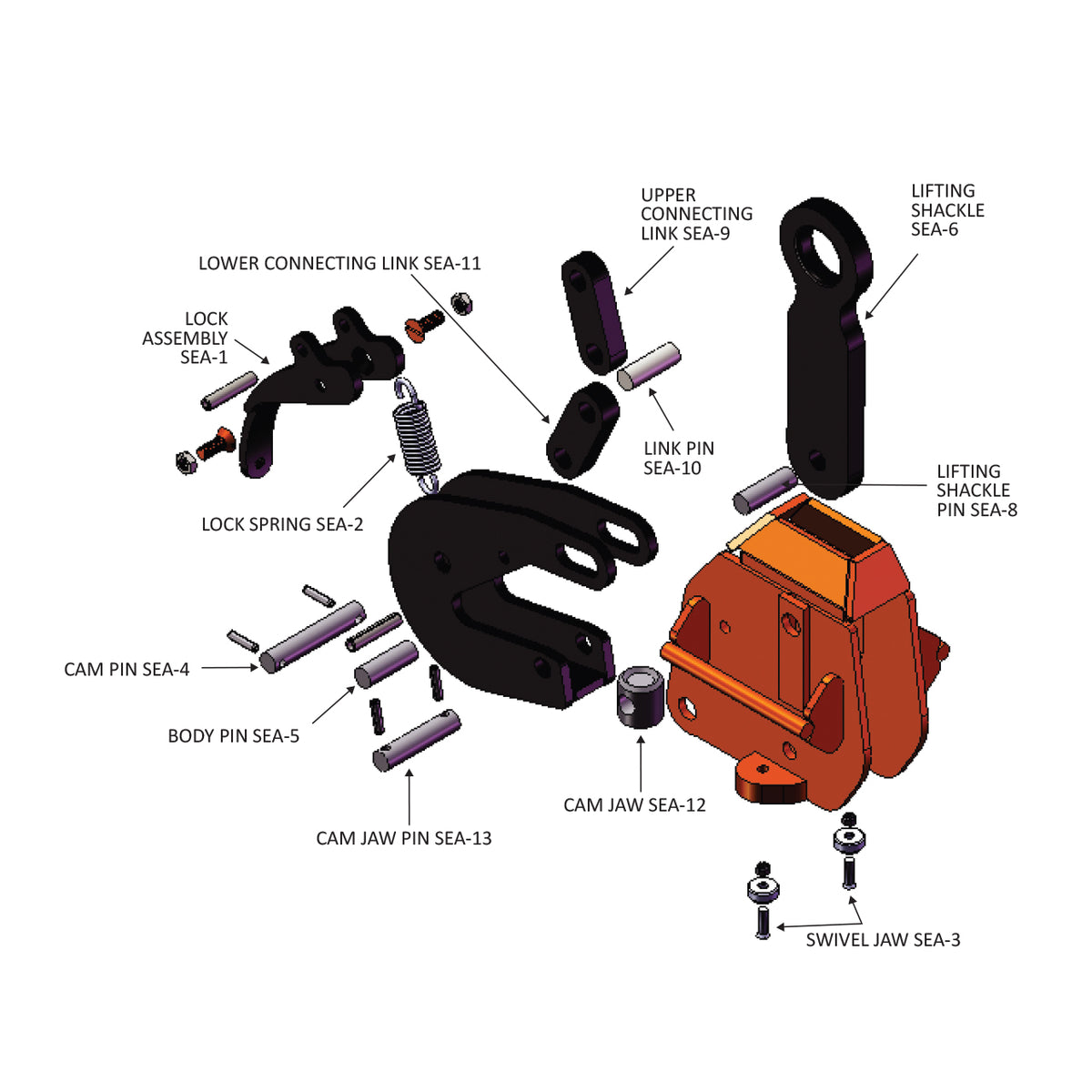

The Model SEA is a clamp used primarily for erection of structural beams. Configuration of the lower hook assembly and the over center position of the shackle permits a clamp to grip closer to the beam web, stabilizing the load and holding it with the web near horizontal for easy alignment of bolt holes. The clamp incorporates a “Lock Open” and “Lock Closed” feature which facilitates in attaching and removing the clamp from the beam.
Features
- Designed primarily for the steel erection of structural beams
- Configured specifically to grip closer to the beams web to stablize the load
- Permits easy alignment for bolt holes
- Incorporates the Lock Open & Lock Closed feature
Available Models
| Part No. | Capacity | Clamp Height | Rated Capacity | Shackle Hole Diameter | Clamp Length | Max Flange Width | Min Flange Width | Clamp Width | Max Jaw Opening | Overall Clamp Height | Min Jaw Opening | Temp Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SEA-01.00-A | 1 | 11.31 | 2000 | 1.12 | 9.25 | 8 | 3 | 5.88 | 0.75 | 17.12 | — | 22 |
| SEA-02.00-A | 2 | 17.5 | 4000 | 1.5 | 14.12 | 12 | 5 | 6.88 | 1 | 21.5 | — | 73 |
| SEA-04.00-A | 4 | 19.75 | 8000 | 1.75 | 17.88 | 14 | 7 | 8.69 | 1 | 27.5 | — | 116 |
| SEA-04.00-B | 4 | 20.5 | 8000 | 1.75 | 17.88 | 14 | 7 | 8.69 | 1.75 | 28.25 | 0.75 | 120 |
| SEA-08.00-A | 8 | 25.5 | 16000 | 2 | 21.5 | 20 | 10 | 9.75 | 1.5 | 31 | — | 200 |
| SEA-08.00-B | 8 | 26.5 | — | 2 | 21.5 | 20 | 10 | 9.75 | 2.5 | 32 | 1 | 204 |
| SEA-15.00-A | 15 | 31 | — | 3.75 | 21.5 | 20 | 10 | 10.75 | 2.25 | 41.5 | 0.75 | 343 |
| SEA-15.00-B | 15 | 32.25 | — | 3.75 | 21.5 | 20 | 10 | 10.75 | 3.5 | 42.75 | 2 | 345 |
