Caldwell | SKU:
Caldwell-FB-30
Caldwell Telescopic Fork Lift Booms
$2,408.00
Unit price
/
Unavailable
Caldwell Telescopic Fork Lift Booms - 3000 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This product is available but requires more information!
Call (405) 672-0531 or fill out the form for custom pricing:
Caldwell Telescopic Fork Lift Booms
From
$2,408.00
Unit price
/
Unavailable

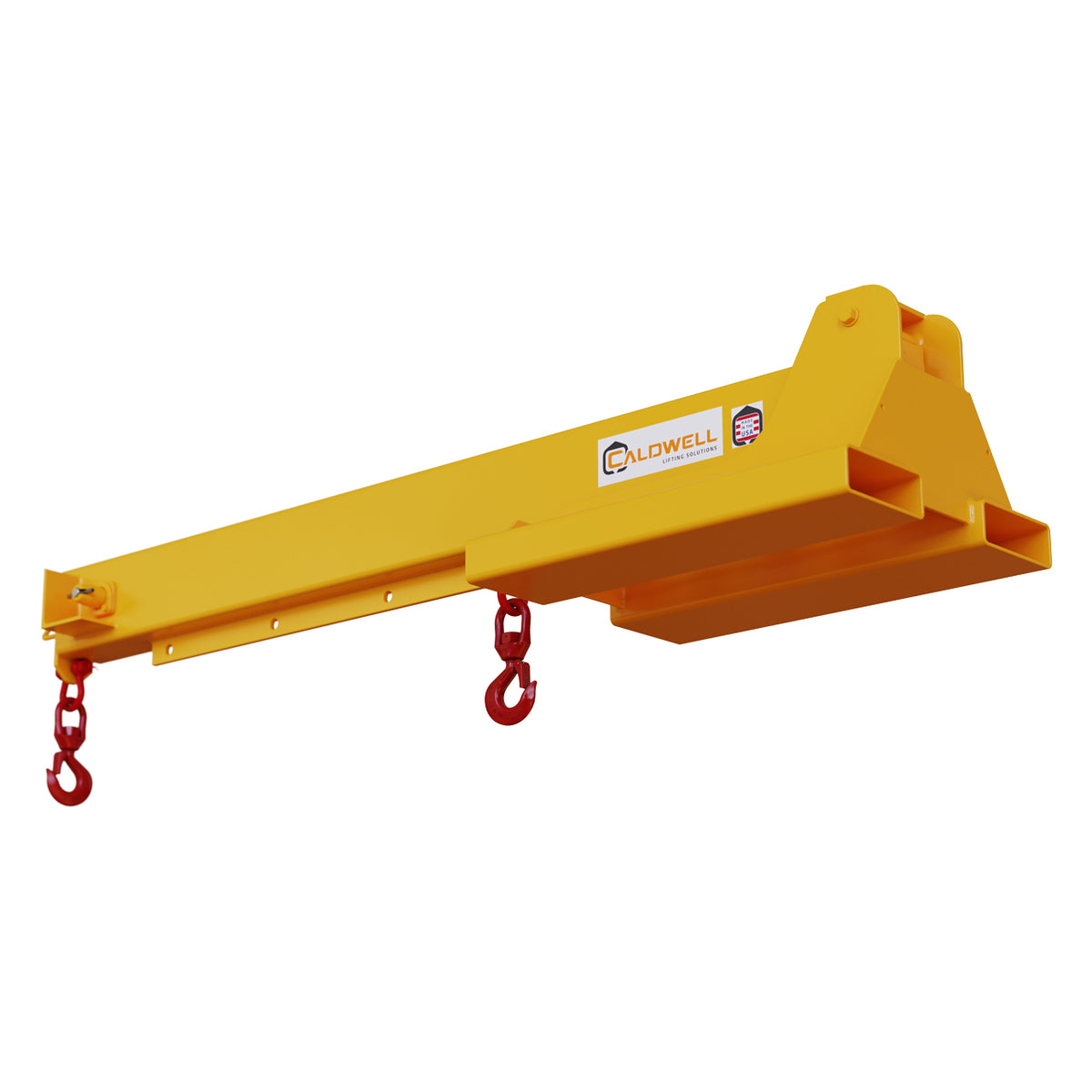

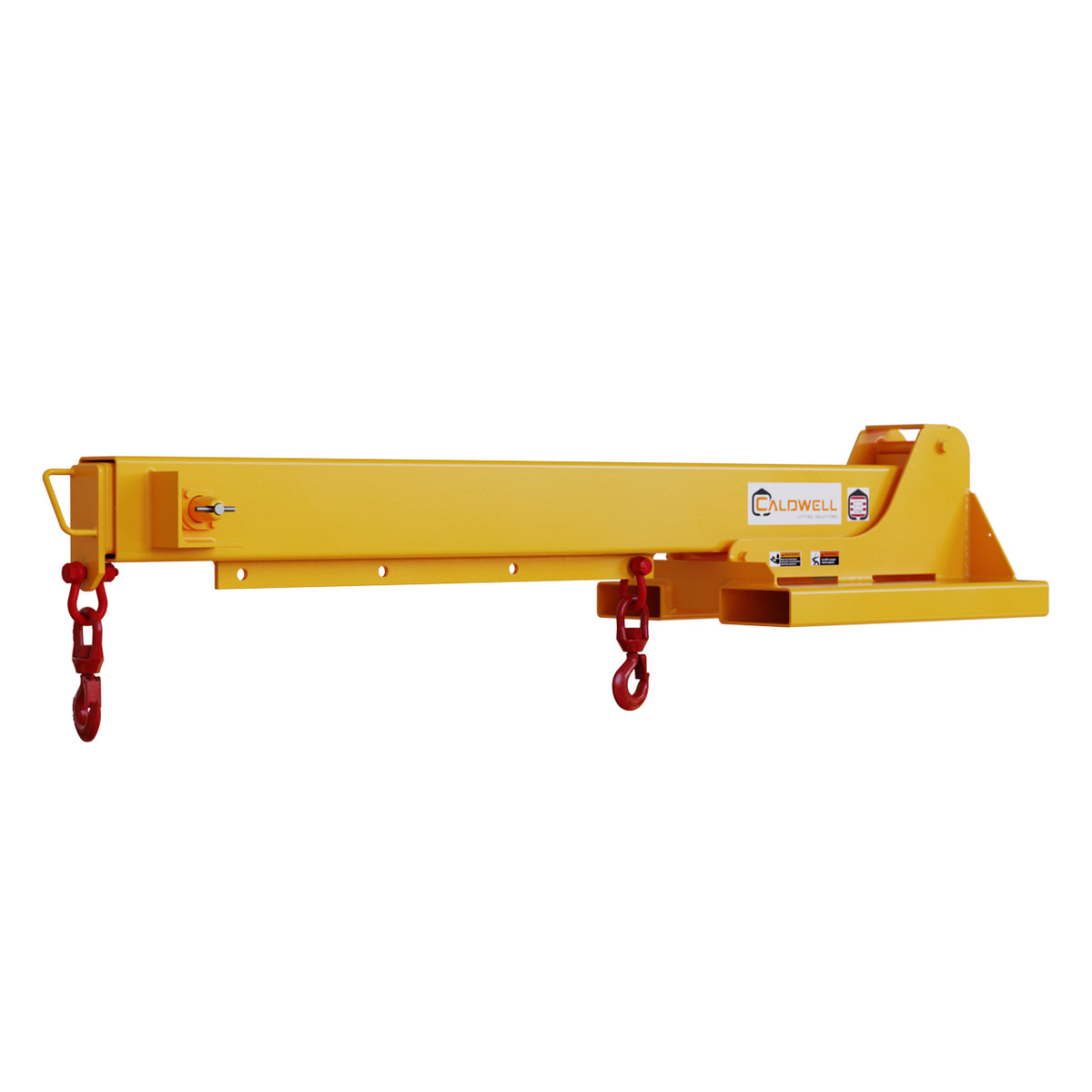

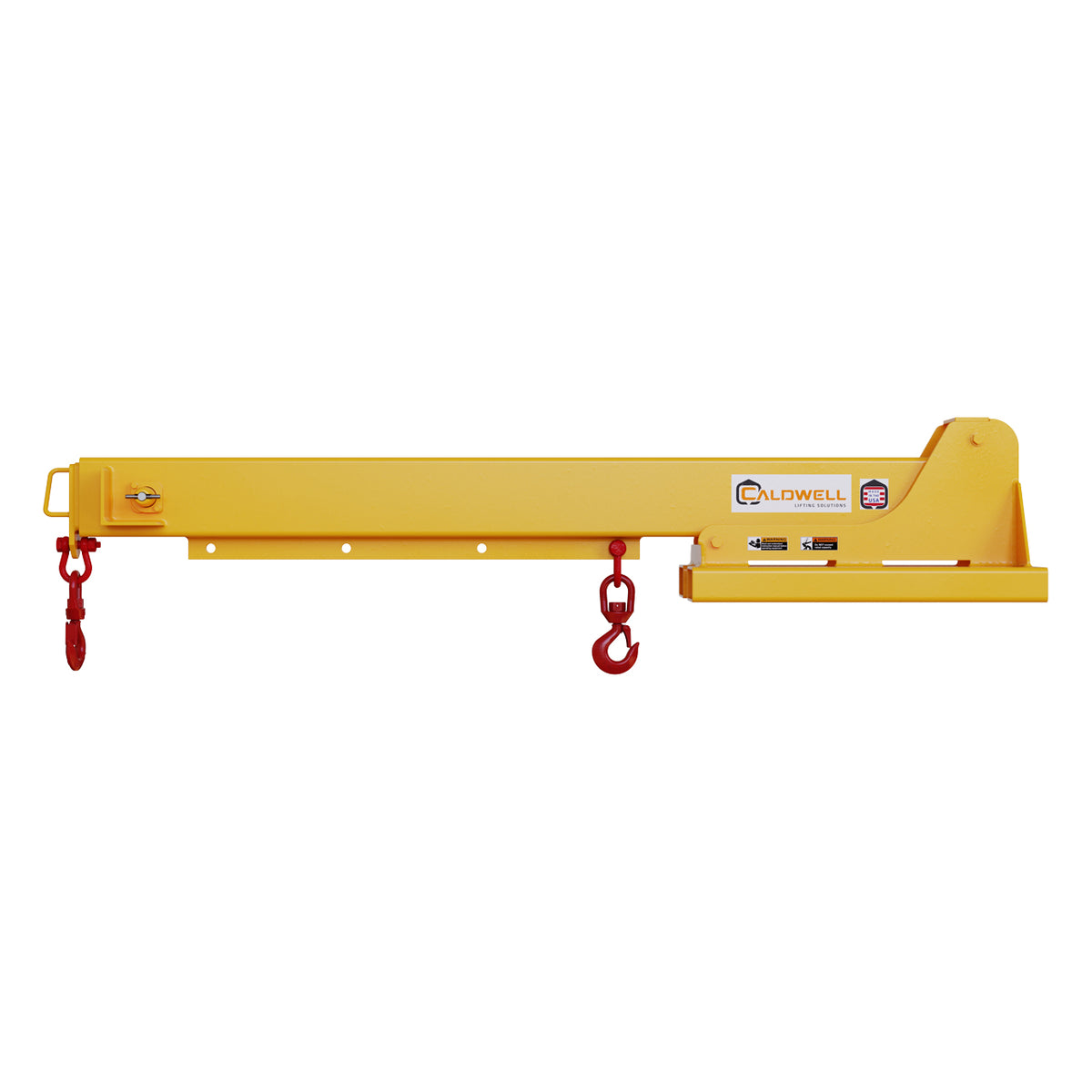

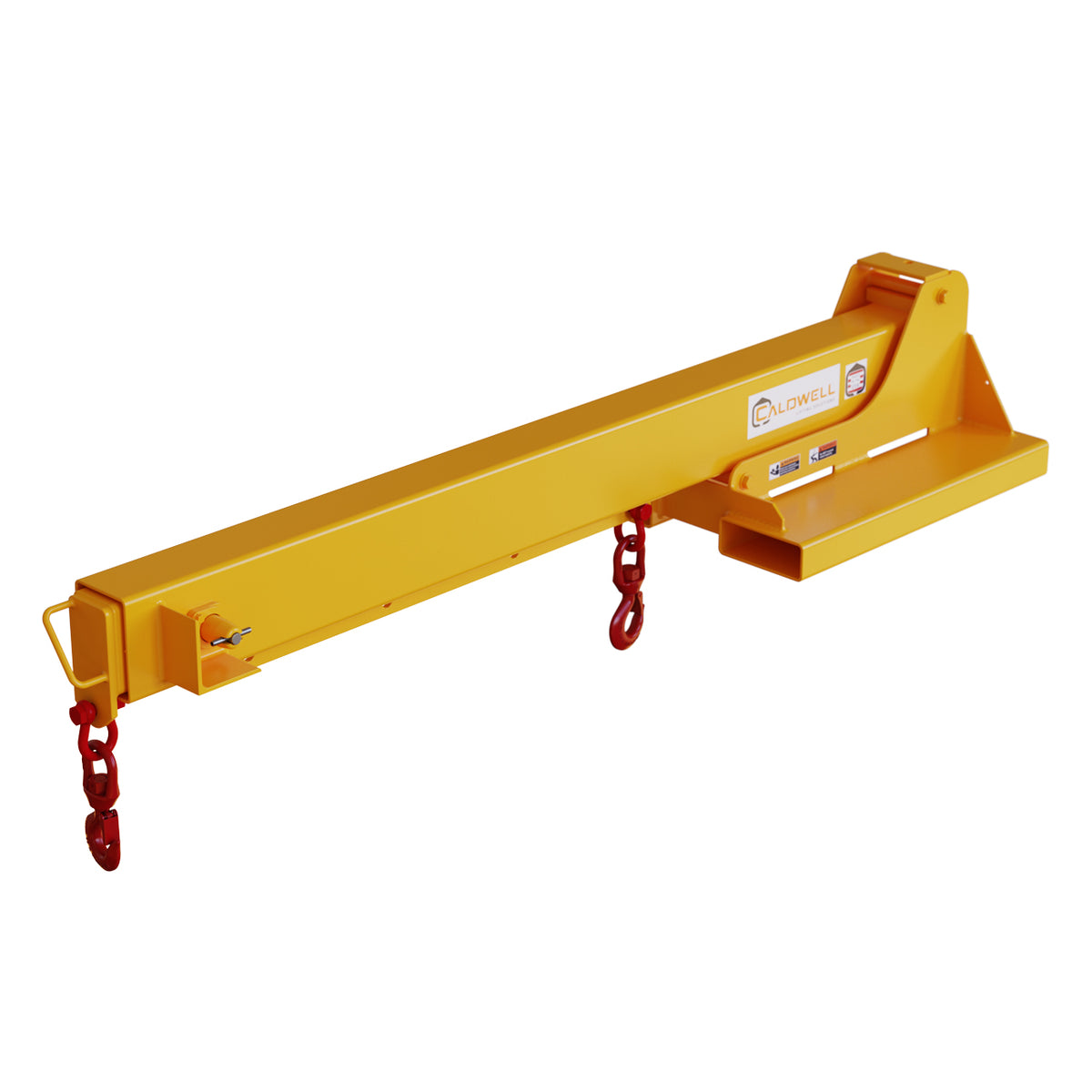

The Fixed Boom Model FB has a telescoping boom with a maximum horizontal reach of 12 feet. This model is available in 3000-, 4000-, 5000-, and 8000-lb capacities.
Features
- Alternate hook positions
- Telescoping boom
- Restraining chain with grab hook
- Handle at end for easy extension
- All sizes available with swivel or fixed hooks – only those with swivel hooks are in stock
- Boom locking t-pin
- Capacity of lift truck and attachment combination may be less than capacity shown on attachment; consult lift truck manufacturer for guidance
Specifications
| Fork Pocket Height | 2.5 |
| Fork Pocket Width | 7.5 |
| Out to Out | 22 |
Available Models
| Part No. | Rated Capacity | Capacity at Hook Position 10ft | Capacity at Hook Position 11ft | Capacity at Hook Position 12ft | Capacity at Hook Position 3 6ft | Capacity at Hook Position 7ft | Capacity at Hook Position 8ft | Capacity at Hook Position 9ft | Max Jaw Opening | Headroom | Temp Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| FB-30 | 3000 | 1900 | 1600 | 1500 | 3000 | 3000 | 2600 | 2200 | 1 | 16 | 350 | 355 |
| FB-60 | 6000 | 3000 | 2700 | 2500 | 6000 | 5000 | 4200 | 3500 | 1.36 | 17 | 400 | 395 |
| FB-80 | 8000 | 4100 | 3600 | 3100 | 8000 | 7000 | 5700 | 4800 | 1.61 | 18 | 535 | 530 |
